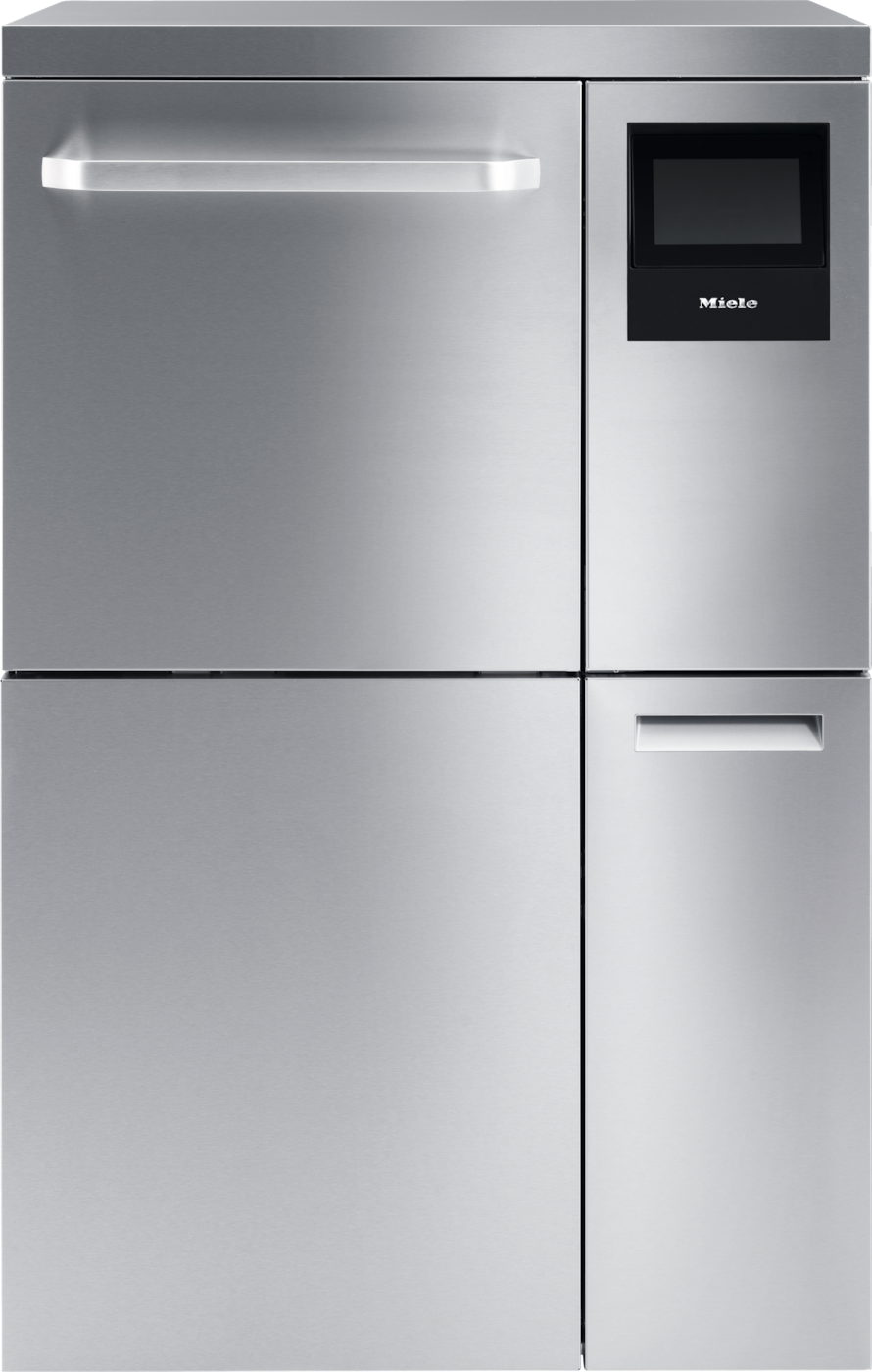

PLW 8636 [LAB MON]

Laboratory washer w. liquid dispensing, DryPlus, process monitoring and oil-resistant door seals.

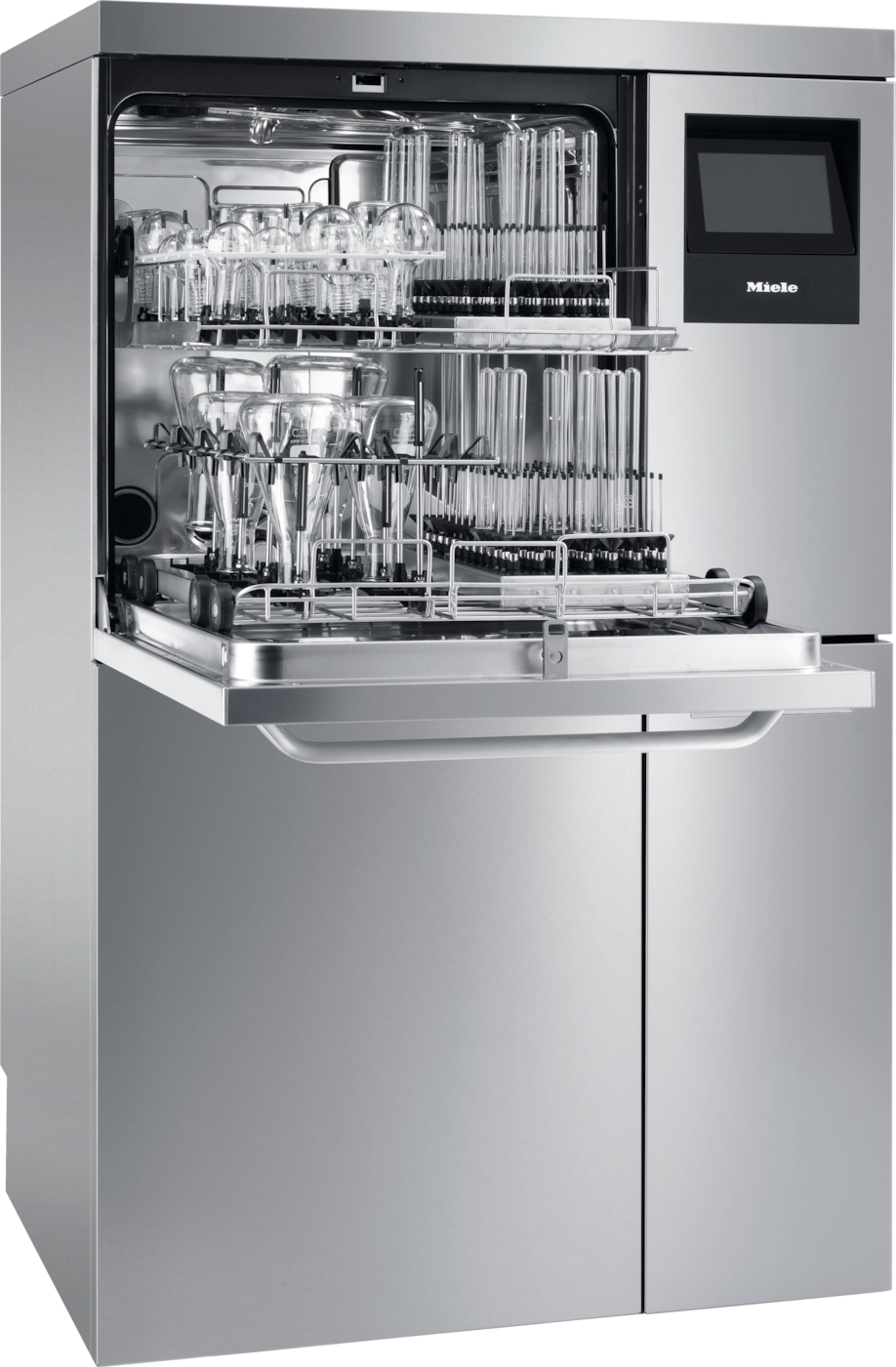

Performance/cycle, e.g. 128 ST laboratory bottles or 98 ST pipettes

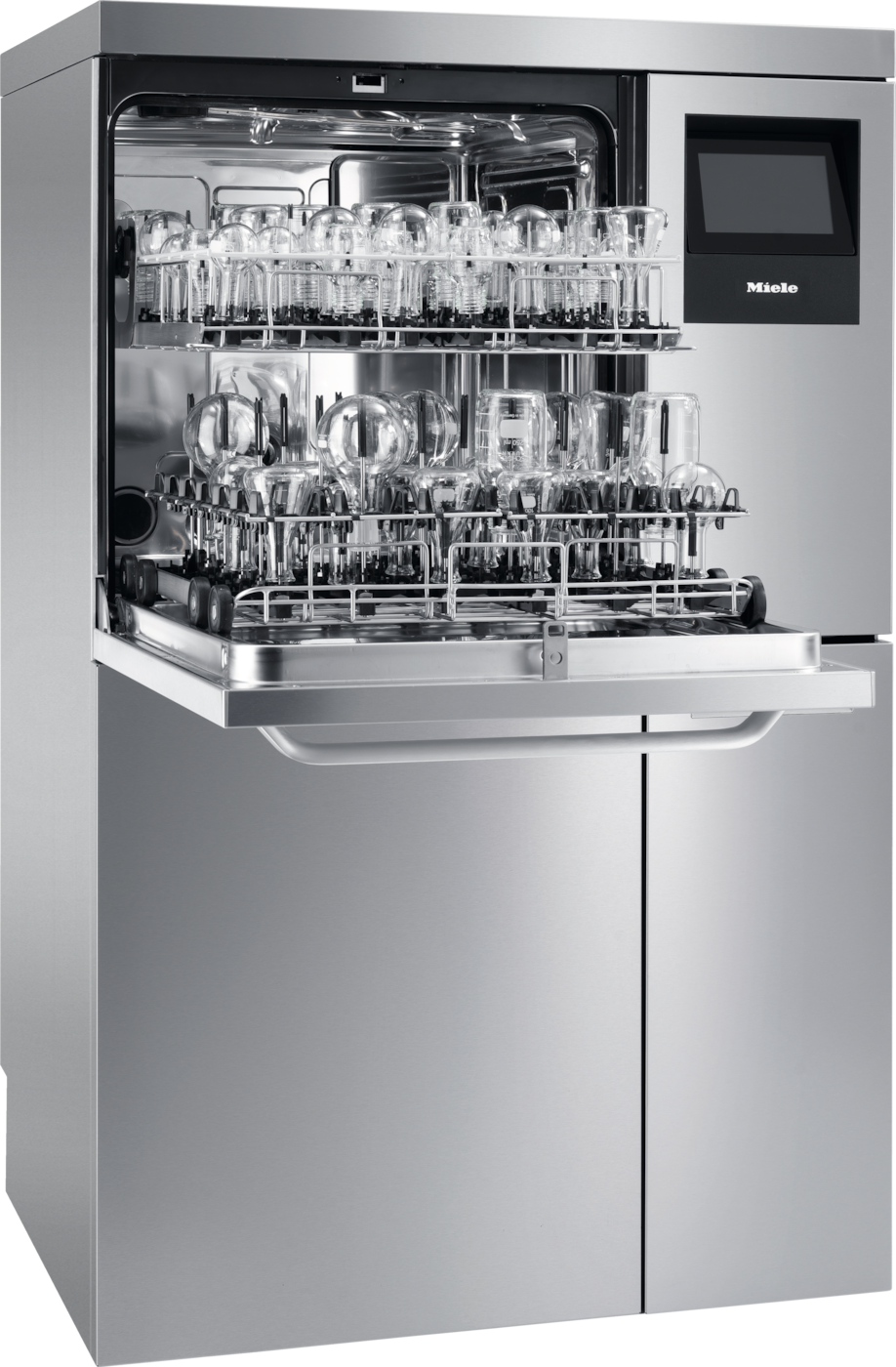

Alternative loads
There is space for additional laboratory glassware in a cycle with pipettes. Other loading options for each cycle would include 98 pipettes with 32 laboratory bottles or 64 laboratory bottles with 196 vials.
Monitoring of wash pressure, spray arm, conductivity and dispensing
Precise and reliable
The wash pressure and spray arm monitoring systems, which immediately detect a drop in wash pressure or load blockages, ensure reliable processes. In addition, any deviations from the prescribed conductivity of the water are detected.Thanks to the use of more resistant oval-wheel counters, the flow measurement is significantly more precise compared to conventional flowmeters. This means that a wider range of process chemicals can be used.
Comprehensive, fully flexible programming for your requirements
Customer-specific programmes
The machines are extremely adaptable thanks to freely programmable controls. They are already equipped with numerous programmes for all kinds of applications ex works. Authorised users can create their own User programmes.
Powerful, variable-speed and highly robust pump
The heart of perfect results
Customers can independently adjust the speed of the pump and the wash pressure in individual programme blocks. High pressure facilitates the removal of stubborn soiling, while low pressure guarantees complete wetting of the load items. The highly robust pump design enables perfect cleaning results, even with extensive soiling.
Drying unit DryPlus for challenging laboratory glassware
Efficient drying
DryPlus hot air drying is the ideal solution for narrow-lumened laboratory glassware such as small flasks, phials and pipettes. An upstream H14 HEPA filter ensures the reliable removal of particles from the air taken in for drying. The filter is easily accessible via a flap below the display.
Functional enhancement made possible with retrofitting kits

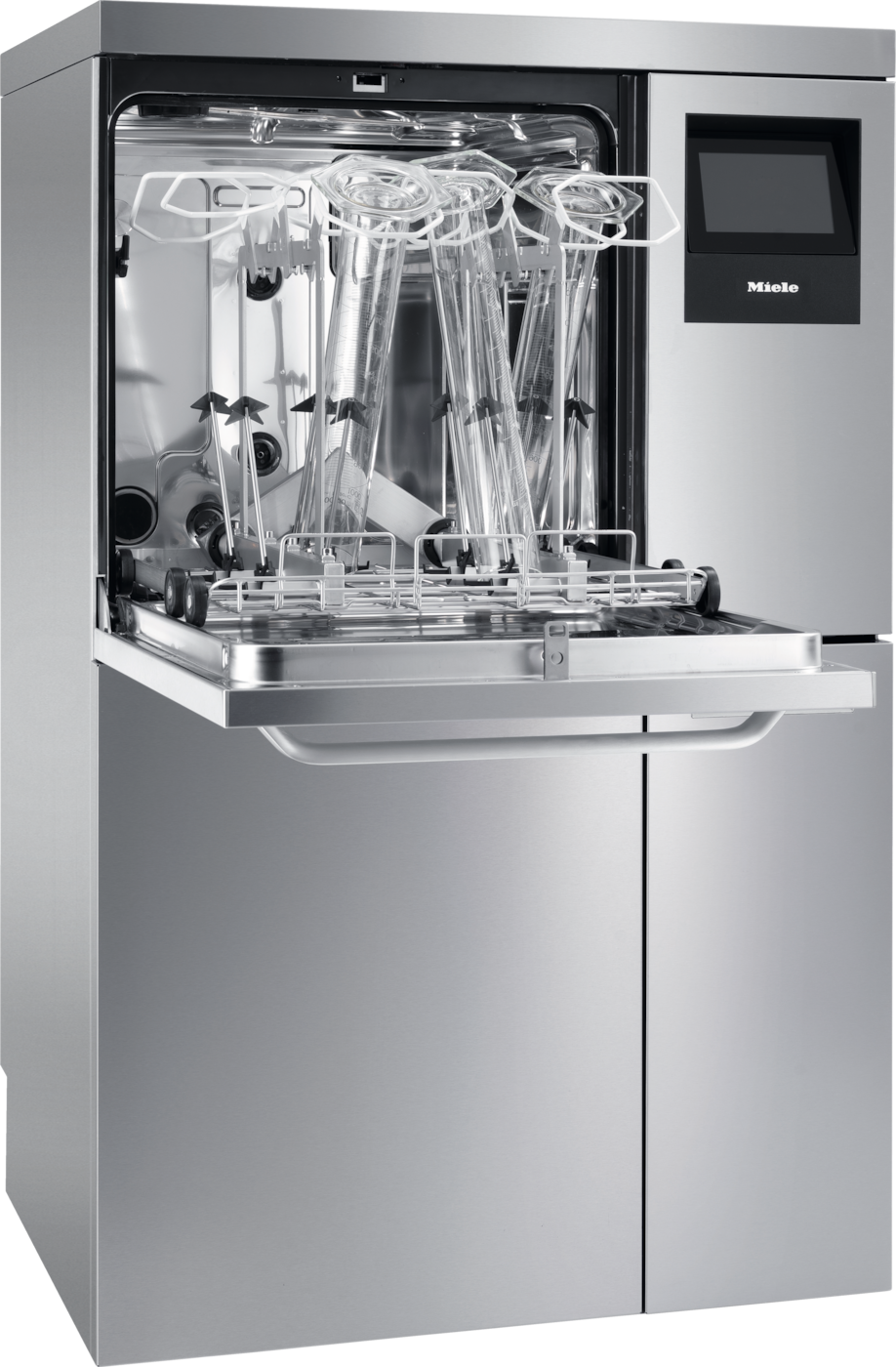

Flexible and simple – modular load carriers & EasyLoad system
Versatile load carriers
The versatile load carriers from Miele Professional offer a wide array of possibilities with regard to loading. The load carriers can be flexibly adapted to the load items in just a few steps with a small number of load carriers in combination with some additional modules and inserts. This saves costs as well as space.

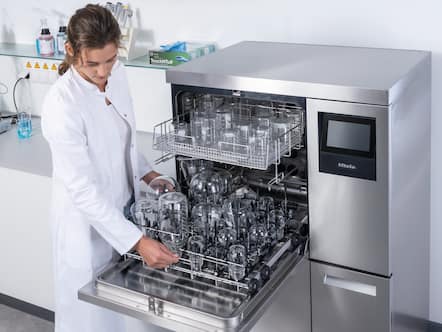

EasyLoad
The EasyLoad system makes reprocessing laboratory glassware considerably faster, simpler and more reliable. The biggest benefit afforded by the new system is that load items can be positioned over nozzles both more simply and faster as height adjustment of the holders is no longer necessary thanks to the smart combination of nozzles and holder racks. This makes correct positioning extremely easy.

Get a quote

Product benefits

Integrated water softener

Clean results

The integrated water softener ensures optimum cleaning effectiveness.

Oil-resistant door seals

Seals for special requirements

Door seals that are resistant to oil, grease and wax are installed in all PLW 8636 machines.

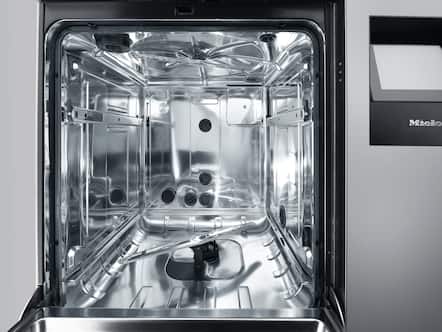

Crevice-free wash cabinet

Seamlessly welded

Perfect hygiene through optimised geometry and laser welding.

Conductivity monitoring

Safety through controls

Reliably clean: Residue-free final rinse for perfect results.

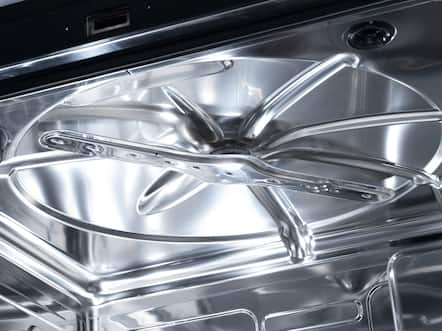

Spray arm monitoring

Safety through controls

Reliable cleaning performance thanks to the monitoring of the rotation speed of the spray arm.

Spray arm pressure monitoring

Safety through controls

The wash pressure is monitored for perfect cleaning results.

Programmable controls

Increased versatility

Optimum performance: The freely programmable controls enable excellent results with different loads.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.

Integrated water softener

Clean results

The integrated water softener ensures optimum cleaning effectiveness.

Consistent spray coverage

Perfectly matched

Consistent spray coverage offers significant advantages in demanding cleaning applications.

Triple water filter system

Best reprocessing results

The water is filtered three times for an optimum wash result and a longer pump service life.

High circulation rate

High washing power

Powerful circulation pumps ensure thorough cleaning.

Innovative cleaning programme

Cleaning perfection

Optimum cleaning results and value retention thanks to innovative cleaning programmes for over 50 years.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.

Ethernet interface

Cable-supported communication

The Ethernet interface enables cable-supported communication in the local network.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.

Oil-resistant door seals

Seals for special requirements

Door seals that are resistant to oil, grease and wax are installed in all PLW 8636 machines.

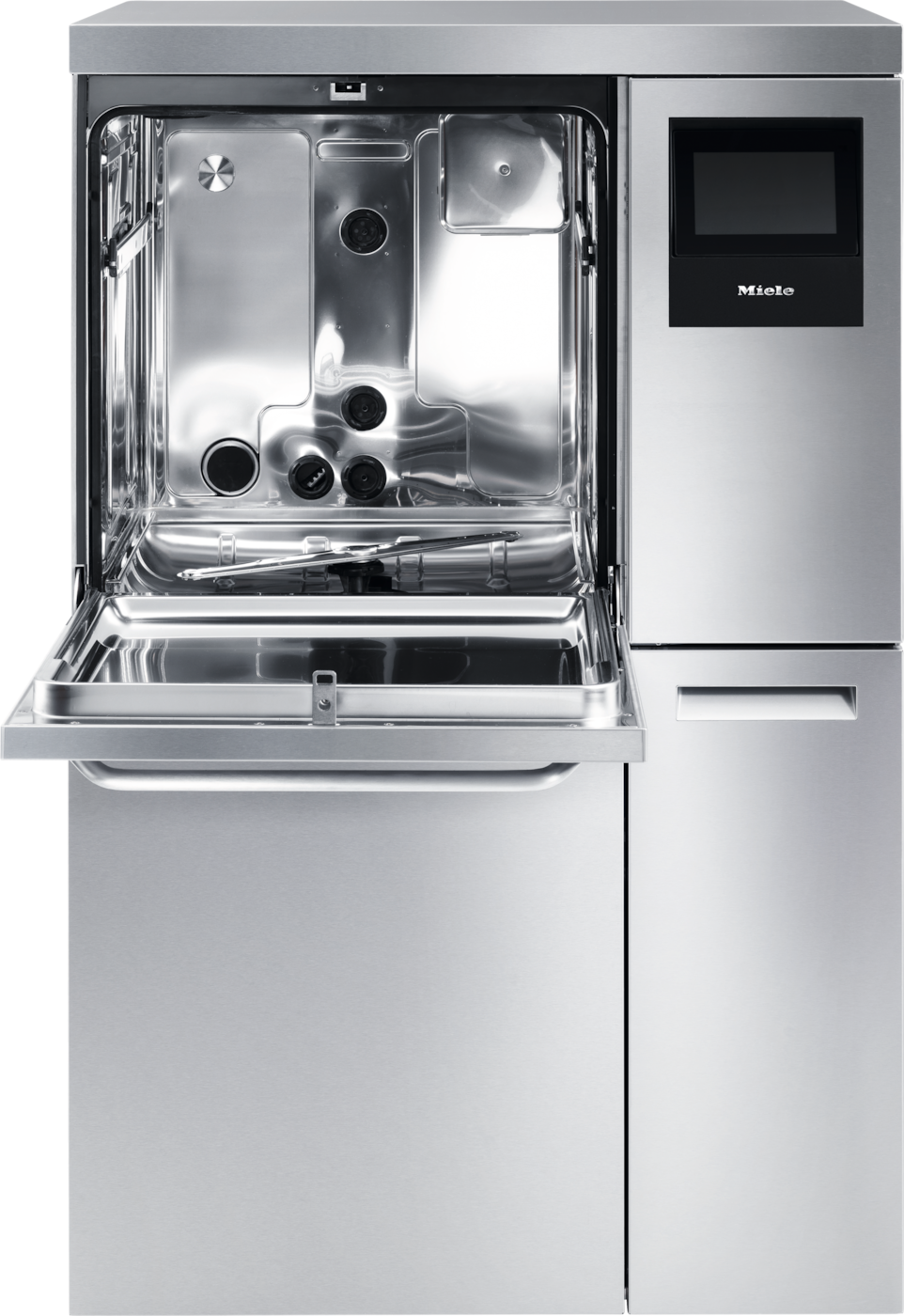

Crevice-free wash cabinet

Seamlessly welded

Perfect hygiene through optimised geometry and laser welding.

Heater elements outside the wash cabinet

Hygienic and practical

A plus for hygiene: The heating elements are installed outside the wash cabinet.

Easy-to-service construction

Simple access to the machine

Short service times thanks to maintenance-optimised appliance design.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.

Conductivity monitoring

Safety through controls

Reliably clean: Residue-free final rinse for perfect results.

Spray arm monitoring

Safety through controls

Reliable cleaning performance thanks to the monitoring of the rotation speed of the spray arm.

Spray arm pressure monitoring

Safety through controls

The wash pressure is monitored for perfect cleaning results.

Dispensing monitoring with oval-wheel counter

Precise dispensing at any temperature

Oval-wheel counters are used for measuring dispensing quantities regardless of the medium viscosity.

HEPA filters

Pure air

Protection against contamination thanks to particle-free drying air.

Process documentation

End-to-end documentation

Safety through the clear documentation of all the reprocessing steps.

Waterproof System (WPS)

Protection against flooding

Protection against flooding: In the event of problems, the system stops water intake automatically.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.

Programmable controls

Increased versatility

Optimum performance: The freely programmable controls enable excellent results with different loads.

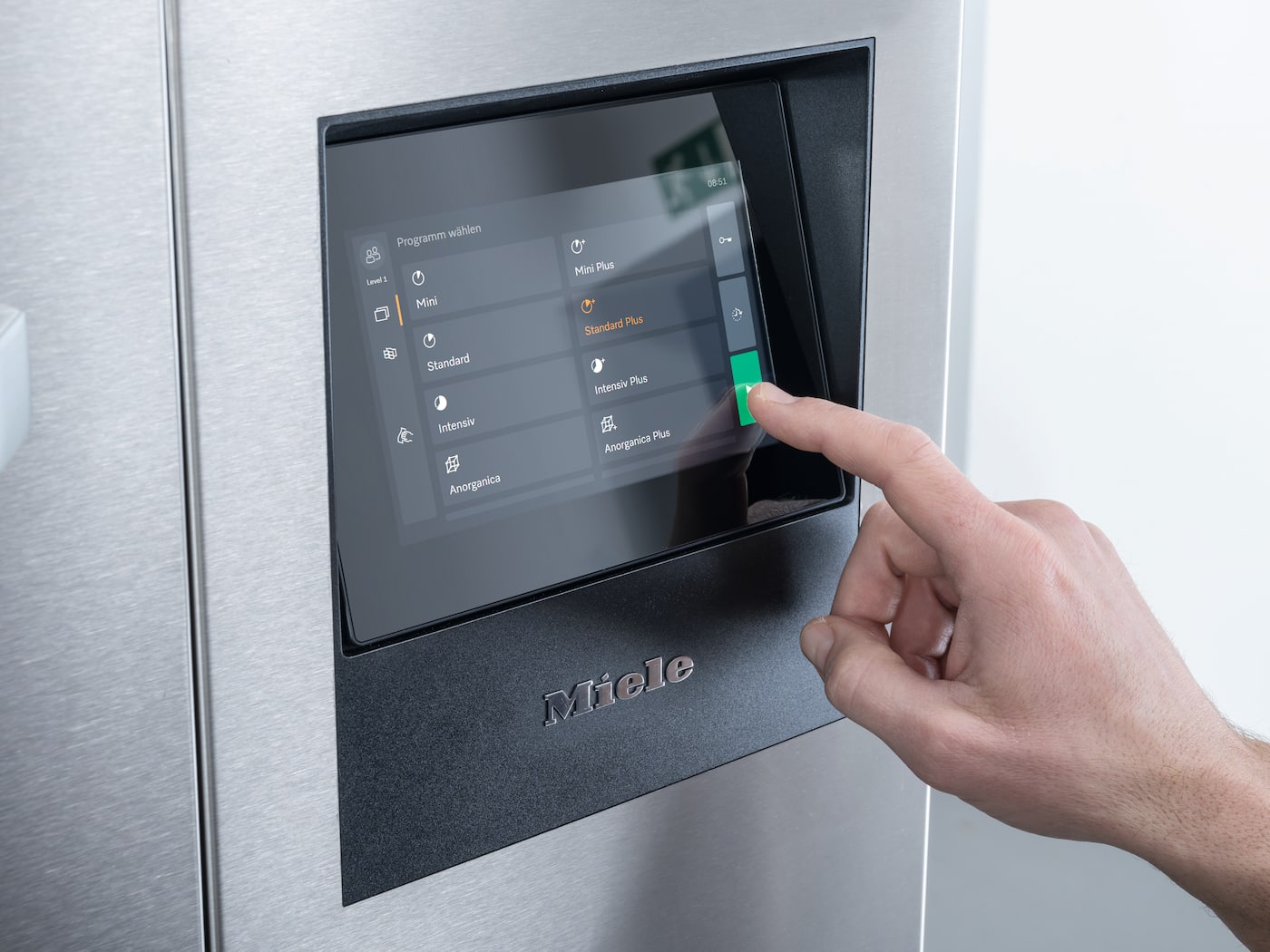

Clear text display

Text display

Everything at a glance: The display shows everything as clear text in the country-specific language.

Flexible language selection

The international expert

The language setting can be changed at any time – even during a cleaning process.

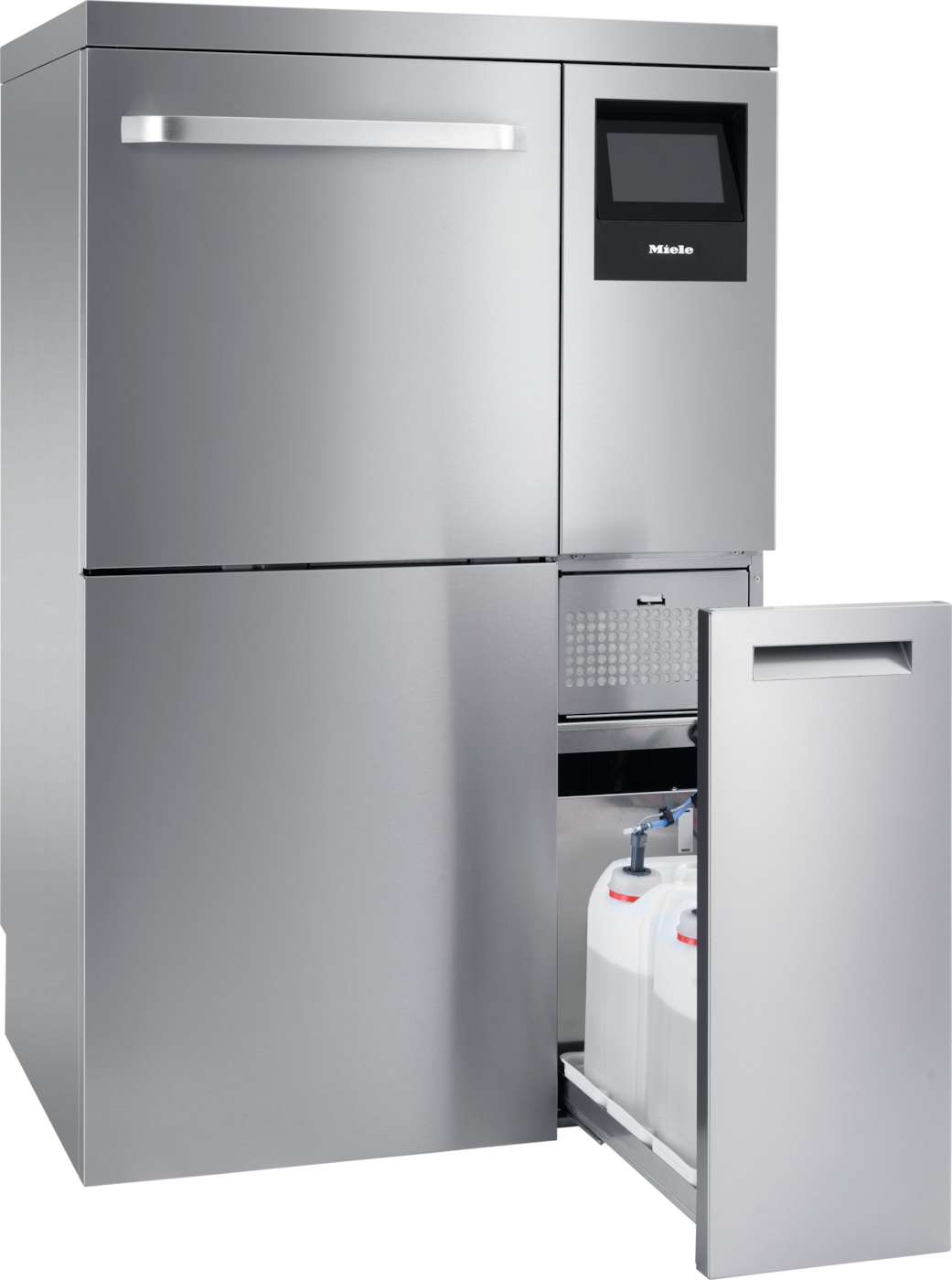

Setting options for media canisters

Perfectly stored

Tidy and clean: setting options for liquid media.

Ergonomic loading height

User-friendly and resilient

With a loading height of 800 mm, the machine can be loaded and unloaded conveniently.

Large selection of components

Reprocess flexibly

Flexible and comprehensive components for optimum cleaning performance and a variety of reprocessing options.

Additional integrable dispenser pumps

Dispense practically and easily

For applications that require additional media, additional dispenser pumps can be integrated into the machine.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.

Show all benefits

Product details

PLW 8636 [LAB MON]
EAN 4002516824435 / Article number 62863602GB / Material number 12637710

Construction type and version

Construction type	Freestanding appliance, wide
Range	ExpertLine
Casing	Stainless steel
Control panel colour	Stainless steel
Lid	Stainless Steel
Number of wash levels	2
Electric door lock
Service-friendly design	Easy-to-service construction Short service times thanks to maintenance-optimised appliance design.

Application

Suitable for laboratories	Perfect for laboratories These laboratory washers meet the requirements of a laboratory particularly well. Thanks to their powerful wash technology and variety of programmes including flexible loading variations to accommodate all kinds of laboratory glassware, they facilitate fast and analytically pure reprocessing.

Capacity

Narrow-necked glassware per cycle [number]	128
Test tubes per cycle [number]	196
Laboratory flasks per cycle [number]	128
Pipettes per cycle [number]	98

Performance data

Circulation pump, Qmax in l/min	600
Shortest programme running time in min Drying Some machines have a drying option. This can be set individually depending on the reprocessing situation.	62
Maximum final rinse temperature in °C	93
Wash cabinet usable capacity in l	146
Tested operating hours Note Our machines undergo intensive testing under laboratory conditions. The actual operating hours may vary depending on actual usage behaviour, maintenance and care of the machine.	15000

Control system

Control type	SPS
Max. delay start in h	24
Programmability	Freely programmable
Programmes [number]	24
Free programme positions [number]	50
Time left display
Selectable display languages	Adjustable display language No misunderstandings: The user can select his/her language of choice from a number of different options. All display notifications appear in this language, so that the highest level of operating safety is ensured.

Standard electrical connection

Electrical connection	3N AC 400V 50HZ
Electric heater rating in kW	7
Total rated load in kW	9.2
Fuse rating in A	16
Length of mains connection cable in m Note The length refers to the supply lead on the outside of the appliance.	2.65

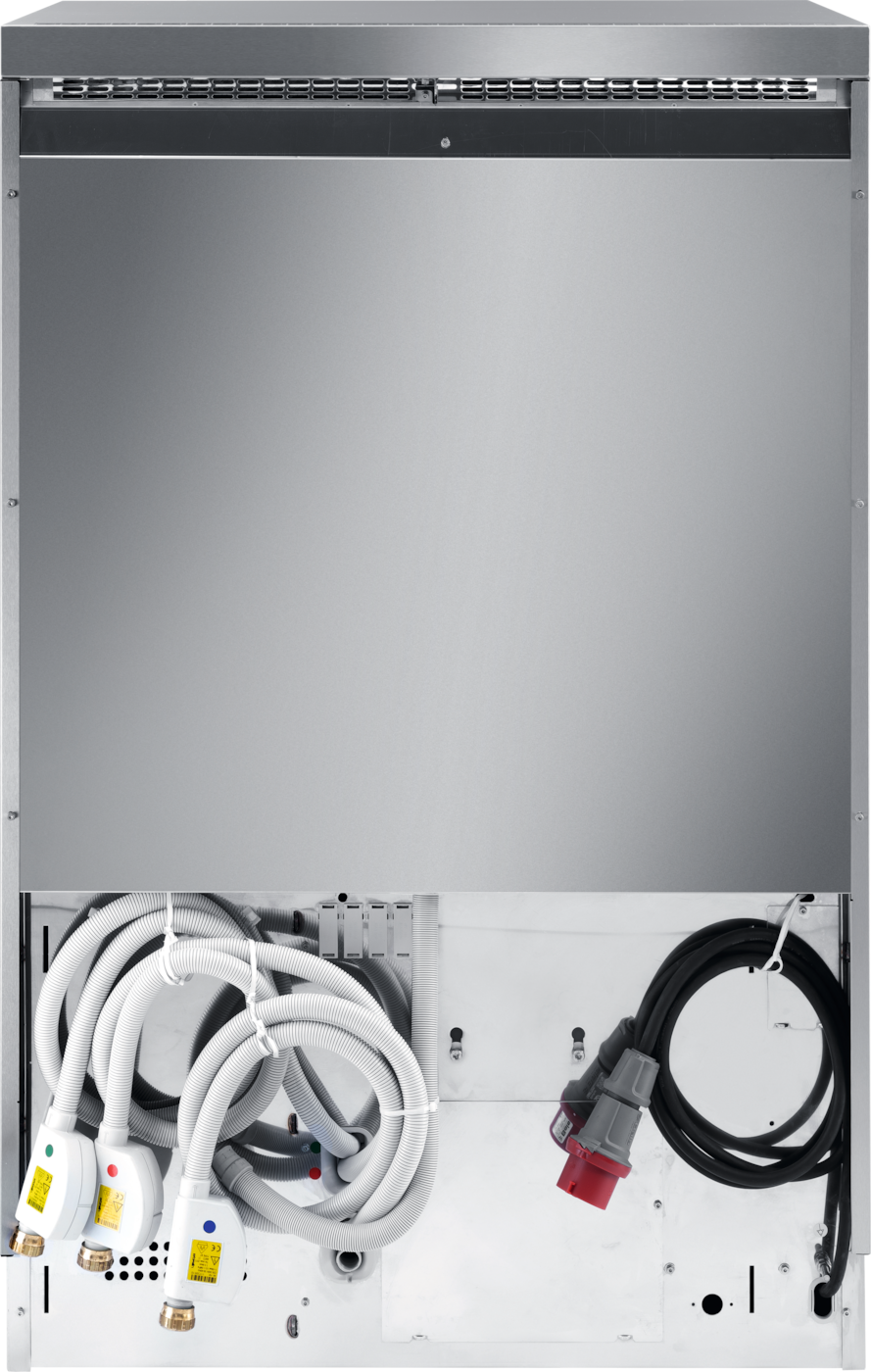

Water connection/drainage

Cold water [number]	1
Cold water for steam condenser [number]	2
Hot water [number] Efficient hot water connection Connection to the warm water supply saves a lot of time and energy.	1
DI water [number] DI water connection Thanks to the connection for fully demineralised water (DI water), these washer-disinfectors and thermal disinfectors facilitate optimum reprocessing results. Carrying out the final rinse with DI water also protects valuable wash items from deposits and corrosion.	1
Required flow pressure in kPa Note on ADP variants This value applies to cold, hot and DI water; however, it does not apply to DI water intake on ADP variants because these use a feed pump.	200-1000
Required flow pressure for pressureless DI water in kPa	8.5-60
Maximum delivery head for drain pump in cm	170
Integrated water softener	Integrated water softener The integrated water softener ensures optimum cleaning effectiveness.
Maximum water hardness (cold water/hot water) in mmol/l	10.7
Drain pump [DN]	22
Water protection system Waterproof System (WPS) Protection against flooding: In the event of problems, the system stops water intake automatically.	Waterproof system

Drying unit

Fan in kW	0.3
Heater element in kW	2.3
Air throughput in m³/h	66
Time setting in 1-minute increments	1-240
HEPA filter class	H14 Efficient hot air drying Efficient internal and external drying of the whole instrument using hot air filtered with a H14 HEPA filter.
HEPA filter filtration efficiency (in accordance with DIN EN 1822) in %	99.995
HEPA filter service life in h	500

Dimensions and weight

External dimensions, net height in mm	1430
External dimensions, net width in mm	900
External dimensions, net depth in mm	700
External dimensions, gross height in mm Note Including packaging	1593
External dimensions, gross width in mm Note Including packaging	1080
External dimensions, gross depth in mm Note Including packaging	850
Wash cabinet, usable height in mm	520
Wash cabinet, usable width in mm	530
Wash cabinet, depth of upper basket in mm	470
Wash cabinet, depth of lower basket in mm	520
Net weight in kg	200
Gross weight in kg Note Including packaging	226
Maximum floor load in N/m² Maximum floor bearing capacity Maximum floor bearing capacity states the maximum weight (N) that can be placed on the supporting surface on which the machine is installed. This maximum load bearing capacity is the result of adding up the weight of the machine, the load and the water in it, as well as the dynamic forces that occur during operation.	5000

Emissions data

Emission sound pressure level in the workplace Emissions - sound pressure at workplace The emission sound pressure level depends on the programme and is a value given to the noise created by the machine. Miele Professional appliances have very low noise levels.	65 dB(A) re 20 µPa
Heat dissipation into the room in MJ/h Heat output into the room During operation warm air is vented into the surrounding room. The released amount of heat/time depends on the set temperatures and the intensity of use. The stated maximum value can be used to control the temperature of the area or to calculate an increase in room temperature.	4.32

Programmes

Standard
Standard Plus	Load-dependent power levels can be set Depending on the type and number of baskets and modules used, different volumes of water and pump speeds are required to achieve a similar wash pressure. For this reason, most programmes are supplied with two power levels. The water volume and pump speed are higher in the “Plus” programmes than in the standard programme versions.
Universal
Universal Plus	Load-dependent power levels can be set Depending on the type and number of baskets and modules used, different volumes of water and pump speeds are required to achieve a similar wash pressure. For this reason, most programmes are supplied with two power levels. The water volume and pump speed are higher in the “Plus” programmes than in the standard programme versions.
Intensive
Intensive Plus	Load-dependent power levels can be set Depending on the type and number of baskets and modules used, different volumes of water and pump speeds are required to achieve a similar wash pressure. For this reason, most programmes are supplied with two power levels. The water volume and pump speed are higher in the “Plus” programmes than in the standard programme versions.
Inorganic	Innovative cleaning programme Optimum cleaning results and value retention thanks to innovative cleaning programmes for over 50 years.
Inorganic Plus	Load-dependent power levels can be set Depending on the type and number of baskets and modules used, different volumes of water and pump speeds are required to achieve a similar wash pressure. For this reason, most programmes are supplied with two power levels. The water volume and pump speed are higher in the “Plus” programmes than in the standard programme versions.
Organic	Innovative cleaning programme Optimum cleaning results and value retention thanks to innovative cleaning programmes for over 50 years.
Organic Plus	Load-dependent power levels can be set Depending on the type and number of baskets and modules used, different volumes of water and pump speeds are required to achieve a similar wash pressure. For this reason, most programmes are supplied with two power levels. The water volume and pump speed are higher in the “Plus” programmes than in the standard programme versions.
Agar	Load-dependent power levels can be set Depending on the type and number of baskets and modules used, different volumes of water and pump speeds are required to achieve a similar wash pressure. For this reason, most programmes are supplied with two power levels. The water volume and pump speed are higher in the “Plus” programmes than in the standard programme versions.
Agar Plus	Load-dependent power levels can be set Depending on the type and number of baskets and modules used, different volumes of water and pump speeds are required to achieve a similar wash pressure. For this reason, most programmes are supplied with two power levels. The water volume and pump speed are higher in the “Plus” programmes than in the standard programme versions.
Vials Plus	Load-dependent power levels can be set Depending on the type and number of baskets and modules used, different volumes of water and pump speeds are required to achieve a similar wash pressure. For this reason, most programmes are supplied with two power levels. The water volume and pump speed are higher in the “Plus” programmes than in the standard programme versions.
Pipettes
Plastics
Plastics Plus	Load-dependent power levels can be set Depending on the type and number of baskets and modules used, different volumes of water and pump speeds are required to achieve a similar wash pressure. For this reason, most programmes are supplied with two power levels. The water volume and pump speed are higher in the “Plus” programmes than in the standard programme versions.
Mini
Mini Plus	Load-dependent power levels can be set Depending on the type and number of baskets and modules used, different volumes of water and pump speeds are required to achieve a similar wash pressure. For this reason, most programmes are supplied with two power levels. The water volume and pump speed are higher in the “Plus” programmes than in the standard programme versions.
Oil	Load-dependent power levels can be set Depending on the type and number of baskets and modules used, different volumes of water and pump speeds are required to achieve a similar wash pressure. For this reason, most programmes are supplied with two power levels. The water volume and pump speed are higher in the “Plus” programmes than in the standard programme versions.
Oil Plus	Load-dependent power levels can be set Depending on the type and number of baskets and modules used, different volumes of water and pump speeds are required to achieve a similar wash pressure. For this reason, most programmes are supplied with two power levels. The water volume and pump speed are higher in the “Plus” programmes than in the standard programme versions.
Hygiene 93/10
Hygiene 93/10 Plus	Load-dependent power levels can be set Depending on the type and number of baskets and modules used, different volumes of water and pump speeds are required to achieve a similar wash pressure. For this reason, most programmes are supplied with two power levels. The water volume and pump speed are higher in the “Plus” programmes than in the standard programme versions.
Pasteurising

Features

2 integrated dispenser pumps and containers for liquid media	2 integrated dispenser pumps Liquid media are dispensed simply and automatically via 2 dispenser pumps.
Additional integrated dispensing pump 5–10 l (optional)
Suction lance for media canisters 10–20 l (optional)
DOS monitoring (optional)
Automatic level detection
Additional integrated dispenser pumps (optional)	Additional integrable dispenser pumps For applications that require additional media, additional dispenser pumps can be integrated into the machine.
Dispensing monitoring with oval-wheel counter
Steam condenser
Connection for external recycling tank (option)
Spray pressure monitoring	Spray arm pressure monitoring The wash pressure is monitored for perfect cleaning results.
Spray arm monitoring	Spray arm monitoring Reliable cleaning performance thanks to the monitoring of the rotation speed of the spray arm.
Conductivity monitoring	Conductivity monitoring Reliably clean: Residue-free final rinse for perfect results.
Redundant temperature monitoring	Redundant temperature monitoring Added reliability with double temperature measurement.
Retrofitting kit for potential-free contacts (optional)
Retrofitting kit for Rec in potential-free contacts (optional)
Retrofitting kit for Rec out potential-free contacts (optional)
Triple water filter system	Triple water filter system The water is filtered three times for an optimum wash result and a longer pump service life.
Interface for process documentation	Process documentation Safety through the clear documentation of all the reprocessing steps.
Pump with high circulation rate	High circulation rate Powerful circulation pumps ensure thorough cleaning.
Load carrier – direct coupling
Salt container in the wash cabinet ceiling
USB Customer Service interface
Setting options for process chemicals (3 x 5 l / 2 x 10 l)	Setting options for media canisters Tidy and clean: setting options for liquid media.
Wash cabinet seamlessly welded using laser technology	Crevice-free wash cabinet Perfect hygiene through optimised geometry and laser welding.
Heater elements outside wash cabinet	Heater elements outside the wash cabinet A plus for hygiene: The heating elements are installed outside the wash cabinet.
Oil and grease-resistant seals
Wash cabinet made from high-quality stainless steel (1.4301/304)	Wash cabinet made from high-quality stainless steel. The wash cabinet is made of stainless steel quality 1.4301. The base of the wash cabinet and the inside door panel are qualitatively superior.
Extensive components (option)	Large selection of components Flexible and comprehensive components for optimum cleaning performance and a variety of reprocessing options.

Connection options

Ethernet interface	Ethernet interface The Ethernet interface enables cable-supported communication in the local network.

Standards, test certificates and symbols

CE
VDE (electrical safety)
RoHS guideline 2011/65/EU
Machinery Directive 2006/42/EC
KIWA certificate for water safety

Additional accessories and consumables

Find additional accessories and consumables to go with this product

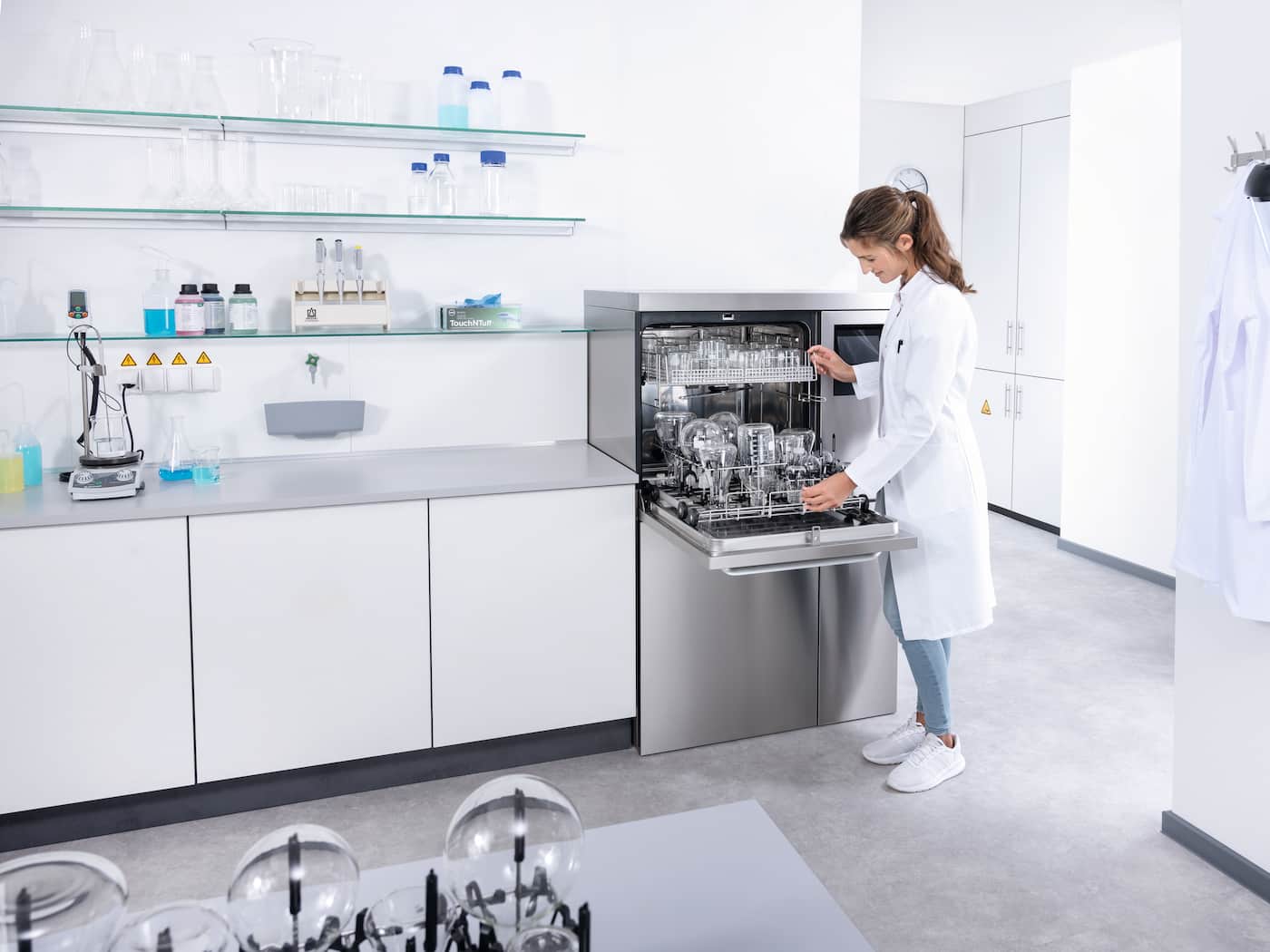

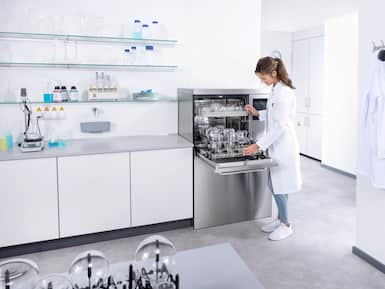

Laboratory washer filled with laboratory glassware.

Additional accessories for laboratory technology

Find here the accessories that can be bought additionally for this product.

Go to accessories

Service & Support

Contact

Get in touch with us. We are always there for you and will be happy to answer your questions and requests.

Call our experts.

If you have any questions or need further information please contact us on 0330 160 6693*

*Free of charge.

Get in touch with us.

Request individual consultation appointment

Request your personal consultation appointment for an individual planning.

Request consultation

Request spare parts

Do you need spare parts for your products? Please feel free to contact us!

Request spare parts

Service & Support

Individual requests for service and maintenance contracts

Service and maintenance contracts

Inspection, maintenance and service contribute to preserving the value of your equipment and thus to safeguarding your investment. We offer the right solution for every need and are happy to answer further questions about service and maintenance contracts.

Get in touch

Downloads
