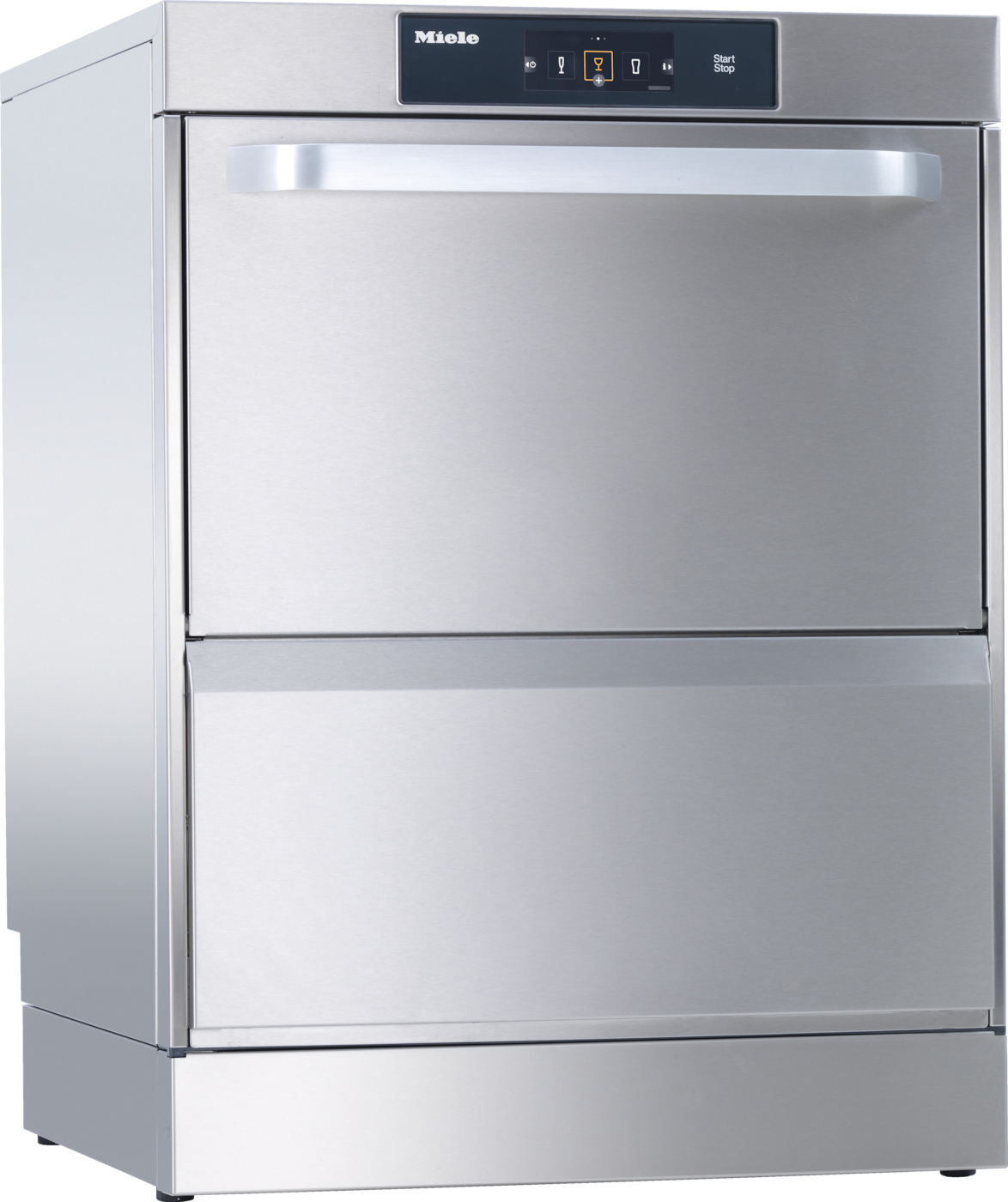

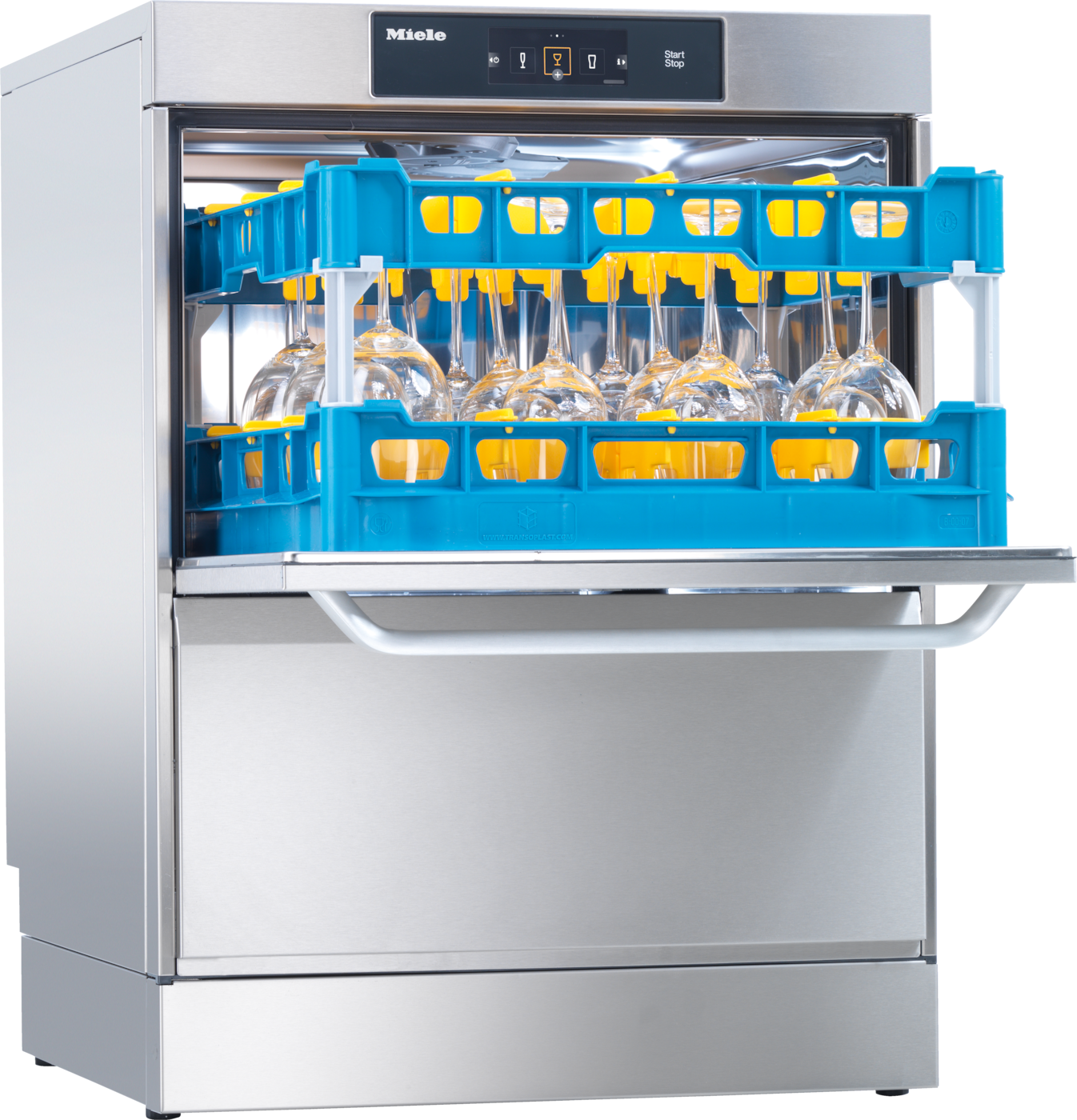

PTD 702 [RO DOS]

Tank dishwasher compact size - with integrated cleaning agent containers & reverse osmosis system.

Maximum cleaning performance^*: 1960 glasses/hDepending on site conditions (temperature of incoming water / power connection) values given may vary.
Brilliant results in the shortest amount of time^*
Thanks to the professional wash system, washed items can be used again quickly.Depending on site conditions (temperature of incoming water / power connection) values given may vary.
Perfect results without manual polishing
For demanding situations
Thanks to an integrated reverse osmosis unit, sparkling results are achieved without having to revert to manual polishing. This saves personnel costs, avoids costly breakages and offers guests the ultimate in hygiene.
Simple and flexible operation – full-touch display
Full-touch display
All the main information is accessible quickly and easily via the convenient full-touch display.
Perfect for integration in under-counter installations
Optimal cleaning - max. surface coverage and best filter system

Material machine front

Get a quote

Product benefits

Proven hygiene

Effective against viruses – scientifically proven

Our tank dishwashers remove more than 99.9 %^* of all viruses (including coronaviruses).A description of the relevant methodology for the PTD 70x can be found under the following link: https://www.miele.com/media/ex/com/Professional/Pruefberichte_Virussiegel/PTD70x_Viruswirksamkeit_Testkriterien_Virus_effectiveness_test_criteria_2021-11-25.pdf. | A description of the relevant methodology for the PTD 901 can be found under the following link: https://www.miele.com/media/ex/com/Professional/Pruefberichte_Virussiegel/PTD901_Viruswirksamkeit_Testkriterien_virus_effectiveness_test_criteria_04.22.pdf.

Optimised spray arm

Efficient

Optimised nozzle design helps to achieve optimum surface coverage and efficient use of resources.

Integrated reverse-osmosis system

Sparkling results in any environment

Perfect solution for sparkling glasses & shiny cutlery when space is limited, e.g. in under-counter installations.

Tank systems

Perfect for continuous use

Very short cycles due to the permanent supply of hot water.

Specific programme for items to be washed

Tailored to the items being cleaned

Regardless of the items and how dirty they are, there is an effective programme for all requirements.

Adjustable programme parameters

Variable adjustment options

Adjusting the programme parameters as required ensures consistently perfect dishwashing results

Integrated dispenser pump for liquid detergent

Optimum dosage and positioning

Automatic dispensing saves time and makes the process reliable.

Integrated consumable containers

The space-saving solution

Integrated consumable containers mean there’s no need to keep space free for media canisters in the units.

Perfect integration in a run of kitchen units

Versatile

Perfect appearance thanks to dishwashers that can be built-under.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.

Individual basket configuration

Baskets to suit your needs

For optimum loading that perfectly meets your needs.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.

Low consumption values

Economical

Economical and efficient: Miele Professional dishwashers stand out with low consumption values.

Integrated water softener

Ensures the optimum water hardness level

The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results.

PerfectWater

Optimum water quality

Innovative: The PerfectWater function prevents resalination of the water.

WaterEco^*Prerequisite: water intake max. 0.54 mmol/l (3 °dH)

Optimum cost-efficiency

Cost-effective: The water quality can be used according to demand.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.

Proven hygiene

Effective against viruses – scientifically proven

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.

Optimised spray arm

Efficient

Optimised nozzle design helps to achieve optimum surface coverage and efficient use of resources.

Integrated reverse-osmosis system

Sparkling results in any environment

Perfect solution for sparkling glasses & shiny cutlery when space is limited, e.g. in under-counter installations.

Tank systems

Perfect for continuous use

Very short cycles due to the permanent supply of hot water.

Specific programme for items to be washed

Tailored to the items being cleaned

Regardless of the items and how dirty they are, there is an effective programme for all requirements.

Adjustable programme parameters

Variable adjustment options

Adjusting the programme parameters as required ensures consistently perfect dishwashing results

Spray arm control

Optimum wash results

If a spray arm is obstructed by crockery or cutlery, the display will indicate this.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.

Hygienic tank interior

No sharp corners or edges

Particularly hygienic: The thermoformed wash cabinet prevents deposits and reduces the time spent cleaning.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.

Integrated dispenser pump for liquid detergent

Optimum dosage and positioning

Automatic dispensing saves time and makes the process reliable.

Integrated consumable containers

The space-saving solution

Integrated consumable containers mean there’s no need to keep space free for media canisters in the units.

Perfect integration in a run of kitchen units

Versatile

Perfect appearance thanks to dishwashers that can be built-under.

Selectable display languages

Your dishwasher “speaks” multiple languages

All-rounder: you can choose the language for the display so that you fully understand everything.

Full-touch display

Intuitive operation

All the main information is accessible quickly and easily via the convenient full-touch display.

Internal dispenser unit for rinse aid

Optimum dosage

The rinse aid is dispensed automatically. The preset dosage can be altered if required.

A wide range of accessories

Optimum features

Always perfect ergonomics and efficiency - with practical accessories, from special baskets to dispenser pumps.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.

Show all benefits

Product details

PTD 702 [RO DOS]
EAN 4002516104278 / Article number 61070206D / Material number 11097670

Construction type and version

Construction type	Freestanding dishwasher, can be built under Perfect integration in a run of kitchen units Perfect appearance thanks to dishwashers that can be built-under.
Range	Professional
Wash system	Tank front loader The tank dishwashing system for constant use One major advantage of the tank dishwashing system is the fact that the dishwasher is always ready for use. This is made possible by keeping the cleaning water available at the desired temperature, resulting in extremely short programme running times with outstanding cleaning results.
Number of levels	1
Front	Stainless steel
Lid	Stainless Steel
Side panels	Stainless steel
Rear panel	Plastic
Tank volume in l	15.3

Application

Suitable for small restaurants/bars	Dishwashers for restaurants These dishwashers meet the requirements of restaurants, for example with especially quick programmes for convincing results even at peak times.
Suitable for hospitality industry	Dishwashers for hotels These dishwashers meet the requirements of hotels, for example with especially quick programmes for excellent results even at peak times.
Suitable for guesthouses	Dishwashers for guesthouses These dishwashers meet the requirements of guesthouses, for example because they are especially easy to use and with their quick cycle times allow several loads per day.

Performance data

Tested virucidal efficacy	Effective against viruses – scientifically proven According to certification issued by the InFluenc_H – Institute for Integrative Hygiene and Virology, cleaning with tank dishwashers in programmes 1, 2 and 3 using Miele’s ProCare Shine 10 A and 10 GC cleaning agents removes enveloped viruses including not only the coronavirus, for example, but also noroviruses and adenoviruses.
Circulation pump Qmax in l/min.	200
Shortest programme duration in sec. Performance data The values quoted may vary depending on the on-site conditions (power connection/water intake temperature).	55
Maximum final rinse temperature in °C	90
Cleaning performance, glasses/h Performance data The values quoted may vary depending on the on-site conditions (power connection/water intake temperature).	1960
Cleaning performance, baskets/h Performance data The values quoted may vary depending on the on-site conditions (power connection/water intake temperature).	40
Service life in wash cycles Note Our machines undergo intensive testing under laboratory conditions. The actual number of wash cycles may vary depending on actual usage behaviour, maintenance and care of the machine.	250000

Power integr. reverse osmosis

Permeate yield at 15 °C intake temperature in l/h (minimum)	42
Salt retention rate in % (minimum)	93
Product water quality in µS/cm (maximum)	NaN μS/cm

Control system

Control system	Electronic controls
Programme selection	Full-touch display
Automatic On/Off standby switch	Automatic standby on/off The programmable start for the dishwasher avoids waiting times, if the dishwasher is required to be ready to operate at the start of a shift. Individual on/off times can be programmed for weekdays. This means that the first basket can be processed at the very start of a shift with the usual short cycle time.
Dishwashing programmes [number]	3
Coloured programme sequence indicator
Choice of display language	Selectable display languages All-rounder: you can choose the language for the display so that you fully understand everything.

Standard electrical connection

Electrical connection	3N AC 380-415V 50HZ
Tank heater rating in kW	1.8
Boiler heater rating in kW	4.9
Total connected load in kW	8.1
Fuse rating in A	16
Length of mains connection cable in m Note The length refers to the supply lead on the outside of the appliance.	1.5

Possible voltage variant 1

Electrical connection	3 AC 230V 50HZ
Heater rating in kW	0
Total connected load in kW	5.2
Fuse rating in A	20

Possible voltage variant 2

Possible voltage variant 3

Electrical connection	3 AC 230V 50HZ
Heater rating in kW	0
Total connected load in kW	7.5
Fuse rating in A	25

Possible voltage variant 4

Electrical connection	AC 220-240V 50HZ
Heater rating in kW	0
Total connected load in kW	2.8
Fuse rating in A	13

Possible voltage variant 5

Electrical connection	AC 220-240V 50HZ
Heater rating in kW	0
Total connected load in kW	3.4
Fuse rating in A	16

Possible voltage variant 6

Electrical connection	AC 220-240V 50HZ
Heater rating in kW	0
Total connected load in kW	4.4
Fuse rating in A	20

Water connection/drainage

Cold water [number]	1
Maximum temperature of inlet water in °C	35
Maximum conductivity of the inlet water in µs/cm	1200 μS/cm
Maximum limit value of silicates in mg/l	30 mg/l
Maximum limit value of chlorine in mg/l	0.2 mg/l
Required flow pressure in bar	1.4-6
Drain pump head height from floor level, max. in c	60
Booster pump	Pressure booster pump For optimum cleaning results for short wash cycles – irrespective of the local water pressure.
Maximum water hardness in mmol/l Note With a water hardness level of 0.53 mmol/l and above, the installation of a pre-connected water softener is recommended if an integrated water softener is not already available.	6.3
Integrated reverse-osmosis system	Integrated reverse-osmosis system Perfect solution for sparkling glasses & shiny cutlery when space is limited, e.g. in under-counter installations.
PerfectWater	PerfectWater Innovative: The PerfectWater function prevents resalination of the water.
WaterEco	WaterEco^* Cost-effective: The water quality can be used according to demand.Prerequisite: water intake max. 0.54 mmol/l (3 °dH)
Water consumption per wash cycle in l	2

Dimensions and weight

External dimensions, height in mm Note The dimension refers to the appliance height without the feet extended. The height-adjustable feet allow the height of the dishwasher to be adjusted with ease.	820
Maximum height adjustment in mm	35
External dimensions, net width in mm	600
External dimensions, net depth in mm	637
External dimensions, gross height in mm Note Including packaging	870
External dimensions, gross width in mm Note Including packaging	650
External dimensions, gross depth in mm Note Including packaging	667
Usable space in wash cabinet, height in mm	309
Usable space in wash cabinet, width in mm	510
Usable space in wash cabinet, depth in mm	568
In-feed height above floor in mm	423
Net weight [kg]	85
Gross weight in kg Note Including packaging	95
Maximum floor load in N/m² Maximum floor bearing capacity Maximum floor bearing capacity states the maximum weight (N) that can be placed on the supporting surface on which the machine is installed. This maximum load bearing capacity is the result of adding up the weight of the machine, the load and the water in it, as well as the dynamic forces that occur during operation.	790

Emissions data

Emissions – sound pressure at workplace Emissions - sound pressure at workplace The emission sound pressure level depends on the programme and is a value given to the noise created by the machine. Miele Professional appliances have very low noise levels.	55 dB(A) re 20 µPa

Programmes

Programme for light soiling
Programme for normal soiling
Programme for heavy soiling
Additional programme options	Note Just two clicks are all it takes to adapt the standard programmes to your washing requirements: choose from the Intensive, Low-noise, EnergySave or Short options.
Wash ware specific	Specific programme for items to be washed Regardless of the items and how dirty they are, there is an effective programme for all requirements.
Self-cleaning
Descaling

Basket design

Without baskets	Baskets to suit your needs In order to meet special requirements, these appliances are supplied without baskets as standard. You can select the baskets which most suit your requirements from the comprehensive range of accessories.

Features

Integrated dispensing pump/dispensing module for rinsing agent	Internal dispenser unit for rinse aid The rinse aid is dispensed automatically. The preset dosage can be altered if required.
Integrated dispensing pump/dispensing module for liquid cleaning agent	Integrated dispenser pump for liquid detergent Automatic dispensing saves time and makes the process reliable.
Internal cleaning agent containers	Integrated consumable containers Integrated consumable containers mean there’s no need to keep space free for media canisters in the units.
Wash cabinet made from high-quality stai
Spray arm monitor for all spray arms	Spray arm control If a spray arm is obstructed by crockery or cutlery, the display will indicate this.
Adjustable final rinse temperature
Adjustable wash temperature
Adjustable rinse time
Temperature indicator for tank and boiler
Hygienic tank wash cabinet	Hygienic tank interior Particularly hygienic: The thermoformed wash cabinet prevents deposits and reduces the time spent cleaning.
Rotating spray system (top + bottom)	Optimised spray arm Optimised nozzle design helps to achieve optimum surface coverage and efficient use of resources.
A wide range of accessories (optional)	A wide range of accessories Always perfect ergonomics and efficiency - with practical accessories, from special baskets to dispenser pumps.

Connection options

Suction lances for external media canisters [number]	0

Standards, test certificates and symbols

CE
Complies with Machinery Directive 2006/42/EC
Splash-proof IPX3
DIN EN 17735
UKCA
SVGW

Additional accessories and consumables

Find additional accessories and consumables to go with this product

Illustration of baskets for dishwashers.

Additional accessories for dishwashing technology

Find here the accessories that can be bought additionally for this product.

Go to accessories

Cleaning chemistry is on top of a dishwasher.

Additional consumables for dishwashing technology

Find here the consumables that can be bought additionally for this product.

Go to consumables

Service & Support

Contact

Get in touch with us. We are always there for you and will be happy to answer your questions and requests.

Call our experts.

If you have any questions or need further information please contact us on 0330 160 6693*

*Free of charge.

Get in touch with us.

Request individual consultation appointment

Request your personal consultation appointment for an individual planning.

Request consultation

Request spare parts

Do you need spare parts for your products? Please feel free to contact us!

Request spare parts

Service & Support

Individual requests for service and maintenance contracts

Service and maintenance contracts

Inspection, maintenance and service contribute to preserving the value of your equipment and thus to safeguarding your investment. We offer the right solution for every need and are happy to answer further questions about service and maintenance contracts.

Get in touch
