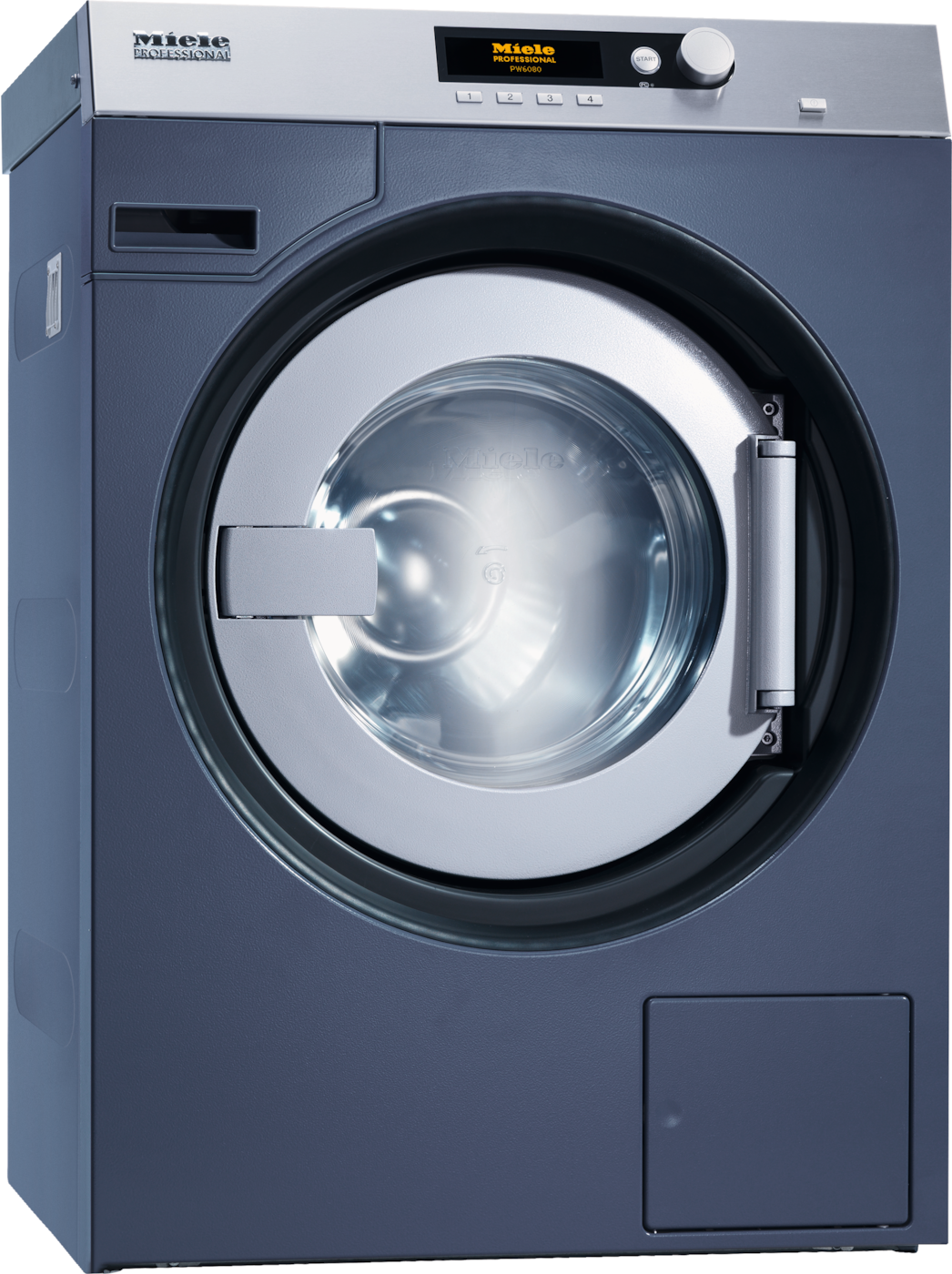

PW 6080 Vario XL [EL LP 3N AC 400V 50Hz]

Washing machine, electrically heated with suspended drum unit, shortest programme running time of 53 min and drain pump.

Drum volume 80 l, load size 9 kg
Large programme variety - application-specific wash programmes
Gentle laundry care thanks to the Miele honeycomb drum
Honeycomb drum
The honeycomb structure of the Miele honeycomb drum allows garments to glide gently on a thin film of water.
Particularly efficient - low water and energy consumption
Low consumption values
Economical and efficient: laundry machines from Miele Professional boast exceptionally low consumption values.
Perfect spinning results – residual moisture 44 %^*, g-factor520Residual moisture specification relates to a hot rinse during the last rinse cycle.
Maximum spin efficiency
A high g-factor guarantees that water is thoroughly spun out of the laundry. This has an optimum effect on the subsequent drying process. Due to the reduced residual moisture, the drying time is shortened considerably and drying costs are minimal.

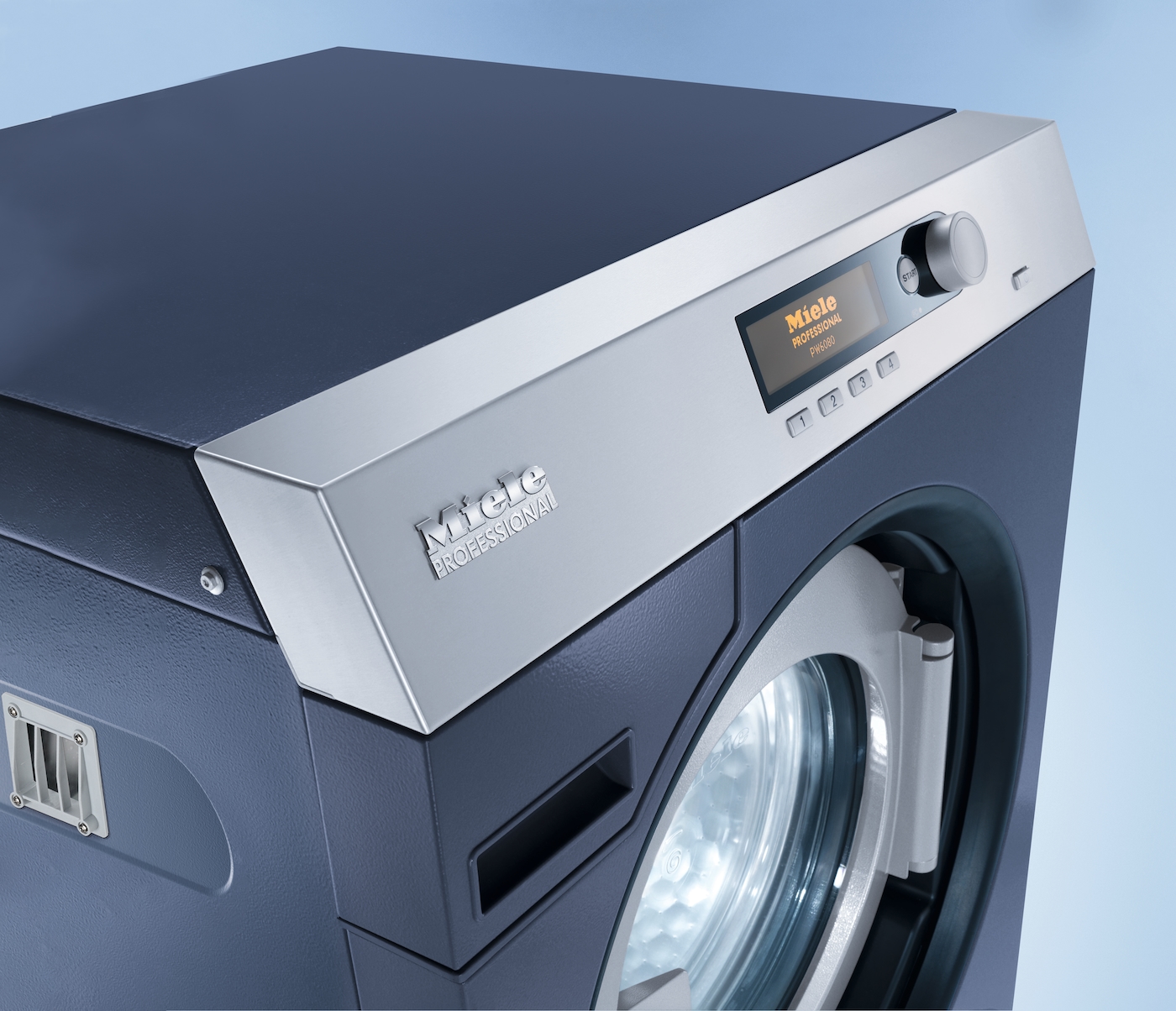

Front wall texture

Get a quote

Product benefits

Low consumption values

Economical and efficient

Economical and efficient: laundry machines from Miele Professional boast exceptionally low consumption values.

Exclusive to Miele

Honeycomb drum

Gentle fabric care thanks to honeycomb structure

The honeycomb structure of the Miele honeycomb drum allows garments to glide gently on a thin film of water.

Safe disinfection

Top-class hygiene

Disinfection programmes ensure reliable levels of hygiene. The hygiene certificate can be found under “Downloads”.^*Model-dependent

Short programme cycles

Quick and efficient

Premium commercial technology allows you to benefit from the shortest programme cycles.

Electronic imbalance monitoring

Spinning at a professional standard

Reliable moisture removal and appliance protection due to optimised smooth running.

Customised user guidance

User-friendly

Flexible solutions to suit a wide range of customer needs with regard to professional laundry care

Exclusive to Miele

Patented liquid dispensing adapter^*Patent: EP 1 835 063 B1

Optimum dosage

A dispensing adapter directs the liquid agents straight into the detergent dispenser.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.

Connection of payment system

Self-service operation

Optimum use in self-service areas is possible thanks to the connection for payment systems.

Logging operating data

Capture, record, analyse

The basis for process documentation, procedural safety, maintenance and economical considerations.

RS 232 serial interface

Simple data exchange

The serial interface allows communication with technical terminal devices for data exchange.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.

Low consumption values

Economical and efficient

Economical and efficient: laundry machines from Miele Professional boast exceptionally low consumption values.

Large capacity

More space

Miele Professional washer-extractors have a large capacity drum to accommodate large loads of laundry.

EasyDos

Optimised dispensing of liquid media

Dispensing of liquid detergent can be set individually to suit requirements.

Precise automatic load recognition

Efficient savings

Water and energy consumption are automatically adjusted for the load size.

Peak load cut-out

Avoiding electricity voltage peaks

Comprehensive energy management by integrating the machines into an energy management system.

Efficient hot water connection

Quick and economical

Connection to a hot water supply enables excellent savings in time and energy with minimal effort.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.

Exclusive to Miele

Honeycomb drum

Gentle fabric care thanks to honeycomb structure

The honeycomb structure of the Miele honeycomb drum allows garments to glide gently on a thin film of water.

WetCare

Wet cleaning of textiles

Water instead of chemicals: Delicate textiles are cleaned perfectly using the wet cleaning process.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.

Safe disinfection

Top-class hygiene

Disinfection programmes ensure reliable levels of hygiene. The hygiene certificate can be found under “Downloads”.^*Model-dependent

Disinfection rinse

Maximum hygiene

A final rinse with a special high temperature/holding time provides additional reassurance with regard to hygiene.

High temperature consistency

We keep our promises

For reliable cleaning results and maximum hygiene, the temperature of the washing water is monitored constantly.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.

Short programme cycles

Quick and efficient

Premium commercial technology allows you to benefit from the shortest programme cycles.

Electronic imbalance monitoring

Spinning at a professional standard

Reliable moisture removal and appliance protection due to optimised smooth running.

Interval spinning

Intelligent spinning

This process prevents the formation of water pockets in waterproof fabric.

Excellent spin performance

Intensive dewatering for high energy efficiency

Very low residual moisture on account of high g-factor.

Precisely controlled water consumption

Every drop counts

The flow meter monitors the volume of water intake precisely for maximum efficiency.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.

Sophisticated asynchronous motor

Powerful and quiet

Sophisticated asynchronous frequency-controlled motor enables maximum performance and durability.

Powerful heater elements

Truly powerful

The washer-extractors are equipped with powerful heater elements for heating water quickly.

Excellent durability

Ultimate quality

Professional technology ensures excellent reliability and durability for daily work routine.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.

Customised user guidance

User-friendly

Flexible solutions to suit a wide range of customer needs with regard to professional laundry care

Exclusive to Miele

Patented liquid dispensing adapter^*Patent: EP 1 835 063 B1

Optimum dosage

A dispensing adapter directs the liquid agents straight into the detergent dispenser.

User instructions in a variety of languages

Simple and easy to understand

Avoids operating errors: All instructions and processes can be displayed in a variety of languages.

Programmable washing machine controls

Greater flexibility

According to requirements: programmable controls enable perfect adaptation to suit individual needs.

Countdown indicator

An eye on the time

After the programme has started, the display shows the cycle time remaining.

Delay start up to 24 hours

Well-planned laundry care

The programme start time can be pre-set up to 24 hours in advance for efficient planning.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.

Show all benefits

Product details

PW 6080 Vario XL [EL LP 3N AC 400V 50Hz]
EAN 4002516235644 / Article number 516080X5GB / Material number 11330070

Construction type and version

Construction type	Front loader
Range	Octoplus
Front	Octo blue
Load ratio	1:9
Load in kg	9
Drum volume in l	80
Door opening [Ø] in mm Large drum opening Large drum opening for fast, ergonomic loading and unloading ensures smooth operation.	370
Door opening angle in degrees	180
Door hinge	right
Maintenance-free motor with frequency converter	Sophisticated asynchronous motor Sophisticated asynchronous frequency-controlled motor enables maximum performance and durability.
Stainless steel honeycomb drum	Honeycomb drum The honeycomb structure of the Miele honeycomb drum allows garments to glide gently on a thin film of water.

Application

Suitable for the hotel and catering industry	Washer-extractors for hotels and restaurants These washing machines meet the requirements of hotels and restaurants. Depending on the control type, the washing machines offer special programmes for optimum cleaning and care of kitchen, bed and table linen as well as curtains.
Suitable for retirement and care homes	Washing machines for care homes These washing machines meet the requirements of retirement and care homes. Depending on the control type, the washing machines offer specially designed disinfection programmes as the basis for optimum hygiene for contaminated or potentially infected laundry, in compliance with Robert Koch Institute guidelines.
Suitable for launderettes	Washing machines for laundrettes These washer-extractors are suitable for use in launderettes, for example thanks to their robust commercial grade technology for short cycle times, their ease of use as well as the optional connection to payment systems.
Suitable for residential homes and apartments	For apartment blocks & residential homes These washer-extractors are suitable for use in apartment blocks and residential homes, thanks for example to the use of robust commercial technology for particularly short cycle times. These machines are equipped with domestic-style programmes, are easy to use and can also be operated with payment systems.
Suitable for dry cleaners	Washing machines for dry cleaners These washing machines meet the requirements of dry cleaners. Depending on the control type, the washing machines offer special programmes for washing duvets, as well as the WetCare system for washing particularly sensitive items (shirts, suits, etc.).
Suitable for commercial laundries	Washer-extractors for commercial laundries These washing machines meet the requirements of commercial laundries. Depending on the control type, the washing machines are equipped with a variety of programmes for all types of fabrics that a laundry operation may come across.
Suitable for small businesses	Washing machines for small businesses These washing machines meet the requirements of small businesses. Depending on the control type, the washing machines feature special programmes for cleaning and caring for a wide range of textiles as well as removing stubborn soiling such as flour, grease or oil.
Suitable for fire brigades and rescue services	For fire brigades and rescue services These washer-extractors are suitable for use by fire brigades and rescue services with their special programmes for the optimum cleaning of respiratory masks, protective work clothing and chemical protective suits. If required, programmes for thermal and chemo-thermal disinfection are also available.
Suitable for universities, nurseries, and schools	Wash. m. f. univ., schools & nursery schools These washing machines meet the requirements of universities, schools and nurseries, and offer a number of quick, domestic-style programmes for a wide range of requirements. Depending on the control type, the washing machines offer special programmes as the basis for hygienic laundry care.
Suitable for hospitals	Washing machines for hospitals These washing machines meet the requirements of hospitals. Depending on the control type, the washing machines are equipped with programmes for thermal and chemo-thermal disinfection according to the list produced by the Robert Koch Institute in Berlin – providing a basis for safe and reliable hygiene.
Suitable for camp sites	Washing machines for camp sites These washer-extractors meet the requirements of camp sites. Among other things, they are suitable for use with payment systems, are easy to operate and are equipped with numerous domestic-style programmes.
Suitable for sports clubs	Washing machines for sports clubs These washing machines meet the requirements of sports clubs. Depending on the control type, the washing machines offer special programmes for cleaning shoes and protectors.
Suitable for beauty salons, spas, and fitness centres	Washing machines for salons/spas/fitness centres These machines meet the requirements of beauty salons, spas and fitness centres, for example, in swimming pools and saunas. Depending on the control type, the washing machines offer special programmes for washing towels.
Suitable for domestic use	Washing machines for domestic households These washing machines are perfect for busy households. They combine professional technology with programmes for domestic use and short cycles.
Suitable for doctors' and dentists' practices	Washing machines for medical & dental practices These washing machines are suitable for use in medical and dental practices. The machines are equipped with special wash programmes as the basis for reliable hygienic cleaning of laboratory coats, towels, pads, etc.

Performance data

Specific water consumption for hot water connection in l/kg Note In the Cottons 60 °C programme with connection to hot and cold water, hot rinse.	8
Specific energy consumption for hot water connection in kWh/kg Note In the Cottons 60 °C programme with connection to hot and cold water, hot rinse.	0.055
Programme duration in minutes with cold water connection Note In the Cottons 60°C programme with connection to cold water.	57
Programme duration in minutes with cold water and hot water connection Note In the Cottons 60 °C programme with connection to hot and cold water, hot rinse.	53
Residual moisture with cold rinse in %	49
Residual moisture with hot rinse in %	44
Spin speed in rpm	1300
g factor	520
Tested operating hours Note Our machines undergo intensive testing under laboratory conditions. The actual operating hours may vary depending on actual usage behaviour, maintenance and care of the machine.	30000

Control system

Control system	Profitronic L Vario
Programmability	programmable
Max. delay start in h	24 Delay start up to 24 hours The programme start time can be pre-set up to 24 hours in advance for efficient planning.
Time left display	Countdown indicator After the programme has started, the display shows the cycle time remaining.
Programme sequence indicator
Selectable display languages	User instructions in a variety of languages Avoids operating errors: All instructions and processes can be displayed in a variety of languages.

Dispensing

Detergent drawer	3 compartments
Patented liquid dispensing adapter	Patented liquid dispensing adapter^* A dispensing adapter directs the liquid agents straight into the detergent dispenser.Patent: EP 1 835 063 B1
Maximum number of connections for liquid dispenser pumps [number]	6 EasyDos Dispensing of liquid detergent can be set individually to suit requirements.
Empty sensor	Empty sensing A message in the machine display will indicate promptly if one of the containers is empty.

Standard electrical connection

Heating type	Electric
Electrical connection	3N AC 400V 50HZ
Heater rating in kW	7.95
Total connected load in kW	8.2
Fuse rating in A	16

Water connection/drainage

Cold water [number]	1x 1/2" hose w/ 3/4" th. union
Hot water [number]	1x 1/2" hose w/ 3/4" th. union
Grey water (optional) [number]	1 x 1/2" w/ 3/4" union
Drain pump	DN 22

Dimensions and weight

External dimensions, height in mm	1020
External dimensions, width in mm	700
External dimensions, depth in mm	727
External dimensions, gross height in mm Note Including packaging	1215
External dimensions, gross width in mm Note Including packaging	760
External dimensions, gross depth in mm Note Including packaging	820
Net weight in kg	140
Gross weight in kg Note Including packaging	148
Maximum floor load in N	2330

Emissions data

Emission sound pressure level in the workplace Emission sound pressure level in the workplace The emission sound pressure level is a value given to the noise created by the machine. Miele Professional commercial laundry machines have very low noise levels.	<lt/>70 dB(A) re 20 µPa
Heat dissipation into the room in MJ/h Heat output into the room During operation, laundry machines release heat into the surrounding area. The released amount of heat/time depends on the set temperatures and the intensity of use. The stated maximum value can be used to control the temperature of the area or to calculate an increase in room temperature.	3

Features

Imbalance monitoring	Imbalance monitoring Electronic imbalance monitoring guarantees perfect spinning results and quiet, smooth running.
Disinfection rinse	Disinfection rinse A final rinse with a special high temperature/holding time provides additional reassurance with regard to hygiene.
Temperature monitoring	High temperature consistency For reliable cleaning results and maximum hygiene, the temperature of the washing water is monitored constantly.
Special heater element	Powerful heater elements The washer-extractors are equipped with powerful heater elements for heating water quickly.
Automatic load control	Precise automatic load recognition Water and energy consumption are automatically adjusted for the load size.
Flow meter	Precisely controlled water consumption The flow meter monitors the volume of water intake precisely for maximum efficiency.
Machine-independent accessories	A wide range of accessories Consistently perfect work processes and efficiency - with a large selection of practical accessories.

Efficiency and sustainability

Recycling rate in %	95

Connection options

Payment system	Connection of payment system Optimum use in self-service areas is possible thanks to the connection for payment systems.
Optical interface for service access	Note Authorised service personnel can use the optical interface to easily and quickly read out data from the machine for service purposes.
Serial interface module RS 232 (optional)	RS 232 serial interface The serial interface allows communication with technical terminal devices for data exchange.
Peak-load negotiation / energy management (optional)	Peak load cut-out Comprehensive energy management by integrating the machines into an energy management system.
Operating data acquisition	Logging operating data The basis for process documentation, procedural safety, maintenance and economical considerations.

Capacities

Respirator masks [number]	4-5
Overalls [number]	1
Over jackets [number]	1-2
Synthetic duvets [number]	1
Synthetic pillows [number]	1-2
Down duvets [number]	1
Down pillows [number]	1-2

Standards, test certificates and symbols

CE
VDE-EMC
VDE
Splash-proof safety rating IPX4
WRAS
WEEE
Complies with Machinery Directive 2006/42/EC

Additional accessories and consumables

Find additional accessories and consumables to go with this product

Additional accessories for laundry technology

Find here the accessories that can be bought additionally for this product.

Go to accessories

Cleaning chemistry can be found in the laundry room.

Additional consumables for laundry technology

Find here the consumables that can be bought additionally for this product.

Go to consumables

Service & Support

Contact

Get in touch with us. We are always there for you and will be happy to answer your questions and requests.

Call our experts.

If you have any questions or need further information please contact us on 0330 160 6693*

*Free of charge.

Get in touch with us.

Request individual consultation appointment

Request your personal consultation appointment for an individual planning.

Request consultation

Request spare parts

Do you need spare parts for your products? Please feel free to contact us!

Request spare parts

Service & Support

Individual requests for service and maintenance contracts

Service and maintenance contracts

Inspection, maintenance and service contribute to preserving the value of your equipment and thus to safeguarding your investment. We offer the right solution for every need and are happy to answer further questions about service and maintenance contracts.

Get in touch
