CS 7612 FL

SmartLine element

CS 7612 FL Black

Name: CS 7612 FL
Brand: Miele
SKU: 10684390
Price: 1599 GBP
Availability: InStock

with induction PowerFlex cooking zone

Product data sheet

Colour:Black

£1,599.00

Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630

Additional services

You can select the following services for this product in your basket:

Disconnect & Recycle Old Appliance (£20.00)

Product details

Intuitive quick selection via number sequences –Smart Select
Elegant design – for flush or raised installation
Seamlessly integrates with anySmartLine element
Versatile and fast - 2 cooking zones incl. 1PowerFlex area
Shortest heating-up times - TwinBooster

Product data sheet

Heating typeInduction

SmartLine

Elegant glass ceramic surface

Ceramic surface colourBlack

Flush

Surface-mounted installation

Number of cooking zones2

No.2

Size in mmØ 150 – 230

Max. rating in W2100

Max. Booster power rating in W3000

Max. TwinBooster power rating in W3650

PositionCentred

TypePowerFlex

Size in mm230x390

Max. rating in W2100

Max. Booster power rating in W3000

Max. TwinBooster power rating in W3650

Operation via sensor controlsSmart Select

Display colourYellow

Permanent pan recognition

Pan and pan size recognition

Stop & Go function

Wipe protection

Recall function

Minute minder

Safety switch-off

Auto heat-up

Keeping warm

Individual setting options (e.g. buzzers)

Easy to clean ceramic glass

Safety switch-off

Lock function

System lock

Integrated cooling fan

Overheating protection

Residual heat indicator

Dimensions in mm (width)378

Dimensions in mm (height)51

Casing height incl. connection box in mm51

Dimensions in mm (depth)520

Cutout dimensions in mm (width) with surface-mounted installation358

Cutout dimensions in mm (depth) with surface-mounted installation500

Internal cutout dimensions in mm (width) with flush installation358

Internal cutout dimensions in mm (depth) with flush installation500

External cutout dimensions in mm (width) with flush installation382

External cutout dimensions in mm (depth) with flush installation524

Weight in kg7

Total rated load in kW3.600

Voltage in V230

Frequency in Hz50-60

Length of supply lead in m1.4

Mains cable

EAN4002515893036

What's included

Mains cable

Easy to use thanks to SmartSelect

SmartSelect

Quick and intuitive: power levels and times can be selected separately for each cooking zone.

Power function for rapid heat generation

TwinBooster

Unique flexibility: induction output can be individually distributed or used for one single zone.

For large pans too

PowerFlex

Unbeatably fast and versatile: the booster output of up to 3.65 kW.

Setup/function

Best use of energy

Permanent pan recognition

Automatic activation of numerical display: when turned on, pans which are already on a cooking zone are detected.

User convenience

Easy to use thanks to SmartSelect

SmartSelect

Quick and intuitive: power levels and times can be selected separately for each cooking zone.

Power function for rapid heat generation

TwinBooster

Unique flexibility: induction output can be individually distributed or used for one single zone.

For large pans too

PowerFlex

Unbeatably fast and versatile: the booster output of up to 3.65 kW.

Matching products and accessories

Spacer strip

for installing several SmartLine elements in one single cut-out.

GP CL KM 0252 L

Ceramic and stainless steel cleaner, 250 ml

For best cleaning results and safe use.

GP GS KM 0011 M

Scraper for cleaning

For ceramic glass hobs.

GGRP

Gourmet griddle plate

for a unique grilling experience on Miele induction hobs.

GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

Fiskars “All Steel” starter pan set (4 pieces)

stainless steel cookware with a matt brushed finish exclusively for Miele.

HUB 5001-M

Induction compatible gourmet oven dish

For frying, braising and gratinating.

KMTY

Tepan Yaki

for a unique cooking experience on Miele induction hobs.

GP GSB KM 0101 M

Replacement blades, 10 pieces

For cleaning scraper.

CleanKitchen set

For cleanliness and shine throughout the kitchen.

HBD 60-22

Gourmet casserole dish lid

compatible with HUB 61-22, HUB 62-22, HUB 5000-M and HUB 5001-M.

Downloads

Operating instructions/Installation instructions

PDF

Downloads

Warranty conditions

PDF

Downloads

Product sheet

PDF

Downloads

ifc

ZIP

Downloads

fbx

ZIP

Downloads

rvt

ZIP

Downloads

rfa

ZIP

Downloads

dwg

ZIP

Downloads

Product fiche

PDF

Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000013/200001326/20000132669.png

Descriptions

CS 7000 FL, flush (Installation drawing)

*7+0,5 = CS7611 (Wok)

Downloads

https://media.miele.com/images/2000013/200001326/20000132666.png

Descriptions

CS 7000 FL (Installation drawing)

Installation drawings

Downloads

https://media.miele.com/images/2000013/200001320/20000132012.png

Descriptions

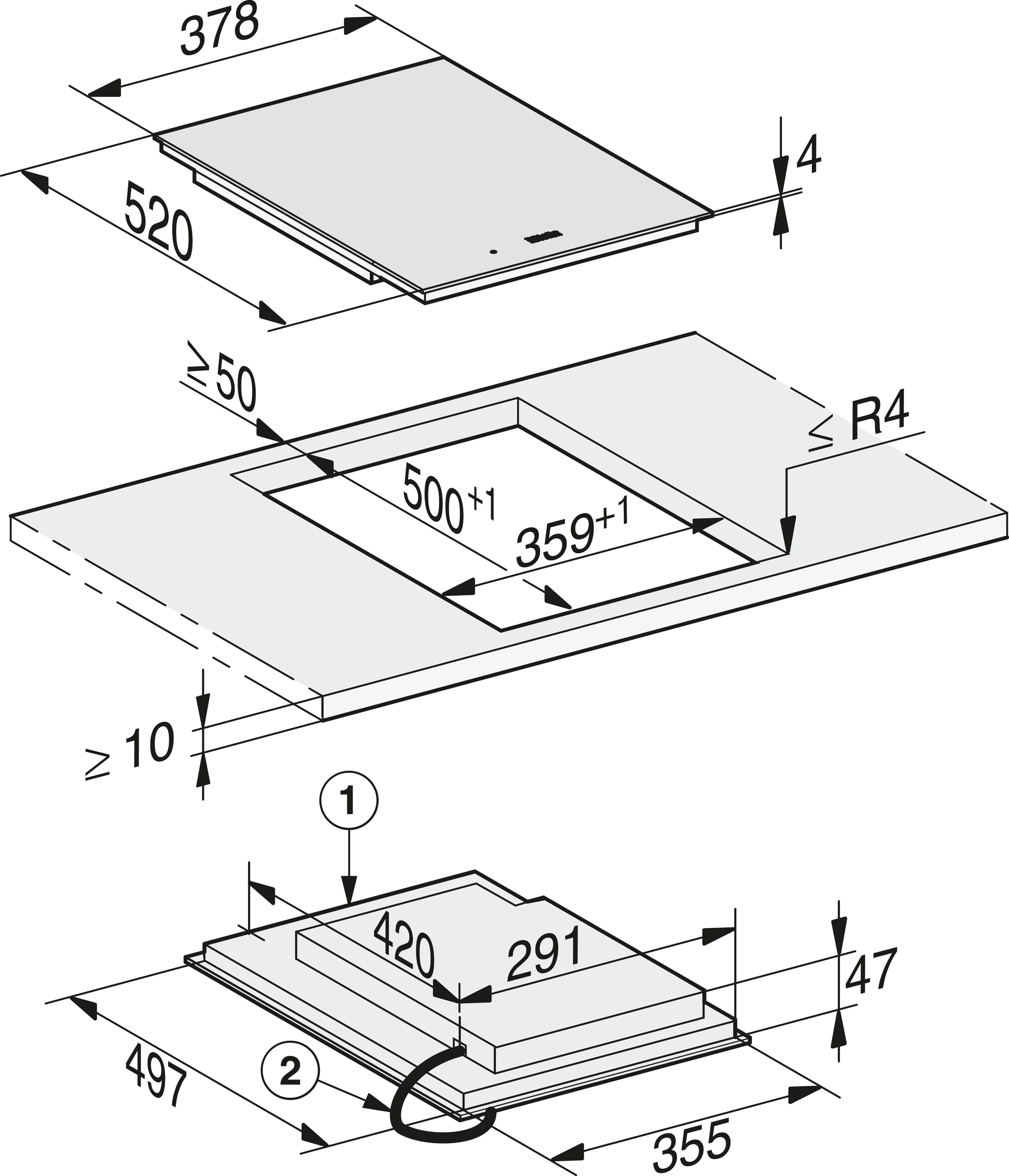

CS7612-1FL, CS7612FL, (installation drawing)

1) Front, 2) Mains connection cable, L = 2000 mm

Downloads

https://media.miele.com/images/2000013/200001320/20000132009.png

Descriptions

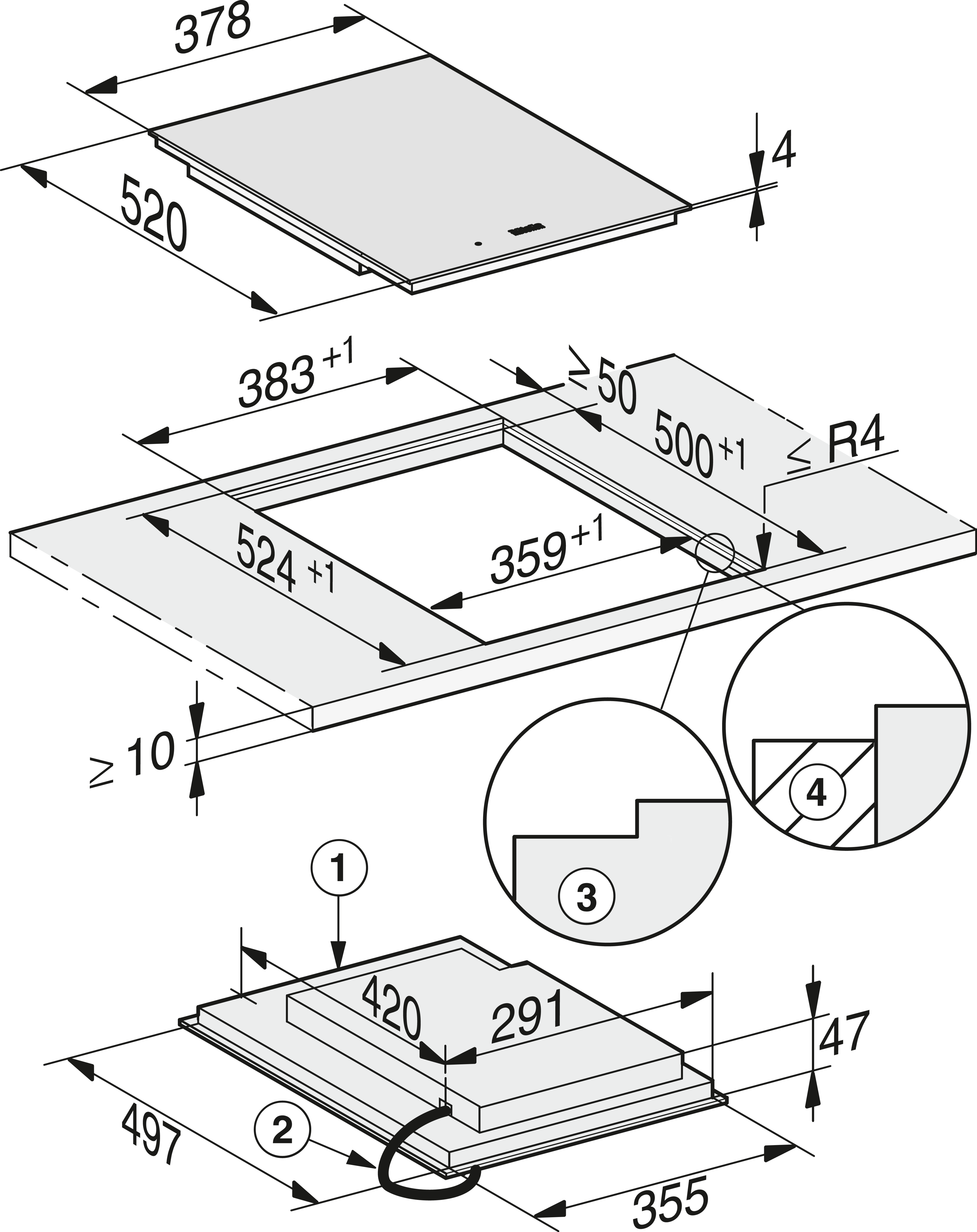

CS7612-1FL, CS7612FL, flush (installation drawing)

1) Front, 2) Mains connection cable, L = 2000 mm, 3) Stepped cut-out, 4) Wooden Frame 12 mm (supplied loose),

Downloads

https://media.miele.com/images/2000013/200001355/20000135550.png

Descriptions

CS 7000 FL, flush (Installation drawing)

*7+0,5 = CS7611 (Wok)

Downloads
