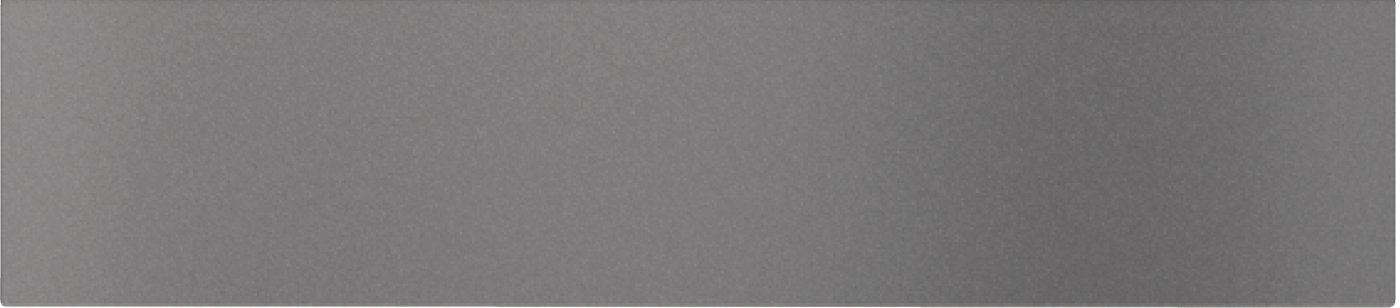

Handleless built-in vacuum drawer, 14 cm high

EVS 7010 Graphite grey

for professional vacuum packing of food.

Colour:Graphite grey
Graphite grey
Obsidian black
Obsidian black matt
Pearl beige

sale price£2,779.00
Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630



Additional services

You can select the following services for this product in your basket:

  • Disconnect & Recycle Old Appliance (£20.00)

Product details

  • Remains fresh for longer – storage and portioning of food
  • Intense taste – marinading food
  • Preparation of food for sous-vide cooking
  • Easy handling –Touch controlsandfully telescopic runners
  • Opening the drawer couldn’t be easier –Push2open

Product data sheet

Built-in vacuum sealing drawer
VitroLine
ArtLine
Handleless
ColourGraphite grey
Preparing food for sous-vide cooking
Food can be stored for longer
Marinating food
Vacuum sealing
Vacuum sealing food
Marinating food
Dividing food into portions
Vacuum sealing containers
Resealing original packaging
Sealing jars
Vacuum sealing liquids
Stainless steel vacuum sealing chamber capacity in l8
Minimum bag size in mm250
Maximum bag size in mm350
Push2open mechanism
Fully telescopic runners for easy loading and unloading of the warming drawer
Control panel with sensor controls
Control panel with symbols
Vacuuming strength min. in steps1
Max. vacuum settings3
LED vacuum setting indicator
Vacuuming strength min. for external containers in steps1
Max. vacuum settings for external containers3
LED vacuum setting indicator
Sealing duration settings1 - 3
LED sealing duration indicator
Stop function
Stainless-steel vacuum chamber
Pump capacity in m³/h4
Flush control panel
Note regarding moisture removal from the vacuum pump
Replaceable sealing bar
Safety switch-off
Appliance width in mm595
Appliance height in mm141
Appliance depth in mm570
Appliance dimensions (W x H x D) in mm595 x 141 x 570
Useable interior height in mm80
Total rated load in kW0.320
Voltage in V230
Frequency in Hz50-60
Fuse rating in A10
Number of phases1
Mains cable with plugYes
Length of supply lead in m1.8
Adapter for vacuum-sealing container1
Vacuum sealing bag support1
Vacuum sealing bags
Number of vacuum sealing bags 180 x 280 mm50
Number of vacuum sealing bags 240 x 350 mm50
EAN4002516131618

What's included

Adapter for vacuum-sealing container (1)
Vacuum sealing bag support (1)
Vacuum sealing bags
Number of vacuum sealing bags 180 x 280 mm (50)
Number of vacuum sealing bags 240 x 350 mm (50)

User convenience

Perfect preparation
Preparation for sous-vide cooking

Perfect for sous-vide cooking: the vacuum-sealed food retains its flavour and nutrients.


Intuitive and straightforward
SensorTouch controls

Elegant and easy to clean: convenient operation with state-of-the-art technology via a flush touch panel.


One touch is enough
Push2open

Open in no time: light pressure on the drawer is all it takes.


Enough space for any size
Large usable space

For large and small volumes: the usable space is sufficient for vacuum sealing bags up to max. 250 mm x 350 mm.


Different sealing options
Variable sealing times

Perfect for every bag thickness: you can choose from three sealing settings depending on the material of the bag.


Long service life
Reusable vacuum sealing containers

The sustainable alternative: unlike vacuum sealing bags, you can reuse vacuum sealing containers over and over.


Numerous options
Large range of applications

With our vacuum sealing drawer, you can divide food into portions, prepare it for storage and much more.


Practical and ergonomic
Fully telescopic runners

So convenient: you can open the drawer fully so it is easy to load or unload.


Special features

Perfect preparation and longer storage
Vacuum sealing

Ideal conditions: vacuum sealing can be used for food storage, portioning, marinating and re-sealing.


Perfect for any application
Three vacuum settings

Tailored settings: you can choose between three vacuum sealing levels depending on the food in question.


Safety

Specially designed for food
Food-safe vacuum sealing bags

Safely packed: Miele vacuum sealing bags are temperature-resistant, airtight and do not affect flavour.


Gourmet versatility

Longer storage life
Longer storage life

Store food in ideal conditions: vacuum seal your food to keep it fresher for longer.


The right amount
Portioning

Whether you’re cooking a feast or dinner for one – make individual portions for storing or sous-vide cooking.


Maximum taste
Marinating

Create amazing taste sensations by vacuum sealing food with herbs and marinades.


Always in perfect condition
Vacuum sealing in containers

Blanching food in containers: delicate foodstuffs such as fruit or herbs are left intact.


Food stays fresh – even once opened
Resealing

Keep food tasting fresh: reseal opened packaging gently and securely.


Tightly sealed
Sealing jars

Store food securely to keep it fresh: pesto, baby food and much more can be vacuum sealed in jars.


Securely stored
Vacuum sealing liquids

Save space and store food securely: even liquids can be easily vacuum sealed in a plastic bag.


Downloads

Warranty conditions
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
ifc
ZIP
Downloads
fbx
ZIP
Downloads
rfa
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000015/200001548/20000154836.png
Descriptions
ESW7x10, EVS7010, DGC7x6xHCPro, DGC7x6xHCXPro installation drawings
Installation drawings
Downloads
https://media.miele.com/images/2000015/200001548/20000154837.png
Descriptions
built-in ESW7x10 EVS7010, installation drawing
Installation drawings
Downloads
https://media.miele.com/images/2000015/200001548/20000154839.png
Descriptions
built-in EVS 7010 build-under, installation drawing
1) Countertop overhang ≤ 29mm
Downloads
https://media.miele.com/images/2000015/200001548/20000154834.png
Descriptions
Installation_DG_DGM_DGC_XL_ESW7x10_EVS7010, installation drawings
Installation drawings
Downloads
https://media.miele.com/images/2000015/200001548/20000154835.png
Descriptions
ESW7x10, EVS7010, DG7x4x, DGM7x4x installation drawings
A) 22 mm glass, 23,3 mm stainless steel
Downloads
https://media.miele.com/images/2000018/200001841/20000184130.png
Descriptions

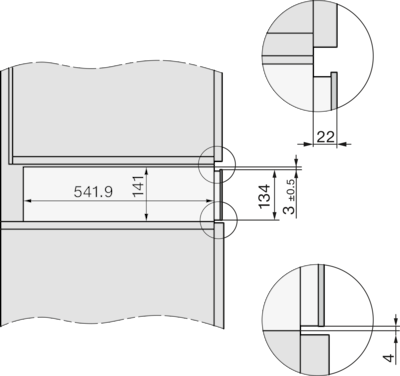

side view ESW7x10 EVS7010, installation drawing, GB, AU
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001841/20000184149.png
Descriptions
installation EVS7010 installation drawing, GB, AU
1) Mains connection cable, L=2000 mm, 2) No connection in this area, 3) Ventilation cutout min. 180 cm²
Downloads
