Oven

H 7860 BP Graphite grey

seamless design with food probe and BrilliantLight.


Colour:Graphite grey
Graphite grey
Obsidian black
Stainless steel/Clean Steel

sale price£4,529.00
Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630



Additional services

You can select the following services for this product in your basket:

  • Disconnect & Recycle Old Appliance (£20.00)

Product details

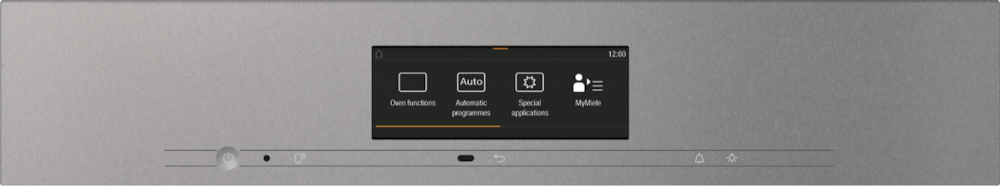

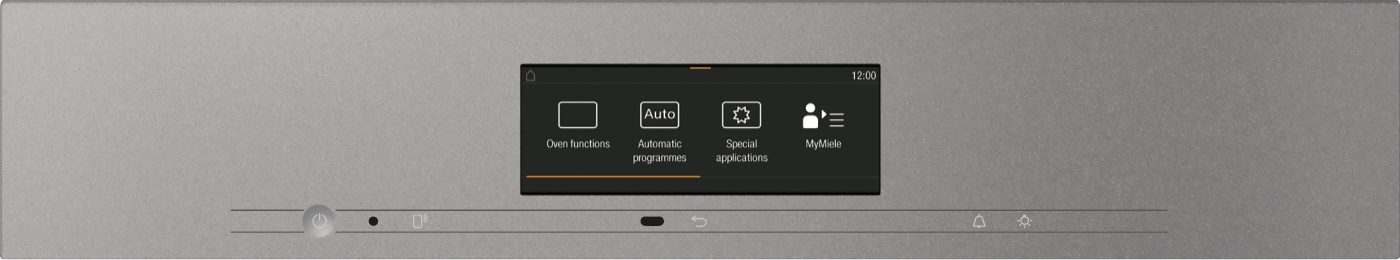

  • Large touch display with movement sensor –M Touch+MotionReact
  • An eye on what’s cooking anywhere, any time –camera in the oven
  • Minimal cleaning effort –Pyrolytic cleaning equipment& PyroFit
  • Especially light dough and nicely browned crusts –Moisture plus
  • Ensures your food won’t overcook –TasteControl

Product data sheet

Built-in oven
VitroLine
Appliance ColourGraphite grey
TasteControl
Rapid heat-up
Pre-heating
Food probeWithout cable
Keeping warm
Crisp function
Fan plus
Conventional heat
Moisture plus
Moisture plus with Conventional heat
Moisture plus with Fan plus
Moisture plus with Intensive bake
Moisture plus with Conventional heat
Intensive bake
Auto roast
Fan grill
Grill
Economy grill
Grill operating modes
Top heat
Bottom heat
Low temperature cooking
Eco fan heat
Defrosting
Automatic programmes
Country-specific automatic programmes
Special applications
Networking with Miele@home
DisplayM Touch
MotionReact proximity sensor
FoodView
SoftOpen
SoftClose
MultiLingua
MyMiele
Help function
Programmable timed steam injection
Polyphonic buzzers
Timer functions
Time of day display
Clock synchronisation
Date display
Minute minder
Programmable start of cooking duration
Programmable end of cooking duration
Programmable cooking duration
Actual temperature display
Target temperature display
Buzzer when desired temperature is reached
Recommended temperature
User programmes
Sabbath programme
Individual settings
Energy efficiency class (A+++ - D)A+
Automatic residual heat utilisation
Power rating in off mode in W0.50
Pyrolytic self-cleaning
Catalyser
Hinged grill element
CleanGlass door
Steam generator power in kW1.10
Fresh water container volume in l0.30
Suction tube for drawing in water
Appliance cooling system and touch-cool front
Safety switch-off
System lock
Door lock during pyrolytic cleaning
Sensor lock
Oven compartment volume in l76
No. of shelf levels5
Numbered shelf levels
Oven lightBrilliantLight
Temperatures in °C30–300
Niche dimensions (W x H x D) in mm560-568 x 590-595 x 550
Niche width min. in mm560
Niche width max. in mm568
Niche height min. in mm590
Niche height max. in mm595
Niche depth in mm550
Appliance dimensions (W x H x D) in mm595 x 596 x 568
Weight in kg47
Total rated load in kW3.70
Voltage in V220.00-240.00
Frequency in Hz50
Fuse rating in A16
Number of phases1
Length of supply lead in m1.50
Replacing lampsService
Baking tray with PerfectClean HBB 711
Universal tray with PerfectClean HUBB 711
Baking and roasting rack PyroFit1
PyroFit FlexiClip runners1
Wireless food probe1
Removable PyroFit side runners (pair)1
Grilling and roasting insert with PerfectClean1
Descaling tablets2
Available display languages via MultiLingua한국어
EAN4002516158332

What's included

Baking tray with PerfectClean HBB 71 (1)
Universal tray with PerfectClean HUBB 71 (1)
Baking and roasting rack PyroFit (1)
PyroFit FlexiClip runners (1)
Removable PyroFit side runners (pair) (1)
Grilling and roasting insert with PerfectClean (1)
Descaling tablets (2)
Wireless food probe (1)

User convenience

Cleverly networked
Domestic appliance networking with Miele@home2,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.


Gentle door movement
SoftOpen and SoftClose

Refined and elegant: the door opens and closes with a gentle movement from beginning to end.


Leave time management to your oven
Timer functions

Always on time: programme the start time, finish time and duration of the cooking process or the minute minder.


Easy to understand
MultiLingua

The controls can be shown in numerous languages so users can operate the appliance in a language they understand.


Optimised access to your food
FlexiClip runners

Ergonomic and convenient: with fully telescopic runners, you can reach the food inside the oven easily and safely.


Oven cabinets

Keep an eye on your food
Camera inside oven compartment

Always keep an eye on what’s cooking. Smart, innovative solutions using the integrated camera inside the oven.


A perfect view at all levels
BrilliantLight

Powerful and attractive: side-mounted LED light tubes perfectly illuminate the oven compartment.


Maintenance

Effortless cleaning
Pyrolytic cleaning and PyroFit accessories

The oven compartment and (depending on the model) some accessories are automatically cleaned at high temperatures.


Reduce cooking odours
AirClean catalyser

Better air quality: almost all grease and odours are removed from the cooking vapours.


Efficiency and sustainability

Exceptional energy efficiency
Energy efficiency

Good for the environment and your wallet: almost all of our appliances correspond to energy efficiency class A+.


Special features

Optimum results with additional moisture
Moisture plus

Better roasting and baking results: moisture ensures an incredibly light dough and nicely browned crusts.


Stress-free cooking with success guaranteed
Automatic programmes

Cooking delicious dishes with ease: cakes, fish or meat – fully automatic cooking.


Only carries on cooking if you want it to.
TasteControl

The automatic rapid cool-down prevents food from continuing to cook and can, if desired, keep the food warm.


Perfect cooking without supervision
Wireless food probe

Precise cooking results for fish and meat: the time left display lets you know when your food will be ready.


Makes food crispy
Crisp function

Perfect for pizza or chips: moisture is reduced for crispy results and perfect browning.


Safety

The only thing that gets hot is the food
Touch-cool front

Protection against burns: the appliance remains relatively cool – even on the outside of the door.


Maximum safety in any situation
Safety functions

Safety guaranteed: safety lock and safety switch-off provide reliable protection.


Operating modes

Fan plus

Perfectly soft and light: ideal for gentle baking and roasting on up to two levels.


Defrosting

Gentle on frozen food: frozen food is gently defrosted under ideal conditions using cool air.


Auto roast

Meat remains tender and succulent: meat is seared at a high temperature, then roasted at a selected temperature.


Eco fan heat

Extremely energy-efficient: succulent roasts or incredible bakes are cooked to perfection.


Full grill

Versatile function: perfect for grilling larger quantities of steaks, sausages, kebabs and more.


Economy grill

Designed for small quantities: ideal for small amounts of food such as steaks and sausages.


Intensive bake

Crispy bases, delicious toppings: pizza, quiche or fresh fruit flans – crispy base, moist on top.


Low temperature cooking

Tender and succulent: meat is cooked incredibly evenly at low temperatures without drying out on the outside.


Conventional heat

Multi-purpose, classic function: perfect results for all types of traditional baked and roasted dishes.


Top heat

Finishing touch for the eye and palate: perfect results when cooking gratins, baking toppings and browning food.


Bottom heat

Individual requirements: for cooking food in a bain-marie or for browning from underneath.


Fan grill

Crisp outside, succulent inside: ideal for chicken, duck, pork knuckle, rolled meat and many other meat dishes.


Moisture plus

As if fresh from the bakery: moisture ensures an incredibly light dough and a nicely browned crust.


Moisture plus with Auto roast

Perfect roasts: meat is seared at high temperature, then roasted at a customised temperature with added moisture.


Moisture plus with Fan plus

Perfectly soft and light: ideal for baking and roasting with added moisture on up to three levels.


Moisture plus with Intensive bake

Pizza, quiche or fresh fruit flans: added moisture makes bases crispy, while toppings stay moist.


Moisture plus with Conventional heat

Classic function: added moisture provides perfect results for all types of traditional baked and roasted dishes.


Booster

For those who lead a busy life: if there’s not much time for cooking, you will really appreciate this function.


Sabbath programme

The oven stays on for 72 hours: the intelligent Sabbath programme helps with periods of religious observance.


Downloads

Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
UK declaration of conformity
PDF
Downloads
dwg
ZIP
Downloads
rfa
ZIP
Downloads
fbx
ZIP
Downloads
rvt
ZIP
Downloads
ifc
ZIP
Downloads
Product fiche
PDF
Downloads
Energy label
PNG
Downloads
Energy label
PDF
Downloads
Energy label
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000015/200001537/20000153737.png
Descriptions
H7000 handle, glass, installation drawings
1) 400 mm, 2) 360 mm, 3) 47 mm, 4) 27 mm, 5) 32.5 mm
Downloads
https://media.miele.com/images/2000015/200001537/20000153722.png
Descriptions
Installation H7000 XL underframe, installation drawings
If the oven is to be installed under a hob, follow the instructions for installing the hob and the height of the hob.
Downloads
https://media.miele.com/images/2000015/200001537/20000153741.png
Descriptions
Installation H7000 BM XL, installation drawings
Installation drawings
Downloads
https://media.miele.com/images/2000015/200001537/20000153713.png
Descriptions
side view H7000 XL, installation drawings, GB, AU
22 mm - glass, 23.3 mm - metal
Downloads
https://media.miele.com/images/2000015/200001537/20000153718.png
Descriptions
built-in H7000 XL, installation drawing
Installation drawings
Downloads
https://media.miele.com/images/2000016/200001697/20000169786.png
Descriptions
side view H7000 XL build-under, installation drawing, GB, AU
22 mm - glass, 23.3 mm - metal
Downloads
https://media.miele.com/images/2000017/200001710/20000171099.png
Descriptions
Side view Kombi BM XL, installation drawings
22 mm - glass, 23,3 mm - metal
Downloads
https://media.miele.com/images/2000017/200001711/20000171103.png
Descriptions
Installation Kombi BM XL, installation drawings
22 mm - glass, 23,3 mm - metal
Downloads
