Induction hob with onset controls

KM 7474 FR Stainless steel

Name: KM 7474 FR
Brand: Miele
SKU: 11144040
Price: 1499 GBP
Availability: InStock

with PowerFlex cooking area for maximum power output

Product data sheet

Colour:Stainless steel

£1,499.00

Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630

Additional services

You can select the following services for this product in your basket:

Disconnect & Recycle Old Appliance (£20.00)

Product details

Quick selection via numerical keybank – ComfortSelect
4 cooking zones incl. 1 high-powerPowerFlex cooking area
A width of 806 mm with stainless steel frame for surface installation
Shortest heating-up times - TwinBooster
Communication with the cooker hood – automaticCon@ctivityfunction

Product data sheet

Heating typeInduction

Independent of cooker

Elegant glass ceramic surface

Ceramic surface colourBlack

Stainless-steel frame

Surface-mounted installation

Number of cooking zones4

Number of cooking areas1

Maximum number of pans4

No.2

TypePowerFlex cooking zone

Size in mmØ 150 – 230

Max. rating in W2100

Max. Booster power rating in W3000

Max. TwinBooster power rating in W3650

Positionfront left

TypeDual-circuit ring

Size in mmØ 160-220

Max. rating in W2300

Max. Booster power rating in W3000

Max. TwinBooster power rating in W3650

Positionrear centre

TypeDual-circuit ring

Size in mmØ 100-160

Max. rating in W1400

Max. Booster power rating in W1700

Max. TwinBooster power rating in W2200

Positionright

TypePowerFlex bridge

Size in mm230x390

Max. rating in W3400

Max. Booster power rating in W4800

Max. TwinBooster power rating in W7300

Networking with Miele@home

Automatic function Con@ctivity

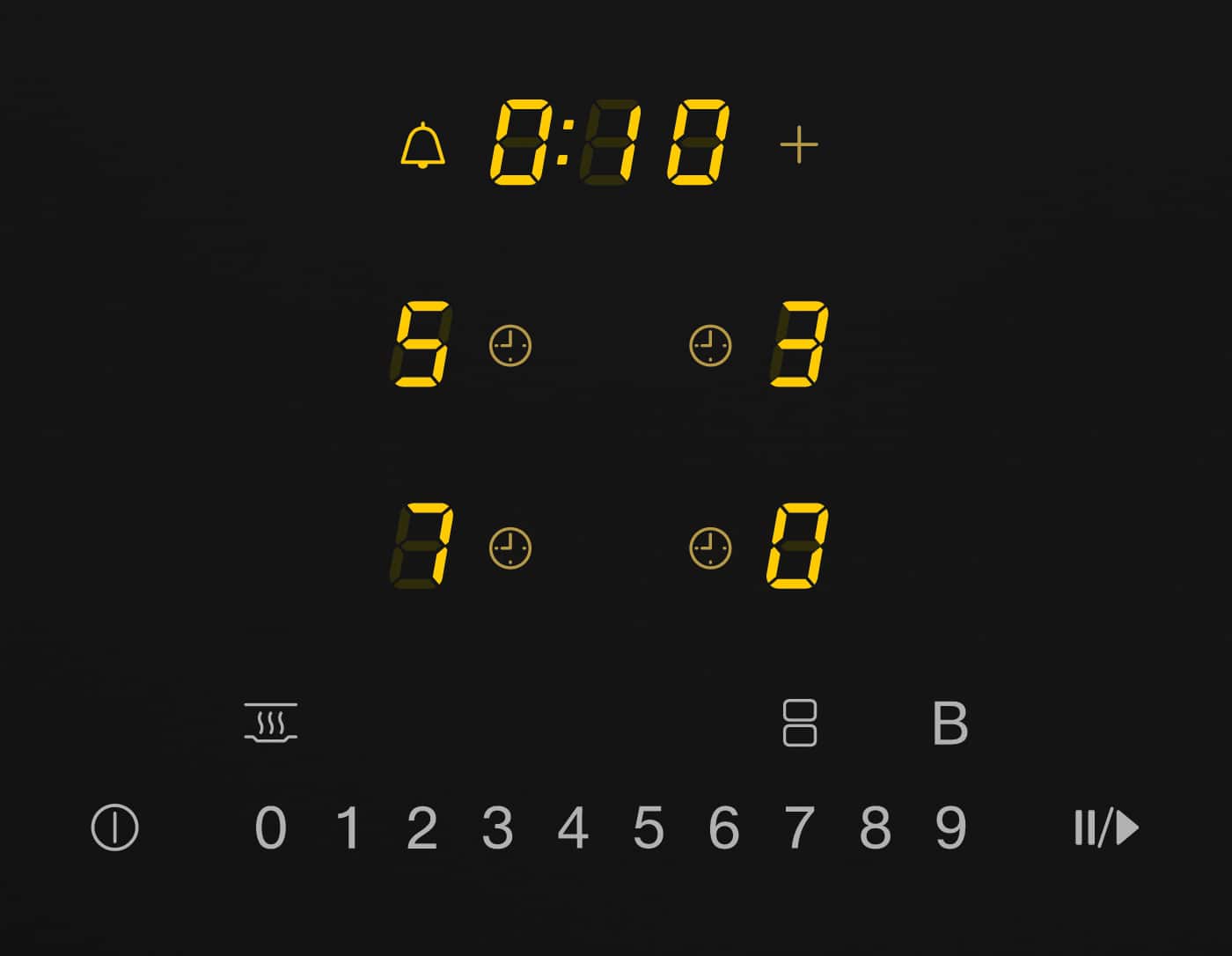

Operation via sensor controlsComfortSelect

Display colourYellow

Permanent pan recognition

Pan and pan size recognition

Stop & Go function

Recall function

Minute minder

Safety switch-off

Auto heat-up

Keeping warm

Individual setting options (e.g. buzzers)

Power rating in off mode in W0.5

Power rating in standby mode in W1

Power rating in networked standby in W2

Time until automatic switch to off mode in min20

Time until automatic switch to standby in min20

Time until automatic switch to networked standby in min20

Easy to clean ceramic glass

Safety switch-off

Lock function

System lock

Integrated cooling fan

Overheating protection

Residual heat indicator

Dimensions in mm (width)806

Dimensions in mm (height)52

Casing height incl. connection box in mm45

Dimensions in mm (depth)526

Cutout dimensions in mm (width) with surface-mounted installation780

Cutout dimensions in mm (depth) with surface-mounted installation500

Weight in kg12

Total rated load in kW7.300

Voltage in V230

Frequency in Hz50-60

Length of supply lead in m1.4

Mains cable

EAN4002516149262

What's included

Mains cable

Smart control

Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

Ideal for large pans

PowerFlex

Unbeatably fast and versatile: the booster output of up to 7.3 kW.

Setup/function

Smart control

Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

Booster Function for rapid heating

TwinBooster

Flexible power: the induction power can be individually distributed or focused on just one cooking zone.

Added convenience

Convenient additional functions

Numerous additional functions such as Stop & Go and the timer make life easier in the kitchen.

Set down your pan and get cooking

Permanent pan detection

Automatic control element activation: when the hob is turned on, pans which are already in place are detected.

Ideal for large pans

PowerFlex

Unbeatably fast and versatile: the booster output of up to 7.3 kW.

Safety

For greater safety and security

Safety functions

The safety functions prevent any unpleasant surprises – even if your mind is on other things.

Matching products and accessories

GP CL KM 0252 L

Ceramic and stainless steel cleaner, 250 ml

For best cleaning results and safe use.

GP GS KM 0011 M

Scraper for cleaning

For ceramic glass hobs.

GGRP

Gourmet griddle plate

for a unique grilling experience on Miele induction hobs.

GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

KMTS 5704-2

Fiskars “All Steel” starter pan set (4 pieces)

stainless steel cookware with a matt brushed finish exclusively for Miele.

HUB 5001-M

Induction compatible gourmet oven dish

For frying, braising and gratinating.

KMTY

Tepan Yaki

for a unique cooking experience on Miele induction hobs.

GP GSB KM 0101 M

Replacement blades, 10 pieces

For cleaning scraper.

CleanKitchen set

For cleanliness and shine throughout the kitchen.

Downloads

Warranty conditions

PDF

Downloads

Product sheet

PDF

Downloads

Operating instructions/Installation instructions

PDF

Downloads

rvt

ZIP

Downloads

ifc

ZIP

Downloads

dwg

ZIP

Downloads

fbx

ZIP

Downloads

rfa

ZIP

Downloads

Product fiche

PDF

Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000014/200001426/20000142676.png

Descriptions

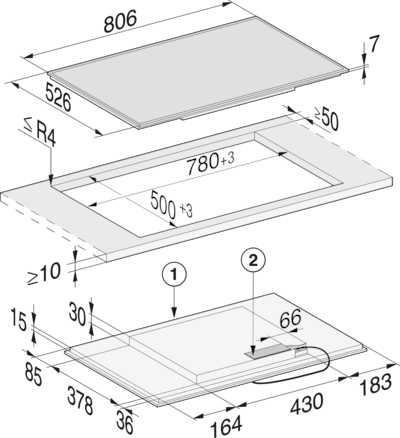

KM7474FR, KM7474-1FR (installation drawings)

1) Front, 2) Mains connection box with mains connection cable, L = 1440 mm
