KM 7667 FL

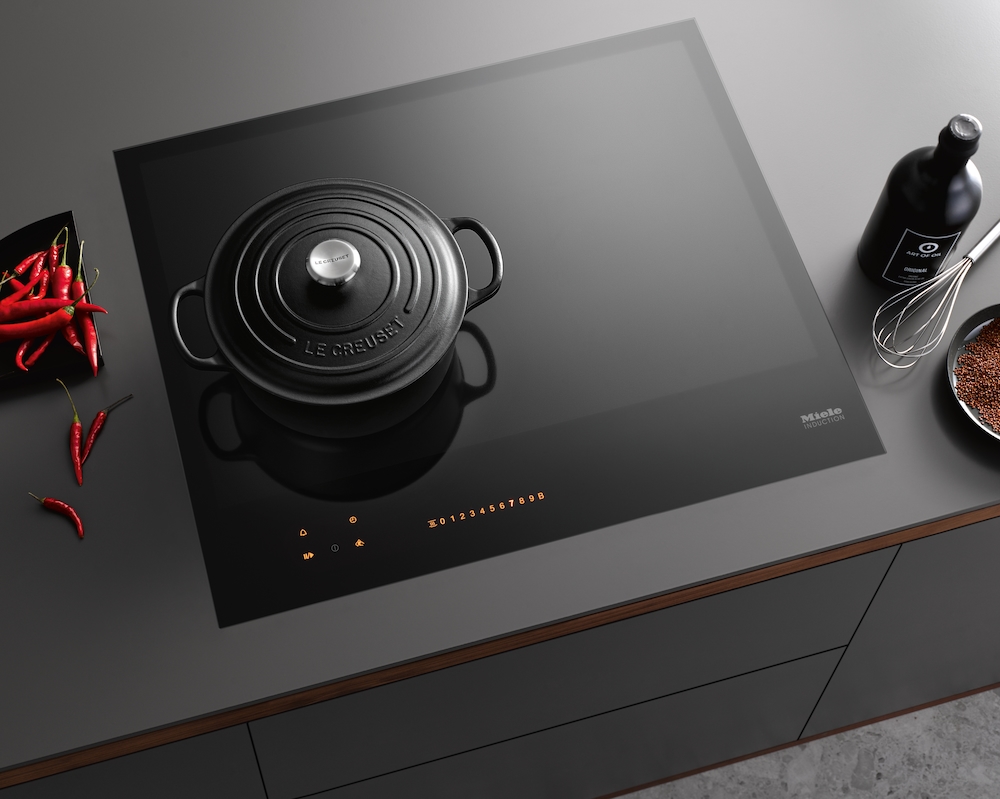

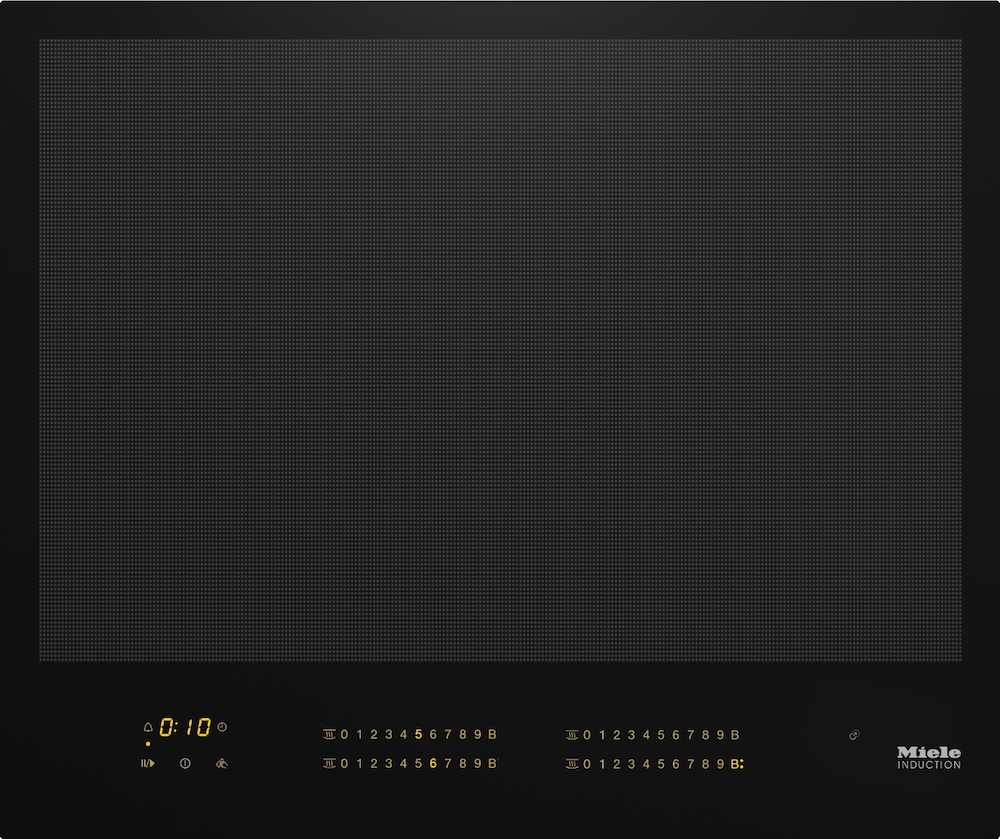

Induction hob with onset controls

KM 7667 FL

Name: KM 7667 FL
Brand: Miele
SKU: 11144080
Price: 2199 GBP
Availability: InStock

with a width of 620 mm and full-surface induction for a high level of flexibility

Product data sheet

£2,199.00

Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630

Additional services

You can select the following services for this product in your basket:

Disconnect & Recycle Old Appliance (£20.00)

Product details

Intuitive quick selection via number sequences –Smart Select
Intelligent pan recognition – for up to 4 pans
Frameless for flush-fit or surface-mounted installation
Broad performance spectrum - keeping warm function and TwinBooster
Communication with the cooker hood – automaticCon@ctivityfunction

Product data sheet

Heating typeInduction

Independent of cooker

Elegant glass ceramic surface

Ceramic surface colourBlack

Flush

Surface-mounted installation

Can be combined with SmartLine

Can be combined with SmartLine downdraft extractor

Number of cooking areas1

Maximum number of pans4

PositionCan be selected freely

TypeFull area

Size in mm570x390

Max. rating in W2600

Max. Booster power rating in W3300

Max. TwinBooster power rating in W3650

Networking with Miele@home

Automatic function Con@ctivity

Operation via sensor controlsSmart Select

Display colourYellow

Pan and pan size recognition

Intelligent pan recognition

Positioning aid

Stop & Go function

Wipe protection

Recall function

Minute minder

Safety switch-off

Auto heat-up

Keeping warm

Individual setting options (e.g. buzzers)

Power rating in off mode in W0.50

Power rating in standby mode in W1

Power rating in networked standby in W2

Time until automatic switch to off mode in min20

Time until automatic switch to standby in min20

Time until automatic switch to networked standby in min20

Easy to clean ceramic glass

Safety switch-off

Lock function

System lock

Integrated cooling fan

Overheating protection

Residual heat indicator

Dimensions in mm (width)620

Dimensions in mm (height)51

Casing height incl. connection box in mm51

Dimensions in mm (depth)520

Cutout dimensions in mm (width) with surface-mounted installation600

Cutout dimensions in mm (depth) with surface-mounted installation500

Internal cutout dimensions in mm (width) with flush installation600

Internal cutout dimensions in mm (depth) with flush installation500

External cutout dimensions in mm (width) with flush installation624

External cutout dimensions in mm (depth) with flush installation524

Weight in kg11

Total rated load in kW7.30

Voltage in V230

Frequency in Hz50.00-60.00

Length of supply lead in m1.40

Mains cable

EAN4002516148821

What's included

Mains cable

Smart control

Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

Flexibility in every cooking situation

Full-surface

Use the hob surface however you like: pans can be placed anywhere.

Setup/function

Combination with SmartLine

Uniform and elegant: your Miele hob can be optimally combined with our SmartLine elements.

Smart control

Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

Intuitive and intelligent

Intelligent pan detection

Knows where the pan is: the control elements simply move along on the full surface.

Booster Function for rapid heating

TwinBooster

Flexible power: the induction power can be individually distributed or focused on just one cooking zone.

Added convenience

Convenient additional functions

Numerous additional functions such as Stop & Go and the timer make life easier in the kitchen.

Flexibility in every cooking situation

Full-surface

Use the hob surface however you like: pans can be placed anywhere.

User convenience

Easy operation with SmartSelect

SmartSelect

Quick and intuitive: power levels and times can be selected directly for each cooking zone.

Safety

For greater safety and security

Safety functions

The safety functions prevent any unpleasant surprises – even if your mind is on other things.

Matching products and accessories

Spacer strip

for installing several SmartLine elements in one single cut-out.

GP CL KM 0252 L

Ceramic and stainless steel cleaner, 250 ml

For best cleaning results and safe use.

GP GS KM 0011 M

Scraper for cleaning

For ceramic glass hobs.

GGRP

Gourmet griddle plate

for a unique grilling experience on Miele induction hobs.

GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

KMTS 5704-2

Fiskars “All Steel” starter pan set (4 pieces)

stainless steel cookware with a matt brushed finish exclusively for Miele.

HUB 5001-M

Induction compatible gourmet oven dish

For frying, braising and gratinating.

KMTY

Tepan Yaki

for a unique cooking experience on Miele induction hobs.

GP GSB KM 0101 M

Replacement blades, 10 pieces

For cleaning scraper.

CleanKitchen set

For cleanliness and shine throughout the kitchen.

Downloads

Warranty conditions

PDF

Downloads

Operating instructions/Installation instructions

PDF

Downloads

Product sheet

PDF

Downloads

dwg

ZIP

Downloads

rfa

ZIP

Downloads

fbx

ZIP

Downloads

ifc

ZIP

Downloads

rvt

ZIP

Downloads

Product fiche

PDF

Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000015/200001505/20000150539.png

Descriptions

KM7667FL, KM7667-1FL, KM7867FL, KM7867-1FLDiamond, KM7867-2FL Diamond - flush (installation drawings)

1) Front, 2) Mains connection box with mains connection cable, L = 1440 mm, are enclosed loosely, 3) Stepped cut-out natural stone worktop, 4) Wood support 12 mm (not supplied)

Downloads

https://media.miele.com/images/2000015/200001505/20000150537.png

Descriptions

KM7667FL, KM7667-1FL, KM7867FL, KM7867-1FL Diamond, KM7867-2FL Diamond - onset installation (installation drawings)

1) Front, 2) Mains connection box with mains connection cable, L = 1440 mm, are enclosed loosely,
