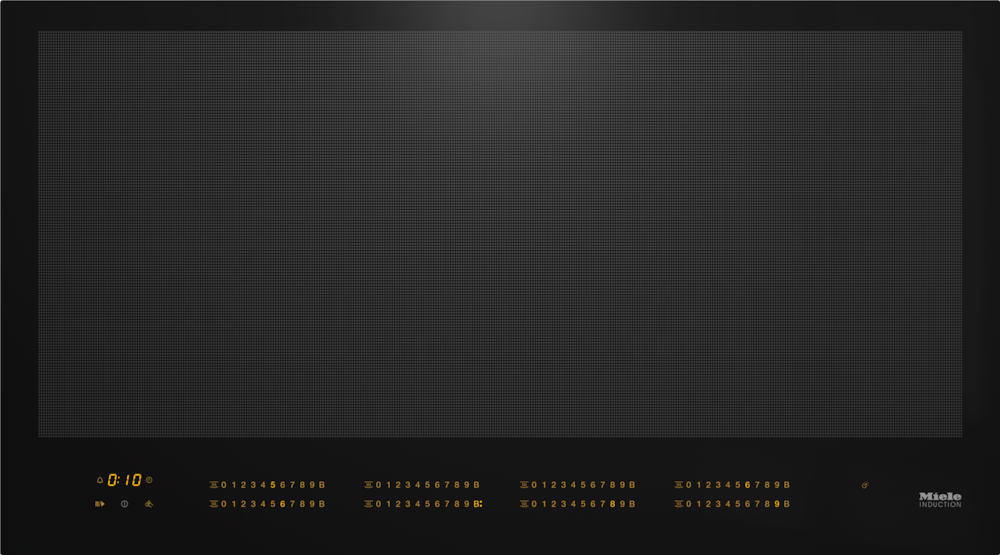

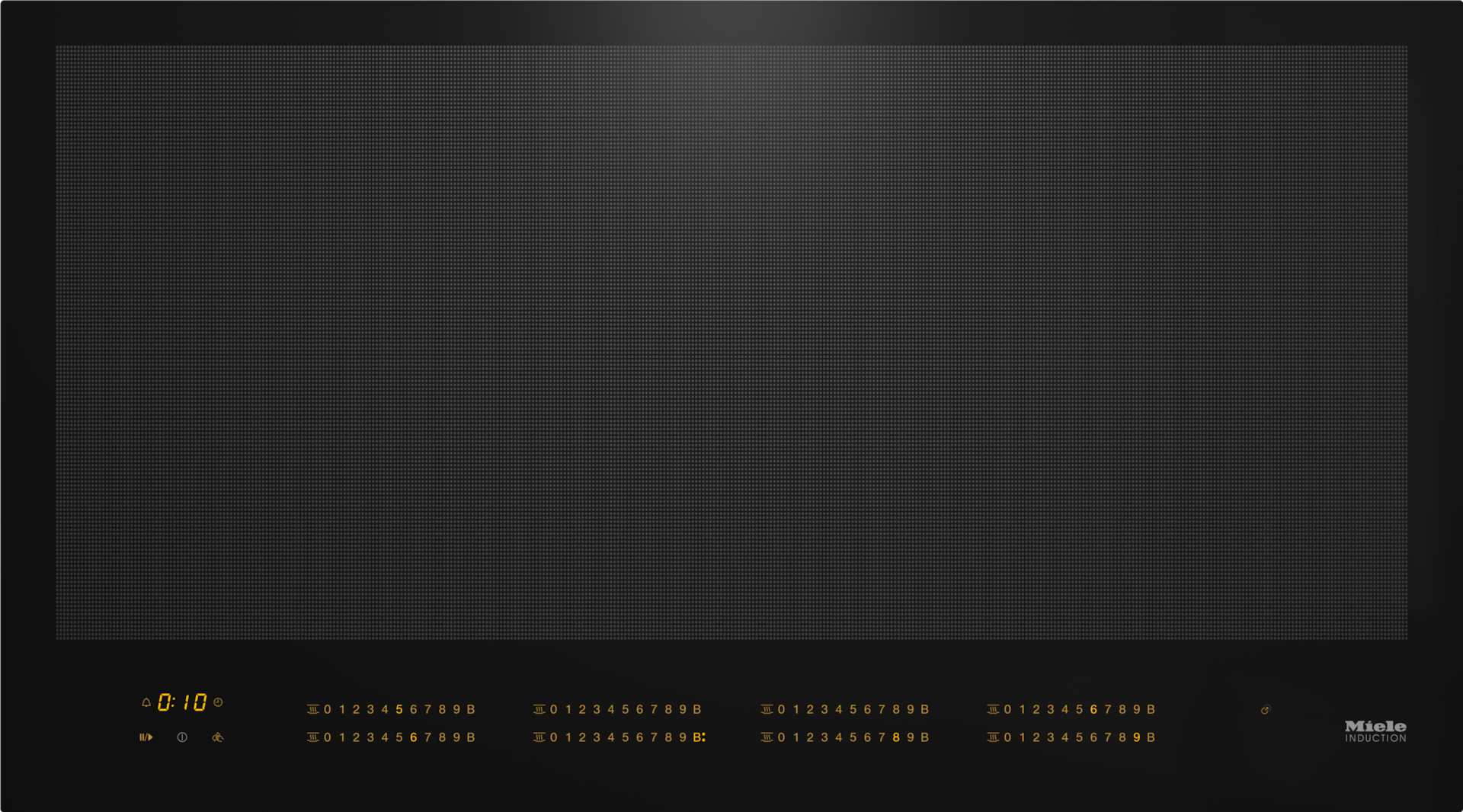

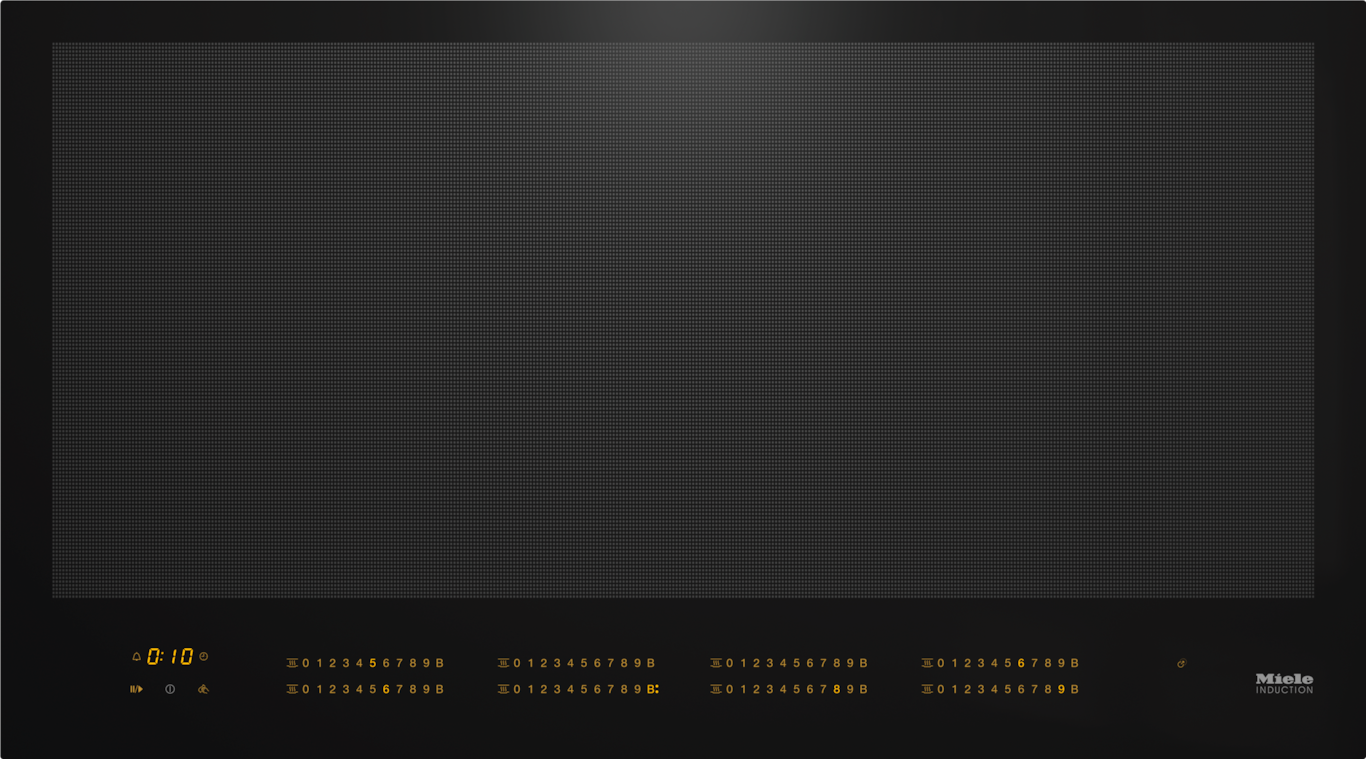

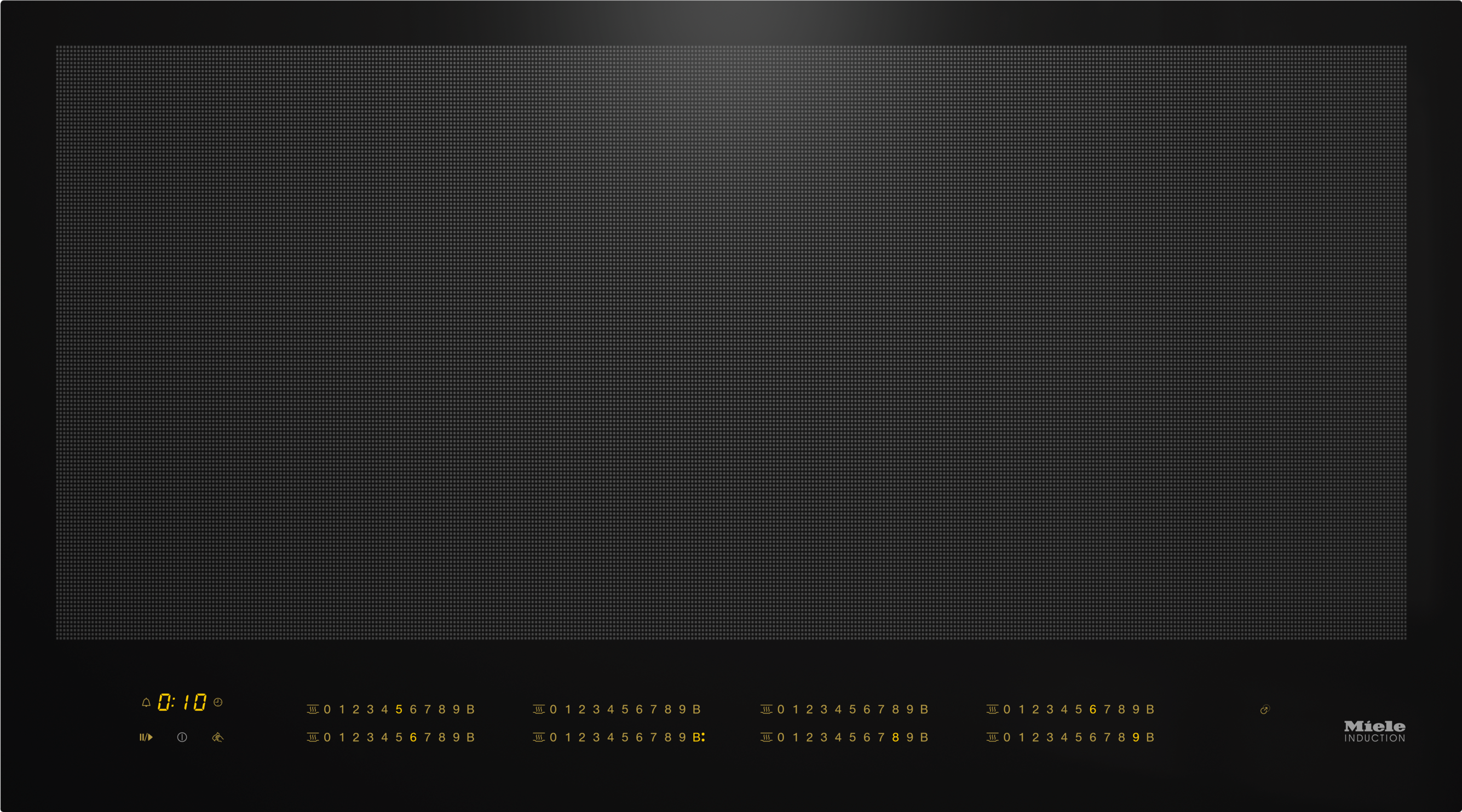

Induction hob with onset controls

KM 7697 FL Black

with a width of 936 mm and full-surface induction for maximum flexibility


Colour:Black

sale price£3,099.00
Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630



Additional services

You can select the following services for this product in your basket:

  • Disconnect & Recycle Old Appliance (£20.00)

Product details

  • Intuitive quick selection via number sequences –Smart Select
  • Intelligent pan recognition – for up to 6 pans
  • Frameless for flush-fit or surface-mounted installation
  • Broad performance spectrum - keeping warm function and TwinBooster
  • Communication with the cooker hood – automaticCon@ctivityfunction

Product data sheet

Heating typeInduction
Independent of cooker
Elegant glass ceramic surface
Ceramic surface colourBlack
Flush
Surface-mounted installation
Can be combined with SmartLine
Number of cooking areas1
Maximum number of pans6
PositionCan be selected freely
TypeFull area
Size in mm870x380
Max. rating in W2600
Max. Booster power rating in W3300
Max. TwinBooster power rating in W3650
Networking with Miele@home
Automatic function Con@ctivity

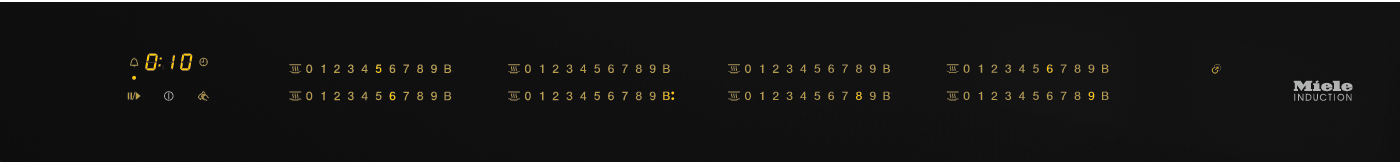

Operation via sensor controlsSmart Select
Display colourYellow
Pan and pan size recognition
Intelligent pan recognition
Positioning aid
Stop & Go function
Wipe protection
Recall function
Minute minder
Safety switch-off
Auto heat-up
Keeping warm
Individual setting options (e.g. buzzers)
Power rating in off mode in W0.5
Power rating in standby mode in W1
Power rating in networked standby in W2
Time until automatic switch to off mode in min20
Time until automatic switch to standby in min20
Time until automatic switch to networked standby in min20
Easy to clean ceramic glass
Safety switch-off
Lock function
System lock
Integrated cooling fan
Overheating protection
Residual heat indicator
Dimensions in mm (width)936
Dimensions in mm (height)51
Casing height incl. connection box in mm51
Dimensions in mm (depth)520
Cutout dimensions in mm (width) with surface-mounted installation916
Cutout dimensions in mm (depth) with surface-mounted installation500
Internal cutout dimensions in mm (width) with flush installation916
Internal cutout dimensions in mm (depth) with flush installation500
External cutout dimensions in mm (width) with flush installation940
External cutout dimensions in mm (depth) with flush installation524
Weight in kg21
Total rated load in kW11
Voltage in V230
Frequency in Hz50-60
Length of supply lead in m1.4
Mains cable
EAN4002516148708

What's included

Mains cable

Setup/function

Combination with SmartLine
Combination with SmartLine

Uniform and elegant: your Miele hob can be optimally combined with our SmartLine elements.


Smart control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.


Intuitive and intelligent
Intelligent pan detection

Knows where the pan is: the control elements simply move along on the full surface.


Booster Function for rapid heating
TwinBooster

Flexible power: the induction power can be individually distributed or focused on just one cooking zone.


Added convenience
Convenient additional functions

Numerous additional functions such as Stop & Go and the timer make life easier in the kitchen.


Flexibility in every cooking situation
Full-surface

Use the hob surface however you like: pans can be placed anywhere.


User convenience

Easy operation with SmartSelect
SmartSelect

Quick and intuitive: power levels and times can be selected directly for each cooking zone.


Safety

For greater safety and security
Safety functions

The safety functions prevent any unpleasant surprises – even if your mind is on other things.


Downloads

Warranty conditions
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
rvt
ZIP
Downloads
ifc
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
rfa
ZIP
Downloads
Product fiche
PDF
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000015/200001511/20000151107.png
Descriptions
KM7697FL, KM7897FL, KM7897-1FLDiamond, KM7897-2FL Diamond (installation drawings) - onset
1) Front, 2) Mains connection box with mains connection cable, L = 1440 mm, are enclosed loosely,
Downloads
https://media.miele.com/images/2000015/200001511/20000151125.png
Descriptions
KM7697FL, KM7897FL, KM7897-1FLDiamond, KM7897-2FL Diamond (installation drawings) - flush-fit
1) Front, 2) Mains connection box with mains connection cable, L = 1440 mm, are enclosed loosely, 3) Stepped cut-out natural stone worktop, 4) Wood support 12 mm (not supplied)
Downloads
