Home
Hobs
SmartLine
CS 7641 FL

SmartLine element

CS 7641 FL Black

Name: CS 7641 FL
Brand: Miele
SKU: 11323040
Price: 3149 GBP
Availability: InStock

with induction wok

Product data sheet

Colour:Black

£3,149.00

Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630

Additional services

You can select the following services for this product in your basket:

Disconnect & Recycle Old Appliance (£20.00)

Product details

Intuitive quick selection via number sequences –Smart Select
Elegant design – for flush or raised installation
Seamlessly integrates with anySmartLine element
Eye-catcher - with integrated wok
Powerful - booster function

Product data sheet

Heating typeInduction

SmartLine

Elegant glass ceramic surface

Ceramic surface colourBlack

Flush

Surface-mounted installation

Appliance networking

Number of cooking zones1

PositionCentred

TypeWok burner

Size in mmØ 300

Max. rating in W2500

Max. Booster power rating in W3000

Wok recessWok recess

Operation via sensor controlsSmart Select

Display colourYellow

Permanent pan recognition

Pan and pan size recognition

Stop & Go function

Wipe protection

Recall function

Minute minder

Auto heat-up

Keeping warm

Individual setting options (e.g. buzzers)

Easy to clean ceramic glass

Safety switch-off

Lock function

System lock

Integrated cooling fan

Overheating protection

Residual heat indicator

Dimensions in mm (width)378

Dimensions in mm (height)134

Casing height incl. connection box in mm129

Dimensions in mm (depth)520

Cutout dimensions in mm (width) with surface-mounted installation358

Cutout dimensions in mm (depth) with surface-mounted installation500

Internal cutout dimensions in mm (width) with flush installation358

Internal cutout dimensions in mm (depth) with flush installation500

External cutout dimensions in mm (width) with flush installation382

External cutout dimensions in mm (depth) with flush installation524

Weight in kg12

Total rated load in kW3

Voltage in V220-240

Frequency in Hz50-60

Length of supply lead in m1.5

Mains cable

Coated wok pan

EAN4002516276210

What's included

Mains cable

Coated wok pan

Easy to use thanks to SmartSelect

SmartSelect

Quick and intuitive: power levels and times can be selected separately for each cooking zone.

Setup/function

Best use of energy

Permanent pan recognition

Automatic activation of numerical display: when turned on, pans which are already on a cooking zone are detected.

User convenience

Easy to use thanks to SmartSelect

SmartSelect

Quick and intuitive: power levels and times can be selected separately for each cooking zone.

Matching products and accessories

Spacer strip

for installing several SmartLine elements in one single cut-out.

GP CL KM 0252 L

Ceramic and stainless steel cleaner, 250 ml

For best cleaning results and safe use.

GP GS KM 0011 M

Scraper for cleaning

For ceramic glass hobs.

GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

GP GSB KM 0101 M

Replacement blades, 10 pieces

For cleaning scraper.

CleanKitchen set

For cleanliness and shine throughout the kitchen.

Spacer strip

for installing several SmartLine elements in one single cut-out.

KMBP 2800-2

Fiskars “All Steel” frying pan (28 cm)

made from stainless steel for lasting performance even at high temperatures.

CSWP 1400

Wok pan for CombiSet

designed to fit perfectly into the trough of Miele's induction wok.

KMKT 1825-2

Fiskars “All Steel” casserole (18 cm | 2.5 litres)

stainless steel cookware with a matt brushed finish exclusively for Miele.

CSWP 1400

Wok pan for CombiSet

designed to fit perfectly into the trough of Miele's induction wok.

Downloads

Product sheet

PDF

Downloads

Warranty conditions

PDF

Downloads

Operating instructions/Installation instructions

PDF

Downloads

rvt

ZIP

Downloads

rfa

ZIP

Downloads

ifc

ZIP

Downloads

fbx

ZIP

Downloads

dwg

ZIP

Downloads

Product fiche

PDF

Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000016/200001697/20000169764.png

Descriptions

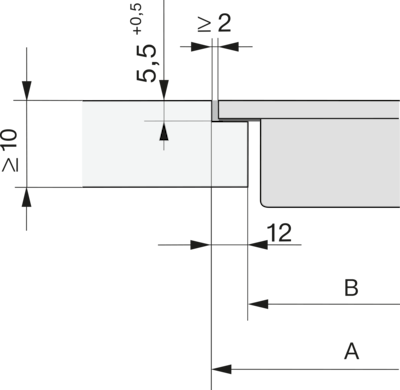

CS 7000 FL, flush (Installation drawing)

*7+0,5 = CS7641 (Wok)

Downloads

https://media.miele.com/images/2000016/200001679/20000167901.png

Descriptions

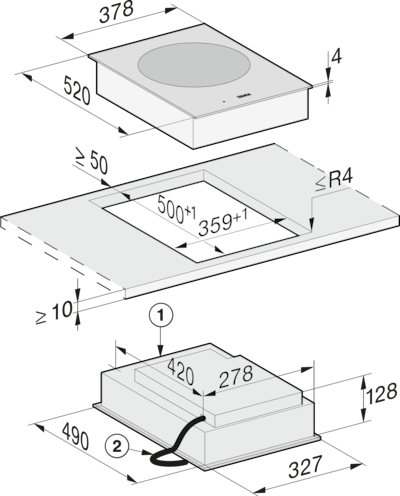

CS7641FL, onset (Installation drawing)

1) Front, 2) Mains connection cable, L = 2000 mm

Downloads

https://media.miele.com/images/2000016/200001679/20000167900.png

Descriptions

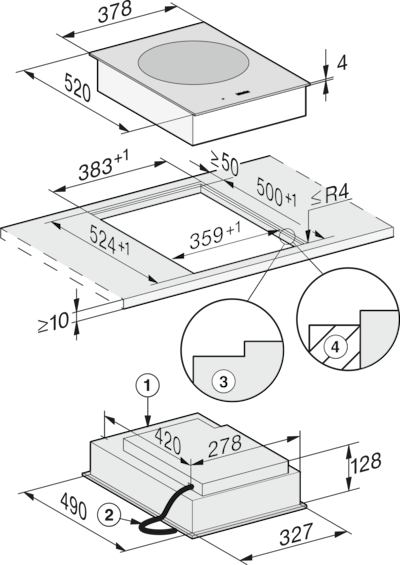

CS7641FL, flush (*Fußnote) (Installation drawing)

1) Front, 2) Mains connection cable, L = 2000 mm, 3) Stepped cut-out, 4) Wooden frame 12 mm (supplied loose)

Downloads

https://media.miele.com/images/2000016/200001697/20000169763.png

Descriptions

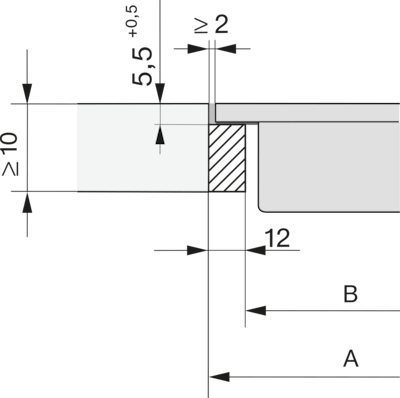

CS 7000 FL, flush (Installation drawing)

*7+0,5 = CS7641 (Wok)

Downloads
