W1 front-loader washing machine:

WDD 131 WPS GuideLine Lotus white

A I 8 kg I 1400 rpm I operating panel I audible support I audio instructions
Product data sheet
sale price£1,049.00
Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630


Additional services

You can select the following services for this product in your basket:

  • Freestanding Installation (£30.00)
  • Disconnect & Recycle Old Appliance (£20.00)
  • Tumble Dryer Connection (£15.00)

Product details

  • GuideLine – for blind and visually impaired people
  • Tested for20 yearsof perfect laundry care2,
  • Save energy in the best energy efficiency class (A)
  • ExclusiveCapDosingrange for different fabrics and stains3,
  • Ourhoneycomb drumensures that laundry stays in perfect condition

Product data sheet

Suitable for stacking
Side-by-side
Slot-in
Door hingeright
Product brandW1 Chrome Edition
Front-loader
Max. spin speed1400
Rinse hold
Without spin function
Appliance colourLotus white
Control panel colourLotus white
Door designGraphite grey PearlFinish
Rotary selector colourLotus White / Chrome ring
Control panel versionSlanted
Control typeRotary control
DisplayDirectSensor yellow, 7 segment
CapDosing portioned dispensing
Honeycomb drum
Load in kg8
GuideLine
Delay start up to 7 hours
Time left display
AutoClean detergent drawer
Energy efficiency class (A–G)A
Weighted energy consumption per 100 operating cycles for the wash cycle in kWh47
Weighted water consumption per cycle in l47
Spin efficiency classB
Acoustic airborne noise emission class (spin cycle)A
Sound emissions during spin cycle in dB(A) re 1 pW70
Duration of the “ECO 40–60” programme at nominal capacity219
Power rating in off mode in W0.30
Low temperature wash "Cold" and "20 °C"
Automatic load control
Flow meter
Foam sensing
ProfiEco motor
Cottons (coloureds)
Minimum iron
Delicates
Shirts
Woollens (hand-washable)
Express 20
Dark garments / Denim
Outerwear
Proofing
Cottons Arrow
Separate rinse/Starch
Drain / Spin
ECO 40-60
Short
Soak
Pre-wash
Water plus
Additional rinse cycle
Buzzer
Water protection systemWaterproof-System
Safety lock
PIN-Code
Optical interface
Dimensions in mm (width)596
Dimensions (H x W x D) in mm850 x 596 x 636
Dimensions in mm (height)850
Dimensions in mm (depth)636
Appliance depth in mm with opened door1054
Appliance depth excluding door (for building-under) in mm600
Weight in kg86
Total rated load in kW2.100-2.400
Voltage in V220-240
Fuse rating in A10
Frequency in Hz50
Length of supply lead in m2
EAN4002516236894
Tested for 20 years of perfect laundry care2,
Tested for the equivalent of 20 years’ use.2,

Some car engines are subjected to 3000 hours of tests, but we test continuous performance for up to 10,000 hours.2,

Quality

Tested for 20 years of perfect laundry care2,
Tested for the equivalent of 20 years’ use.2,

Some car engines are subjected to 3000 hours of tests, but we test continuous performance for up to 10,000 hours.2,

Efficiency and sustainability

Tailored to your load
Automatic load recognition

Use precisely the water and energy needed for your laundry with automatic load recognition.

Washing programs

Most gentle treatment of your favourite garments
Woollens

No shrinkage, no felting: Delicate wool fabrics are cared for particularly gently, maintaining their quality.

Business as usual
Shirts

Prevents creasing: reduces creasing and simplifies the ironing of shirts and blouses significantly.

Special programme for high-tech materials
Outerwear

Best care without the loss of function: High-quality outdoor textiles retain their functionality in any weather.

Equip textiles with functions
Proofing

Best possible effect: Thermally fixing ensures optimum water-repellent properties.

Optimum care of synthetic fibres
Delicates

Gentle & soft: with the special programme synthetic textiles stay beautiful & keep their shape.

Gentle laundry care

Keep your clothing safe while tumbling
Honeycomb drum

Our protective drum allows fabrics to safely glide along without snagging and damaging them.

Safety

Additional safety
Waterproof system (WPS)

Double safety: in the event of a leak, a second solenoid valve stops the flow of water directly at the stopcock.

Matching products and accessories

Washer-dryer stacking kit
WTV 501

Washer-dryer stacking kit

For space-saving and safe installation of a washer-dryer stack.

£69.00
Washer-dryer stacking kit
WTV 511

Washer-dryer stacking kit

with an integrated drawer for a particularly convenient washer-dryer stack.

£229.00
IntenseClean, 200 g
GP CL WG 252 P

IntenseClean, 200 g

For hygienic cleanliness in dishwashers and washing machines

£8.99
Descaler 250 g
GP DC WG 0252 P

Descaler 250 g

Removes harmful limescale deposits from dishwashers and washing machines.

£8.99
UltraWhite powder detergent 2.7 kg
WA UW 2702 P

UltraWhite powder detergent 2.7 kg

For optimum results on white textiles and dye-fast coloureds.

£17.99
Aqua caps
WA CSOA 0902 L

Aqua caps

9-pack fabric conditioner for freshly scented laundry. EasyOpen.

£7.99
UltraSoft fabric conditioner 1.5 l

UltraSoft fabric conditioner 1.5 l

for soft, bouncy laundry and a fresh Aqua fragrance.

£8.99
UltraColor liquid detergent 1.5 l
WA UC 1501 L

UltraColor liquid detergent 1.5 l

highly effective liquid detergent for colours and dark / black items.

£11.69
WoolCare caps
WA CWC 0902 L

WoolCare caps

9-pack wool and delicates detergent. EasyOpen.

£8.49
Appliance care set
DishClean & IntenseClean Set

Appliance care set

For hygienic cleanliness in dishwashers

£25.00
WoolCare detergent for delicates 1.5 l
WA WC 1503 L

WoolCare detergent for delicates 1.5 l

for wool, silks and other delicates.

£15.49
UltraColor and UltraWhite set
Set UltraColor & UltraWhite

UltraColor and UltraWhite set

more than a half-year supply of Miele detergents.

£38.99
WoolCare caps
WA CWC 0902 L

WoolCare caps

9-pack wool and delicates detergent. EasyOpen.

£8.49
Nature caps
WA CSON 0902 L

Nature caps

9-pack fabric conditioner for freshly scented laundry. EasyOpen.

£7.99
Caps Collection
WA CCO 0603 L

Caps Collection

6-pack trial package with selected capsule types. EasyOpen.

£8.49
SilkCare caps
WA CSC 0602 L

SilkCare caps

6-pack silk and delicates detergent. EasyOpen.

£8.49
Sport caps
WA CSP 0603 L

Sport caps

6-pack special-purpose detergent for synthetic fabrics. EasyOpen.

£8.49
Outdoor caps
WA COU 0603 L

Outdoor caps

6-pack special detergent for high-quality functional clothing. EasyOpen.

£8.49
Caps WoolCare set
Set Caps WoolCare

Caps WoolCare set

3 x Caps WoolCare at a reduced price.

£18.90
CottonRepair caps
WA CCR 0302 L

CottonRepair caps

3-pack special-purpose detergent for cotton fabrics. EasyOpen.

£15.99

Downloads

User manual
PDF
Downloads
Warranty conditions
PDF
Downloads
Product sheet
PDF
Downloads
UK declaration of conformity
PDF
Downloads
UK declaration of conformity
PDF
Downloads
ifc
ZIP
Downloads
rvt
ZIP
Downloads
rfa
ZIP
Downloads
fbx
ZIP
Downloads
dwg
ZIP
Downloads

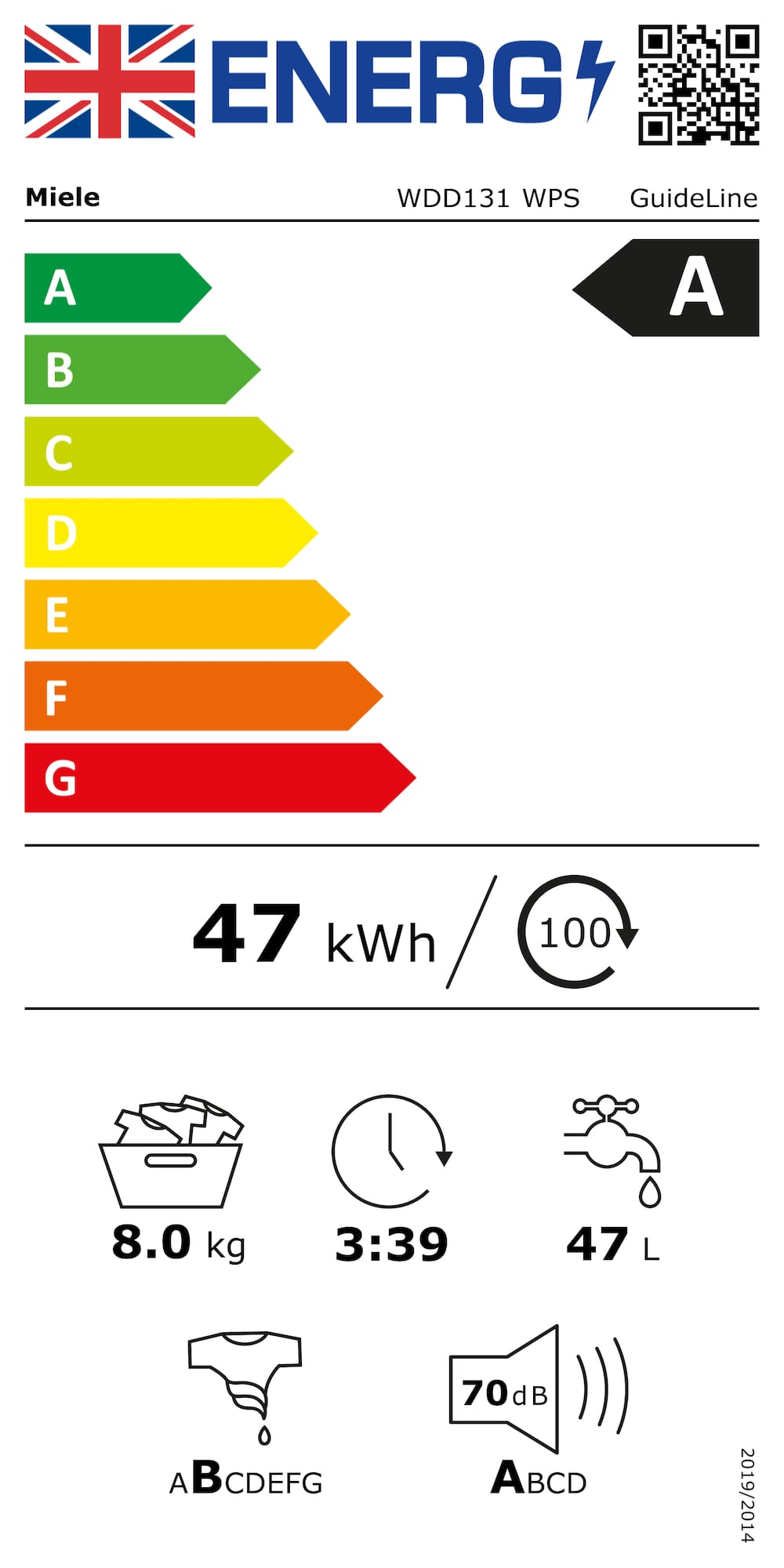

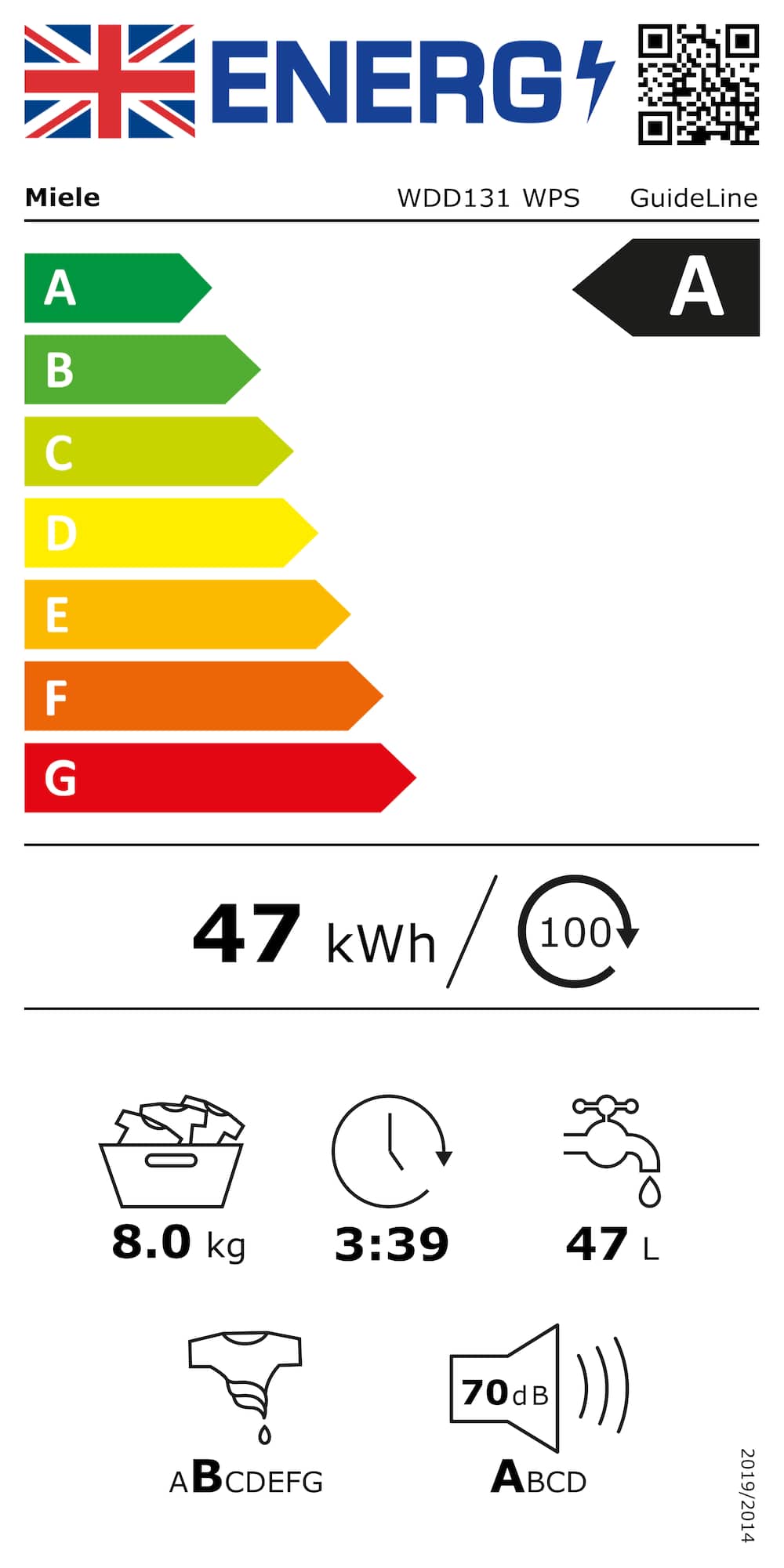

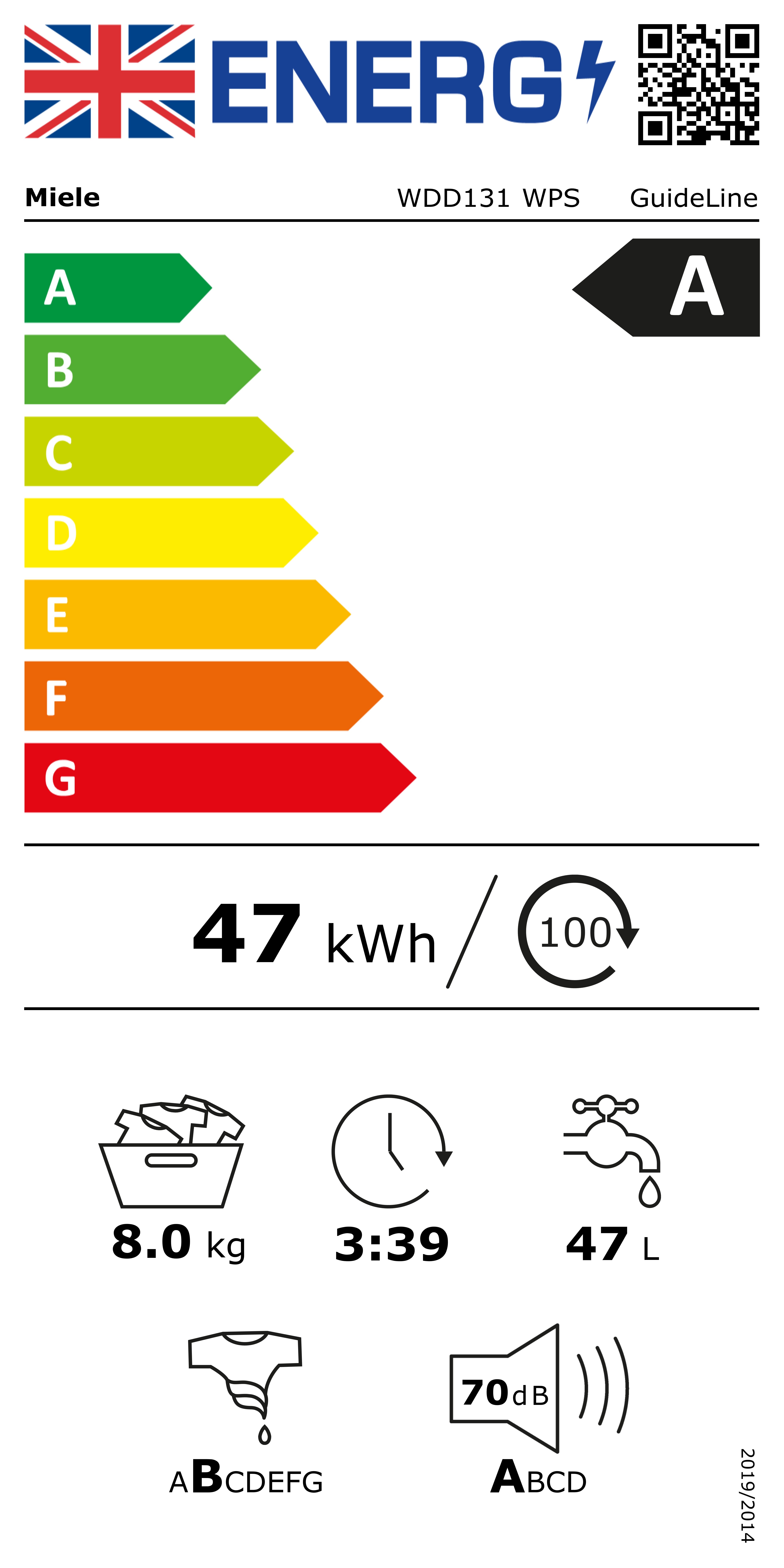

Energy label
