Slimline cooker hood

DAS 4630 Obsidian black

with intuitive SmartControl controls
Product data sheet
Colour:Obsidian black
sale price£1,079.00
Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630


Additional services

You can select the following services for this product in your basket:

  • Disconnect & Recycle Old Appliance (£20.00)

Product details

  • Elegant design – obsidian black control panel, 60 cm wide
  • Unique user convenience –Con@ctivity
  • LED strip for uniform lighting
  • Efficient filtration-10-ply stainless-steel grease filter
  • Recirculation mode –Active AirClean or Longlife AirClean filter

Product data sheet

Slimline cooker hood
Type of air guideCan be retrofitted
Recirculation conversion kit (order separately)DUU 151,DUU 150
Active charcoal filter (order separately)
  • DKFS 31-P
  • DKFS 31-R
ColourObsidian black
Miele@home
Automatic function Con@ctivity
Electronic controls
Touch-on-glass controls
ControlsSmartControl
Booster levels1
Programmable Booster level switch-off
Run-on time 5/15 min.
Grease filter saturation indicator
Grease filter saturation indicator
Active charcoal filter saturation indicator
Easy-to-clean canopy interior – CleanCover
Energy efficiency class (A+++ to D)A+++
Annual energy consumption in kWh/year23.5
Fluid dynamic efficiency classA
Lighting efficiency classA
Grease filtering efficiency classA
PowerManagement system
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply)1
LED
Number x W1 x 3 W
Light intensity in Lx330 lx
Colour temperature in K3500 Kelvin
Dimmer function
Dual-action blower
DC motor
Air throughput in Level 1 (m³/h) according to EN 61591180
Air throughput in Level 2 (m³/h) according to EN 61591280
Air throughput in Level 3 (m³/h) according to EN 61591400
Air throughput in booster level 1 (m³/h)600
Air throughput in booster level 2 (m³/h)720
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-338
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-348
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-356
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-366
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-370
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1325
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1334
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1342
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1353
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-1357
Air throughput in Level 1 (m³/h) according to EN 61591165
Air throughput in Level 2 (m³/h) according to EN 61591265
Air throughput in Level 3 (m³/h) according to EN 61591380
Air throughput in Booster level 1 (m³/h) according to EN 61591585
Air throughput in Booster level 2 (m³/h) according to EN 61591695
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-343
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-353
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-362
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-372
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-377
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1329
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1340
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1348
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1359
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-1363
Safety shut-off
Single-ply safety glass (ESG)
Canopy width in in. (mm)596
Canopy height in in. (mm)36
Depth of hood canopy in in. (mm)273
Minimum height above electric hobs in mm450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm650
Net weight in kg12
Length of supply lead in m1.5
Standard plug fitted
Total rated load in kW0.163
Voltage in V230
Fuse rating in A10
Frequency in Hz50
Number of phases1
Extraction ducting connection at top
Diameter of extraction ducting connection in mm150
Non-return flap
EAN4002516496151

What's included

Non-return flap
Automatic operation for intelligent fan control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

Easy to use and effective against grease
Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

The heart of every cooker hood
ECO motor

Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

Elegant touch controls
SmartControl

High-quality and functional: enjoy convenient touch controls with a dimmer function.

Features

Easy to use and effective against grease
Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

User convenience

Automatic operation for intelligent fan control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

Automatic fan run-on
Run-on function

Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.

Countdown time conveniently in view
Filter indicator

Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.

Elegant touch controls
SmartControl

High-quality and functional: enjoy convenient touch controls with a dimmer function.

Efficiency and sustainability

The heart of every cooker hood
ECO motor

Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.

Safety

Always on the safe side
Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.

Matching products and accessories

Multi-purpose microfibre cloth, qty 1
GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

£6.79
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

£13.59
Recirculation conversion kit for DA 3xxx/2xxx and DAS 2xxx, 4xxx and 8xxx
DUU 151

Recirculation conversion kit for DA 3xxx/2xxx and DAS 2xxx, 4xxx and 8xxx

to convert slimline/integrated cooker hoods from extraction to recirculation.

£144.99
Aluminium vent hose
DAS 150

Aluminium vent hose

flexible vent duct.

£89.49
Roof vent
DDF 125

Roof vent

for extraction.

£262.49
Charcoal filter for Miele recirculation cooker hoods
DKF 31-P

Charcoal filter for Miele recirculation cooker hoods

DAS 4x40, DAS 8x30 and after DKFS 31-P for DAS 2x20, DAS 4x20 and DAS 4x30.

£77.49
Reactivatable charcoal filter for Miele recirculation cooker hoods
DKF 31-R

Reactivatable charcoal filter for Miele recirculation cooker hoods

DAS 4x40, DAS 8x30 and after DKFS 31-R for DAS 2x20, DAS 4x20 and DAS 4x30.

£418.99
Reactivatable Longlife AirClean charcoal filter
DKFS 31-R

Reactivatable Longlife AirClean charcoal filter

for Miele DAS 2x20, DAS 4x20 and DAS 4x30 recirculation cooker hoods.

£440.99
Active AirClean charcoal filter
DKFS 31-P

Active AirClean charcoal filter

for Miele DAS 2x20, DAS 4x20 and DAS 4x30 recirculation cooker hoods.

£88.29

Downloads

Installation plan
PDF
Downloads
Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
UK declaration of conformity
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
rvt
ZIP
Downloads
rfa
ZIP
Downloads
ifc
ZIP
Downloads
fbx
ZIP
Downloads
dwg
ZIP
Downloads

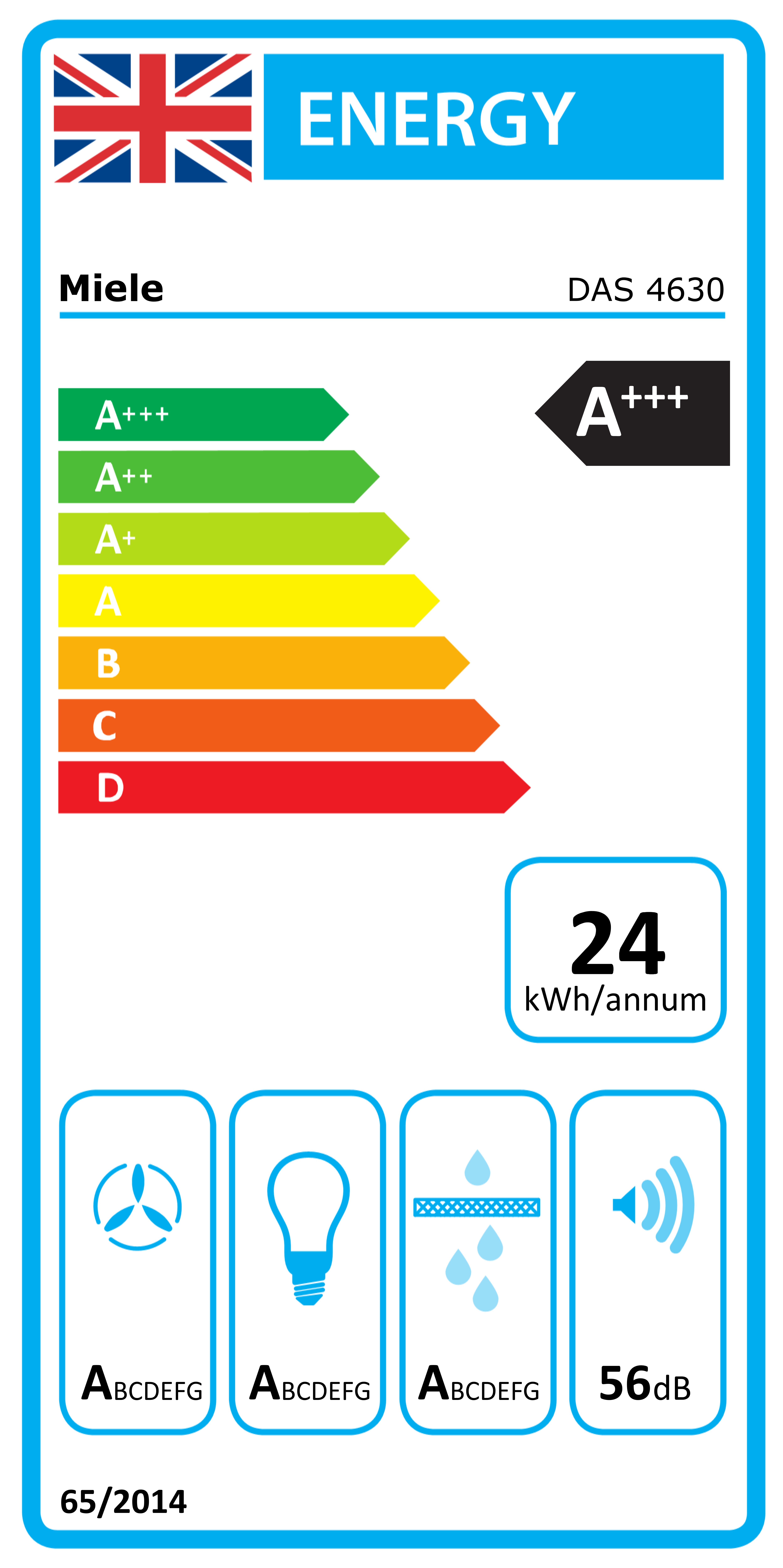

Energy label
PNG
Downloads
Energy label
PDF
Downloads
Product fiche
PDF
Downloads
Energy label
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000017/200001780/20000178035.png
Descriptions
DAS4630, DAS4631, Installation drawings
1) The front section of the wall unit must be fitted with a base panel to secure the cooker hood. If the appliance is fitted further back, e.g. to accommodate a front panel, then the shelf depth should be deeper accordingly. , 2) If a partition wall is to be provided in the unit, it must be removable., 3) Extraction, recirculation with conversion kit DUU 150., , * In this installation situation, the deflector plate is flush with the front edge of the housing unit carcase. , If you wish to position the cooker hood further forward or further back, dimensions have to be adapted accordingly., , Extraction: the height of the wall unit and the cut-out dimensions must take into account any accessories fitted, e.g. silencer, recirculation hood conversion kit).
