Handleless compact combi steam oven with mains water and drain connection

DGC 7845 HCX Pro Obsidian black

for steam cooking, baking, roasting with wireless food probe + HydroClean.


Colour:Obsidian black
Graphite grey
Obsidian black
Obsidian black matt
Pearl beige

sale price£5,299.00
Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630



Additional services

You can select the following services for this product in your basket:

  • Disconnect & Recycle Old Appliance (£20.00)

Product details

  • Large touch display with proximity sensor – M Touch + MotionReact
  • Perfect results –DualSteam technology
  • Crispy outside, succulent inside –combination cooking
  • Miele@home – network-enabled WiFi appliance +Mix & Match
  • Easy cleaning –HydroCleanand stainless steel oven compartment

Product data sheet

Steam combination oven
ArtLine
Handleless
Appliance ColourObsidian black
Rapid heat-up
Pre-heating
External steam generation
Oxygen sensor
Individual humidity settings in combination cooking
Menu cooking without transfer of taste
Mix & Match
Food probeWithout cable
Automatic programmes with ability to make individual adjustments
Keeping warm
Crisp function
Fan plus
Conventional heat
Steam cooking
Combination cooking
Combination cooking with Fan plus
Combination cooking with Conventional heat
Combination cooking with grill large
Sous-vide
Intensive bake
Fan grill
Grill
Economy grill
Grill operating modes
Top heat
Bottom heat
Cake plus
Eco hot air
Eco steam cooking
Defrost
Roast with moisture
Reheat
Plate warming
Automatic programmes
Country-specific automatic programmes
Special applications
Networking with Miele@home
DisplayM Touch
MotionReact proximity sensor
SoftOpen
Touch2Open
MultiLingua
MyMiele
Help function
Motorised lift-up control panel with SoftClose
Quantity-independent cooking
Steam cooking on up to 3 levels at the same time
Automatic menu cooking
Steam reduction before end of programme
Polyphonic buzzers
Timer functions
Time of day display
Date display
Minute minder
Programmable start of cooking duration
Programmable end of cooking duration
Programmable cooking duration
Actual temperature display
Target temperature display
Buzzer when desired temperature is reached
Recommended temperature
User programmes
Individual settings
Energy efficiency class (A+++ - D)A+
Power rating in off mode in W0.50
Stainless-steel oven compartment with linen structure
Hinged grill element
External steam generator
HydroClean
Maintenance programmes
Soak programme
Rinse programme
Oven compartment drying programme
Quick-release side racks
Removable stainless-steel side racks
Automatic descaling
CleanGlass door
DualSteam
Steam generator power in kW3.30
DirectWater Plus
Drain filter
Appliance cooling system and touch-cool front
Safety switch-off
System lock
Vapour cooling system
Sensor lock
Oven compartment volume in l47
No. of shelf levels3
Numbered shelf levels
Door hingeBottom
Oven lightBrilliantLight
Oven temperature regulation min. in °C30
Oven temperature regulation max. in °C230
Oven temperatures in °C30–230
Electronic steam oven temperature regulation min. in °C40
Electronic steam oven temperature regulation max. in °C100
Steam oven temperatures in °C40–100
Niche dimensions (W x H x D) in mm560-568 x 450-452 x 550
Niche width min. in mm560
Niche width max. in mm568
Niche height min. in mm450
Niche height max. in mm452
Niche depth in mm550
Appliance dimensions (W x H x D) in mm595 x 456 x 569
Weight in kg40.20
Total rated load in kW3.40
Voltage in V230
Frequency in Hz50
Fuse rating in A16
Number of phases1
Mains cable with plug
Length of supply lead in m2
Length of water inlet hose in m2
Length of water drain hose in m3
Replacing lampsService
Universal tray with PerfectClean HUBB 711
Baking and roasting rack with PerfectClean HBBR 711
PerfectClean FlexiClip runners HFC 71 (pair)1
Wireless food probe1
Removable side runners (pair)1
Perforated stainless-steel cooking containers2
Solid stainless steel cooking containers1
HydroClean cleaning agent1
Descaling tablets2
Available display languages via MultiLingua한국어
EAN4002516626251

What's included

Universal tray with PerfectClean HUBB 71 (1)
Baking and roasting rack with PerfectClean HBBR 71 (1)
PerfectClean FlexiClip runners HFC 71 (pair) (1)
Removable side runners (pair) (1)
Perforated stainless-steel cooking containers (2)
Solid stainless steel cooking containers (1)
Descaling tablets (2)
HydroClean cleaning agent (1)
Wireless food probe (1)

User convenience

Cleverly networked
Domestic appliance networking with Miele@home2,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.


Gentle door movement
SoftOpen and SoftClose

Refined and elegant: the door opens and closes with a gentle movement from beginning to end.


More than just a control element
Motorised lift-up control panel with SoftClose

Convenient: open and close the lift-up control panel with a tap of a finger to reveal the water container.


Diverse possibilities
Wide range of applications

Steam cooking is also ideal for blanching, defrosting, reheating, proving dough or melting chocolate.


Always ready for operation
DirectWater plus

Mains water connection provides added convenience: no need to fill and empty the water container.


Leave time management to your oven
Timer functions

Always on time: programme the start time, finish time and duration of the cooking process or the minute minder.


Oven cabinets

A perfect view at all levels
BrilliantLight

Powerful and attractive: high-quality LED spotlights perfectly illuminate the oven compartment.


Professional features
Stainless steel oven with linen structure

High quality and easy to clean: stainless steel oven compartment with special linen structure.


Maintenance

A thorough clean automatically
HydroClean

Spotless: HydroClean cleans the oven compartment of your Miele combination steam oven fully automatically.


Special features

Makes food crispy
Crisp function

Perfect for pizza or chips: moisture is reduced for crispy results and perfect browning.


All-round expert for even results
DualSteam

Maximum enjoyment: the steam spreads evenly and rapidly – for perfect cooking results.


Moisture and dry heat: the ideal combination
Combination cooking

Pure enjoyment: perfect results when baking and roasting with a combination of dry and moist heat.


Everything in one appliance
3 in 1

A space-saving combination: oven mode, steam cooking and combination cooking for maximum flexibility.


Effortless cooking with perfect results
Automatic programmes

Conjure up delicious dishes with ease: whether fish, meat or vegetables, cooking is regulated fully automatically.


Meat and fish cooked to perfection
Wireless food probe

Convenient monitoring: the core temperature is precisely measured so the desired degree of cooking is maintained.


Preserves nutrients and protects the appliance
Automatic keeping warm function

Prevents food from cooling down: food is automatically kept warm for 15 minutes after the programme has ended.


For a complete menu
Automatic menu cooking

Cook several components at once: the temperature, cooking duration and sequence are determined automatically.


Gourmet versatility

Vegetables

Nature at its best: gentle cooking in the steam oven retains flavour and is also very healthy.


Side dishes

Always to hand: potatoes, rice and pasta go well with any dish and are extremely nutritious.


Fish/seafood

Healthy food straight from the sea: fish and seafood cooked to perfection, retaining their flavour and texture.


Meat

Juicy and succulent: meat from the steam oven has an impressive, intense flavour.


Defrosting

Gentle on frozen food: defrost any frozen food gently at around 60 °C in ideal conditions.


Disinfecting baby bottles

Bacteria-free in just 15 minutes: quick and uncomplicated disinfection of baby bottles at 100 °C.


Blanching

Ideal preparation: blanch fruit or vegetables to maintain their quality and freshness.


Desserts

Save the best for last: you can prepare desserts in a variety of ways with the steam oven.


Eco steam cooking

Environmentally friendly and sustainable: save energy when steam cooking your food.


Boiled eggs

Soft, medium or hard? Cook your breakfast egg to perfection in minutes at 100 °C


Bottling

Fresher for longer: preserving fruit and vegetables is a breeze in the steam oven.


Sterilising jars

Perfectly prepared: glass jars can be sterilised thoroughly for fruit preserves.


Skinning

Skinning made simple: tomatoes, nectarines and almonds can be skinned in just 1 to 4 minutes in the steam oven.


Extracting juice

Transform any fruit into a delicious juice or jelly: steam ensures particularly gentle juice extraction.


Heating hand towels

Like a restaurant experience: serve your guests hand towels warmed in the steam oven.


Proving dough

Soft and light: this all-rounder even helps you master dough – it proves beautifully at 40 °C.


Making yoghurt

Completely homemade: create your very own yoghurt in a 40 °C steam oven in just 5 hours.


Melting chocolate

Sweet temptation: at 90 °C, chocolate melts without forming clumps or burning – perfect for cakes or biscuits.


Soups

Creamy or clear – all sorts of soups can be made as a tasty starter.


Keeping warm

Eating later? Your steam oven will automatically keep food warm for up to 15 minutes.


Operating modes

Combination cooking + Fan plus

Optimum results: additional moisture cooks bread, bread rolls or meat professionally and to perfection.


Combination cooking + Conventional heat

Food is cooked evenly from above and below – which makes for the perfect bread.


Combi Grill

Fish and meat with a high fat content are particularly tender and succulent – with a crispy skin or crust.


Full grill

Versatile function: perfect for grilling larger quantities of steaks, sausages, kebabs and more.


Fan plus

Perfectly soft and light: ideal for gentle baking and roasting on up to two levels.


Intensive bake

Crispy bases, delicious toppings: pizza, quiche or fresh fruit flans – crispy base, moist on top.


Cake plus

Conjure up delicious cakes: perfect choux pastry and cakes as good as those from the bakery.


Conventional heat

Multi-purpose, classic function: perfect results for all types of traditional baked and roasted dishes.


Top heat

Finishing touch for the eye and palate: perfect results when cooking gratins, baking toppings and browning food.


Bottom heat

Individual requirements: for cooking food in a bain-marie or for browning from underneath.


Fan grill

Crisp outside, succulent inside: ideal for chicken, duck, pork knuckle, rolled meat and many other meat dishes.


Sous-vide cooking

Pure pleasure: meat, vegetables or fruit cooked in a vacuum for the ultimate taste sensation.


Eco steam oven

Environmentally friendly and sustainable: save energy when cooking your food.


Eco fan heat

Particularly sustainable: energy-saving ways to cook food.


Steam cooking

Gentle and healthy food preparation: cooking with steam retains many nutrients.


Downloads

Product sheet
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
Warranty conditions
PDF
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads

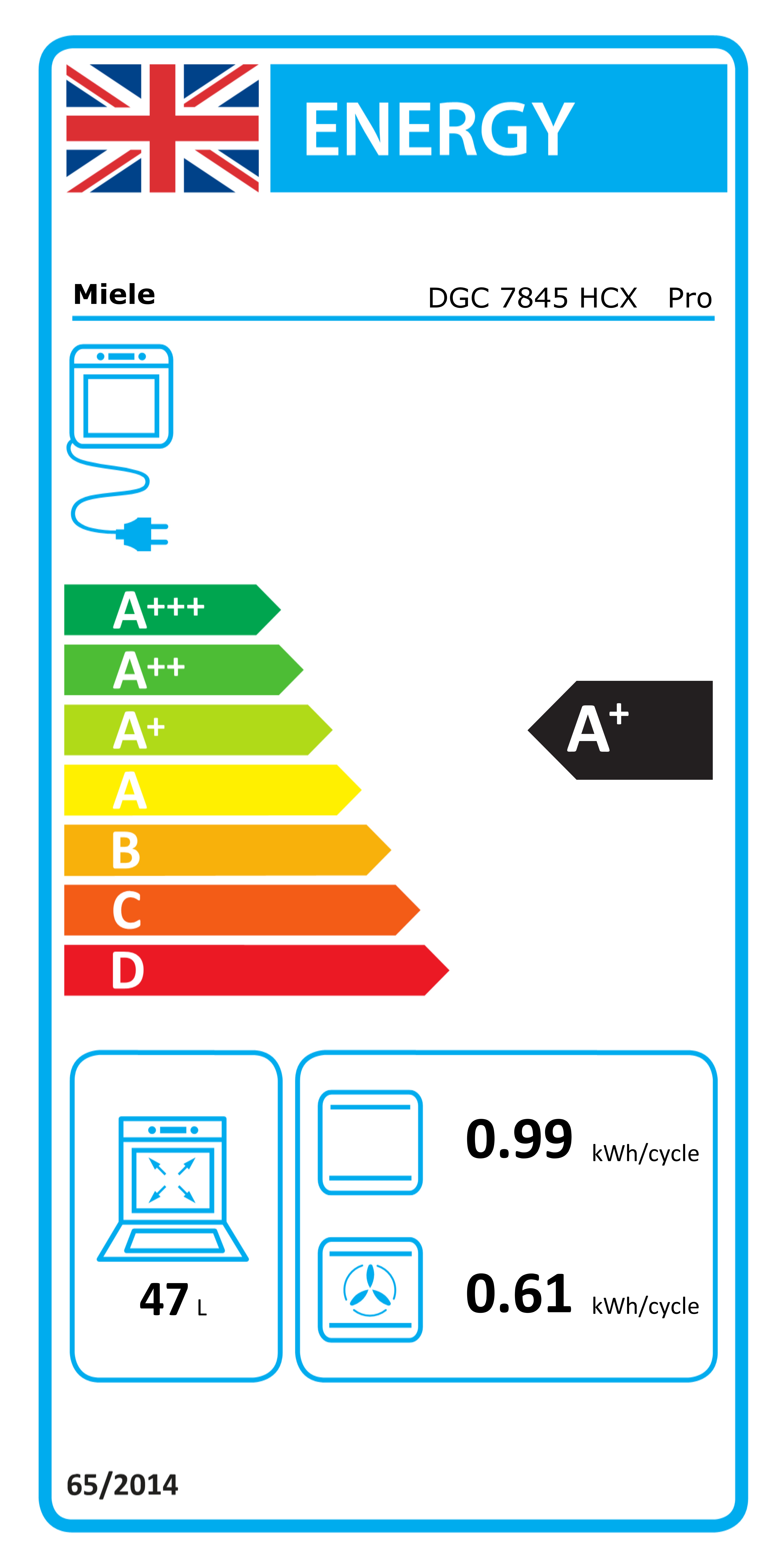

Energy label
PNG
Downloads
Energy label
PDF
Downloads
Product fiche
PDF
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000015/200001548/20000154834.png
Descriptions
Installation_DG_DGM_DGC_XL_ESW7x10_EVS7010, installation drawings
Installation drawings
Downloads
https://media.miele.com/images/2000015/200001548/20000154842.png
Descriptions
built-in DG DGM DGC XL build-under, installation drawing
Installation drawings
Downloads
https://media.miele.com/images/2000015/200001548/20000154826.png
Descriptions
Installation DG, DGM, DGC XL, ESW7x20 installation drawings
Installation drawings
Downloads
https://media.miele.com/images/2000015/200001548/20000154852.png
Descriptions
DGC7x4x built-in tall cabinet, installation drawing
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001841/20000184141.png
Descriptions
installation FW DGC XL, installation drawing, GB, AU
1) Front view, 2) Mains connection cable, L=2,000 mm, 3) Water inlet hose (stainless steel), L=2,000 mm, 4) Water drain hose (plastic), L=3,000 mm, The ascending end of the water drain hose up to the connection to the siphon must not be higher than 500 mm., 5) Ventilation cut-out min. 180 cm²., 6) aeration and deaeration, 7) no connection in this area
Downloads
https://media.miele.com/images/2000015/200001548/20000154875.png
Descriptions
DGC7x4x swivel range of the aperture, installation drawings
Installation drawings
Downloads
https://media.miele.com/images/2000015/200001548/20000154894.png
Descriptions
screw joint DGC XL, installation drawing
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001841/20000184125.png
Descriptions
side view DGC XL, installation drawing, GB, AU
22 mm glass, 23,3 mm stainless steel
Downloads
  • 1.Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630
  • 2.Additional digital offer from Miele & Cie. KG. All smart applications are made possible with the Miele@home system. The range of functions can vary depending on the model and the country.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
