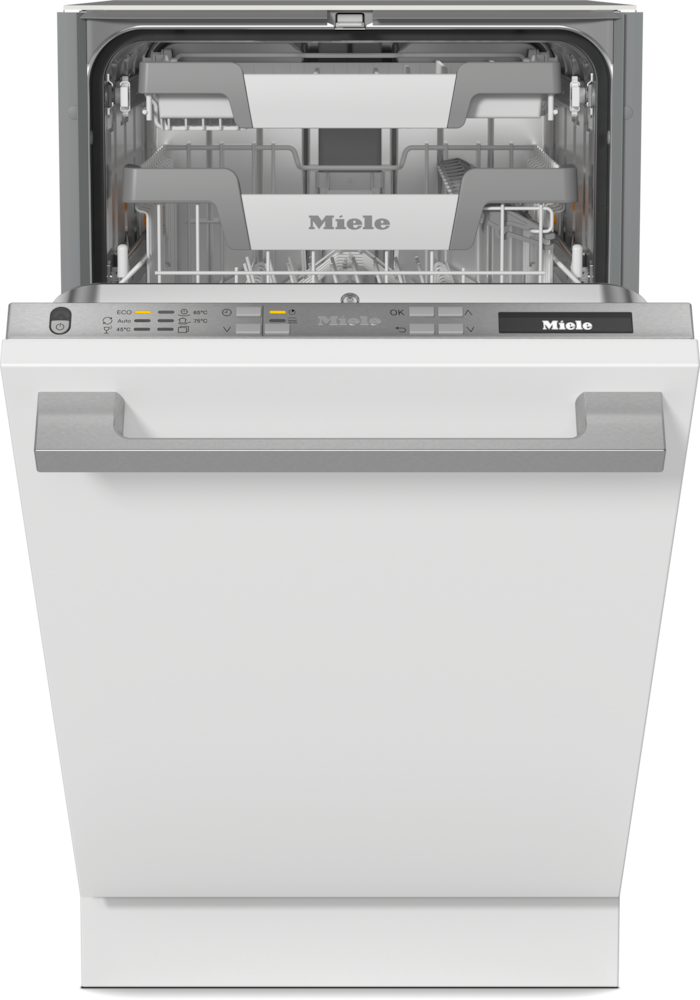

Fully integrated dishwasher, 45 cm

G 5790 SCVi SL Stainless steel/CleanSteel

for optimum drying results thanks to AutoOpen drying.


sale price£1,449.00
Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630



Additional services

You can select the following services for this product in your basket:

  • Disconnect & Recycle Old Appliance (£20.00)

Product details

  • Perfect results in less than one hour -QuickPowerWash
  • Save up to 50 % electricity with the Miele hot water connection
  • Completely dry – MieleAutoOpen drying
  • Very easy door opening and closing –ComfortClose
  • Convenient, great results and perfect for everyday use –ExtraComfortbaskets

Product data sheet

Fully integrated dishwasher
45 cm dishwasher
Control panel colourStainless steel/CleanSteel
Control panel versionStraight fascia
Control typeProgramme selector button
Display1-line text display
Display colourWhite
MultiLingua
Time left display
Delay start up to 24 hours
In-operation indicator lightDisplay
Energy efficiency class (A–G)C
Water consumption in the Automatic programme in l from6
Water consumption of the ECO programme in litres per programme cycle7.90
Electricity consumption in the ECO programme in kWh0.55
Energy consumption of the ECO programme in kWh after 100 programme cycles55
Consumption value in kWh in the ECO programme with hot water connection0.29
Duration of ECO programme in minutes210
Noise emission classB
Noise emissions in dB(A)44
EcoFeedback
EcoPower Technology
Proven hygiene
Hot water connection
Half load
Fresh water dishwasher
AutoOpen drying
SensorDry
Active condensation drying
BrilliantGlassCare
QuickPowerWash
ECO
Automatic
Intensive 75 °C
Gentle
ExtraQuiet 40 dB(A)
Appliance care
Short
IntenseZone
Express
Extra Clean
Extra dry
Cutlery loadingMultiFlex tray 45
Basket designExtraComfort 45 cm
Number of place settings9
Waterproof system
Niche width minimal in mm450
Niche width max in mm450
Niche height minimal in mm805
Niche height maximal in mm870
Niche depth in mm550
Appliance width in mm448
Appliance height in mm805
Appliance depth in mm550
Depth with door open in cm116.50
Net weight in kg40.80
Total rated load in kW2
Voltage in V230
Fuse rating in A10
Number of phases1
Electrical frequency standard50
Length of water inlet hose in m1.50
Length of water drain hose in m1.50
Length of supply lead in m1.80
Min. front panel weight in kg2
Max. front panel weight in kg8
Available display languages via MultiLinguaitaliano
1 x UltraTabs box (20 tabs)
Voucher for 1 x box of UltraTabs (20 tabs) or 3 boxes (60 tabs in each) at a reduced price
EAN4002516610441

What's included

1 x UltraTabs box (20 tabs)
Voucher for 1 x box of UltraTabs (20 tabs) or 3 boxes (60 tabs in each) at a reduced price

User convenience

For dry dishes
AutoOpen drying2,

All dry: the dishwasher door opens automatically at the end of a programme cycle.


A door concept that does it all
ComfortClose

Practical: the door is extremely easy to open and close, and stays open in any position.


Your dishwasher “speaks” multiple languages
MultiLingua

All-rounder: you can choose the language for the display so that you fully understand everything.


Quality

Very quiet
The best noise levels

Barely audible: With low noise levels from 41 dB(A)3, and consistently perfect results.


Effective against viruses – scientifically proven4,
Proven hygiene

Hygienically clean: all Miele dishwashers reliably remove over 99.9 % of viruses4, .


Additional safety
Waterproof system (WPS)

Double safety: in the event of a leak, a second solenoid valve stops the flow of water directly at the stopcock.


Fewer fingerprints, more convenience
CleanSteel

It saves time: This surface is extremely easy to clean, without special cleaning agents.


Miele: dishwashing that’s as quiet as a whisper
Low noise levels

With the Miele Silence package, our dishwashers deliver outstanding results and are almost silent in operation.


Efficiency and sustainability

Save up to 50% electricity
Hot water connection

Up to 50 % electricity savings5, : All Miele dishwashers can be connected to hot water at up to 60 °C.


The most economical Miele dishwashers ever
Fresh water dishwashers use as little as 6 litres

Minimum consumption: The Automatic programme ensures best cleaning results with minimum water consumption.


Innovative water feed for washing with less water
EcoPower technology

Saving water and energy: cleverly designed water supply reduces consumption.


The most economical Miele dishwashers ever
Fresh water dishwasher

Minimum consumption for the best results: water consumption from as little as 6 l in the Automatic programme.


Consumption always visible
EcoFeedback

Economical: when a programme is selected, estimated water and electricity consumption values are displayed.


Adapted consumption
Half load

Fewer dishes, less consumption: automatic load sensing adapts the water consumption.


Save up to 35 % electricity5,
Hot water connection

Up to 35 % electricity savings5, : all Miele dishwashers can be connected to hot water at up to 60 °C.


Saving energy with excellent results
Exceptional energy efficiency

Highly economical, achieving excellent cleaning and drying results.


Dish and glassware care

Gentle cleaning of delicate glassware
Brilliant GlassCare

Gentle and delicate: Brilliant GlassCare ensures your glassware is handled with care.


Optimum drying with less energy
SensorDry

Intelligent adaptation of the dishwasher programme saves energy and time when drying.


Washing programs & Options

The all-round programme
Automatic

For crockery which is not sensitive to heat: For example mixed, everyday crockery with normal food deposits.


For fine, delicate items
Gentle

Gentle and with care: The programme cleans heat-sensitive crockery that is slightly dirty.


Expert for tough cases
Intensive 75°C

Maximum cleaning performance: Pots, pans, etc. are cleaned residue-free.


Minimal consumption
ECO

Extremely economical: The water and energy saving programme is perfect for mixed loads.


Clean crockery with turbo speed
Short

Sometimes things have to be done fast: With the Short programme option you can reduce the cycle time.


Hygienic
Maintenance wash

Whenever needed: This programme cleans the dishwasher thoroughly - guaranteed.


Best cleaning in less than an hour
QuickPowerWash

Short programme: best cleaning results for normally soiled crockery in 58 minutes.


Programme time halved
Express

Sometimes things have to be done at the double: reduce the length of a programme by up to 50 %.


Perfect results for glassware and plastic items
Extra dry

Exceptional drying: this option dries everything to perfection, even glassware and plastic items.


For high-performance cleaning in the lower basket
IntenseZone

Strong yet gentle: this option for enhanced cleaning performance in the lower basket can be added to a programme.


Perfect results
ExtraClean

Improves cleaning by increasing the main wash temperature and with a thorough pre-wash.


When you need clean crockery quickly
Quick programme option

By selecting the Quick extra, the PowerWash 60 °C programme becomes the QuickPowerWash programme.


Barely audible
ExtraQuiet

Extremely quiet: with sound emissions from 37 dB(A), the programme is so quiet that you can hardly hear it.


The all-rounder for many occasions
PowerWash 60 °C

Quick and efficient: this programme for everyday use thoroughly cleans crockery with normal soiling.


Downloads

Warranty conditions
PDF
Downloads
Installation plan
PDF
Downloads
User manual
PDF
Downloads
Drilling template
PDF
Downloads
UK declaration of conformity
PDF
Downloads
Product sheet
PDF
Downloads
dwg
ZIP
Downloads
rvt
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
fbx
ZIP
Downloads
Product fiche
PDF
Downloads
Energy label
PDF
Downloads
Energy label
PNG
Downloads
Comparison Test
PDF
Downloads
Energy label
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000014/200001481/20000148118.png
Descriptions
G7000, fully integrated dishwasher, 45cm (installation drawing)
Installation drawings
Downloads
https://media.miele.com/images/2000014/200001480/20000148088.png
Descriptions
G7000, fully integrated dishwasher, 45cm (installation drawing)
1) Plinth height 35-155 mm, 2) Plinth height 100-220 mm, 3) Appliance height max. 970 mm with plinth height conversion kit (Mat.-Nr. 6.394.761),
Downloads
  • 1.Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630
  • 2.DE102007008950B4, EP2120671B1
  • 3.Depending on model
  • 4.According to certification by the Institute for Integrative Hygiene and Virology with respect to the removal of enveloped and non-enveloped viruses (e.g. coronaviruses, influenza viruses or noroviruses) in the tested Hygiene and Intensive programmes, in all cases using PowerDisk/UltraTabs. Details on the test criteria can be found at www.miele.com/g7000-c.
  • 5.In average of programme mix compared to cold water connection

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
