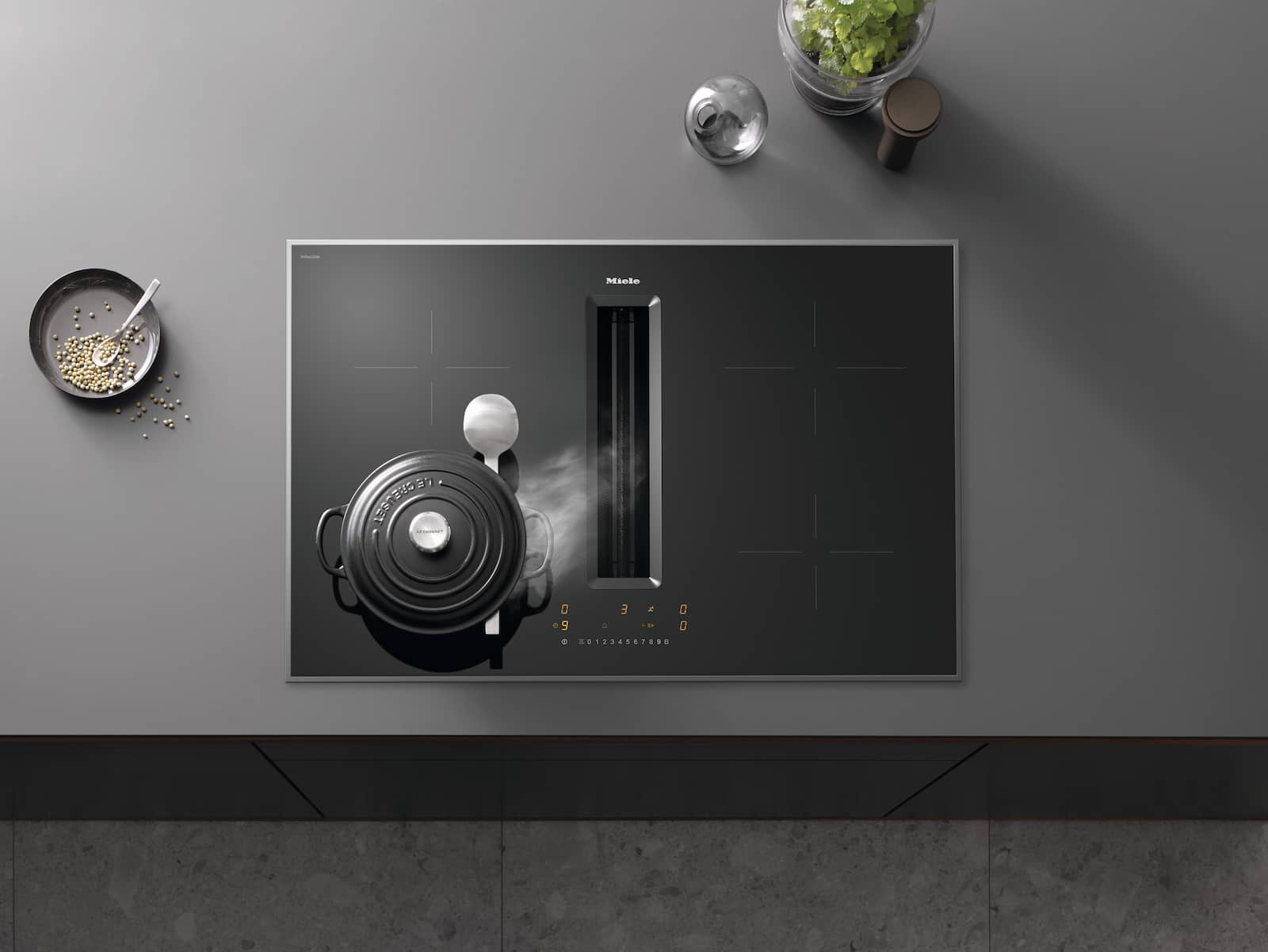

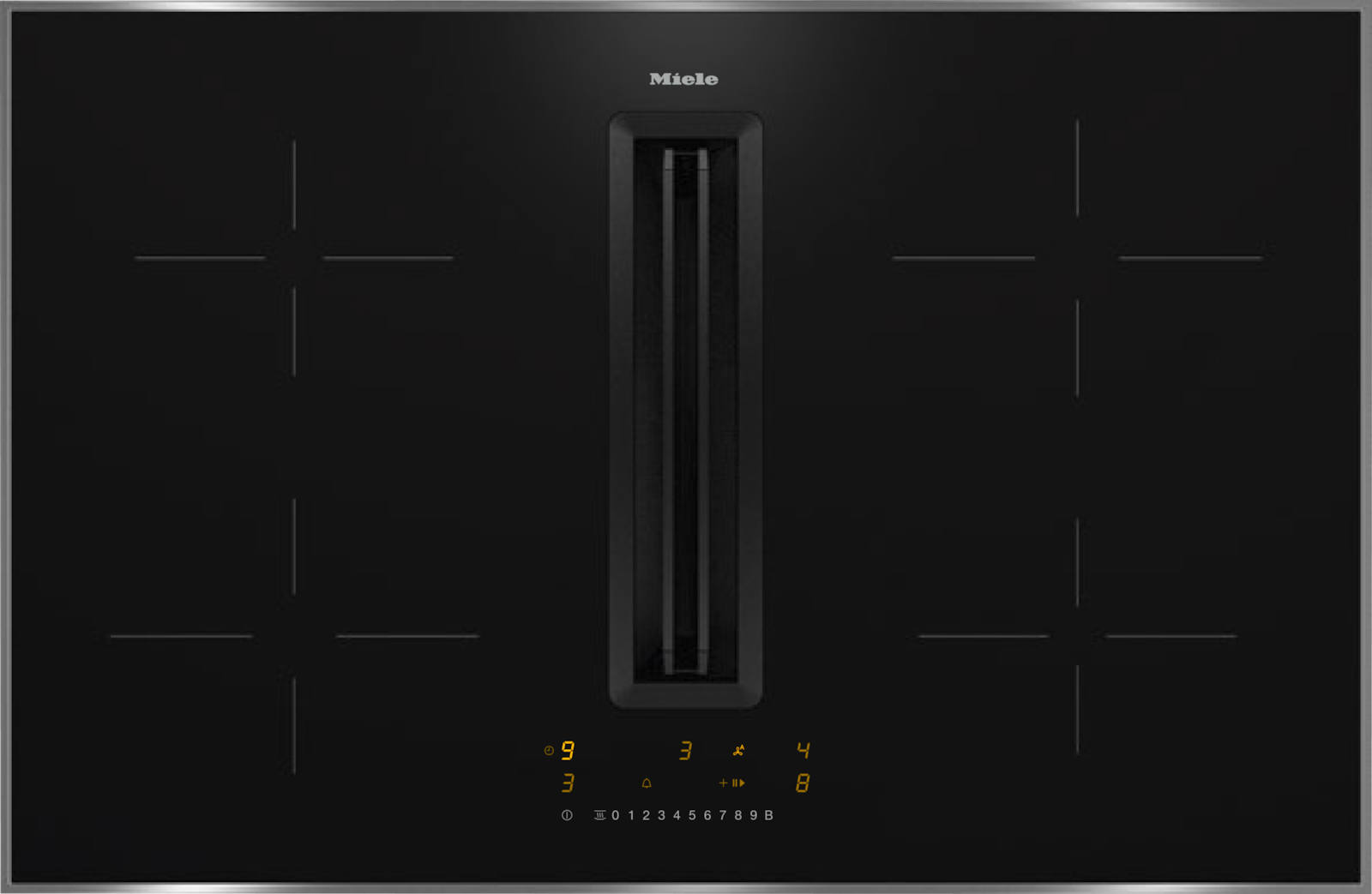

Induction hob with integrated vapour extraction
KMDA 7272 FR-U Silence
with Silence motor and 4 individual cooking zones for recirculation mode
sale price£3,099.00
Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630
You can select the following services for this product in your basket:
- Disconnect & Recycle Old Appliance (£20.00)
Product details
- The quietest TwoInOne from Miele –Silence motor
- Flexible installation – ducted recirculation (e.g. with DFKS-UR) or Plug & Play
- Ample space – 4 round cooking zones
- Automatic fan power regulation –Con@ctivity
- Compact control using the numerical display –ComfortSelect Plus
Heating typeInduction
Induction hob with integrated vapour extraction
Recirculation air guided with optional accessoriesDUU 1500
Unguided recirculation air (Plug&Play installation)
Elegant glass ceramic surface
Ceramic surface colourBlack
Stainless steel frame
Frameless – surface-mounted
Flush fit extractor
Colour of cover grilleBlack
Number of cooking zones4
Maximum number of pans4
Positionfront left
TypeDual-circuit ring
Size in mmØ 110-220
Max. rating in W2300
Max. Booster power rating in W3000
Positionrear left
TypeDual-circuit ring
Size in mmØ 100-190
Max. rating in W1400
Max. Booster power rating in W2100
Positionrear right
TypeDual-circuit ring
Size in mmØ 110-220
Max. rating in W2300
Max. Booster power rating in W3000
Positionfront right
TypeDual-circuit ring
Size in mmØ 100-190
Max. rating in W1400
Max. Booster power rating in W2100
Operation via sensor controlsComfortSelect Plus
Display colourYellow
Automatic function Con@ctivity
Digital power level display
Permanent pan recognition
Keeping warm
Stop & Go function
Recall function
Minute minder
Safety switch-off
Auto heat-up
Individual setting options (e.g. buzzers)
Run-on time 5/15 min.
Grease filter saturation indicator
Active charcoal filter saturation indicator
ECO motor
Silence motor
Easy to clean ceramic glass
Easy-to-clean canopy interior – CleanCover
Number of dishwasher safe stainless-steel grease filters (10-ply)1
Air throughput at min. level (m³/h) according to EN 61591145
Air throughput at max. level (m³/h) according to EN 61591465
Air throughput in Intensive level (m³/h) according to EN 61591510
Sound power at min. level (dB(A) re 1 pW) according to EN 60704-347
Sound power at max. level (dB(A) re 1 pW) according to EN 60704-368
Noise power level in Intensive level (dB(A) re 1 pW) according to EN 60704-370
Sound pressure at min. level (dB(A) re 20 µPa) according to EN 60704-2-1334
Sound pressure at max. level (dB(A) re 20 µPa) according to EN 60704-2-1355
Noise pressure level in Intensive level (dB(A) re 20 µPa) according to EN 60704-2-1357
Safety switch-off
Lock function
System lock
Integrated cooling fan
Overheating protection
Residual heat indicator
Dimensions (W x D) in mm800 x 194 x 520
Dimensions in mm (width)800
Dimensions in mm (height)194
Dimensions in mm (depth)520
Casing height incl. connection box in mm194
Cutout dimensions in mm (width) with surface-mounted installation780
Cutout dimensions in mm (depth) with surface-mounted installation500
Weight in kg16
Total rated load in kW7.50
Voltage in V230
Frequency in Hz50.00-60.00
Length of supply lead in m1.60
Mains cableYes
Active charcoal filter for recirculation modeYes
Plug&Play adapter
EAN4002516658054
Mains cable
Active charcoal filter for recirculation mode
Plug&Play adapter
State-of-the-art
Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
The quietest TwoInOne from Miele
Silence motor
Extra-quiet: developed by Miele, this motor is 25 % quieter than its predecessor at higher air throughput levels.
Best use of energy
Permanent pot recognition
Autom. activation of numerical keybank: When turned on, crockery that has been placed is recognised immediately.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Aesthetically pleasing and highly functional
Stainless steel grease filters
Convenient cleaning: The high-quality metal grease filters are dishwasher-proof and extremely durable.
Vapour extraction at its best
Flush-fit extractor
Flush and elegant: thanks to the discreet design, you can enjoy maximum design freedom in your kitchen.
Convenient additional functions
Convenient additional functions
Numerous additional functions such as Stop & Go and the timer make life easier in the kitchen.
The quietest TwoInOne from Miele
Silence motor
Extra-quiet: developed by Miele, this motor is 25 % quieter than its predecessor at higher air throughput levels.
State-of-the-art
Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Central operation
ComfortSelect Plus
Compact and convenient: all cooking zones and the fan can be operated using a clear central numerical display.
The heart of every cooker hood
ECO motor
Powerful and quiet: the DC motor is efficient and particularly smooth running.
Safety for all
Safety functions
Our safety functions prevent any unwanted surprises.
Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
KMDA7272FR, KMDA7473FR - Installation drawing
1) Front, 2) removable drip tray, 3) cleaning flap, 4) Mains connection box with mains connection cable, L = 1600 mm, 5) Worktop thickness, Exhaust air and guided recirculation mode: ≥10 mm, Plug&Play operation: ≥10 mm - ≤40 mm
Descriptions
KMDA7272FL/FR, KMDA7473FL/FR, Air circulation (Installation drawing)
Installation drawings
Descriptions
KMDA7272FL/FR, KMDA7473FL/FR, Plug&Play (Installation drawing)
Installation drawings
Descriptions
KMDA7272FR, KMDA7473FR - Side view lying on top, Plug&Play - Installation drawing
①A minimum distance of 25 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm².
Descriptions
KMDA7272FR, KMDA7473FR - Side view lying on top+X, Plug&Play - Installation drawing
①A minimum distance of 25 mm must be maintained for routing the exhaust air duct between the carcase wall and an adjacent room wall or furniture. If the carcase rear wall is <gt/> 555 mm from the worktop front, the Plug&Play adapter must be extended with a supplementary set from Miele., ②The removable drip tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm²., , x Dimension by which the worktop depth is greater than 600 mm.
Descriptions
KMDA7272FL/FR, KMDA7473FL/FR - surface installation, drilling template, Installation drawing
Installation drawings
Descriptions
KMDA7272FL/FR - Operating options
✓✓ Possible, ✓ Possible - further accessories necessary, - Programming must be changed - further accessories necessary
Descriptions
KMDA7272FL/FR, KMDA7473FL/FR - surface installation, 21 cm, drilling template, Installation drawing
Installation drawings
Descriptions
KMDA7272FL/FR, KMDA7473FL/FR - Installation variant 13 Circulating air - drawing
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 1125 mm.
Descriptions
KMDA7272FL/FR, KMDA7473FL/FR - Installation variant 6 Circulating air - drawing
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-V, 5) DUU 1500, , The minimum depth of the cabinet is 935 mm.
Descriptions
KMDA7272FL/FR, KMDA7473FL/FR - Installation variant 5 Circulating air - drawing
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 1350 mm.
Descriptions
KMDA7272FL/FR, KMDA7473FL/FR - Installation variant 4 Circulating air - drawing
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 1350 mm.
Descriptions
KMDA7272FL/FR, KMDA7473FL/FR -Installation variant 3 Basis - drawing
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90
Descriptions
KMDA7272FL/FR, KMDA7473FL/FR - Installation variant 2 Basis - drawing
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90
Descriptions
KMDA7272FL/FR, KMDA7473FL/FR - Installation variant 1 Basis -drawing
1) DFK-AK 90, 2) DFK-R 1000
Descriptions
KMDA7272FL/FR, KMDA7473FL/FR - Installation variant 14 Circulating air - drawing
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 900 mm. - 1.Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
