Product details
- Flexible storage of larger wine bottles thanks to FlexiFrame
- Perfect design for handleless kitchens -Push2open
- Simultaneous wine storage in separatetemperature zones
- Odourless refrigeration section thanks toActive AirClean filters
- Present your wine in the perfect light -LED lighting
- Manufactured with great care by
- Safety Information
Wine conditioning unit
Built-in appliance
Integrated appliance
Door hingeright
Convertible door hinging
Side-by-side enabled
Wine compartment lightingLED illumination
Networking with Miele@home
Accessories requiredXKS 3130 W
DynaCool
SoftClose
Concealed door openerPush2open
Silence system
Total number of shelves8
Number of shelves8
Shelf materialBeechwood
Number of FlexiFrame racks8
SommelierSet
NoteBoard
3 D bottle presenter
Low-vibration storage
Operating conceptTouchControl
No. of temperature zones2
Min. temperature setting range in °C5
Max. temperature setting range in °C20

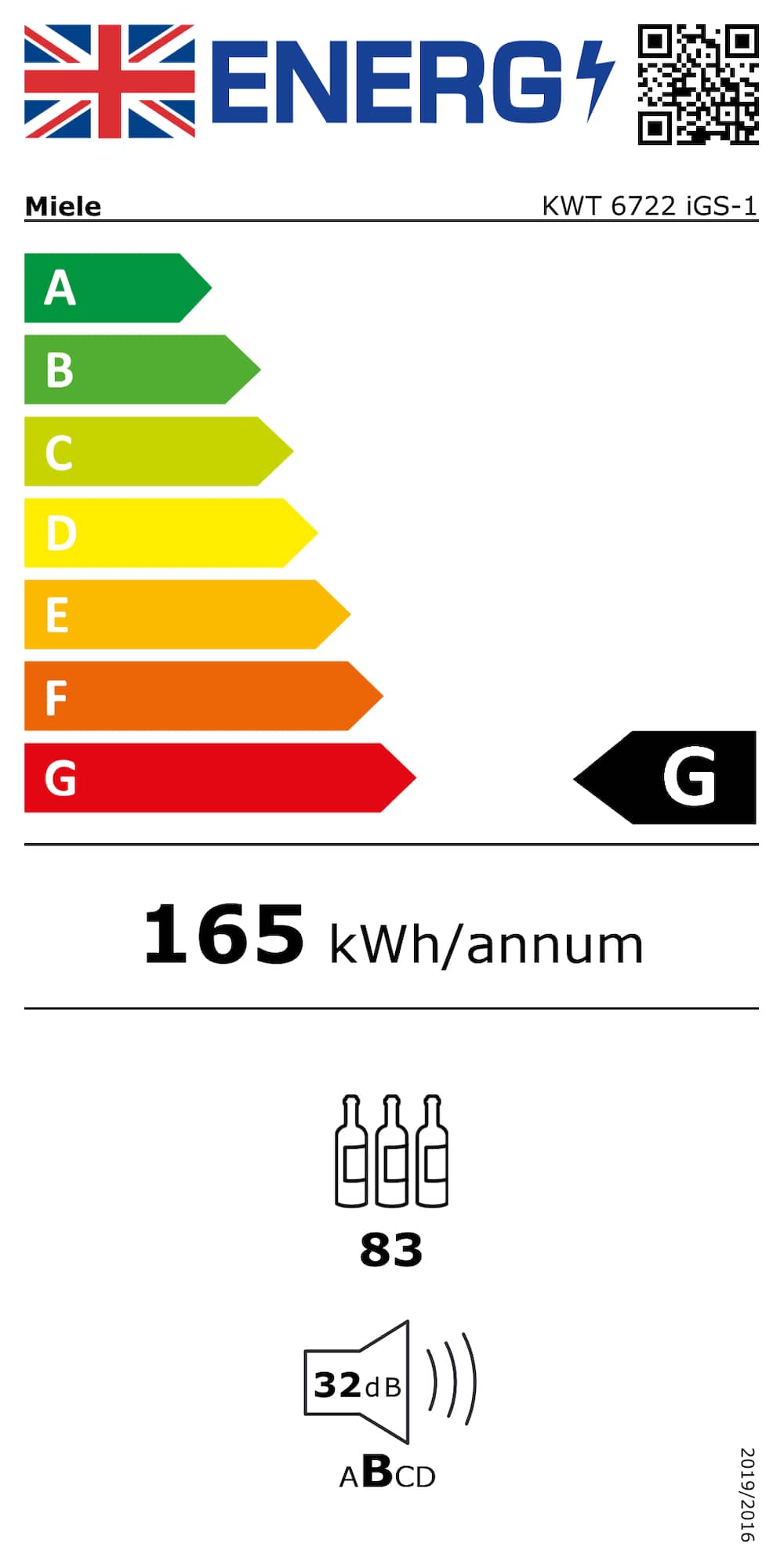

Energy efficiency class (A–G)G
Annual energy consumption in kWh165
Energy consumption in 24 h in kWh0.452
Lock function
Acoustic door alarm
Acoustic temperature alarm
Optical door alarm
Optical temperature alarm
Niche width in mm min.560
Niche width in mm max.570
Niche height in mm min.1772
Niche height in mm max.1780
Niche depth in mm550
Appliance width in mm595
Appliance height in mm1770
Appliance depth in mm572
Weight in kg94
Climate classSN
Wine compartment in l271
Total usable capacity in l271
0.75 l Bordeaux bottle capacity (no. of bottles)83 bottles
Acoustic airborne noise emission class (A–D)B
Sound emissions in dB(A) re 1 pW32
Current consumption (mA)1500
Voltage in V220-240
Fuse rating in A10
Number of phases1
Frequency in Hz50-60
Length of supply lead in m2.8
Active AirClean filter
EAN4002516712350
Active AirClean filter
Cleverly networked
Miele@home1,
Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
Several temperature zones in one appliance
Temperature zones
Separate controls: up to three different types of wine can be stored at the same time at different temperatures.
Holds bottles of all sizes securely
FlexiFrame
Just one movement: move individual slats so that large wine bottles are easy to store.
Customise each rack with strips you can write on
NoteBoard
For individual labelling: every bottle rack features a removable, magnetic strip for labelling bottles on the rack.
Practical connoisseur's set for your wine unit
SommelierSet
Thought of everything: chilling glasses, preparing wine for decanting and conditioning open bottles to perfection.
Cleverly networked
Miele@home1,
Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
Appliance door closes softly
SoftClose
Quiet and safe: the doors close quietly, gently and as if of their own accord for storage without any vibrations.
Holds bottles of all sizes securely
FlexiFrame
Just one movement: move individual slats so that large wine bottles are easy to store.
Customise each rack with strips you can write on
NoteBoard
For individual labelling: every bottle rack features a removable, magnetic strip for labelling bottles on the rack.
Perfect storage conditions for food and wine
DynaCool (dynamic cooling)
Uniform distribution of temperature: a ventilator ensures excellent circulation and distribution of cold air.
Beautiful and protects precious wines
UV protection
The best protection for valuable wine: glass door with integrated UV filter.
Optimum sound insulation
Silence system
Barely audible: our Silence system with optimised cooling system and sound insulation.
Specially developed for storage in the wine unit
Storage with low vibration
Low vibration: The compressor is uncoupled and cushioned against vibration.
Several temperature zones in one appliance
Temperature zones
Separate controls: up to three different types of wine can be stored at the same time at different temperatures.
Practical connoisseur's set for your wine unit
SommelierSet
Thought of everything: chilling glasses, preparing wine for decanting and conditioning open bottles to perfection.
What our customers say
Most recent reviews
See all reviews (1)
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
- 1.Miele@home is a separate digital offer from Miele & Cie. KG. All smart applications are made possible with the Miele@home system. The range of functions can vary depending on the model and the country.
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
