Oven

H 2766-1 BP 125 Edition Obsidian black

5 stars out of 5
(1 review)
an elegant black design with AirFry function, networking and pyrolytic cleaning.


Colour:Obsidian black

original price£1,349.00sale price£1,049.00
Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630



Additional services

You can select the following services for this product in your basket:

  • Disconnect & Recycle Old Appliance (£20.00)

Product details

  • Clear text display with rotary controls –EasyControl Plus
  • Minimal cleaning effort -Pyrolytic cleaning
  • Network-enabled WiFi appliance –Miele@home
  • Achieve perfect results with ease –automatic programmes
  • For everything that is crunchy and crisp –AirFry operating mode

Product data sheet

Anniversary models 125
Built-in oven
BlackLine
Appliance ColourObsidian black
Rapid heat-up
Fan plus
Conventional heat
AirFry
Intensive bake
Fan grill
Grill
Grill operating modes
Eco fan heat
Automatic programmes
Networking with Miele@home
DisplayEasyControl Plus
SoftOpen
SoftClose
MultiLingua
Timer functions
Time of day display
Minute minder
Programmable start of cooking duration
Programmable end of cooking duration
Programmable cooking duration
Actual temperature display
Target temperature display
Buzzer when desired temperature is reached
Recommended temperature
Individual settings
Energy efficiency class (A+++ - D)A+
Power rating in off mode in W0.5
Pyrolytic self-cleaning
CleanGlass door
Appliance cooling system and touch-cool front
Safety switch-off
System lock
Door lock during pyrolytic cleaning
Oven compartment volume in l76
No. of shelf levels5
Numbered shelf levels
Oven light1 halogen spot
Temperatures in °C30–300
Niche dimensions (W x H x D) in mm560-568 x 590-595 x 550
Niche width min. in mm560
Niche width max. in mm568
Niche height min. in mm590
Niche height max. in mm595
Niche depth in mm550
Appliance dimensions (W x H x D) in mm595 x 596 x 568
Weight in kg47
Total rated load in kW3.600
Voltage in V220-240
Frequency in Hz50
Fuse rating in A16
Number of phases1
Mains cable
Length of supply lead in m1.50
Replacing lampsCustomer
Baking tray with PerfectClean HBB 711
Gourmet baking and AirFry tray, perforated, with PerfectClean HBBL 711
Universal tray with PerfectClean HUBB 711
Baking and roasting rack without PerfectClean1
FlexiClip runners HFC 70-C (pair)1
Removable side runners (pair)1
Voucher for an HGBB71 grilling and roasting insert with PerfectClean1
Available display languages via MultiLingua
  • 한국어
  • english
  • português
  • deutsch
  • română
  • 日本語
  • hrvatski
  • norsk
  • srpski
  • bahasa malaysia
  • polski
  • ελληνιкά
  • 繁體中文
  • slovenščina
  • čeština
  • dansk
  • yкраїнська
  • nederlands
  • العربية
  • magyar
  • italiano
  • suomi
  • français
  • español
  • svenska
  • türkçe
  • pусский
  • 中文
  • slovenčina
EAN4002516775096

What's included

Baking tray with PerfectClean HBB 71 (1)
Universal tray with PerfectClean HUBB 71 (1)
Baking and roasting rack without PerfectClean (1)
FlexiClip runners HFC 70-C (pair) (1)
Removable side runners (pair) (1)
Gourmet baking and AirFry tray, perforated, with PerfectClean HBBL 71 (1)
Voucher for an HGBB71 grilling and roasting insert with PerfectClean (1)

User convenience

Cleverly networked
Domestic appliance networking with Miele@home2,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.


Gentle door movement
SoftOpen and SoftClose

Refined and elegant: the door opens and closes with a gentle movement from beginning to end.


Leave time management to your oven
Timer functions

Always on time: programme the start time, finish time and duration of the cooking process or the minute minder.


Easy to understand
MultiLingua

The controls can be shown in numerous languages so users can operate the appliance in a language they understand.


Gentle and even
AirFry

Cook crunchy and crispy French fries or poultry in a hot air stream and without adding fat.


Maintenance

Effortless cleaning
Pyrolytic cleaning

The oven compartment cleans itself automatically at high temperatures.


Efficiency and sustainability

Exceptional energy efficiency
Energy efficiency

Good for the environment and your wallet: almost all of our appliances correspond to energy efficiency class A+.


Special features

Stress-free cooking with success guaranteed
Automatic programmes

Cooking delicious dishes with ease: cakes, fish or meat – fully automatic cooking.


Safety

The only thing that gets hot is the food
Touch-cool front

Protection against burns: the appliance remains relatively cool – even on the outside of the door.


Maximum safety in any situation
Safety functions

Safety guaranteed: safety lock and safety switch-off provide reliable protection.


Operating modes

Fan plus

Perfectly soft and light: ideal for gentle baking and roasting on up to two levels.


Eco fan heat

Extremely energy-efficient: succulent roasts or incredible bakes are cooked to perfection.


Full grill

Versatile function: perfect for grilling larger quantities of steaks, sausages, kebabs and more.


Intensive bake

Crispy bases, delicious toppings: pizza, quiche or fresh fruit flans – crispy base, moist on top.


Conventional heat

Multi-purpose, classic function: perfect results for all types of traditional baked and roasted dishes.


Fan grill

Crisp outside, succulent inside: ideal for chicken, duck, pork knuckle, rolled meat and many other meat dishes.


Booster

For those who lead a busy life: if there’s not much time for cooking, you will really appreciate this function.


AirFry

Cook crunchy and crispy French fries or poultry in a hot air stream and without adding fat.


What our customers say

5 stars out of 5
(1 review)
5 stars
1 review
4 stars
0 reviews
3 stars
0 reviews
2 stars
0 reviews
1 star
0 reviews

Most recent reviews

See all reviews (1)

Downloads

Product sheet
PDF
Downloads
UK declaration of conformity
PDF
Downloads
Warranty conditions
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
fbx
ZIP
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
rfa
ZIP
Downloads
ifc
ZIP
Downloads
Product fiche
PDF
Downloads

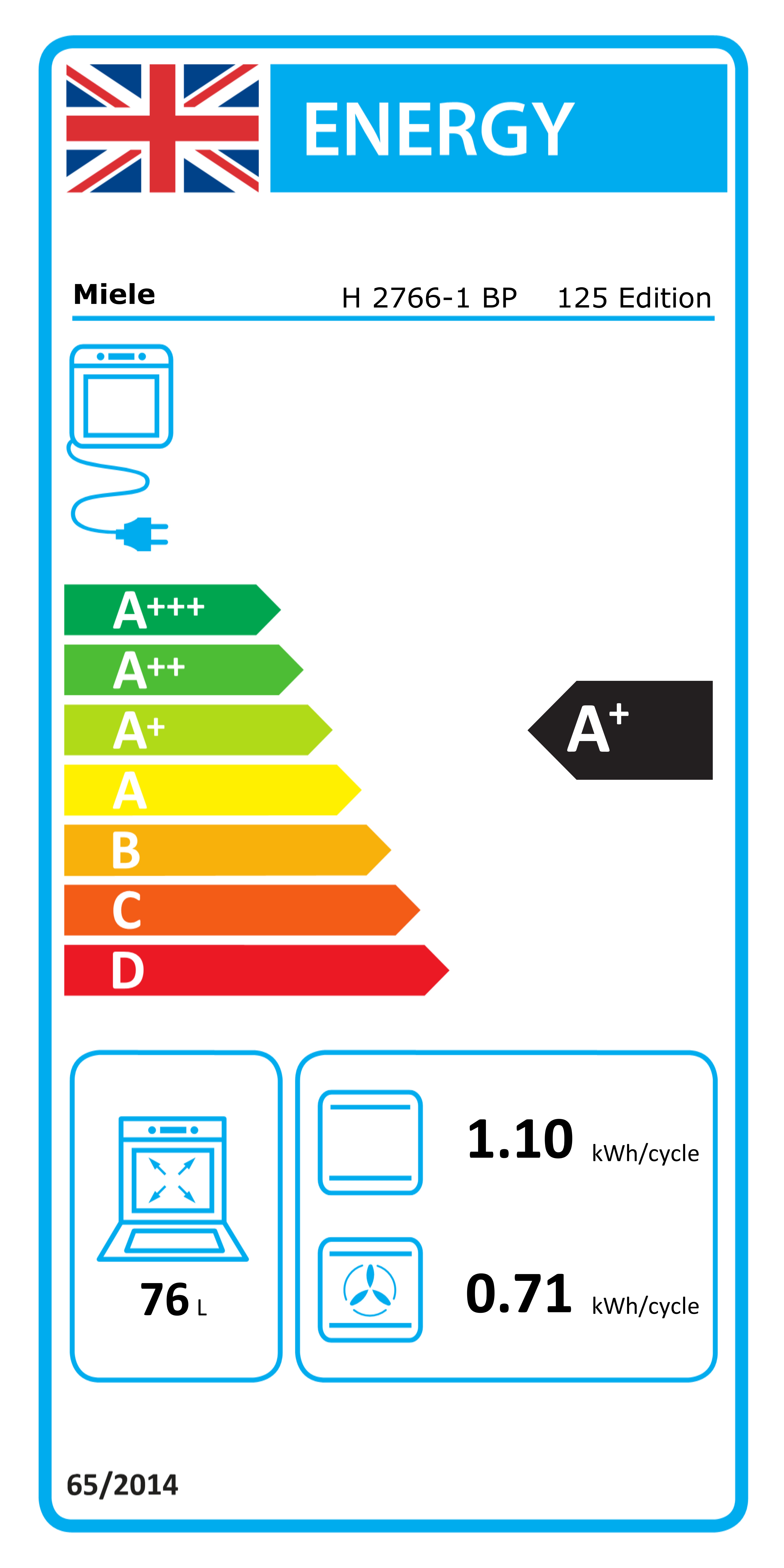

Energy label
PNG
Downloads
Energy label
PDF
Downloads
Energy label
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000015/200001537/20000153713.png
Descriptions
side view H7000 XL, installation drawings, GB, AU
22 mm - glass, 23.3 mm - metal
Downloads
https://media.miele.com/images/2000016/200001697/20000169786.png
Descriptions
side view H7000 XL build-under, installation drawing, GB, AU
22 mm - glass, 23.3 mm - metal
Downloads
https://media.miele.com/images/2000015/200001537/20000153718.png
Descriptions
built-in H7000 XL, installation drawing
Installation drawings
Downloads
https://media.miele.com/images/2000015/200001537/20000153722.png
Descriptions
Installation H7000 XL underframe, installation drawings
If the oven is to be installed under a hob, follow the instructions for installing the hob and the height of the hob.
Downloads
https://media.miele.com/images/2000015/200001537/20000153707.png
Descriptions
installation H7000 XL, installation drawing, GB, AU
1) Netzanschlussleitung, L=1500 mm, 2) In diesem Bereich kein Anschluss, 3) Lüftungsausschnitt min. 150 cm²
Downloads
https://media.miele.com/images/2000016/200001698/20000169802.png
Descriptions
H7x65BP, H7145BM, H7165B, H7365B, H2756B, H2765B/BP, DGC7151, DGC7351 installation drawings
1) 474 mm, 2) 360 mm, 3) 43 mm, 4) 22,5 mm, 5) 32.5 mm
Downloads
  • 1.Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630
  • 2.Additional digital offer from Miele & Cie. KG. All smart applications are made possible with the Miele@home system. The range of functions can vary depending on the model and the country.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
