Product details
- 916 mm wide – the perfect combination withpanorama hobs
- Easy recirculation mode installation withplug&play accessory set
- Motorised retractable deflector plate –Hood in Motion
- Unique user convenience –Con@ctivity
- Efficient filtration-10-ply stainless-steel grease filter
Downdraft extractor
Type of air guideCan be retrofitted
Active charcoal filter (order separately)
- DKF 30-P
- DKF 30-R
ColourObsidian black
Edge extraction
Miele@home
Automatic function Con@ctivity
Electronic controls
Touch-on-glass controls
ControlsSmartControl
Booster levels1
Programmable Booster level switch-off
Run-on time 5/15 min.
Grease filter saturation indicator
Grease filter saturation indicator
Active charcoal filter saturation indicator
Motor-operated cooker hoods
Easy-to-clean canopy interior – CleanCover

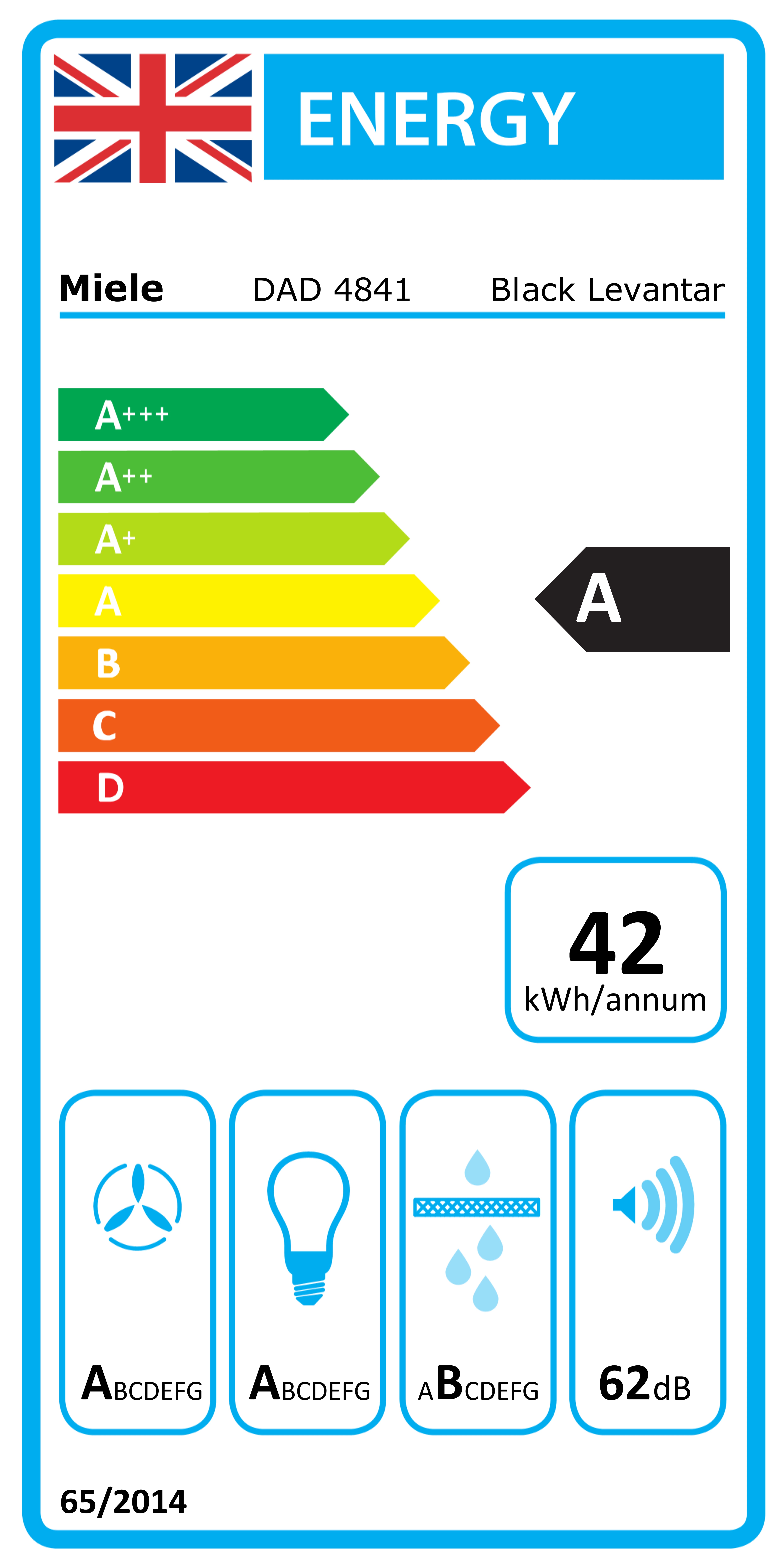

Energy efficiency class (A+++ to D)A
Annual energy consumption in kWh/year41.6
Fluid dynamic efficiency classA
Lighting efficiency classA
Grease filtering efficiency classB
PowerManagement system
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply)2
LED
Number x W1 x 11,2 W
Light intensity in Lx400 lx
Colour temperature in K3500 Kelvin
Dimmer function
Dual-action blower
DC motor
Air throughput in booster level 2 (m³/h)640
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-344
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-357
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-362
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-370
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-372
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1330
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1343
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1349
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1356
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-1358
Air throughput in Booster level 2 (m³/h) according to EN 61591555
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-350
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-364
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-369
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-375
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-376
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1337
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1350
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1356
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1361
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-1362
Safety shut-off
Single-ply safety glass (ESG)
Standard plug fitted
Total rated load in kW0.251
Voltage in V230
Fuse rating in A10
Frequency in Hz50
Number of phases1
Optimum combination with hob subject to availabilityKM 7689 FL; KM 7684 FL
Bottom exhaust duct
EAN4002516761679
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
The heart of every cooker hood
ECO motor
Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.
Automatic operation for intelligent fan control
Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
Elegant touch controls
SmartControl
High-quality and functional: enjoy convenient touch controls with a dimmer function.
Automatic operation for intelligent fan control
Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Automatic fan run-on
Run-on function
Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.
Countdown time conveniently in view
Filter indicator
Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.
Elegant touch controls
SmartControl
High-quality and functional: enjoy convenient touch controls with a dimmer function.
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
A completely odour-free kitchen
Longlife AirClean filter
Efficient odour neutralisation: durable, as the active charcoal filter can be regenerated in the oven.
Decorative panels instead of metal grease filters
Edge extraction
Efficient and good-looking: with edge extraction, the grease filters are covered by a panel.
The heart of every cooker hood
ECO motor
Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.
Always on the safe side
Safety switch-off
Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.
Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
DAD4841, DAD4941, flush - AP600 mm, common cutout, Installation drawings
① Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used., ② Exhaust duct Ø 150 mm.
Descriptions
DAD4841, DAD4941, overlying - AP600 mm, common cutout, Installation drawings
① Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used., ② Exhaust duct Ø 150 mm.
Descriptions
DAD4841, DAD4941, flush - AP600 mm, Side view, Installation drawings
① Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used., ② Exhaust duct Ø 150 mm.
Descriptions
DAD4841, DAD4941, overlying - AP600 mm, Side view, Installation drawings
① Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used., ② Exhaust duct Ø 150 mm.
Descriptions
DAD4841, DAD4941, flush, Installation drawings
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 7697 FL or KM 7594 FL., Flush installation, 1) Cut-out for exhaust air duct in the cabinet base., 2) Ensure sufficient stability of the worktop., 3) Step milling for flush mounting in a worktop. Note the, the different milling widths for the hob and the downdraft. , Instead of a step milling, a 5.5 mm downwardly offset wooden strip can be installed (not included in the scope of delivery)., , Exhaust air connection ø 150 mm.
Descriptions
DAD4841, DAD4941, surface mounted installation, common cutout, Installation drawings
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 7684 FL or KM 7689 FL., Surface mounted installation, 1) Cut-out for exhaust air line in cabinet base., 2) Ensure sufficient stability of the worktop., , Exhaust air connection ø150 mm.
Descriptions
DAD4841, DAD4941, flush, Installation drawings
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 7697 FL or KM 7594 FL., Flush installation, 1) Cut-out for exhaust air duct in the cabinet base., 2) Ensure sufficient stability of the worktop., 3) Step milling for flush mounting in a worktop. Note the, the different milling widths for the hob and the downdraft. , Instead of a step milling, a 5.5 mm downwardly offset wooden strip can be installed (not included in the scope of delivery)., , Exhaust air connection ø 150 mm.
Descriptions
DAD4841, DAD4941, surface mounted installation, common cutout, Installation drawings
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 7697 FL or KM 7594 FL., Surface-mounted installation, 1) Cut-out for exhaust air line in cabinet base., 2) Ensure sufficient stability of the worktop., , Exhaust air connection ø150 mm.
Descriptions
DAD4841, DAD4941, flush, Installation drawings
Installation of the downdraft hood and cooktop in separate cutouts., Flush installation., 1) Cut-out for exhaust air duct in the cabinet base., 2) Ensure sufficient stability of the worktop., 3) Step milling for flush mounting in a countertop. Note the, the different milling widths for the hob and the downdraft. Instead of a step milling, a wooden strip offset 5.5 mm downwards can be installed as an alternative (not included in the scope of delivery)., , Exhaust air connection ø 150 mm.
Descriptions
DAD4841, DAD4941, overlying, Installation drawings
Installation of the downdraft hood and cooktop in separate cutouts., Surface-mounted installation, 1) Cutout for exhaust air line in cabinet base., 2) Ensure sufficient stability of the worktop., Exhaust air connection ø150 mm
Descriptions
DAD4841, DAD4941, Installation drawings
① The minimum dimension is required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used.
Descriptions
DAD4840, DAD4940, DAD4841, DAD4941 - flush - side view - Installation drawings
① Only required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used., ② Exhaust air connection Ø 150 millimetres.
Descriptions
DAD4840, DAD4940, DAD4841, DAD4941 - surface mounted, AP <gt/> 600 mm - side view - Installation drawings
① Only required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used., ② Exhaust air connection Ø 150 millimetres.
Descriptions
DAD4840, DAD4940, DAD4841, DAD4941 - flush - side view - Installation drawings
① Only required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used., ② Exhaust air connection Ø 150 millimetres.
Descriptions
DAD4840, DAD4940, DAD4841, DAD4941 - surface mounted, AP <gt/> 600 mm - side view - Installation drawings
① Only required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used., ② Exhaust air connection Ø 150 millimetres.
Descriptions
DAD4841, Installation drawings
1. Stepped cutout for flush-fit installation in stone worktops (granite, marble)., 2. Ensure that materials are sufficiently stable., 3. Cut-out off-centre., Exhaust duct Ø 150 mm., * Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used. We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
