I would recommend this product
It is easy to view the items in both the fridge and the freezer. The interior lighting is helpful. Useful door storage.

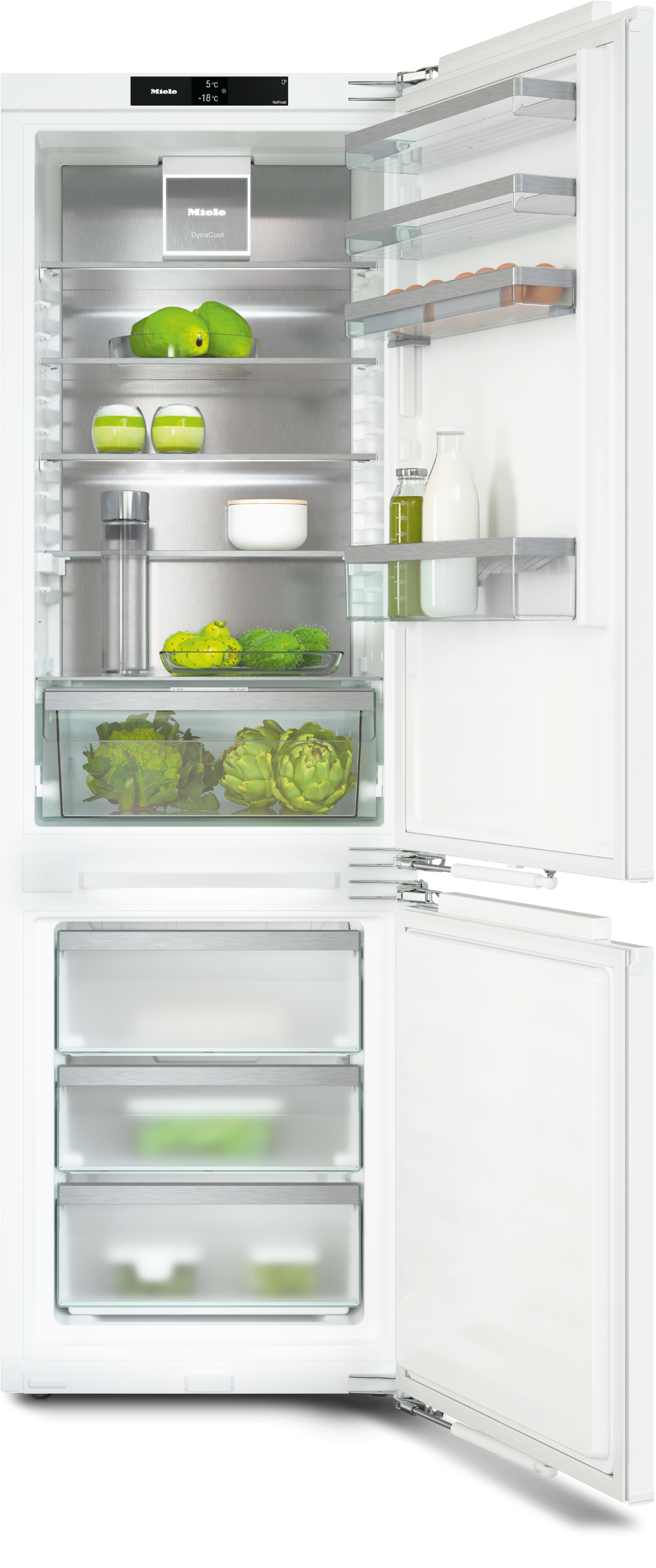

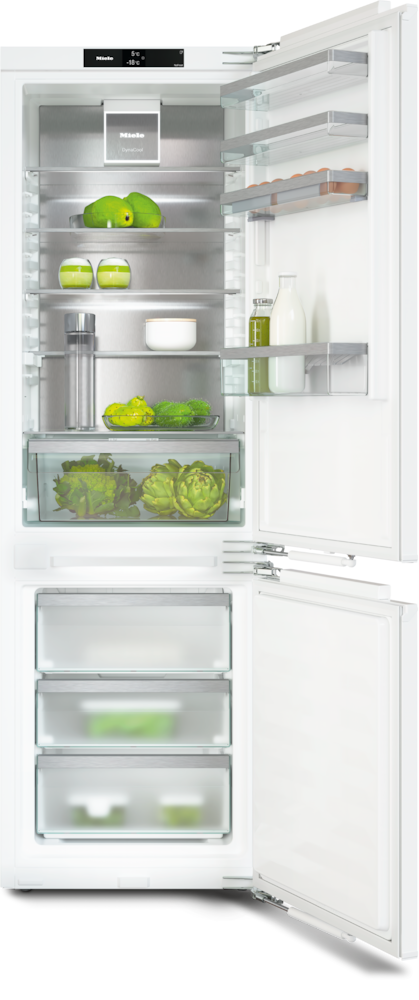

Built-in fridge-freezer combination
KFN 7764 C
FlexiLight 2.0, DynaCool and NoFrost for convenience that will impress.
sale price£2,649.00
Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630
You can select the following services for this product in your basket:
- Disconnect & Recycle Old Appliance (£20.00)
Product details
- Spacious drawer with moisture control –DailyFresh
- Individually adjustable glass shelf lighting withFlexiLight 2.0
- No icing up of food and no need to defrost thanks toNoFrost
- Uniform temperature distribution inside the appliance –DynaCool
- Door shelfheights can be adjusted individually
Fridge-freezer
Built-in appliance
Integrated appliance
Door hingeright
Convertible door hinging
Refrigeration section lightingFlexiLight 2.0
Freezer compartment lightingLED
Fan lighting
Networking with Miele@home
Freshness systemDailyFresh
Fine adjustment inner door
ComfortClean
DynaCool
NoFrost
DuplexCool
ComfortSize
VarioRoom
SoftClose
Operating conceptFreshTouch
Fridge compartment can be switched offYes
Independent temperature regulation of fridge and freezer zones
Automatic SuperCool
SuperFreeze
No. of temperature zones2
Sabbath mode
Party mode
Holiday mode
No. of shelves5
including number of split shelves (FlexiBoard)1
of which illuminated2
No. of crisper drawers1
Dry back wallCleanSteel
Number of inner door racks for tinned food3
Door rack for bottles1
Door shelves4
Number of freezer drawers3
of which on runners2

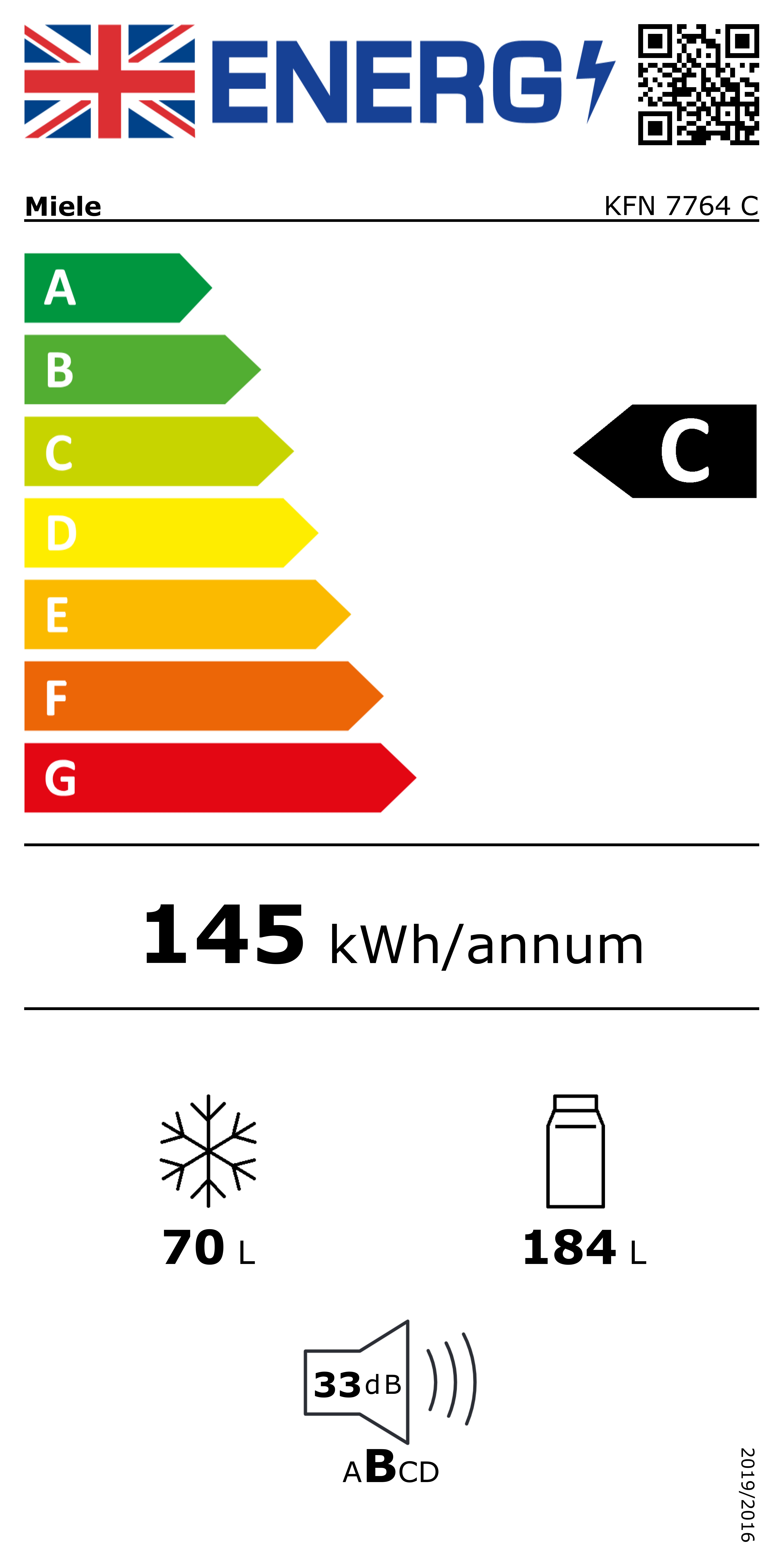

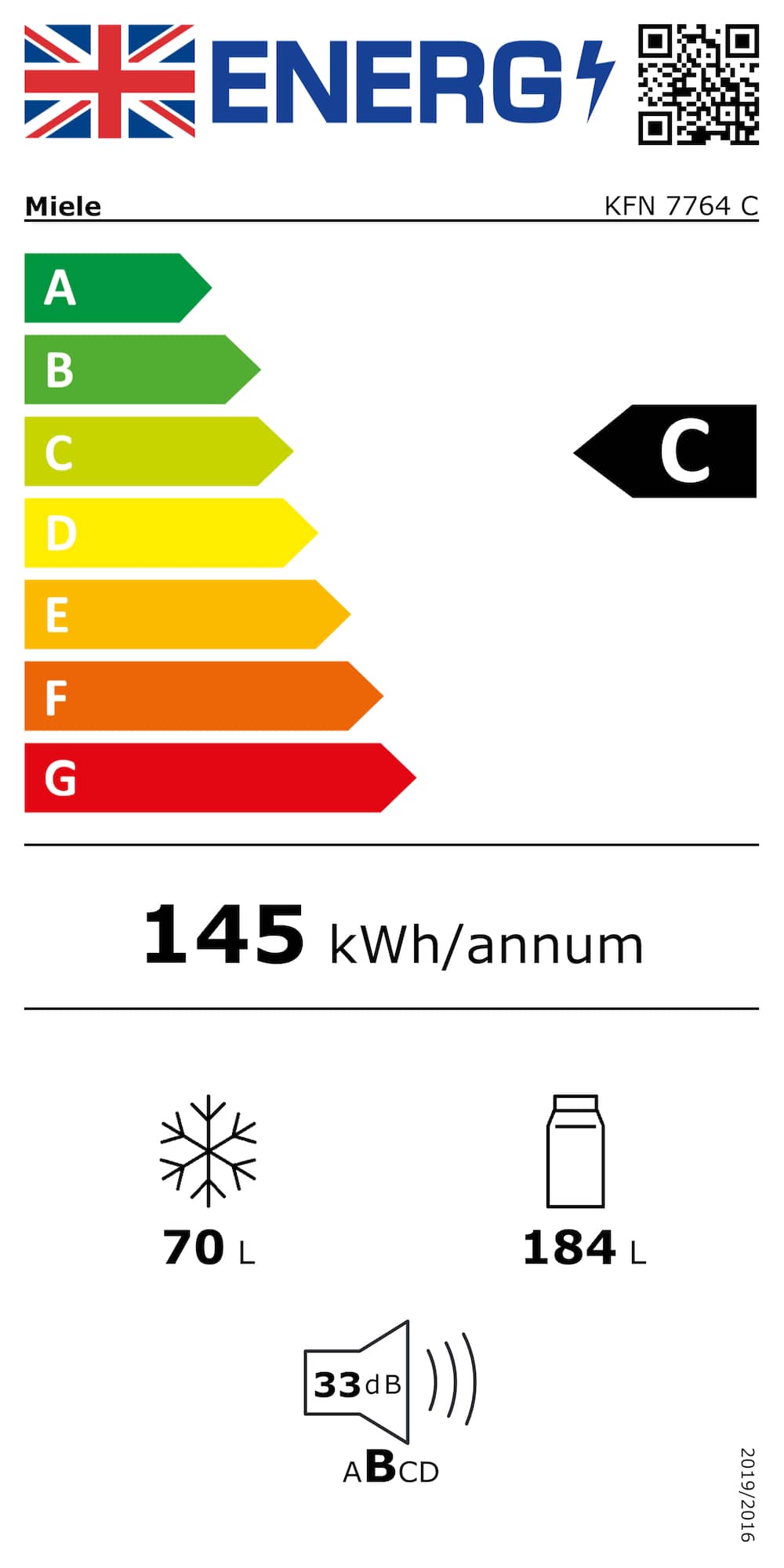

Energy efficiency class (A–G)C
Annual energy consumption in kWh145.27
Energy consumption in 24 h in kWh0.40
Lock function
Acoustic door alarm
Acoustic temperature alarm
Optical door alarm
Optical temperature alarm
Power cut indication for freezer section
Niche width in mm min.560
Niche width in mm max.570
Niche height in mm min.1772
Niche height in mm max.1788
Niche depth in mm550
Appliance width in mm559
Appliance height in mm1770
Appliance depth in mm545
Weight in kg69.80
Door hinge technologyFixed door
Max. door front weight – refrigerator, in kg18
Max. door front weight – freezer, in kg12
Climate classSN-T
Refrigerator compartment in l184
4* freezer compartment in l70
Total usable capacity in l254
Storage time in case of fault in h9
Freezer capacity in kg/24 h6
Acoustic airborne noise emission class (A–D)B
Sound emissions in dB(A) re 1 pW33
Current consumption (mA)1400
Voltage in V220.00-240.00
Fuse rating in A10
Number of phases1
Frequency in Hz50.00-60.00
Length of supply lead in m2.20
Replacing lampsService
Egg tray
Ice cube tray
EAN4002516748199
Egg tray
Ice cube tray
A perfect view of your food
FlexiLight 2.0
Entirely glare-free: the illuminated shelves can be custom-positioned in the refrigerator for maximum flexibility.
Maximum flexibility
Fine adjustment on inner door
Adaptable: the position of the inner door shelves can be adjusted to make the best use of space.
Ideal cooling distribution with an appealing design
CleanSteel rear panel
Clean and cool: the CleanSteel rear panel ensures excellent cooling distribution in Miele refrigerators.
More space for tall containers
FlexiBoard
Particularly flexible: the FlexiBoard creates space for tall containers and preserves storage space in the rear.
A perfect view of your food
FlexiLight 2.0
Entirely glare-free: the illuminated shelves can be custom-positioned in the refrigerator for maximum flexibility.
Maximum flexibility
Fine adjustment on inner door
Adaptable: the position of the inner door shelves can be adjusted to make the best use of space.
Defrosting is a thing of the past
NoFrost
No more defrosting: the circulation cooling system prevents ice from developing, saving the hassle of defrosting.
Ideal storage conditions for food and wine
DynaCool
Even temperature distribution: a fan ensures excellent circulation and distribution of the cold air.
Dishwasher-safe door shelves
ComfortClean
Easy to clean: the high-quality door shelves can be cleaned easily in the dishwasher.
Appliance door closes softly
SoftClose
Quiet and reliable closing: the gently self-closing doors prevent items from falling out.
Convenient food storage
ComfortSize
Practical storage: the extensive depth makes it possible to place a whole baking tray on the bottom drawer level.
More space for tall containers
FlexiBoard
Particularly flexible: the FlexiBoard creates space for tall containers and preserves storage space in the rear.
Ideal cooling distribution with an appealing design
CleanSteel rear panel
Clean and cool: the CleanSteel rear panel ensures excellent cooling distribution in Miele refrigerators.
Improved freshness for fruit and vegetables
DailyFresh
Fruit and vegetables stay fresh for up to twice as long: spacious drawers with ideal humidity levels.
What our customers say
Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
KFNS7734D, KFN7734C, KFN7734F, KFN7734D, KFN7764D, KFN7785D, KFN7744E, KFN7774D, side view (installation drawings)
Installation drawings
Descriptions
KFN7734C, KFN7734F, KFN7734D, KFN7764D, KFN7785D, KFN7744E, KFN7774D, built-in (footnote*) (installation drawings)
*The declared energy consumption was calculated in a 560 mm deep niche. The appliance is fully functional in a 550 mm niche but the energy consumption will be slightly higher.
Descriptions
KFN7734C, KFN7734F, KFN7734D, KFN7764D, KFN7785D, KFN7744E, KFN7774D, installation (footnote*) (installation drawings)
*1. View from the front, 2. Mains connection cable, L = 2100 mm, 3. Ventilation cut-out min. 200 cm², 4. Ventilation, 5. No connections permitted in this area - 1.Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630
- 2.Additional digital offer from Miele & Cie. KG. All smart applications are made possible with the Miele@home system. The range of functions can vary depending on the model and the country.
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
