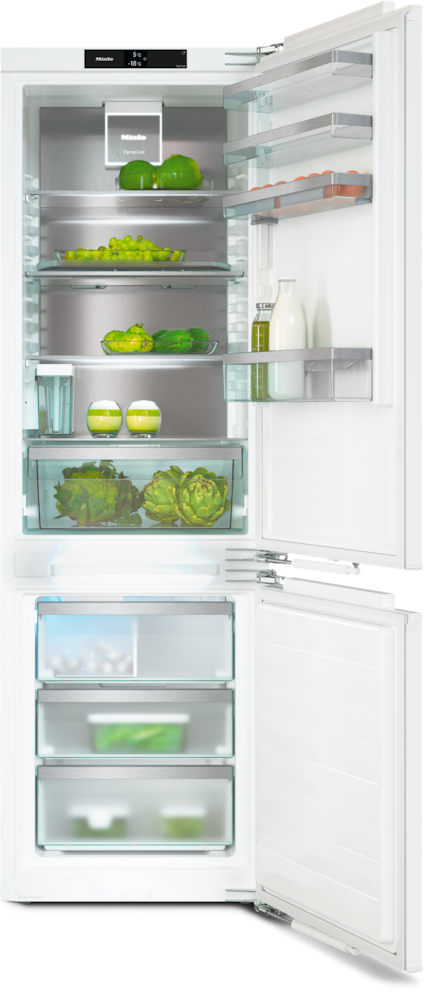

Built-in fridge-freezer combination

KFN 7785 C

FlexiLight 2.0, Freeze&Cool, NoFrost and MyIce for individual convenience.
Product data sheet
sale price£3,199.00
Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630


Additional services

You can select the following services for this product in your basket:

  • Disconnect & Recycle Old Appliance (£20.00)

Product details

  • Spacious drawer with moisture control –DailyFresh
  • Flexible use of freezer –Freeze&Cool

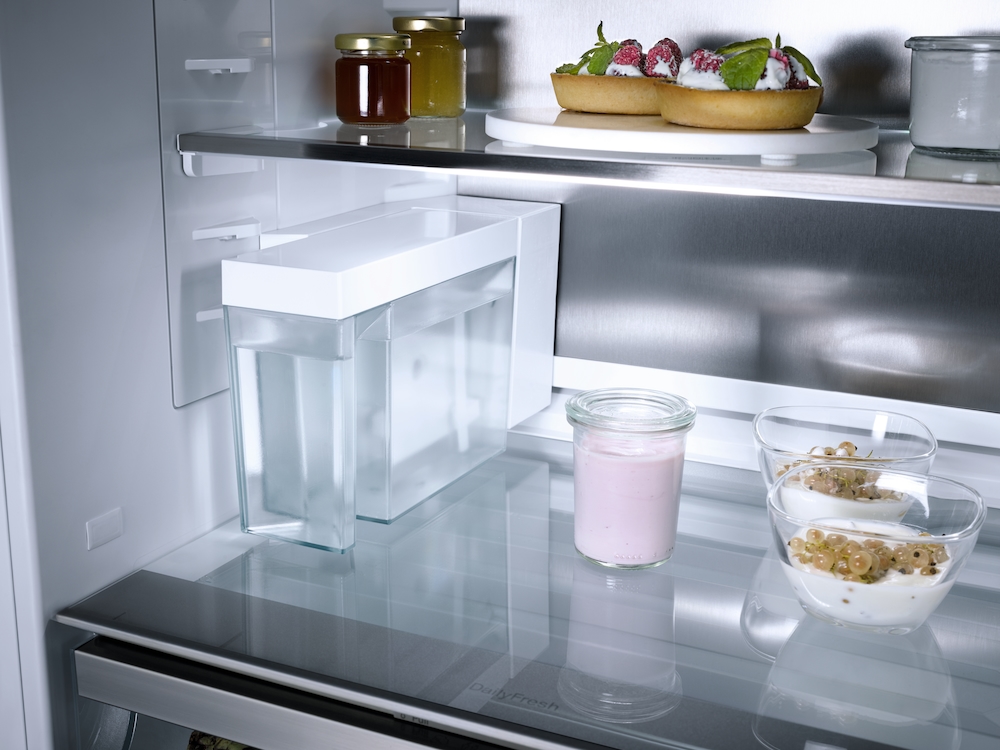

  • Ice cubes withMy Icewith water container
  • Individually adjustable glass shelf lighting withFlexiLight 2.0
  • No icing up of food and no need to defrost thanks toNoFrost

Product data sheet

Integrated appliance
Door hingeright
Refrigeration section lightingFlexiLight 2.0
Freezer compartment lightingLED
Networking with Miele@home
Freshness systemDailyFresh
Operating conceptFreshTouch
Fridge compartment can be switched offYes
No. of temperature zones2
No. of shelves4
of which illuminated2
No. of crisper drawers1
Dry back wallCleanSteel
Number of inner door racks for tinned food3
Door rack for bottles1
Door shelves4
of which on runners2

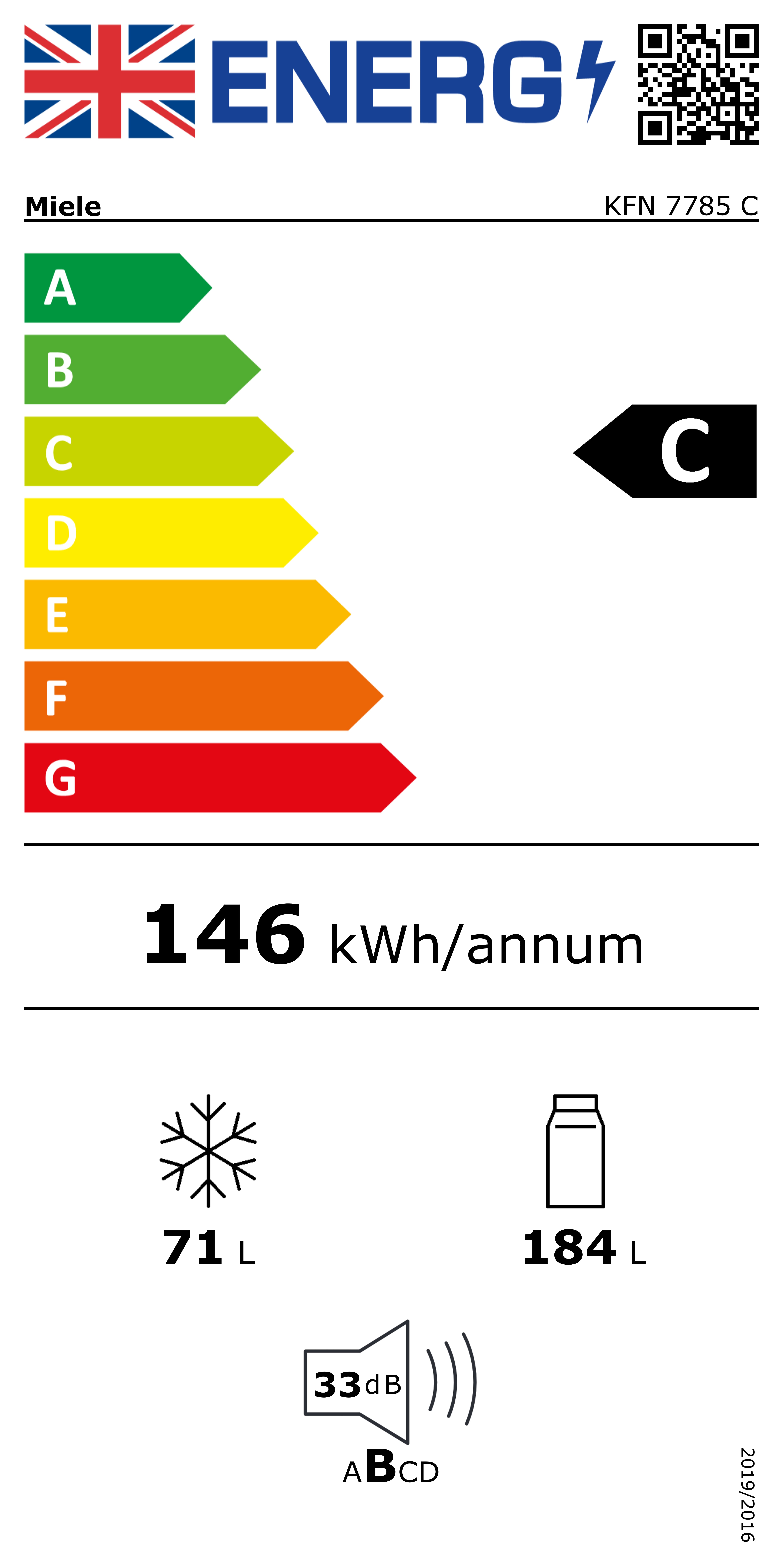

Energy efficiency class (A–G)C
Annual energy consumption in kWh146
Energy consumption in 24 h in kWh0.400
Niche width in mm min.560
Niche width in mm max.570
Niche height in mm min.1772
Niche height in mm max.1788
Niche depth in mm550
Appliance width in mm559
Appliance height in mm1770
Appliance depth in mm546
Weight in kg75.2
Door hinge technologyFixed door
Max. door front weight – refrigerator, in kg18
Max. door front weight – freezer, in kg12
Climate classSN-T
Refrigerator compartment in l184
4* freezer compartment in l71
Total usable capacity in l255
Storage time in case of fault in h9
Freezer capacity in kg/24 h6
Acoustic airborne noise emission class (A–D)B
Sound emissions in dB(A) re 1 pW33
Current consumption (mA)1400
Voltage in V220-240
Fuse rating in A10
Number of phases1
Frequency in Hz50-60
Length of supply lead in m2.2
Replacing lampsService
Egg tray
EAN4002516748212

What's included

Egg tray
A perfect view of your food
FlexiLight 2.0

Entirely glare-free: the illuminated shelves can be custom-positioned in the refrigerator for maximum flexibility.

Cleverly networked
Miele@home2,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

Flexible use of storage space
Freeze&Cool

New possibilities: use the freezer section as a fridge section and benefit from even more storage space.

User convenience

A perfect view of your food
FlexiLight 2.0

Entirely glare-free: the illuminated shelves can be custom-positioned in the refrigerator for maximum flexibility.

Cleverly networked
Miele@home2,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

Flexible use of storage space
Freeze&Cool

New possibilities: use the freezer section as a fridge section and benefit from even more storage space.

Special features

Improved freshness for fruit and vegetables
DailyFresh

Fruit and vegetables stay fresh for up to twice as long: spacious drawers with ideal humidity levels.

Matching products and accessories

Built-in freezer
FNS 7794 D L

Built-in freezer

with ActiveDoor, IceMaker, NoFrost and 8 freezer drawers for max. convenience.

£3,499.00
Multi-purpose microfibre cloth, qty 1
GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

£8.49
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

£16.99
Odour-absorbing Active AirClean filter
KKF-RF

Odour-absorbing Active AirClean filter

prevents unpleasant odours in the refrigerator.

£45.29
PerfectFresh organisation box
KSB 70

PerfectFresh organisation box

for orderly storage of food in the refrigerator.

£21.99
Starter set for Active AirClean filter.
KKF-FS

Starter set for Active AirClean filter.

prevents unpleasant odours in the refrigerator.

£54.99
Bottle rack
KFR 7000

Bottle rack

for safe, space-saving storage of bottles in the refrigerator.

£66.29
Pivotable glass shelf
KFT 7000

Pivotable glass shelf

with pivotable glass shelf for easy removal of items.

£220.49

Downloads

UK declaration of conformity
PDF
Downloads
User manual
PDF
Downloads
Fitting Instructions
PDF
Downloads
Product sheet
PDF
Downloads
rvt
ZIP
Downloads
rfa
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
dwg
ZIP
Downloads
Energy label
PDF
Downloads
Energy label
PNG
Downloads
Product fiche
PDF
Downloads
Energy label
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000017/200001721/20000172162.png
Descriptions
KFNS7734D, KFN7734C, KFN7734F, KFN7734D, KFN7764D, KFN7785D, KFN7744E, KFN7774B, side view (installation drawings)
Installation drawings
Downloads
https://media.miele.com/images/2000017/200001721/20000172160.png
Descriptions
KFN7734C, KFN7734F, KFN7734D, KFN7764D, KFN7785D, KFN7744E, KFN7774B, installation (footnote*) (installation drawings)
*1. View from the front, 2. Mains connection cable, L = 2100 mm, 3. Ventilation cut-out min. 200 cm², 4. Ventilation, 5. No connections permitted in this area
Downloads
https://media.miele.com/images/2000017/200001721/20000172161.png
Descriptions
KFN7734C, KFN7734F, KFN7734D, KFN7764D, KFN7785D, KFN7744E, KFN7774B, built-in (footnote*) (installation drawings)
*The declared energy consumption was calculated in a 560 mm deep niche. The appliance is fully functional in a 550 mm niche but the energy consumption will be slightly higher.
