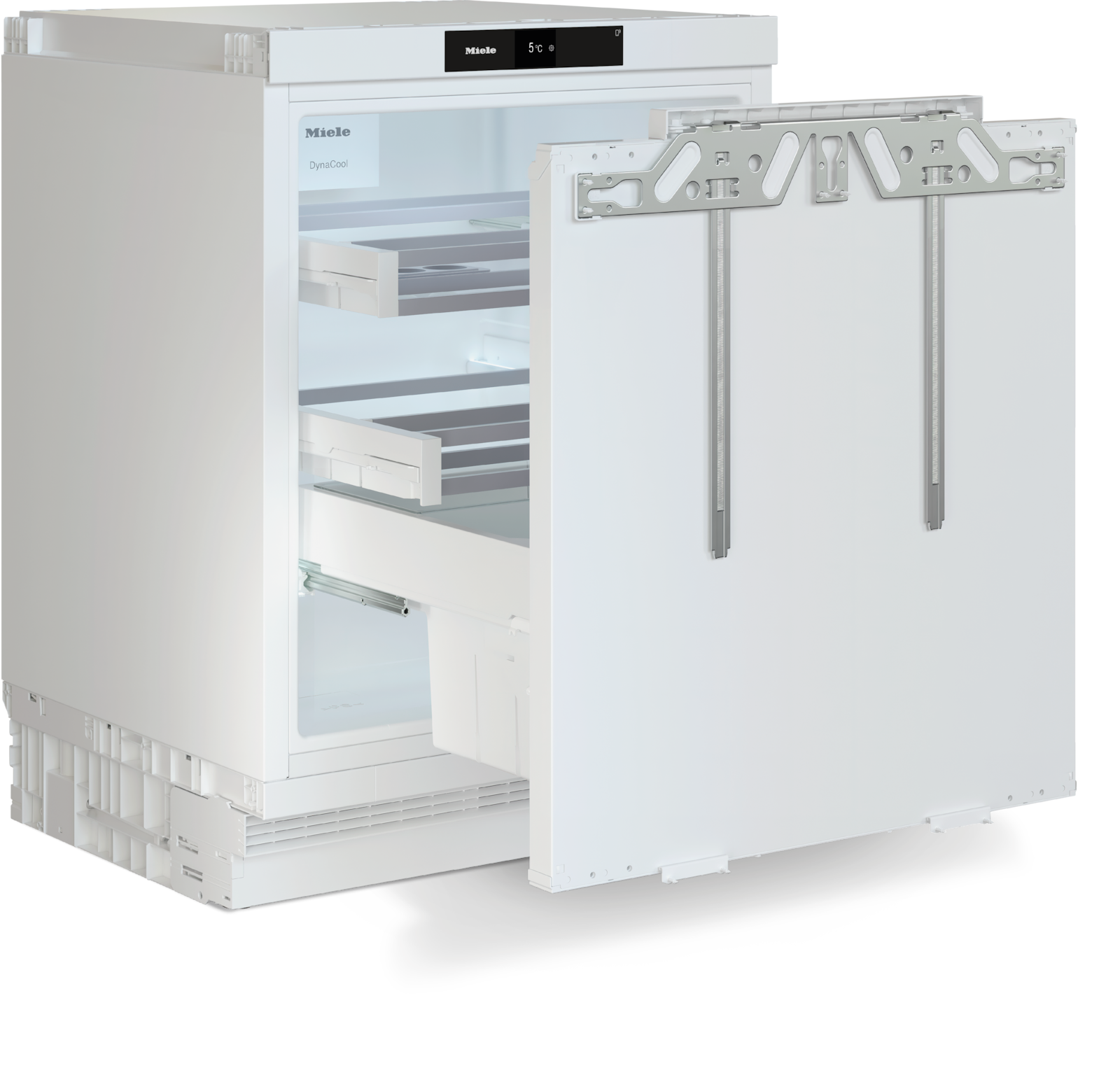

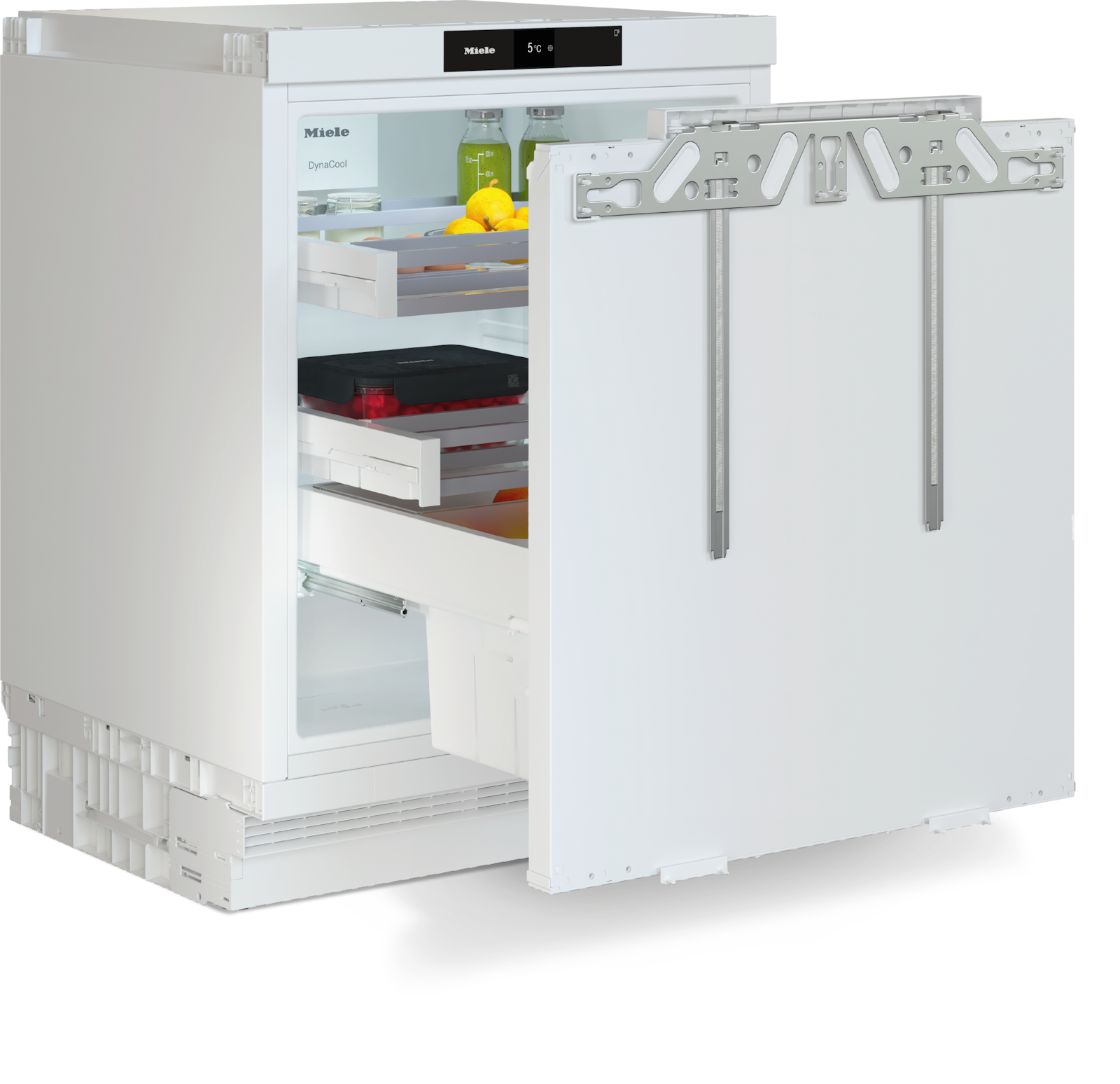

Built-under refrigerator

KU 7030 D

with LED lighting, DynaCool and ComfortClean in a compact design.


sale price£1,699.00
Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630



Product details

  • Optimum and maintenance-free #LED# lighting in compartmentCO_19869084
  • Uniform temperature distribution inside the appliance –DynaCool
  • Dishwasher-proof door shelves –ComfortClean
  • Cool food down quickly thanks to SuperCool
  • Soft closing of the door withSoftClose

Product data sheet

Refrigerator
Integrated appliance
Undercounter appliance
Door hingePull-out front
Refrigeration section lightingLED
Networking with Miele@home
DynaCool
SoftClose

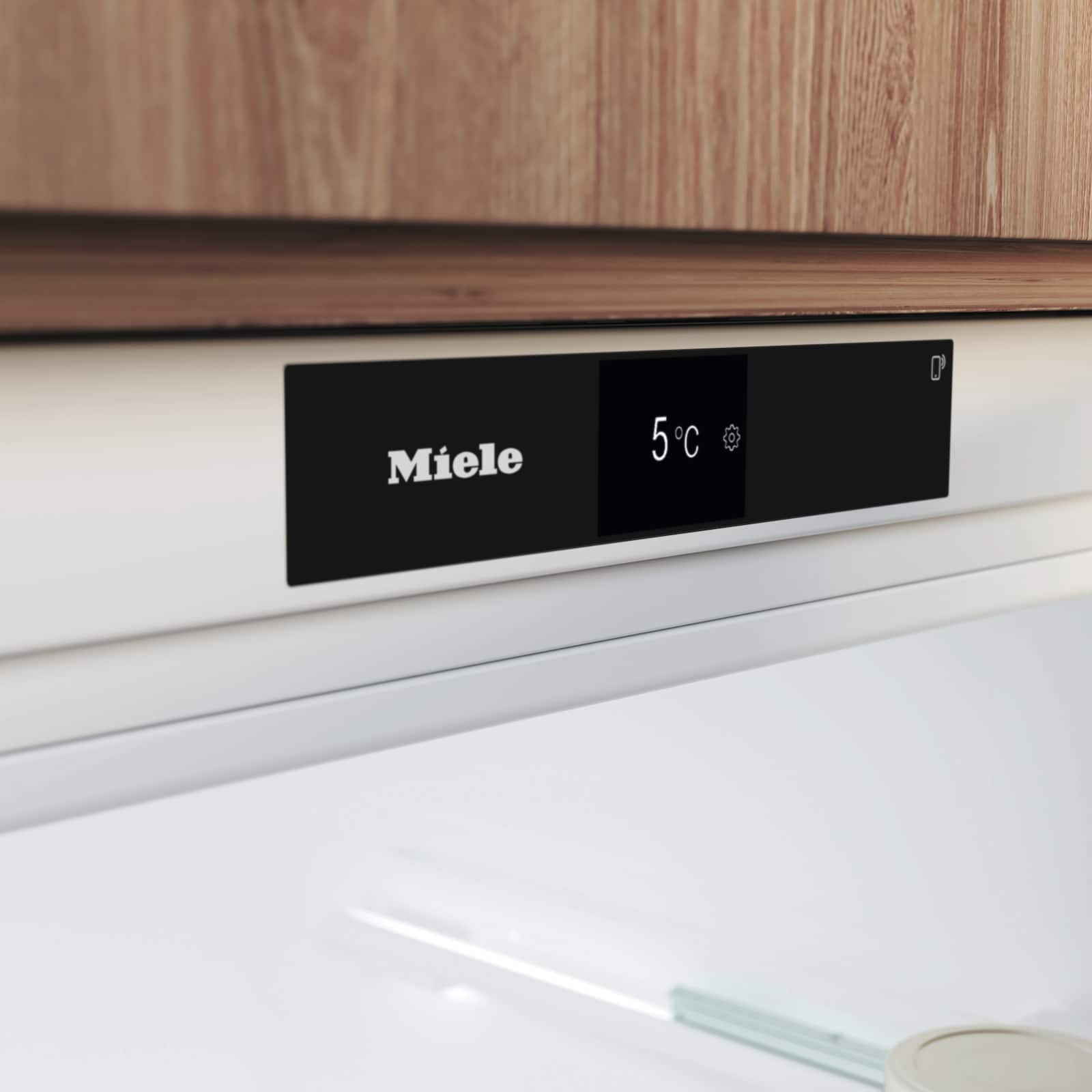

Operating conceptFreshTouch
SuperCool
No. of temperature zones1
Sabbath mode
Holiday mode

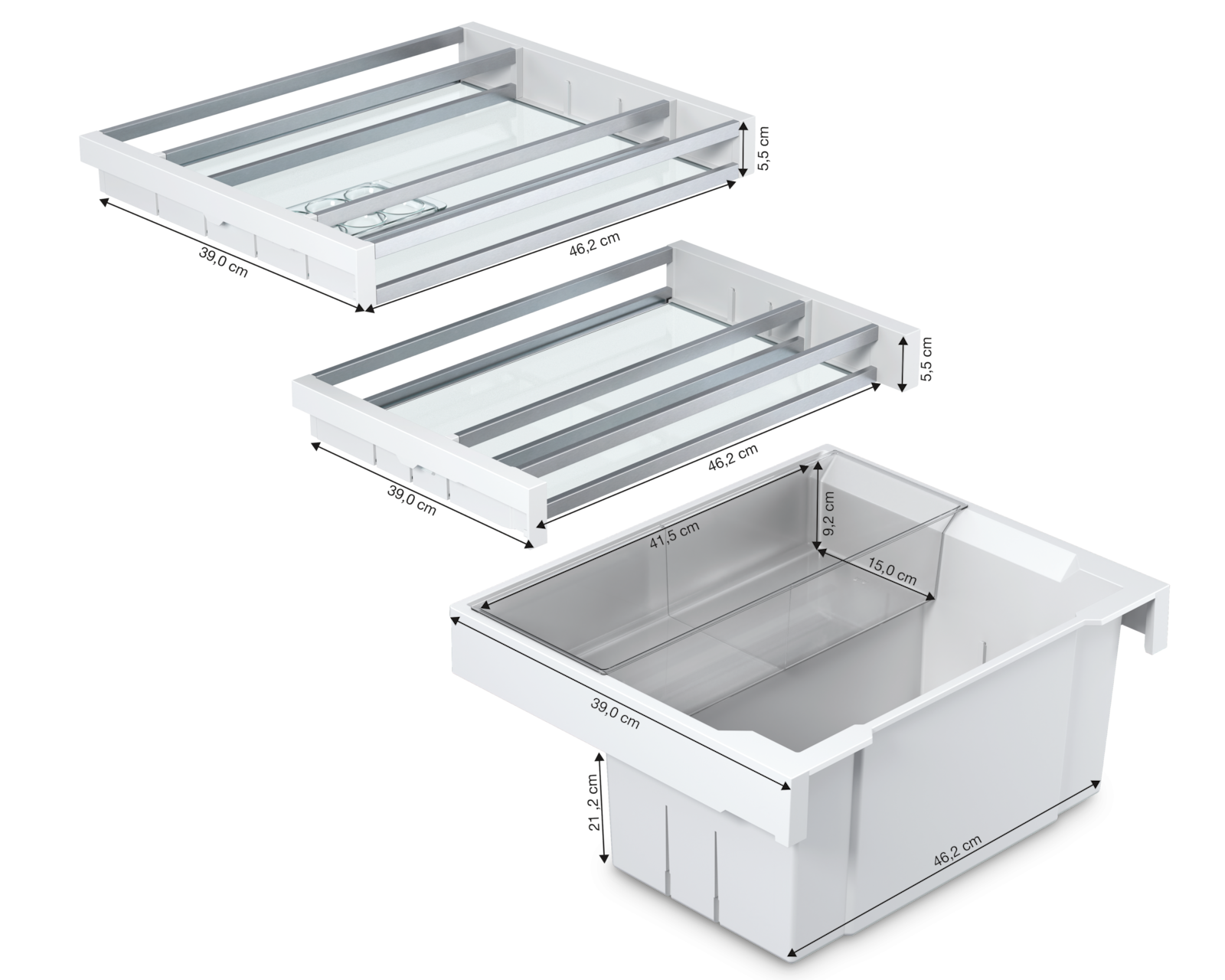

No. of shelves3

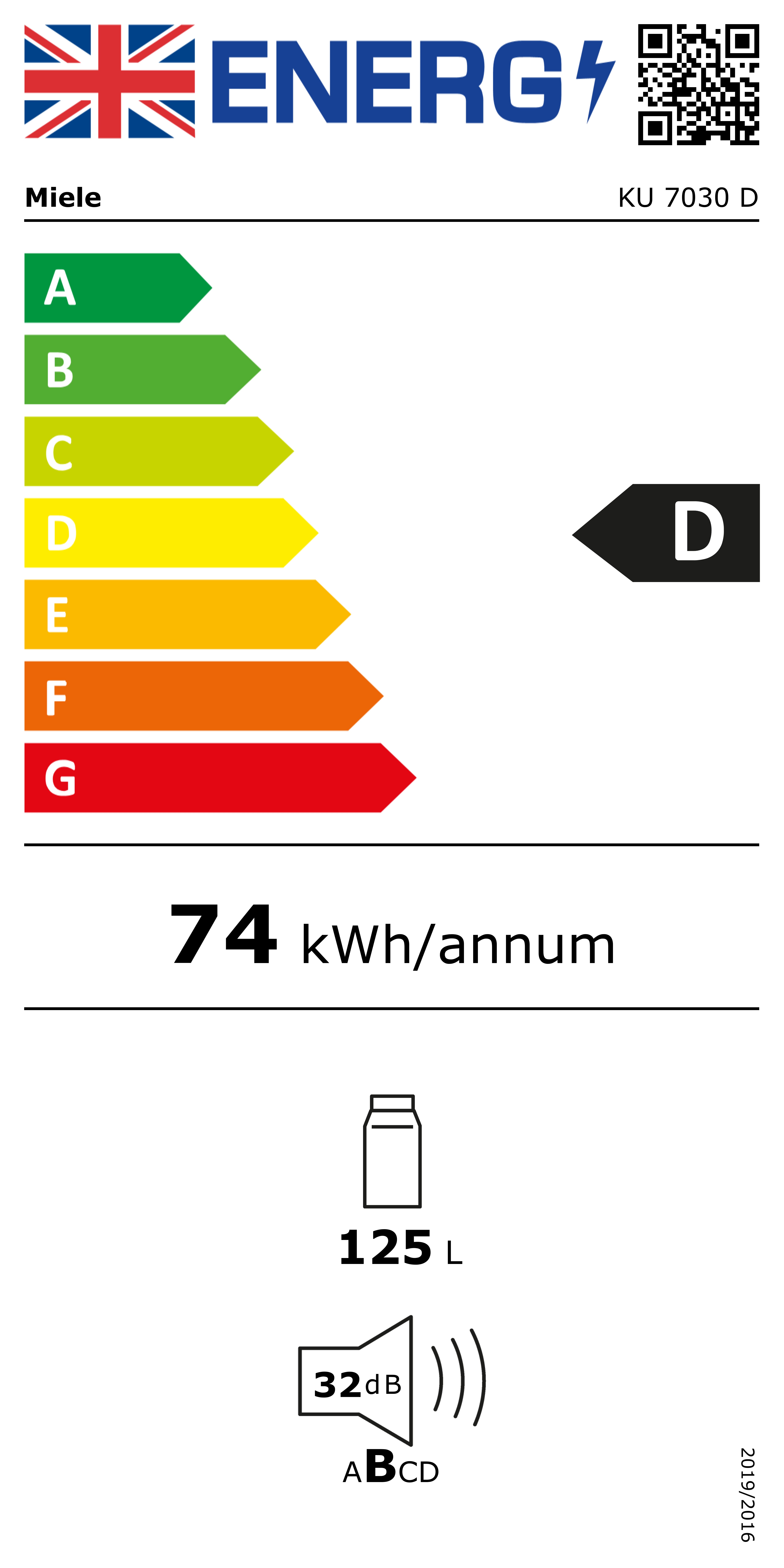

Energy efficiency class (A–G)D
Annual energy consumption in kWh73.90
Energy consumption in 24 h in kWh0.202
Lock function
Acoustic door alarm
Optical door alarm
Niche width in mm min.600
Niche width in mm max.600
Niche height in mm min.820
Niche height in mm max.880
Niche depth in mm560
Appliance width in mm597
Appliance height in mm818
Appliance depth in mm550
Weight in kg39
Max. door front weight – refrigerator, in kg10
Climate classSN-T
Refrigerator compartment in l125
Total usable capacity in l124
Acoustic airborne noise emission class (A–D)B
Sound emissions in dB(A) re 1 pW32
Current consumption (mA)2000
Voltage in V220-240
Fuse rating in A10
Number of phases1
Frequency in Hz50-60
Length of supply lead in m2.2
Replacing lampsService
Egg tray
EAN4002516779230

What's included

Egg tray

User convenience

Cleverly networked
Miele@home2,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.


Appliance door closes softly
SoftClose

Quiet and reliable closing: the gently self-closing doors prevent items from falling out.


Downloads

UK declaration of conformity
PDF
Downloads
Product sheet
PDF
Downloads
User manual
PDF
Downloads

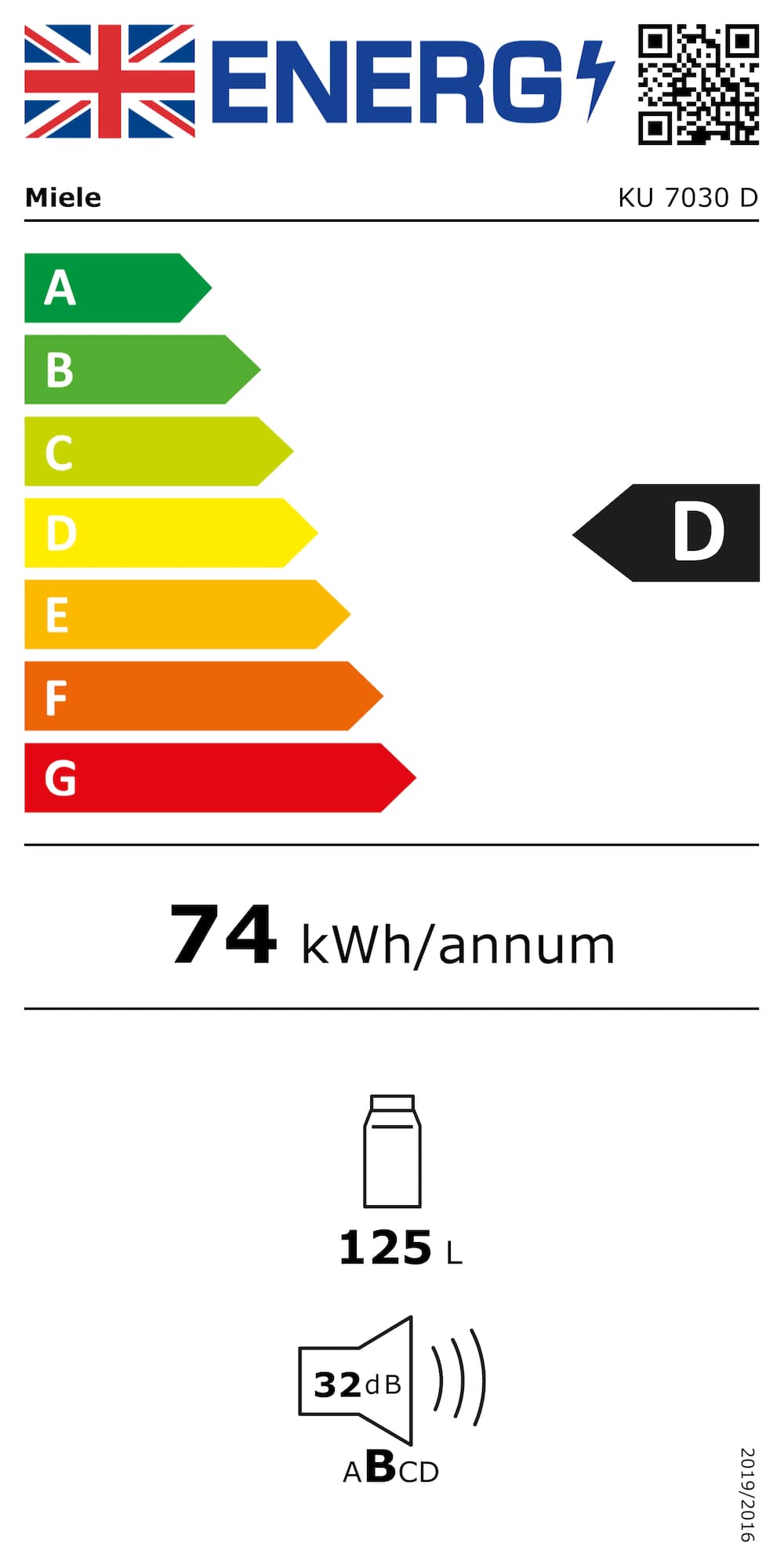

Energy label
PDF
Downloads
Energy label
PNG
Downloads
Product fiche
PDF
Downloads
Energy label
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000021/200002182/20000218211.png
Descriptions

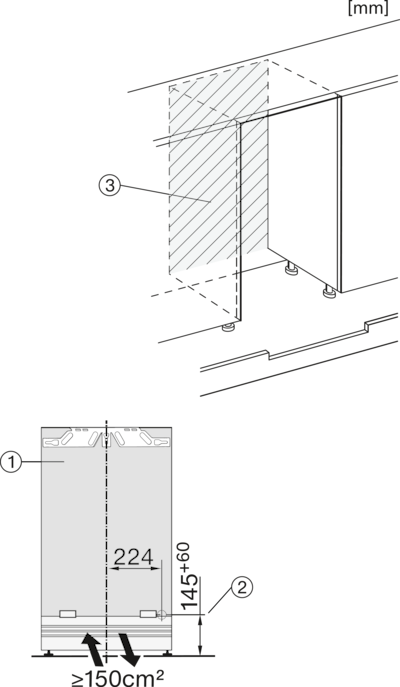

KU7030D, Built-under, installation drawing (*footnote) (installation drawings)
*1. View from the front, 2. Mains connection cable, L = 2200 mm, 3. No connection in this area
Downloads
https://media.miele.com/images/2000021/200002181/20000218179.png
Descriptions

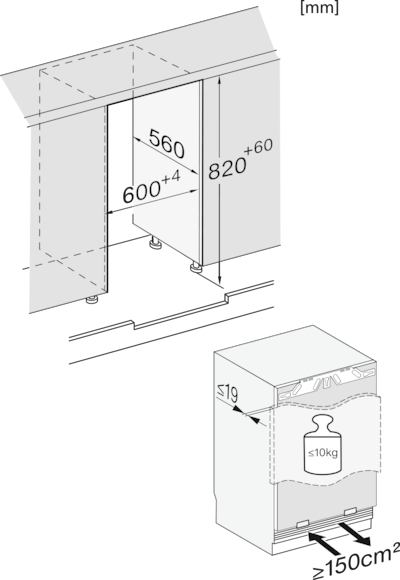

KU7030D, Built-under, Einbauskizze, Nischenmaß (installation drawings)
Installation drawings
Downloads
https://media.miele.com/images/2000021/200002182/20000218204.png
Descriptions

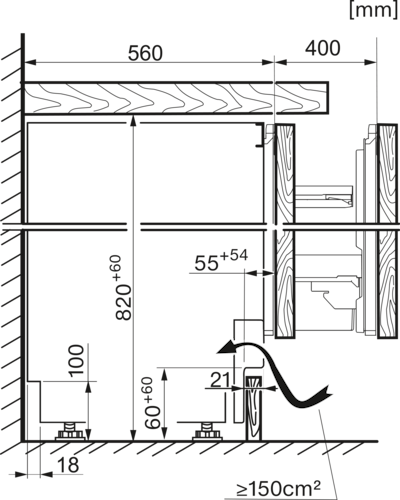

KU7030D, Built-under, side view (installation drawings)
Installation drawings
Downloads
