Product details
- Easy recirculation mode installation withplug&play
- Convenient operation – withCon@ctivityand remote control included
- Energy-efficient and quiet - powerfulECO motor
- Efficient filtration-10-ply stainless-steel grease filter
- #Panel# can be customisedCO_18575297
Type of air guideCan be retrofitted
Active charcoal filter (order separately)DKF 35-P
Automatic function Con@ctivity
ControlsEasySwitch
Power levels (number without Booster level)3
Booster levels1
Grease filter saturation indicator
Grease filter saturation indicator
Active charcoal filter saturation indicator

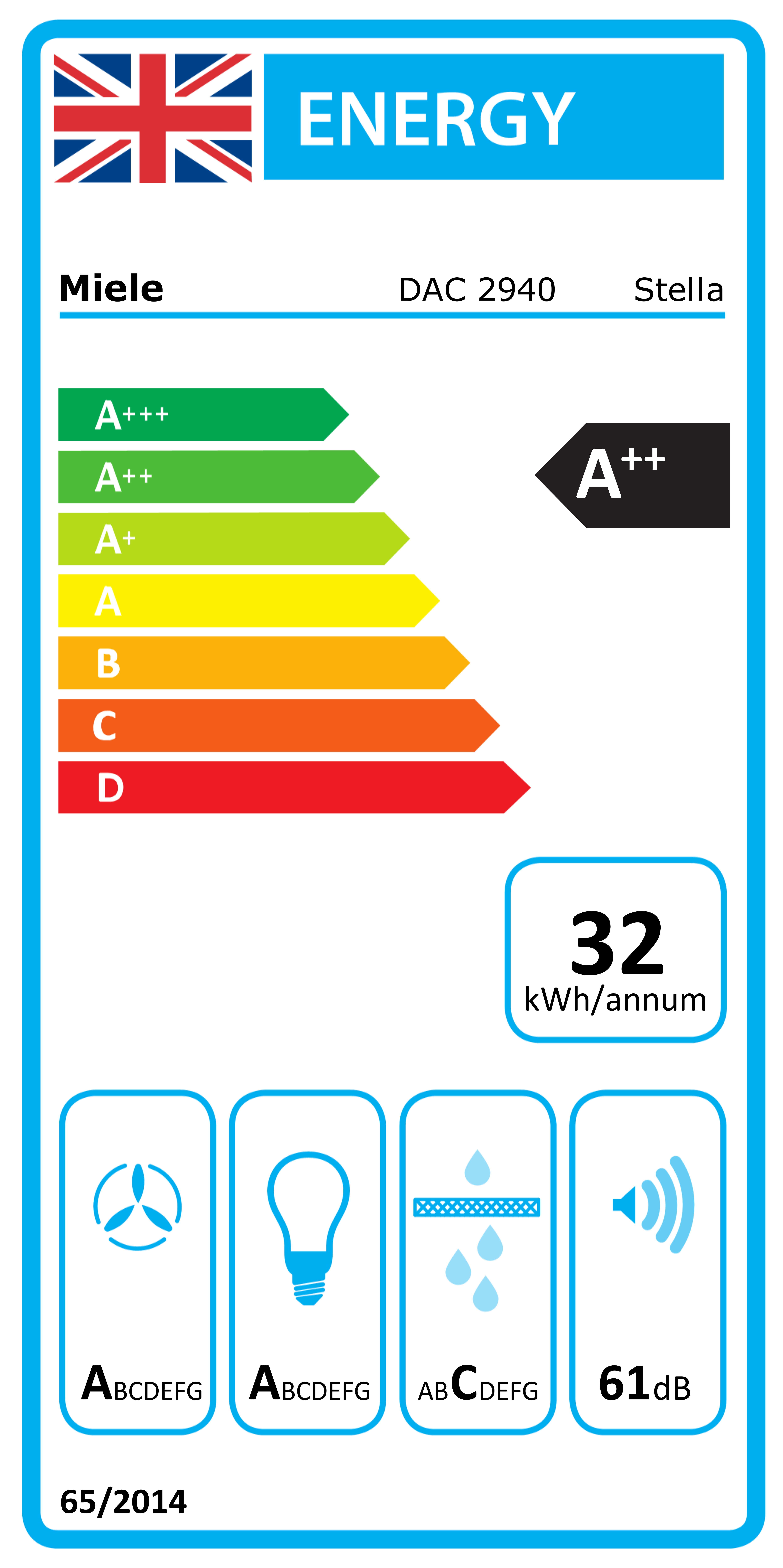

Energy efficiency class (A+++ to D)A++
Annual energy consumption in kWh/year31.7
Fluid dynamic efficiency classA
Lighting efficiency classA
Grease filtering efficiency classC
Number of dishwasher-safe stainless steel grease filters (10-ply)4
LED
Number x W2 x 7,2 W
Light intensity in Lx525 lx
Colour temperature in K3500 Kelvin
Air throughput in Level 1 (m³/h) according to EN 61591235
Air throughput in Level 2 (m³/h) according to EN 61591400
Air throughput in Level 3 (m³/h) according to EN 61591510
Air throughput in booster level 1 (m³/h)685
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-343
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-355
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-361
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-368
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1328
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1340
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1345
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1353
Air throughput in Level 1 (m³/h) according to EN 61591165
Air throughput in Level 2 (m³/h) according to EN 61591325
Air throughput in Level 3 (m³/h) according to EN 61591425
Air throughput in Booster level 1 (m³/h) according to EN 61591525
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-346
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-359
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-365
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-370
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1331
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1344
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1350
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1354
Overall hood height for extraction mode and external in mm196
Overall height for recirculation mode cooker hoods in mm196
Overall height for vented and external in in. (mm)196
Overall height for extraction mode and external mode cooker hoods in mm196
Overall height for recirculation in in. (mm)196
Overall height for recirculation mode cooker hoods in mm196
Canopy width in in. (mm)880
Canopy height in in. (mm)196
Depth of hood canopy in in. (mm)500
Minimum height above electric hobs in mm450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm650
Net weight in kg16.7
Length of supply lead in m1.4
Total rated load in kW0.174
Voltage in V230
Fuse rating in A10
Frequency in Hz50
Number of phases1
Diameter of extraction ducting connection in mm150
Adapter to reduce ducting diameter from 150 mm to 125 mm Ø
EAN4002516802853
Adapter to reduce ducting diameter from 150 mm to 125 mm Ø
Automatic operation for intelligent fan control
Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Automatic operation for intelligent fan control
Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Countdown time conveniently in view
Filter indicator
Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
DAC2940, DAC4940, DAC4943 EXTA Installation drawings
A) Exhaust air mode, B) Recirculation mode with integrated odour filter, 1) Exhaust air connection ø 150 mm , The connection piece is on the left-hand side ex works., -The housing can be rotated by 90 degrees for exhaust air routing to the front or rear. To allow the housing to be rotated, there must be a free space of 100 mm in the ceiling in front of and behind the ceiling cut-out., -For an exhaust air duct to the right, the extractor bonnet must be installed rotated by 180 degrees., 2) Spigot ø 150 mm as air outlet in Plug&Play mode or for connecting an air duct in ducted recirculation mode. The connection piece is on the left-hand side ex works., -It is not possible to convert the spigot to the front or rear., -For an exhaust air duct to the right, the cooker bonnet must be installed rotated by 180 degrees., We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
