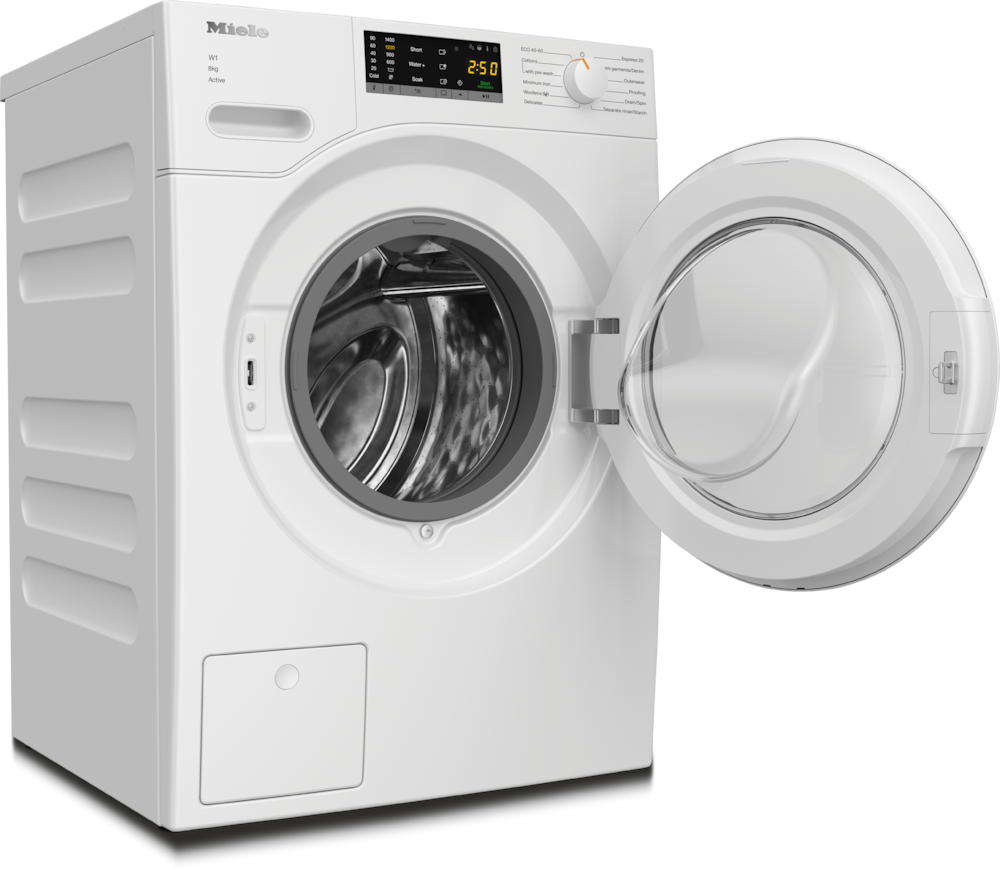

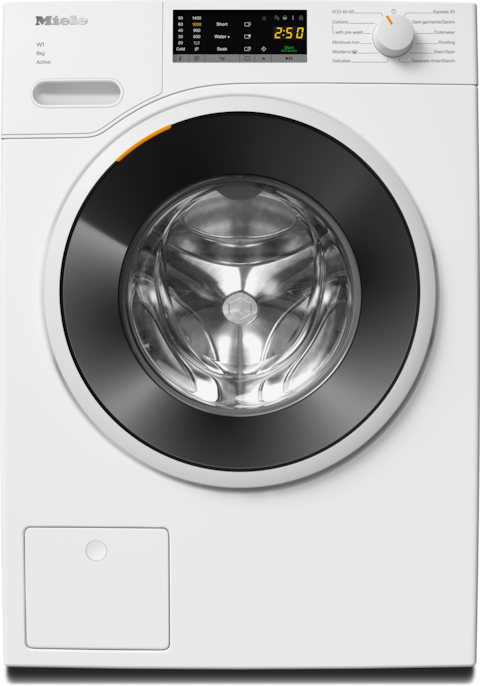

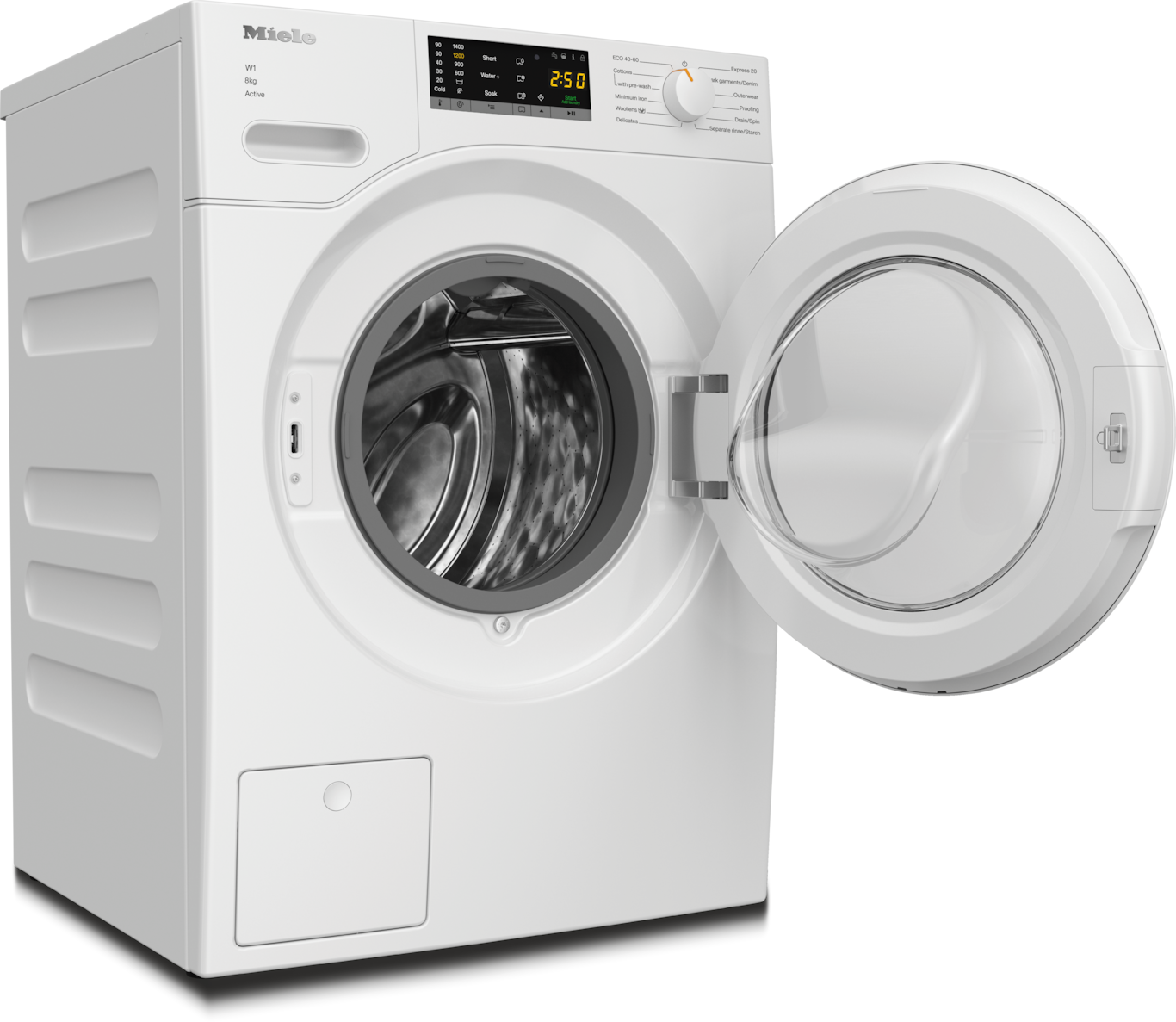

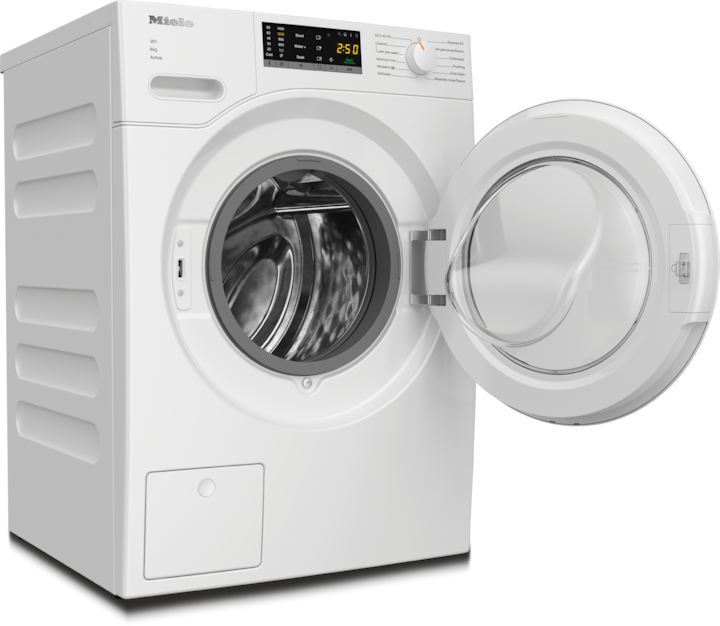

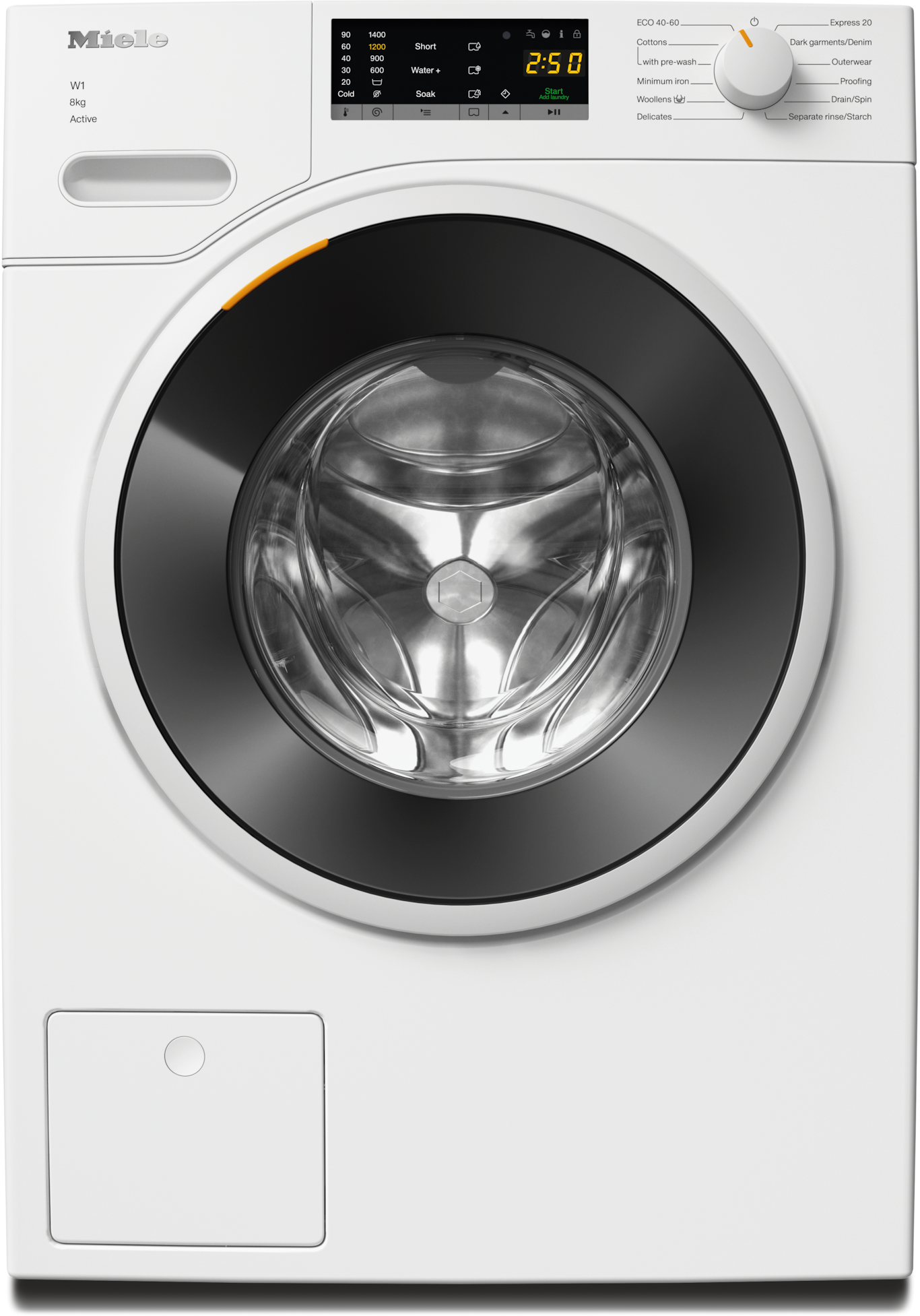

W1 front-loader washing machine:

WWA120 WCS 8kg Active Lotus white

A -10 %* I 8 kg I 1400 rpm I CapDosing I Honeycomb drum I AddLoad
Product data sheet
Colour:Lotus white
sale price£799.00


Additional services

You can select the following services for this product in your basket:

  • Freestanding Installation (£30.00)
  • Disconnect & Recycle Old Appliance (£20.00)

Product details

  • Tested for20 yearsof perfect laundry care1,
  • Save even more energy with A -10 %4,
  • ExclusiveCapDosingrange for different fabrics and stains2,
  • Ourhoneycomb drumensures that laundry stays in perfect condition
  • Add or remove individual items during the wash cycle withAddLoad

Product data sheet

Suitable for stacking
Side-by-side
Slot-in
Door hingeright
Product brandW1 White Edition
Front-loader
Max. spin speed1400
Rinse hold
Without spin function
Appliance colourLotus white
Control panel colourLotus white
Door designObsidian black with white ring
Rotary selector colourLotus White

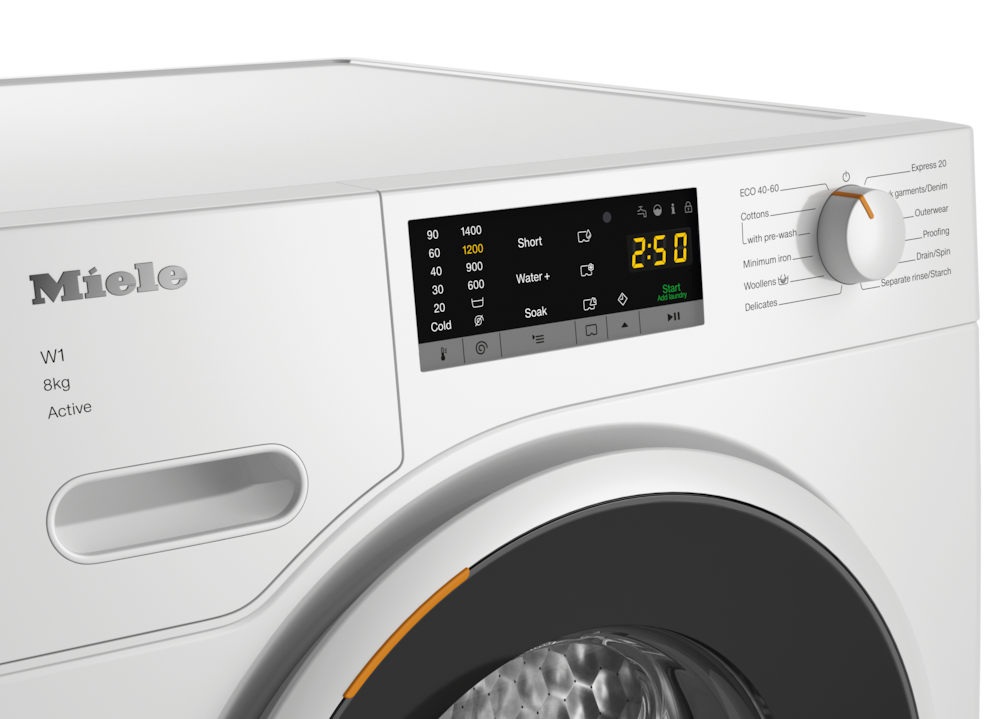

Control panel version5° inclined
Control typeRotary control
DisplayEasyControl yellow
CapDosing portioned dispensing
Honeycomb drum
Load in kg8
Delay start up to 24 hours
Time left display
AutoClean detergent drawer
AddLoad

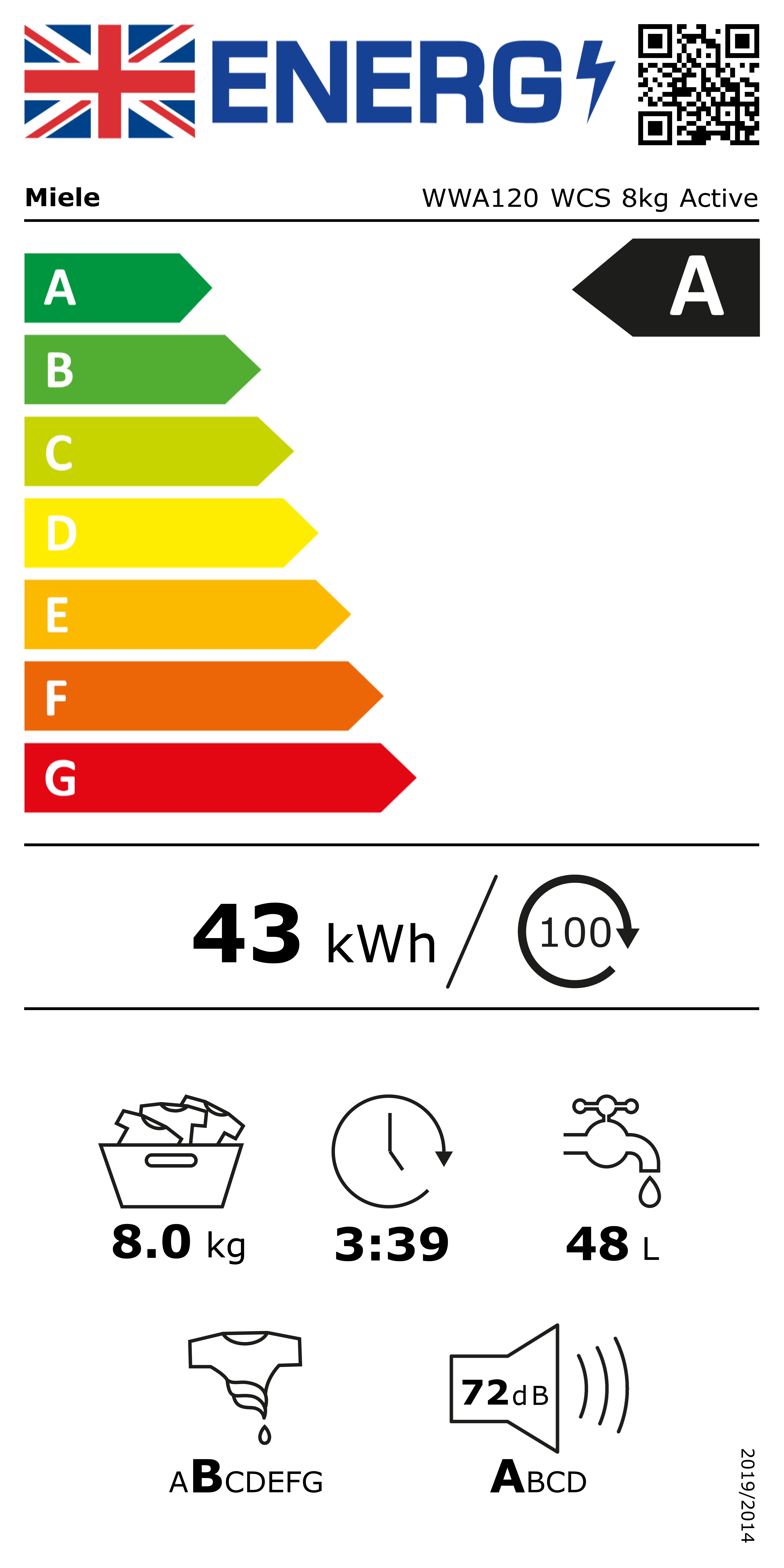

Energy efficiency class (A–G)A
More economical than the threshold value (52) for energy efficiency class A10%
Weighted energy consumption per 100 operating cycles for the wash cycle in kWh43
Weighted water consumption per cycle in l48
Spin efficiency class (A–G)B
Acoustic airborne noise emission class (spin cycle; A–D)A
Sound emissions during spin cycle in dB(A) re 1 pW72
Duration of the “ECO 40–60” programme at nominal capacity219
Power rating in off mode in W0.30
Low temperature wash "Cold" and "20 °C"
Automatic load control
Flow meter
Foam sensing
ProfiEco motor
Cottons (coloureds)
Cottons with pre-wash
Minimum iron
Delicates
Woollens (hand-washable)
Express 20
Dark garments / Denim
Outerwear
Proofing
Separate rinse/Starch
Drain / Spin
ECO 40-60
Short
Soak
Water plus
Additional rinse cycle
Water protection systemWatercontrol-System
Safety lock
PIN-Code
Optical interface
Dimensions in mm (width)596
Dimensions (H x W x D) in mm850 x 596 x 643
Dimensions in mm (height)850
Dimensions in mm (depth)643
Appliance depth in mm with opened door1054
Appliance depth excluding door (for building-under) in mm600
Weight in kg80
Total rated load in kW2.100-2.400
Voltage in V220-240
Fuse rating in A13
Frequency in Hz50
Length of supply lead in m2
EAN4002516867302
Tested for 20 years of perfect laundry care1,
Tested for the equivalent of 20 years’ use.1,

Some car engines are subjected to 3000 hours of tests, but we test continuous performance for up to 10,000 hours.1,

Always the right detergent for every application
CapDosing2,

Our portioned caps are available with a range of specialised detergents tailored to match your wash programmes.

Lead by example
Additional energy efficiency

10 %4, more economical than the highest energy efficiency class A.

User convenience

Add or remove single items
AddLoad

Enjoy the flexibility to add or remove individual items during a washing cycle, without cancelling the programme.

Quality

Tested for 20 years of perfect laundry care1,
Tested for the equivalent of 20 years’ use.1,

Some car engines are subjected to 3000 hours of tests, but we test continuous performance for up to 10,000 hours.1,

Cleaning performance

Always the right detergent for every application
CapDosing2,

Our portioned caps are available with a range of specialised detergents tailored to match your wash programmes.

Efficiency and sustainability

Economical, powerful and maintenance-free
ProfiEco motor3,

Our efficient motors with inverter drive feature technology that ensures minimal wear, noise, and energy usage.

Lead by example
Additional energy efficiency

10 %4, more economical than the highest energy efficiency class A.

Tailored to your load
Automatic load recognition

Use precisely the water and energy needed for your laundry with automatic load recognition.

Washing programs

Optimum care of synthetic fibres
Delicates

Gentle & soft: with the special programme synthetic textiles stay beautiful & keep their shape.

Most gentle treatment of your favourite garments
Woollens

No shrinkage, no felting: Delicate wool fabrics are cared for particularly gently, maintaining their quality.

Special programme for high-tech materials
Outerwear

Best care without the loss of function: High-quality outdoor textiles retain their functionality in any weather.

Equip textiles with functions
Proofing

Best possible effect: Thermally fixing ensures optimum water-repellent properties.

Gentle laundry care

Keep your clothing safe while tumbling
Honeycomb drum

Our protective drum allows fabrics to safely glide along without snagging and damaging them.

Safety

Safety thanks to an additional sensor
Water Control System (WCS)

Everything dry: WCS monitors the water intake, detects leakages and water in the drip tray.

Matching products and accessories

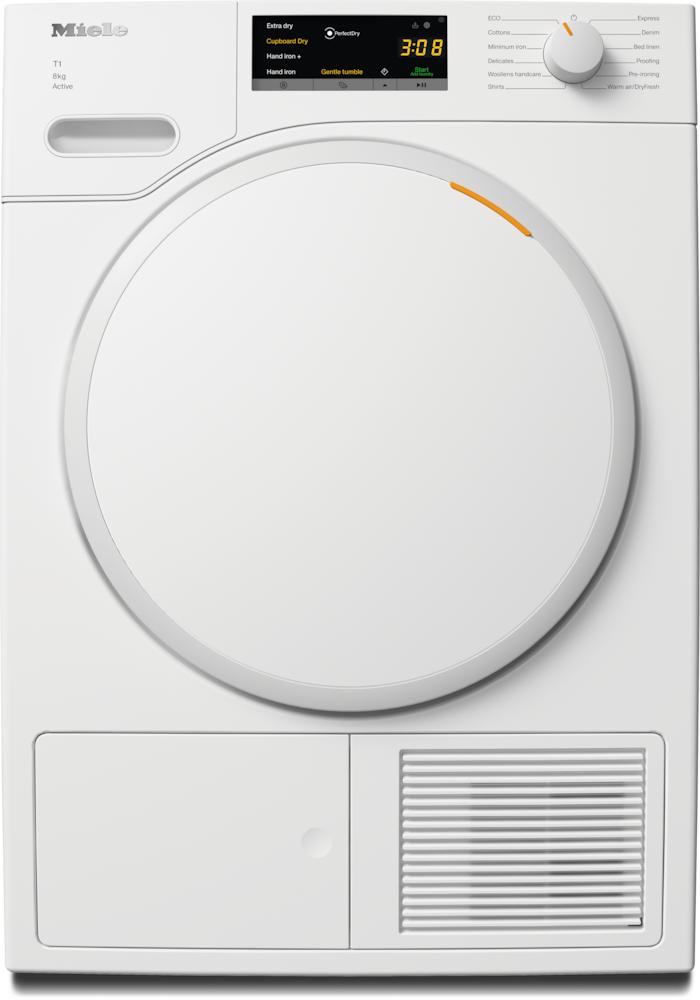

T1 heat-pump dryer:
TWA520WP 8kg Active

T1 heat-pump dryer:

8 kg I EasyControl I EcoSpeed I EcoDry technology I FragranceDos

£899.00
IntenseClean, 200 g
GP CL WG 252 P

IntenseClean, 200 g

For hygienic cleanliness in dishwashers and washing machines

£8.99
Descaler 250 g
GP DC WG 0252 P

Descaler 250 g

Removes harmful limescale deposits from dishwashers and washing machines.

£8.99
UltraWhite powder detergent 2.7 kg
WA UW 2702 P

UltraWhite powder detergent 2.7 kg

For optimum results on white textiles and dye-fast coloureds.

£17.99
Aqua caps
WA CSOA 0902 L

Aqua caps

9-pack fabric conditioner for freshly scented laundry. EasyOpen.

£7.99
UltraSoft fabric conditioner 1.5 l

UltraSoft fabric conditioner 1.5 l

for soft, bouncy laundry and a fresh Aqua fragrance.

£8.99
UltraColor liquid detergent 1.5 l
WA UC 1501 L

UltraColor liquid detergent 1.5 l

highly effective liquid detergent for colours and dark / black items.

£11.69
Appliance care set
DishClean & IntenseClean Set

Appliance care set

For hygienic cleanliness in dishwashers

£25.00
WoolCare detergent for delicates 1.5 l
WA WC 1503 L

WoolCare detergent for delicates 1.5 l

for wool, silks and other delicates.

£15.49
UltraColor and UltraWhite set
Set UltraColor & UltraWhite

UltraColor and UltraWhite set

more than a half-year supply of Miele detergents.

£38.99
Booster caps
WA CBO 0602 L

Booster caps

6-pack maximum strength stain remover. EasyOpen.

£8.49

Downloads

User manual
PDF
Downloads
Product sheet
PDF
Downloads
UK declaration of conformity
PDF
Downloads
Warranty conditions
PDF
Downloads
dwg
ZIP
Downloads
rvt
ZIP
Downloads
rfa
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
Product fiche
PDF
Downloads
Energy label
PDF
Downloads
Energy label
PNG
Downloads
Energy label
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000018/200001844/20000184421.png
Descriptions
W1 drawing, facia 5 degree, measures in mm
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001844/20000184420.png
Descriptions
W1 drawing, facia 5 degree, measures in mm
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001844/20000184419.png
Descriptions
W1 drawing, facia 5 degree, measures in mm
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001844/20000184418.png
Descriptions
W1 drawing, facia 5 degree, measures in mm
Installation drawings
Downloads
  • 1.During the development phase of the W1 washing machine series, Miele tested models and core components in 5000 wash loads (= 5 wash loads per week for 50 weeks per year) in various programmes. More: miele.com/20years
  • 2.Patent EP 2 365 120
  • 3.Patent EP 2 840 679
  • 4.10 % more economical than the threshold value (52) for energy efficiency class A
