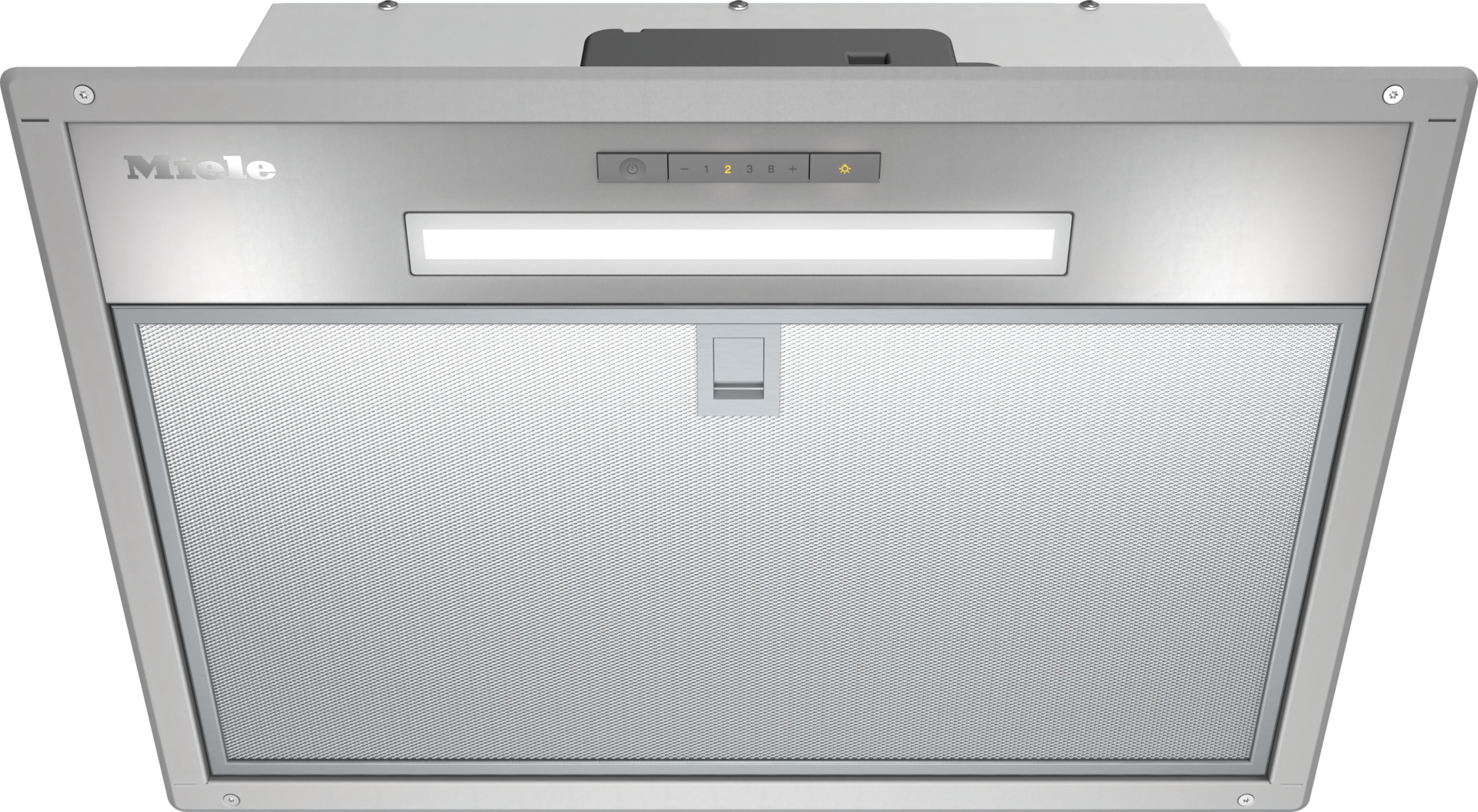

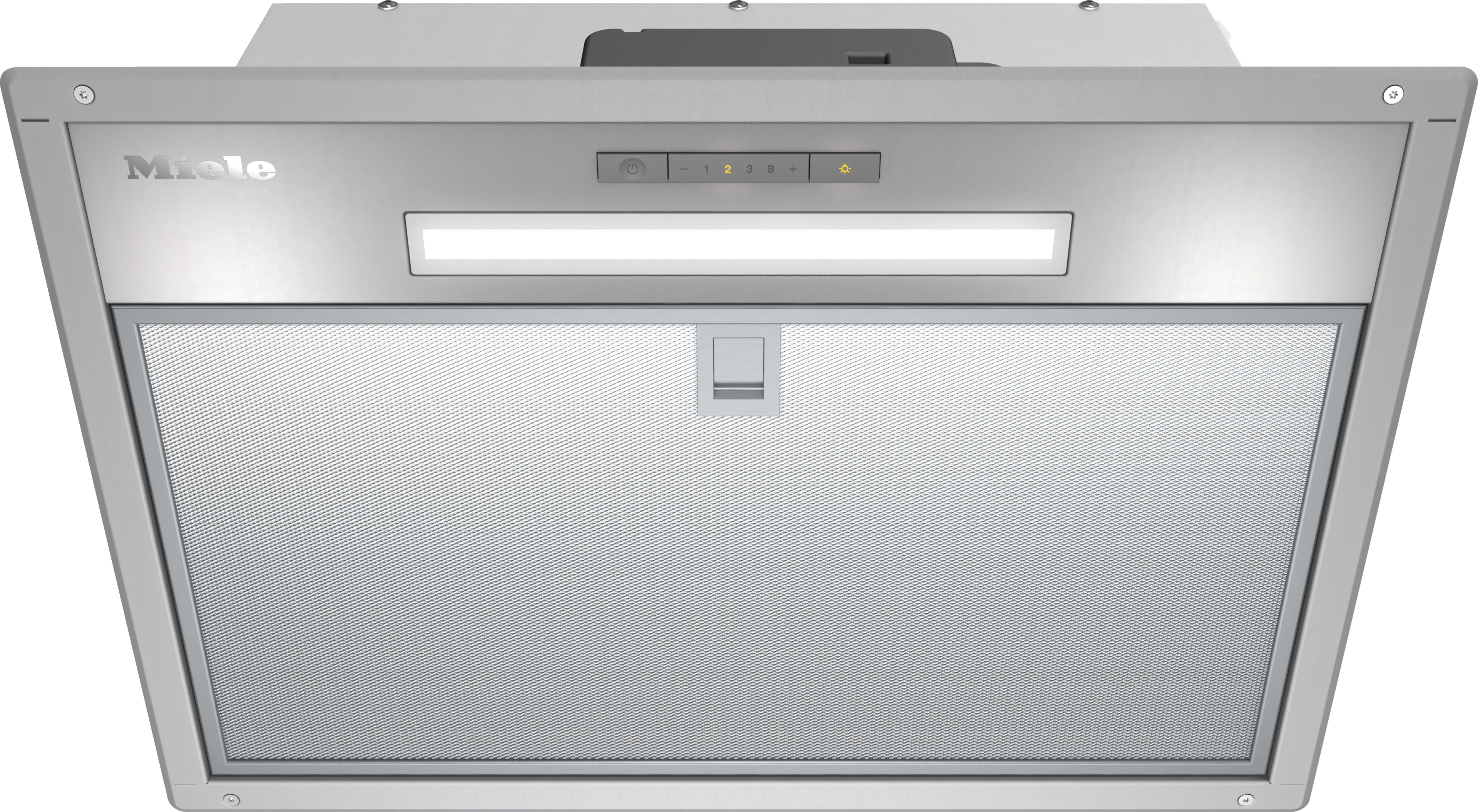

Extractor unit
DAE 1530 Stainless steel
with EasySwitch controls for convenient operation
Colour:Stainless steel
sale price£349.00
Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630
Product details
- Customised kitchen design - fully integrated in 532 mm width
- Powerful – at the highest level

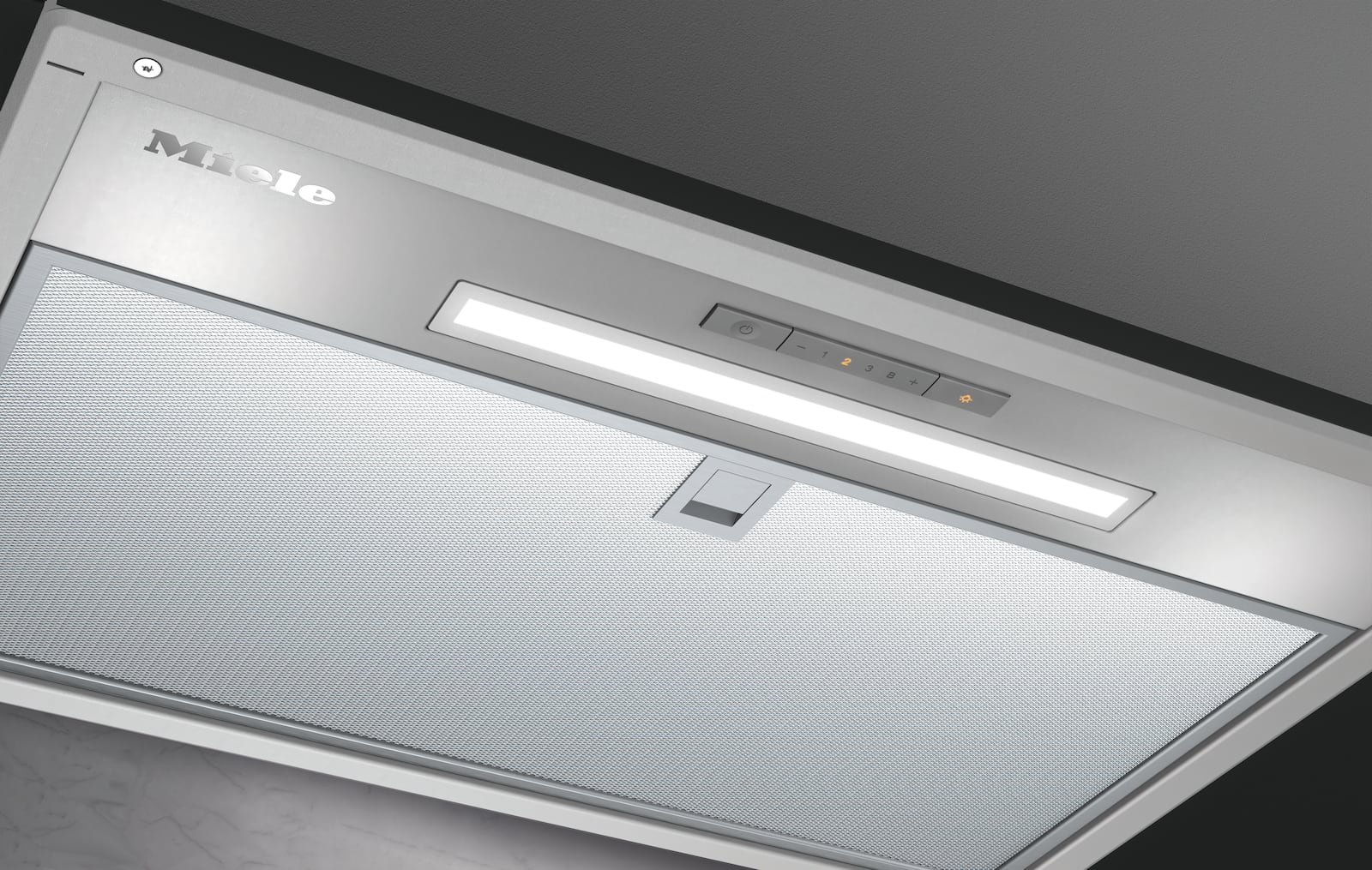

- LED strip for uniform lighting
- Efficient filtration-10-ply stainless-steel grease filter
- Safe and easy to clean -Miele CleanCover
Integrated extractor
Type of air guideCan be retrofitted
Recirculation conversion kit (order separately)DUU 150,DUU 151
Active charcoal filter (order separately)DKF 32-P
ColourStainless steel
Electronic controls
Touch-on-glass controls

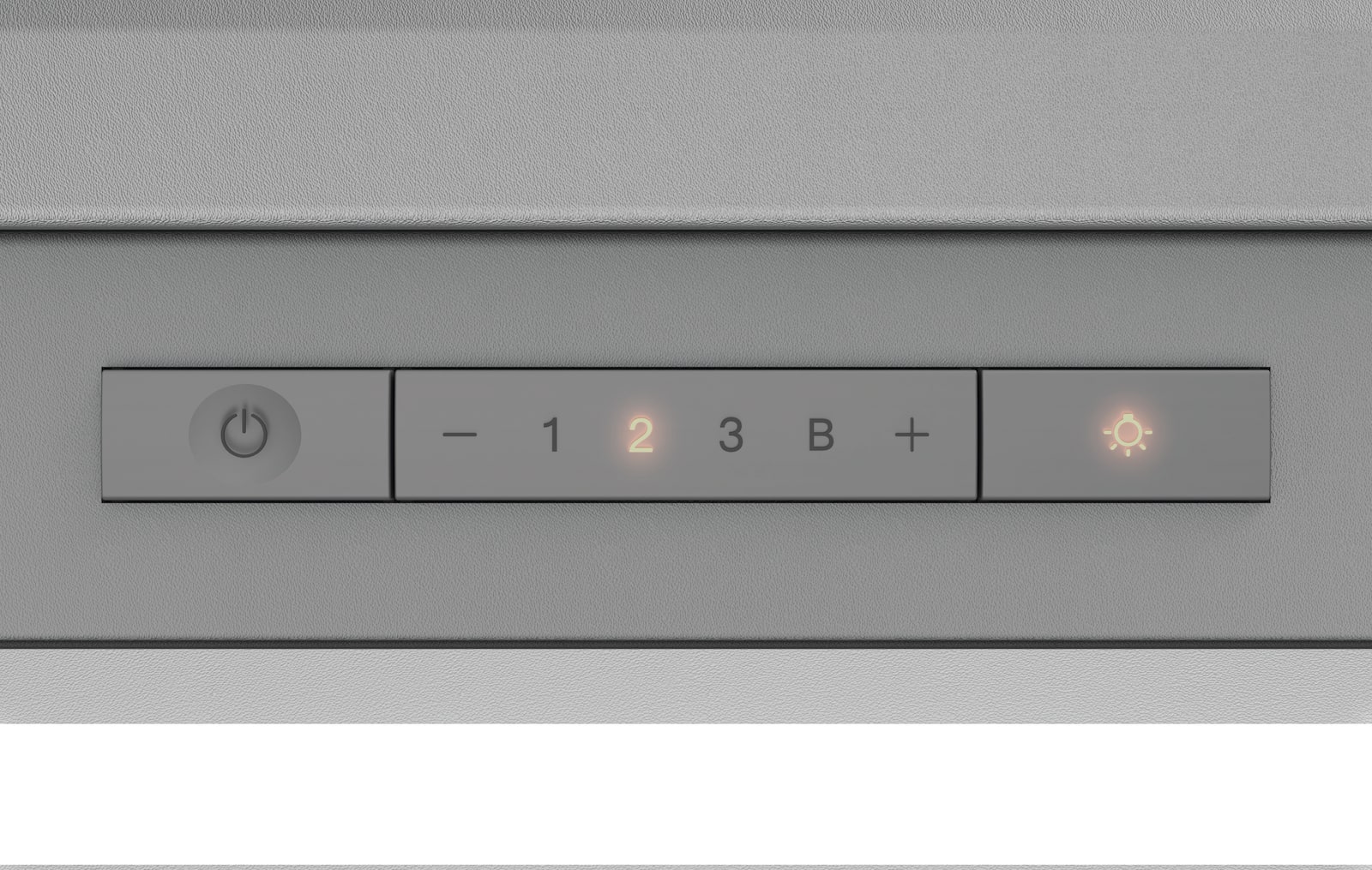

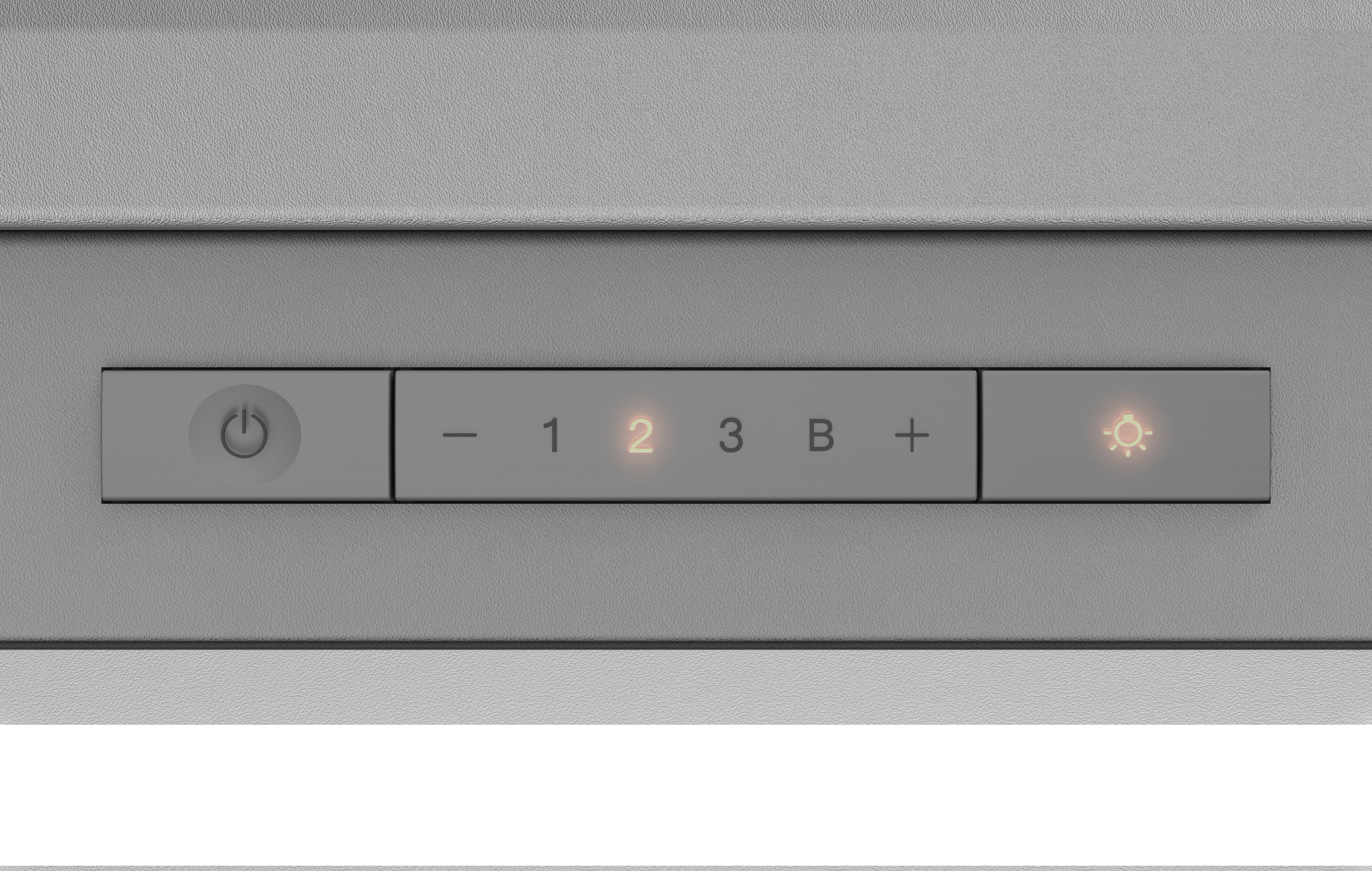

ControlsEasySwitch
Power levels (number without Booster level)3
Booster levels1
Easy-to-clean canopy interior – CleanCover

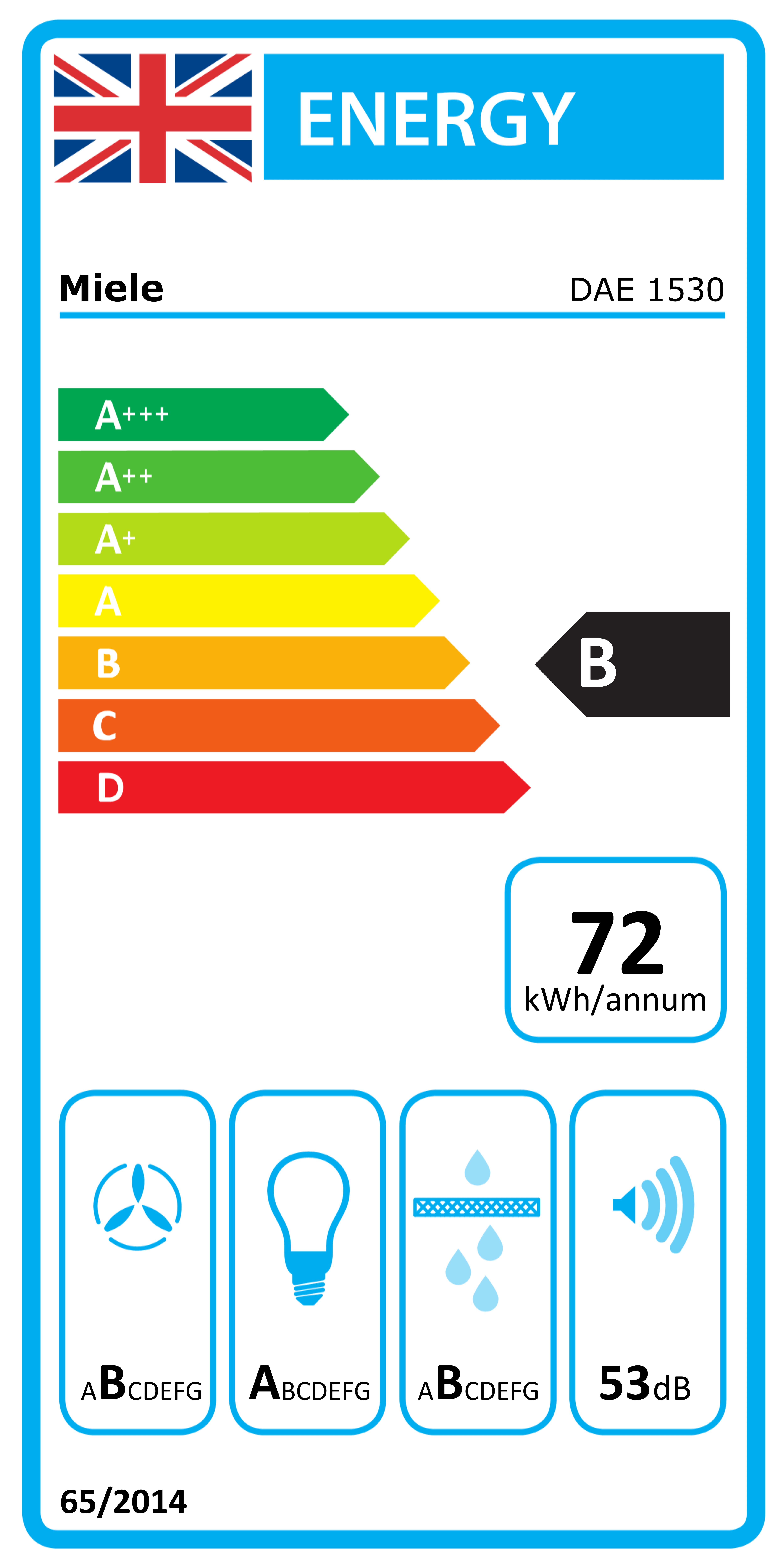

Energy efficiency class (A+++ to D)B
Annual energy consumption in kWh/year72.2
Fluid dynamic efficiency classB
Lighting efficiency classA
Grease filtering efficiency classB
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply)1
LED
Number x W1 x 3,2 W
Light intensity in Lx360 lx
Colour temperature in K3500 Kelvin
Number of fans1
Dual-action blower
AC motor
Air throughput in Level 1 (m³/h) according to EN 61591215
Air throughput in Level 2 (m³/h) according to EN 61591315
Air throughput in Level 3 (m³/h) according to EN 61591415
Air throughput in booster level 1 (m³/h)675
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-345
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-348
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-353
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-365
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1330
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1334
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1339
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1351
Air throughput in Level 1 (m³/h) according to EN 61591200
Air throughput in Level 2 (m³/h) according to EN 61591295
Air throughput in Level 3 (m³/h) according to EN 61591395
Air throughput in Booster level 1 (m³/h) according to EN 61591630
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-346
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-353
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-359
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-371
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1332
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1339
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1345
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-1357
Safety shut-off
Canopy width in in. (mm)532
Canopy height in in. (mm)50
Depth of hood canopy in in. (mm)372
Minimum height above electric hobs in mm450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm650
Net weight in kg9
Length of supply lead in m1.5
Standard plug fitted
Total rated load in kW0.203
Voltage in V230
Fuse rating in A10
Frequency in Hz50
Number of phases1
Extraction ducting connection at top
Extraction connection at top and rear
Diameter of extraction ducting connection in mm150
Non-return flap
EAN4002516879633
Non-return flap
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
Always on the safe side
Safety switch-off
Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions

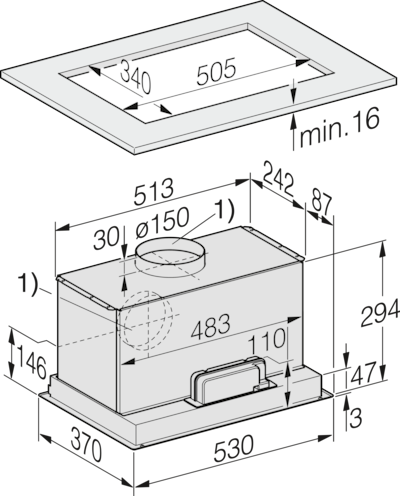

DAE1530, DAE1535 Installation drawing
1) Exhaust air connection alternatively to the rear., Exhaust air connection Ø 150 mm., Further detailed dimensions can be found in the operating instructions! - 1.Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630
