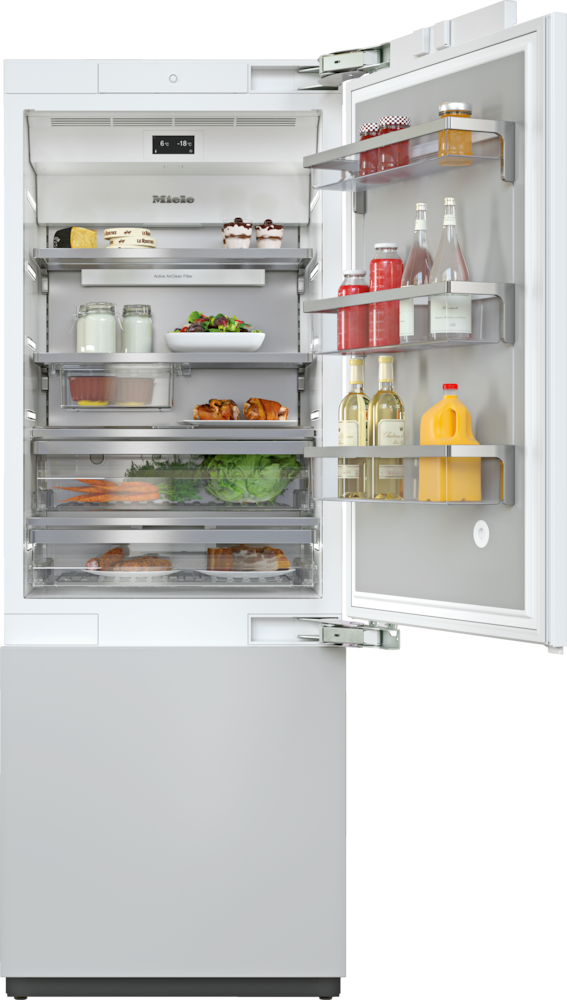

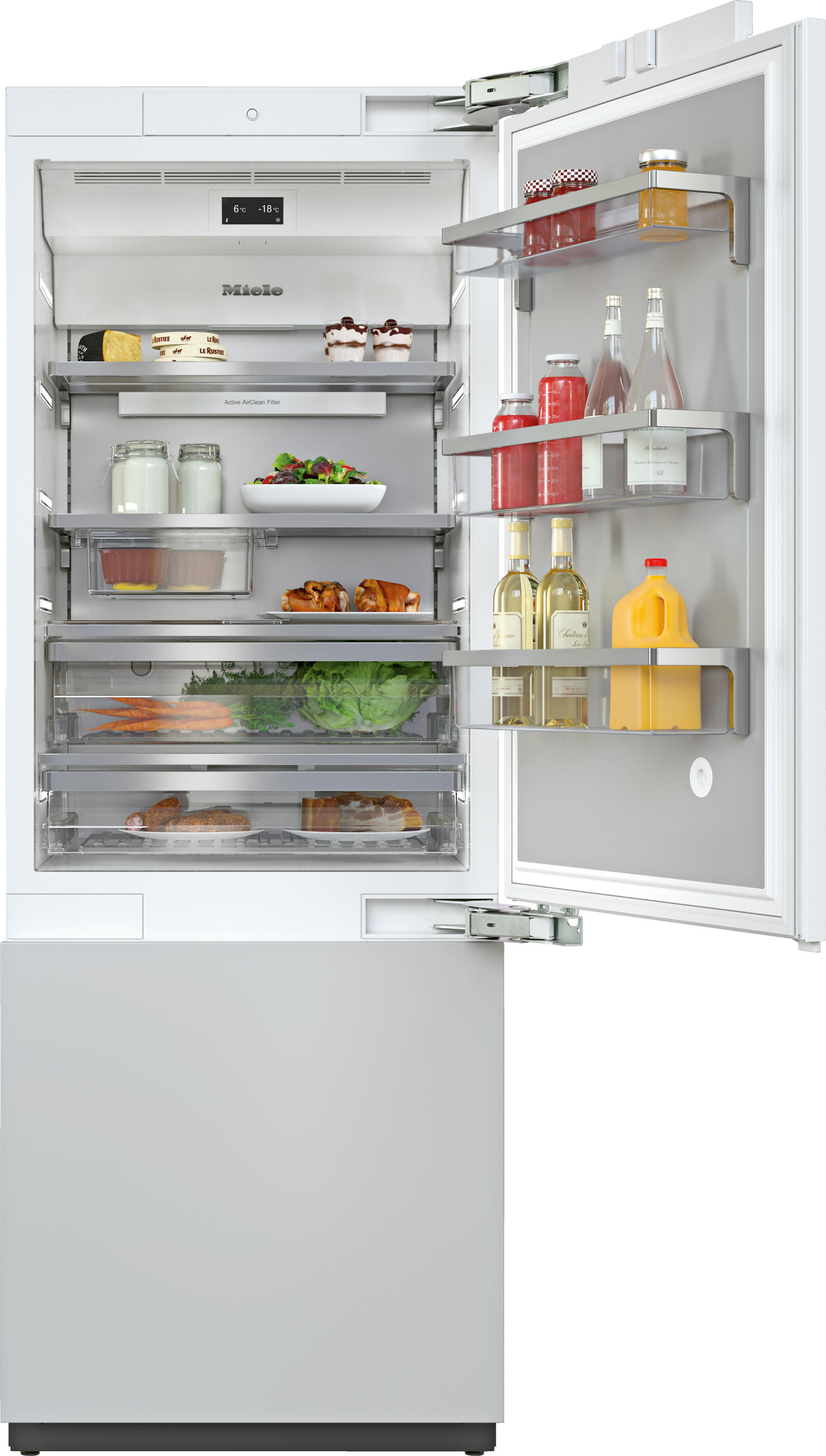

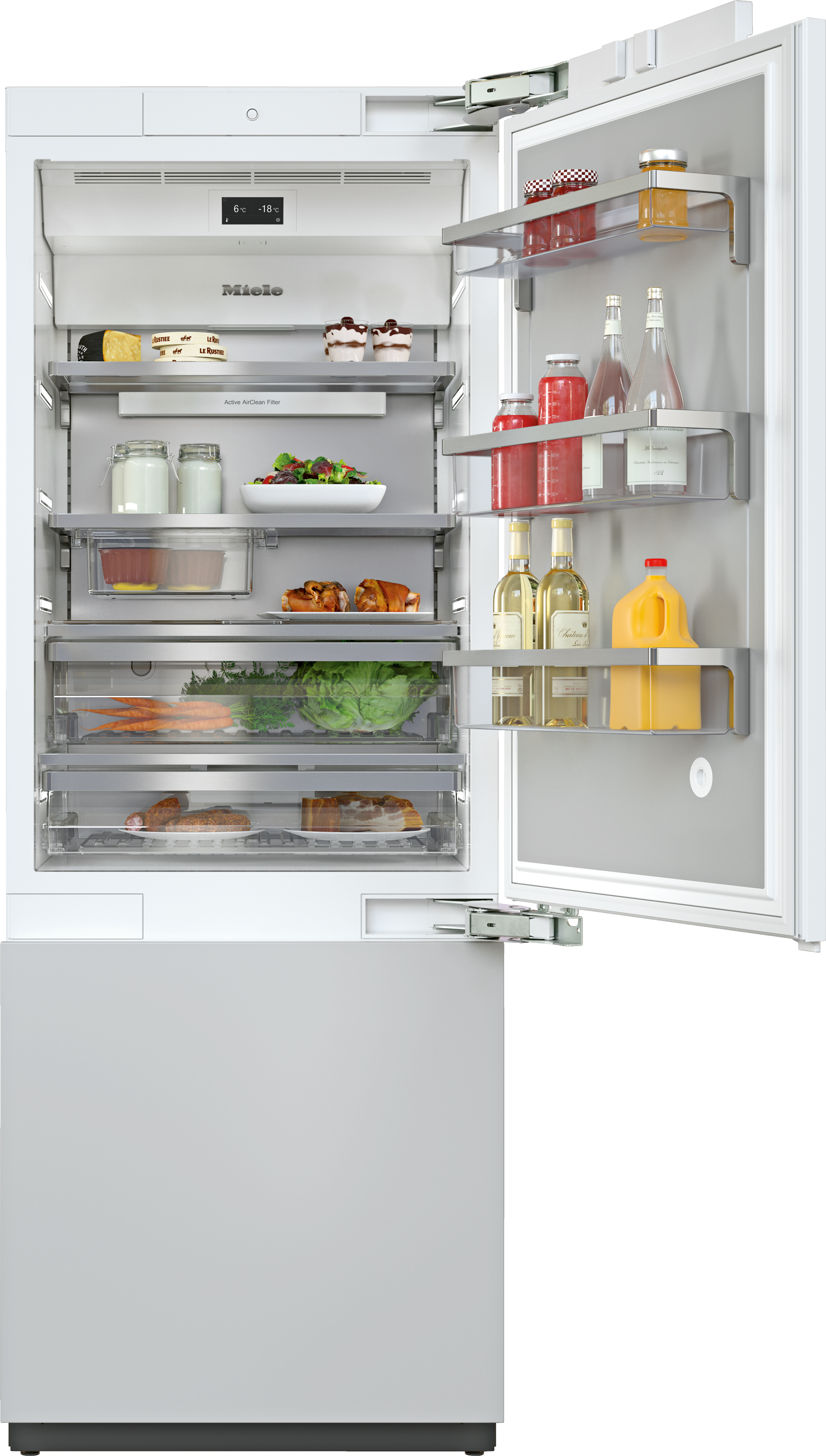

MasterCool fridge-freezer

KF 2802 Vi

For high-end design and technology on a large scale.
Product data sheet
sale price£10,329.00



Product details

  • Push2openfor convenient door-opening assistance
  • Food stays fresh for up to 3 x longer thanks toMasterFresh
  • Light floods the interior thanks to LED elements –BrilliantLight
  • Convenient control thanks to colour touch displayMasterSensor

Product data sheet

Fridge-freezer
Built-in appliance
Integrated appliance
Door hingeright
Convertible door hinging
Side-by-side enabled
LightingBrilliantLight
Networking with Miele@home
Freshness systemMasterFresh
DynaCool
NoFrost
NoFrost
DuplexCool Pro
SoftClose
SelfClose
IceMaker with mains water connection
Push2open
FullAccess
EasyClean
MaxLoad hinge
Operating conceptMasterSensor
Independent temperature regulation of fridge and freezer zones
Automatic SuperCool
SuperFreeze
No. of temperature zones2
Sabbath mode
Holiday mode
Eco mode
Height-adjustable, full-width tempered glass shelves2
No. of crisper drawers2
SlidingShelf
Door shelves for jars1
Door rack for bottles2
Number of freezer baskets2
Energy efficiency class (A–G)E
Annual energy consumption in kWh295.29
Energy consumption in 24 h in kWh0.81
Lock function
Spill guard
Acoustic door alarm
Acoustic temperature alarm
Optical door alarm
Optical temperature alarm
Niche width in mm min.762
Niche width in mm max.765
Niche height in mm min.2134
Niche height in mm max.2164
Niche depth in mm629
Appliance width in mm756
Appliance height in mm2127
Appliance depth in mm610
Weight in kg176.90
Door hinge technologyFixed door
Max. door front weight – refrigerator, in kg45
Max. door front weight – freezer, in kg18
Climate classSN-T
Refrigerator compartment in l316
4* freezer compartment in l136
Total usable capacity in l452
Storage time in case of fault in h13
Freezer capacity in kg/24 h14
Acoustic airborne noise emission class (A–D)D
Sound emissions in dB(A) re 1 pW42
Current consumption (mA)3000
Voltage in V220.00-240.00
Fuse rating in A13
Number of phases1
Frequency in Hz50.00-60.00
Length of supply lead in m3
Replacing lampsService
Active AirClean filter
Available display languages via MultiLingua한국어
EAN4002516336679

What's included

Active AirClean filter

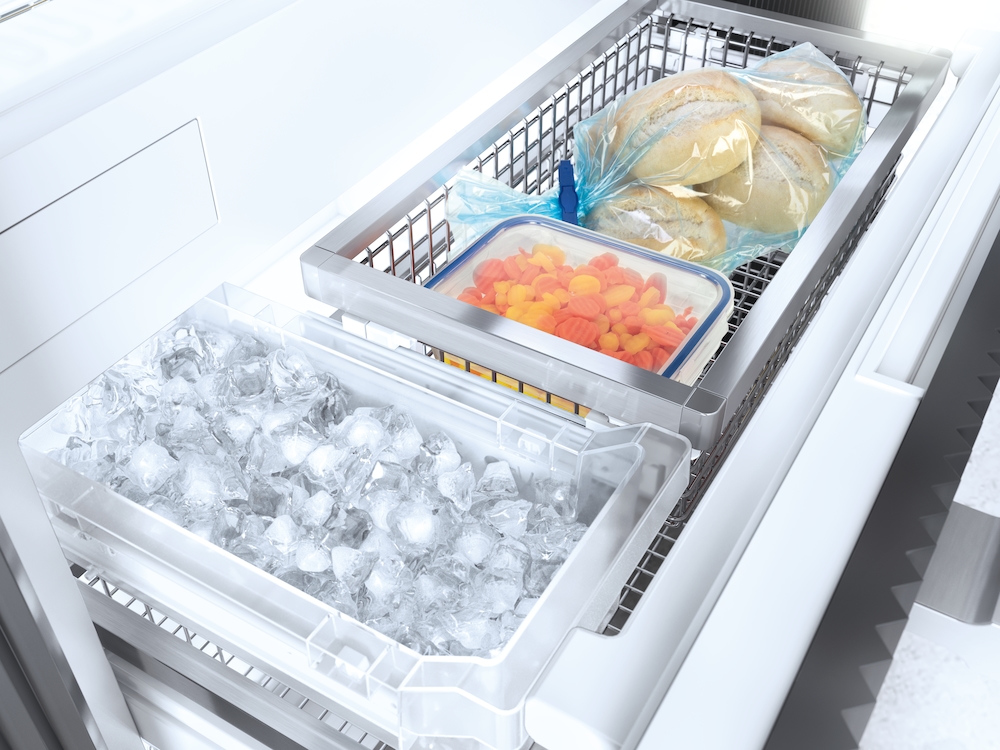

Ice cubes for cold drinks
MasterCool - IceMaker

Produced quickly and stored: The IceMaker, which can be controlled separately, produces up to 150 ice cubes per day.

Defrosting is a thing of the past
MasterCool – NoFrost

Convenient: a sophisticated NoFrost system saves you the hassle of defrosting and cleaning the appliance.

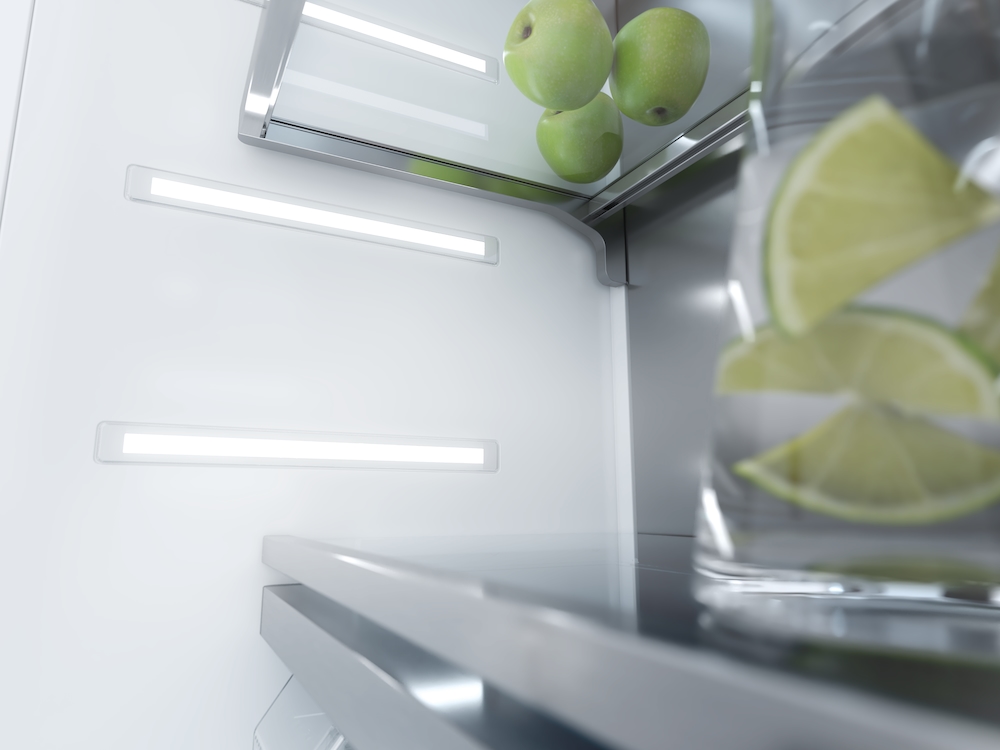

Perfectly lit
MasterCool – BrilliantLight

Soft and attractive: high-quality LED strips offer perfect illumination and a beautiful lighting mood.

Protective storage for long-lasting freshness
MasterCool – MasterFresh

Ideal climate: food stays fresh for up to 3 times longer due to perfect temperature and humidity.

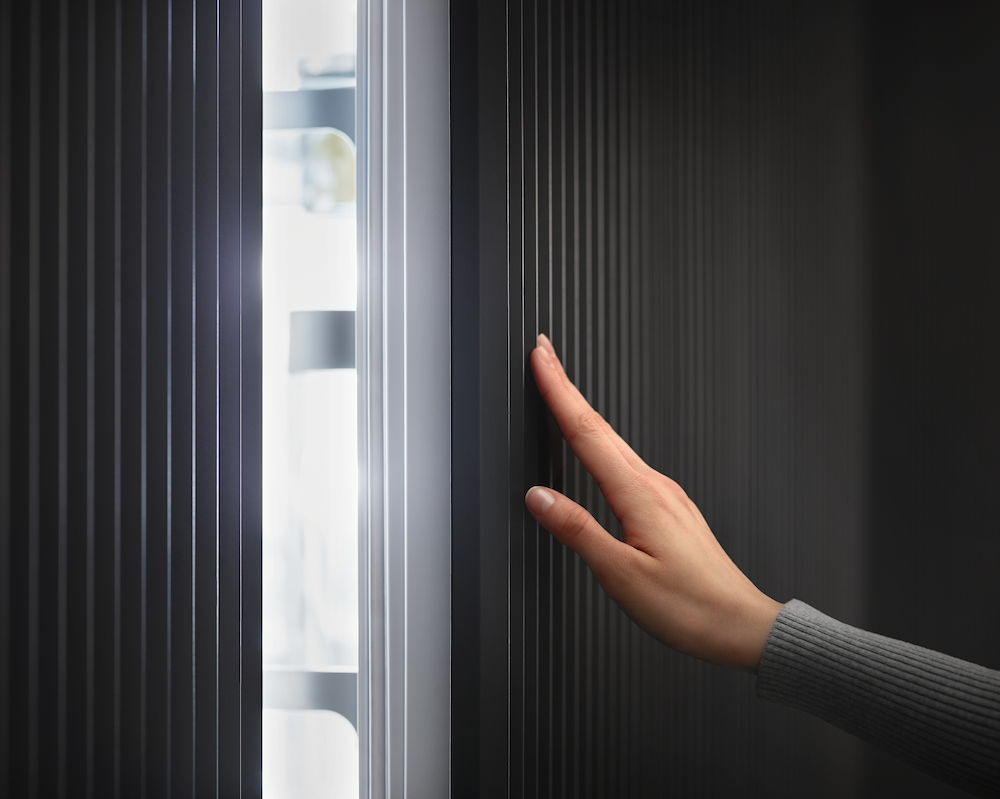

The perfect solution for a handleless design
MasterCool – Push2open

This unique appliance integrates perfectly into handleless kitchens, as the door opens when you press the front.

Cleverly networked
Miele@home1,

Make your life smart: thanks to Miele@home1, , you can cleverly network your domestic appliances – for more options.

User convenience

Defrosting is a thing of the past
MasterCool – NoFrost

Convenient: a sophisticated NoFrost system saves you the hassle of defrosting and cleaning the appliance.

Perfect food storage

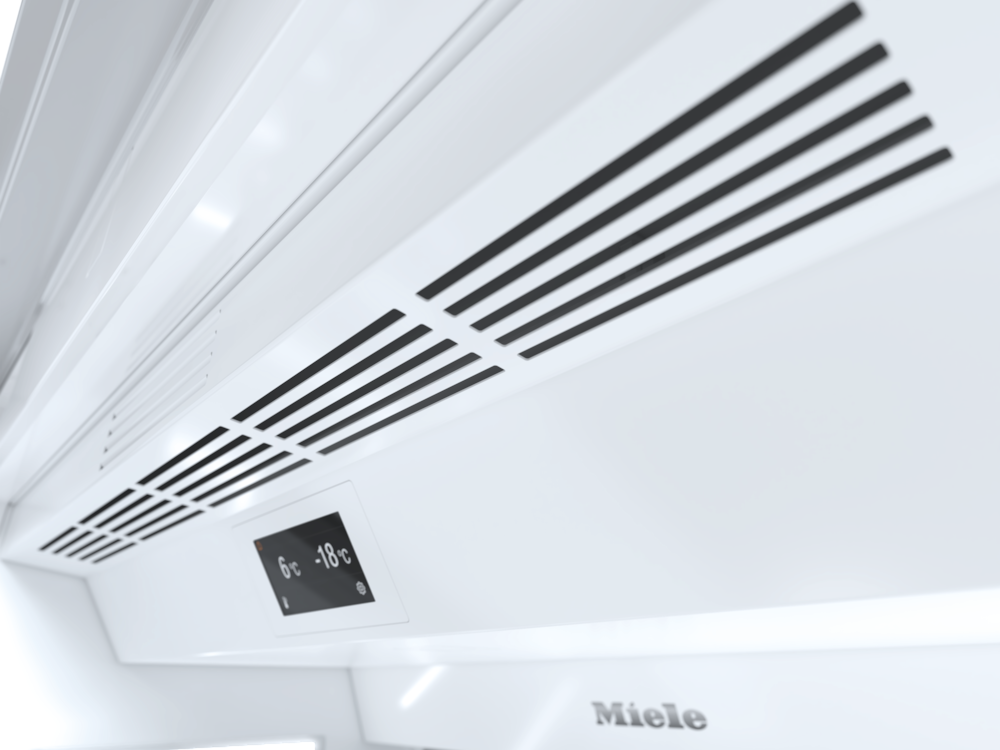

MasterCool – DynaCool

Storage freedom: a fan ensures a uniform temperature throughout the entire unit.

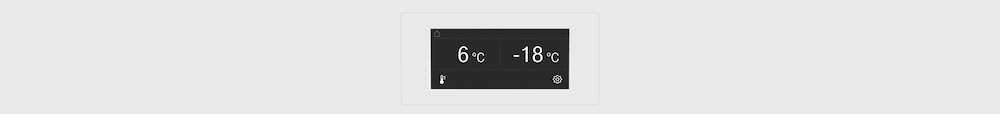

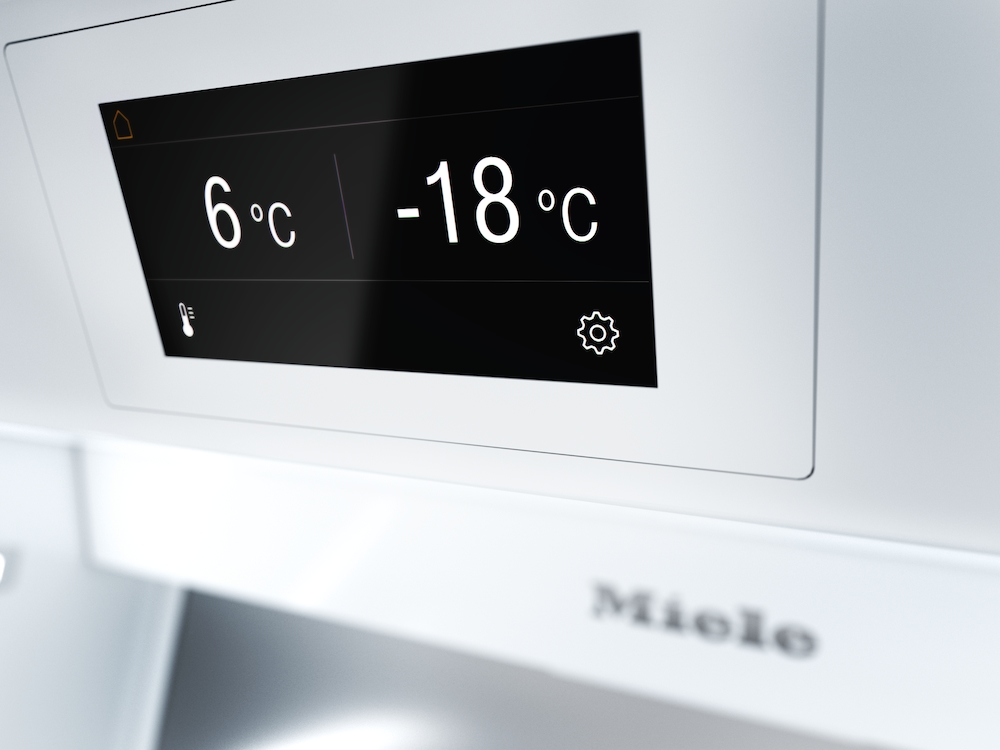

Convenient touch operation
MasterCool – MasterSensor

Convenient operation: numerous settings can be configured with the tap of a finger.

Perfectly lit
MasterCool – BrilliantLight

Soft and attractive: high-quality LED strips offer perfect illumination and a beautiful lighting mood.

The perfect solution for a handleless design
MasterCool – Push2open

This unique appliance integrates perfectly into handleless kitchens, as the door opens when you press the front.

Perfect food storage

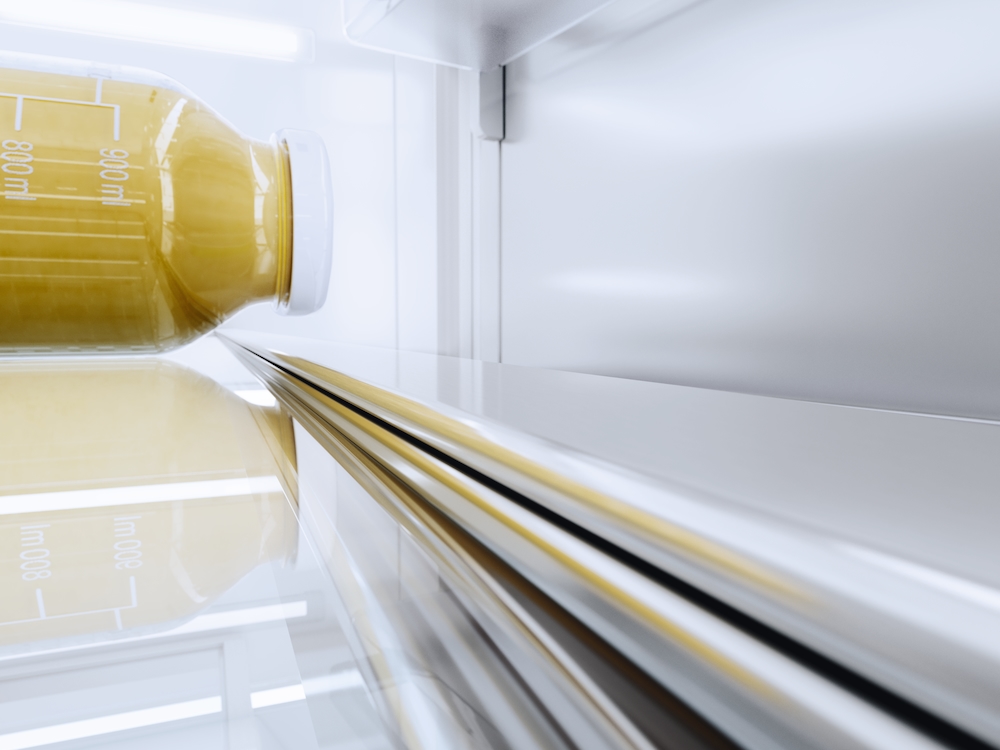

MasterCool – DuplexCool Pro

Better storage: separate cooling circuits for the refrigerator and freezer prevent drying out and odour transfer.

Cleverly networked
Miele@home1,

Make your life smart: thanks to Miele@home1, , you can cleverly network your domestic appliances – for more options.

Maintenance

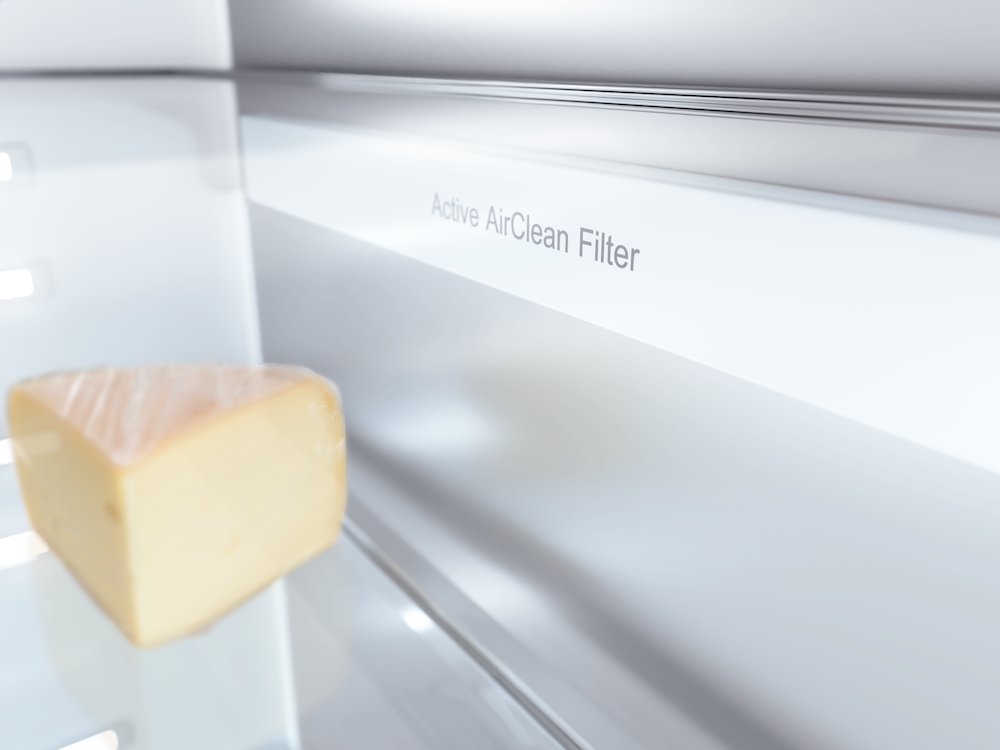

Provides effective protection against odours
MasterCool – Active AirClean filter

Unadulterated aroma: the combination of active charcoal and natural chitosan effectively prevents odours.

Innovation

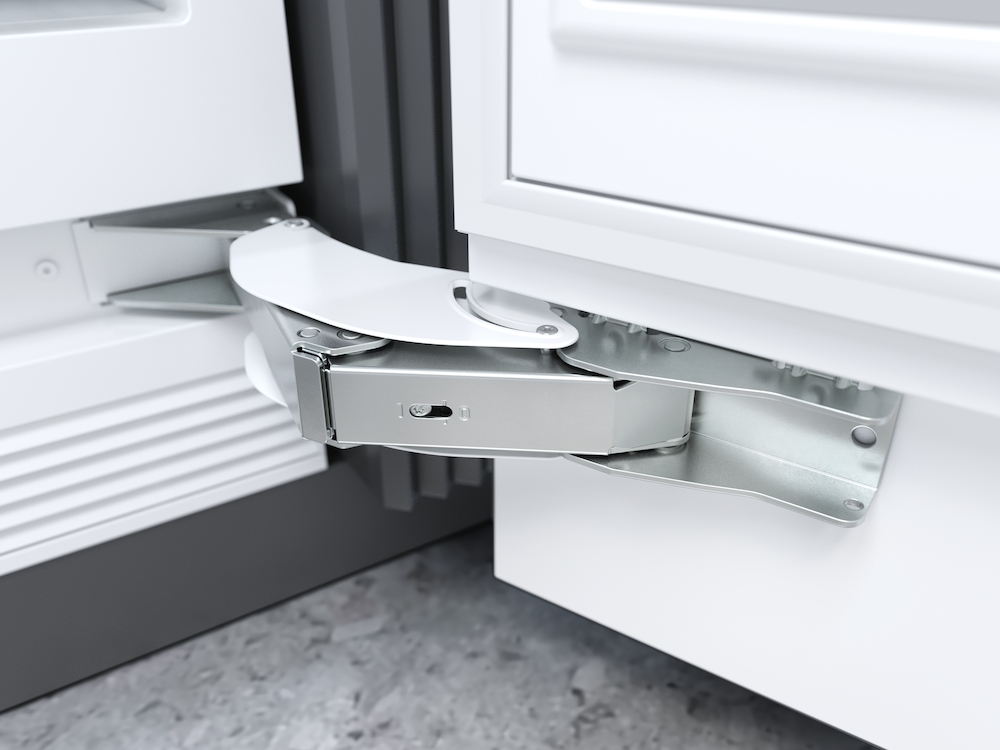

Safe handling guaranteed
MasterCool – MaxLoad hinges

Strong and robust: the door hinges are able to withstand high loads and make it easy to open large doors.

Special features

Ice cubes for cold drinks
MasterCool - IceMaker

Produced quickly and stored: The IceMaker, which can be controlled separately, produces up to 150 ice cubes per day.

Protective storage for long-lasting freshness
MasterCool – MasterFresh

Ideal climate: food stays fresh for up to 3 times longer due to perfect temperature and humidity.

Matching products and accessories

MasterCool fridge-freezer

MasterCool fridge-freezer

For high-end design and technology on a large scale.

£10,899.00
MasterCool refrigerator

MasterCool refrigerator

For high-end design and technology on a large scale.

£9,399.00
MasterCool refrigerator

MasterCool refrigerator

For high-end design and technology on a large scale.

£9,999.00
MasterCool fridge-freezer

MasterCool fridge-freezer

For high-end design and technology on a large scale.

£10,329.00
MasterCool wine conditioning unit

MasterCool wine conditioning unit

For high-end design and technology on a large scale.

£12,099.00
MasterCool freezer

MasterCool freezer

For high-end design and technology on a large scale.

£9,999.00
MasterCool freezer

MasterCool freezer

For high-end design and technology on a large scale.

£8,829.00
MasterCool wine conditioning unit

MasterCool wine conditioning unit

For high-end design and technology on a large scale.

£11,579.00
Multi-purpose microfibre cloth, qty 1
GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

£8.49
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

£16.99
Odour-absorbing Active AirClean filter
KKF-RF

Odour-absorbing Active AirClean filter

prevents unpleasant odours in the refrigerator.

£45.29
Retrofitting for Active AirClean filter
KKF-FF

Retrofitting for Active AirClean filter

prevents unpleasant odours in the refrigerator.

£57.49

Downloads

Product sheet
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
UK declaration of conformity
PDF
Downloads
UK declaration of conformity
PDF
Downloads
rvt
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
Energy label
PDF
Downloads
Energy label
PNG
Downloads
Product fiche
PDF
Downloads
Energy label
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000006/200000607/20000060754.png
Descriptions
Opening angel 90°/115°, right side stop, MasterCool (Sketch) *footnote
A) Appliance door width, K 2601 Vi, K 2601 SF, KWT 2601 Vi, KWT 2601 SF, KWT 2661 ViS, KWT 2661 SFS: 677 mm (26 2/3 , inch);, K 2602 Vi, K 2602 SF, KWT 2602 Vi, KWT 2602 SF, KWT 2662 ViS, KWT 2662 SFS: 677 mm (26 2/3 , inch);, K 2801 Vi, K 2801 SF, KF 2801 Vi, KF 2801 SF: 829 mm (32 2/3 inch);, K 2802 Vi, K 2802 SF, KF 2802 Vi, KF 2802 SF: 829 mm (32 2/3 inch);, K 2901 Vi, K 2901 SF, KF 2901 Vi, KF 2901 SF: 982 mm (38 2/3 inch);, K 2902 Vi, K 2902 SF, KF 2902 Vi, KF 2902 SF: 982 mm (38 2/3 inch);, B) Furniture front (max. 38 mm) (1 1/2 inch), C) Door handle, D) Distance door to wall (without furniture front and door handle): , K 2601 Vi, K 2601 SF, KWT 2601 Vi, KWT 2601 SF, KWT 2661 ViS, KWT 2661 SFS: 296 mm (11 2/3 , inch);, K 2602 Vi, K 2602 SF, KWT 2602 Vi, KWT 2602 SF, KWT 2662 ViS, KWT 2662 SFS: 296 mm (11 2/3 , inch);, K 2801 Vi, K 2801 SF, KF 2801 Vi, KF 2801 SF: 363 mm (14 1/3 inch);, K 2802 Vi, K 2802 SF, KF 2802 Vi, KF 2802 SF: 363 mm (14 1/3 inch), K 2901 Vi, K 2901 SF, KF 2901 Vi, KF 2901 SF: 428 mm (16 7/8 inch), K 2902 Vi, K 2902 SF, KF 2902 Vi, KF 2902 SF: 428 mm (16 7/8 inch), E) ONLY valid for SF versions: A + 25 mm (1 inch)
Downloads
https://media.miele.com/images/2000006/200000657/20000065730.png
Descriptions
Side-by-side, MasterCool, without partition wall, with heating mat (Sketch) (with footnote)
1) Heating mat KSK 2001 (EU, AUS, CN) or KSK 2002 (US, CA, MX, BR)
Downloads
https://media.miele.com/images/2000015/200001517/20000151714.png
Descriptions

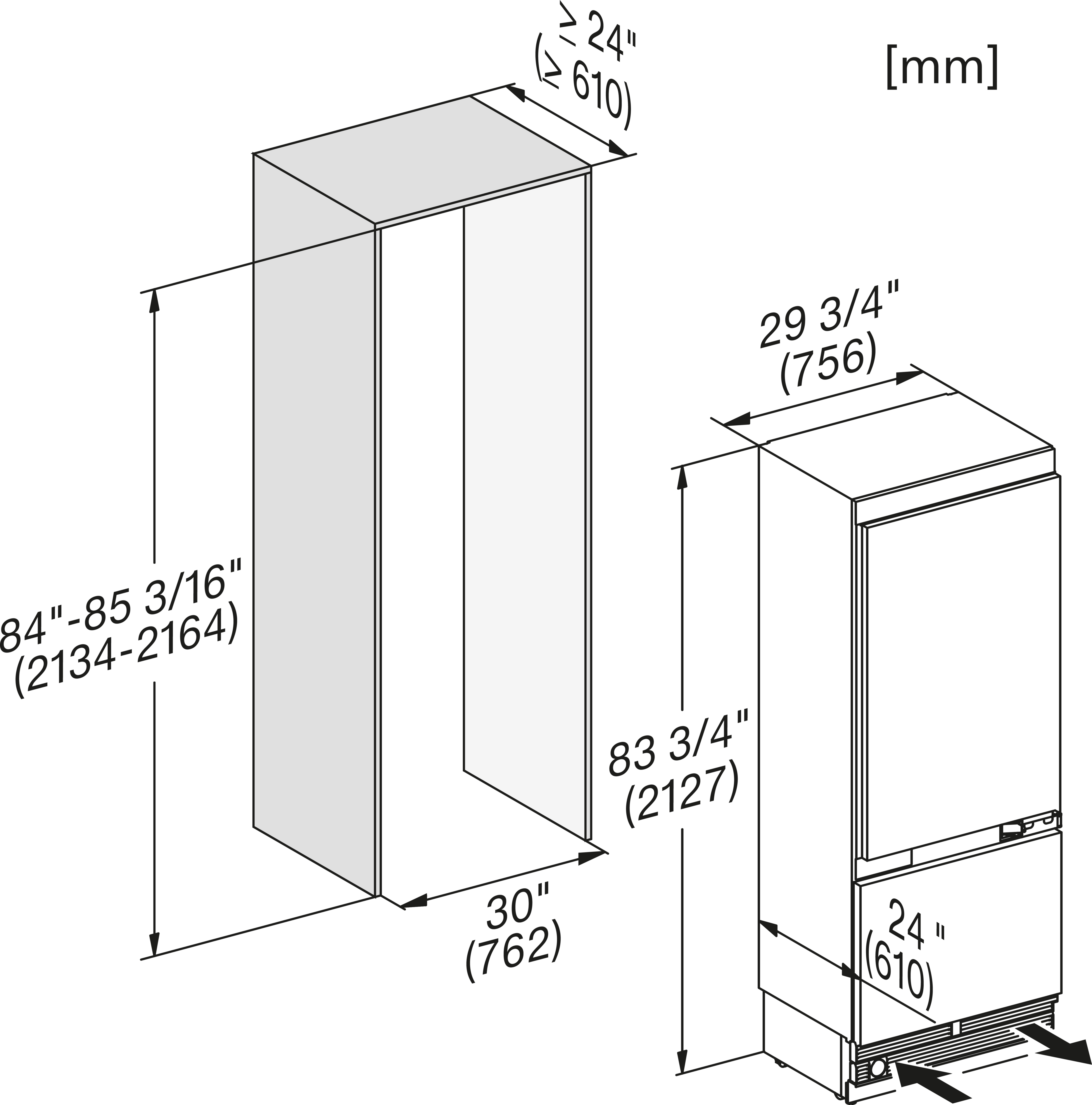

KF2802Vi, KF2812Vi, KF2801Vi, KF2811Vi, Installation, MasterCool II, installation drawings
Installation drawings
Downloads
https://media.miele.com/images/2000016/200001632/20000163253.png
Descriptions

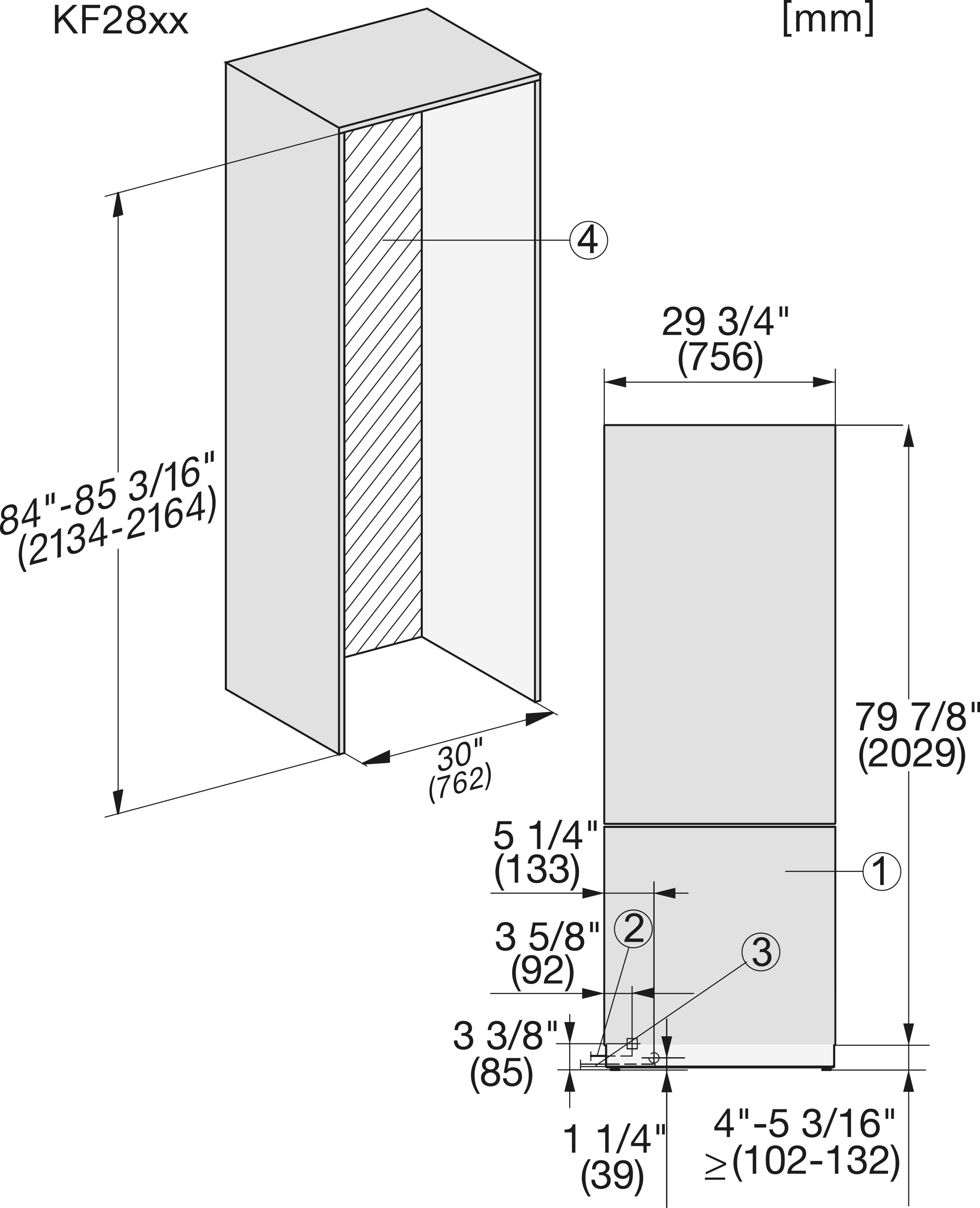

KF2801Vi, KF2811SF, KF2811Vi, KF2811SF, KF2802Vi, KF2812SF, KF2812Vi, KF2812SF, MasterCool, installation drawings
1. View from the front, 2. Mains Connection cable, L = 3000 mm, 3. Water inlet positon, L = 2000mm, 4. No water/ELT conections permitted in this area
Downloads
https://media.miele.com/images/2000016/200001617/20000161753.png
Descriptions
KF2901Vi/SF, KF2911Vi/SF, KF2801VI/SF, KF2811Vi/SF, KF2981Vi/SF, sideview, MasterCool, installation drawings
Installation drawings
Downloads
https://media.miele.com/images/2000016/200001626/20000162600.png
Descriptions
Side-by-Side, MasterCool, footnote, installation drawings
1. KSK 2001/2002, 2. Device A, 3. Device B, A = niche device A, B = niche device B
Downloads
https://media.miele.com/images/2000016/200001632/20000163238.png
Descriptions

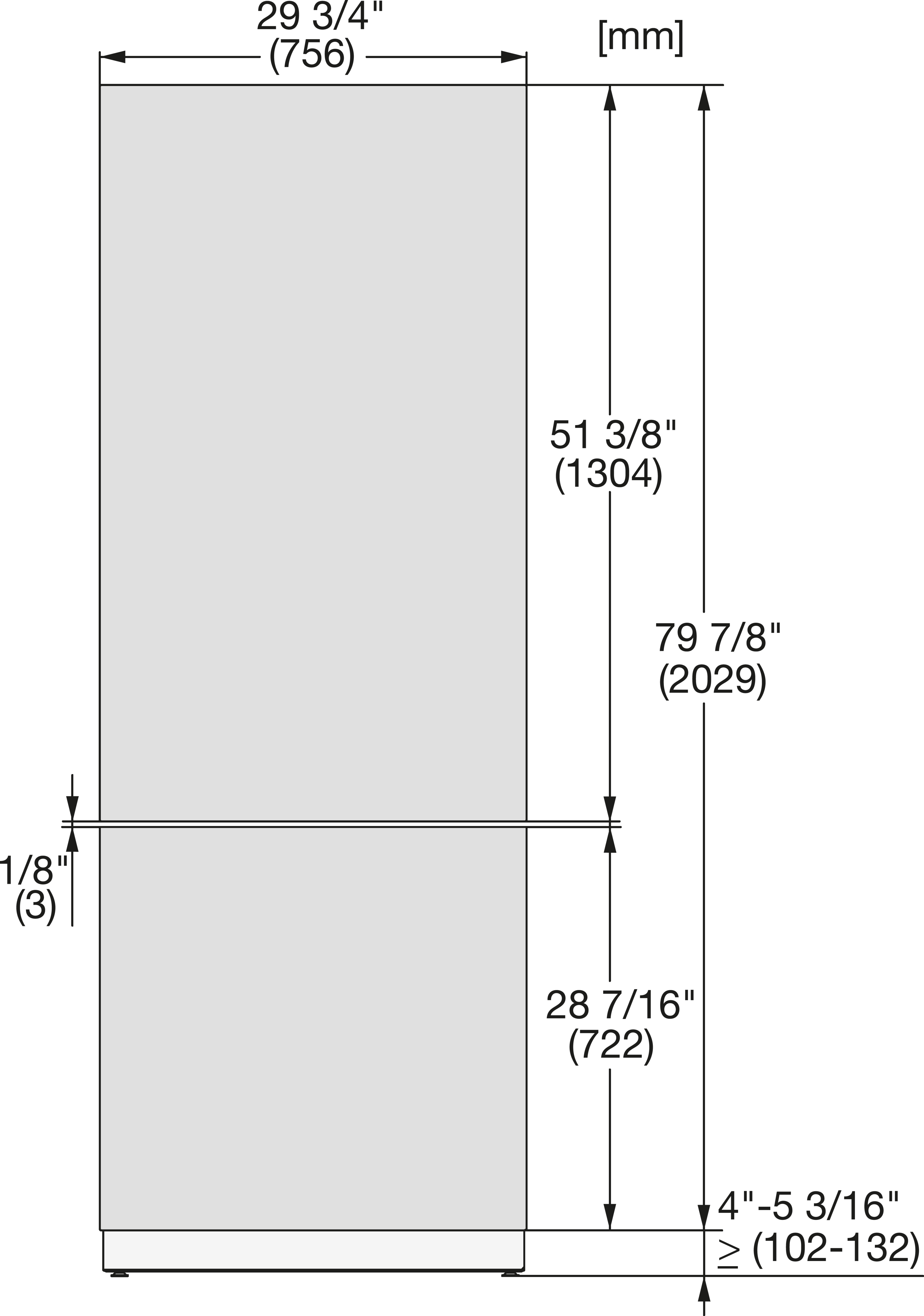

KFP3015ed/cs, KFP3025ed/cs, KFP3014ed/cs, KFP3024ed/cs, Front panel, Front dimensions, MasterCool, sketch
Installation drawings
Downloads
