Built-under wine conditioning unit

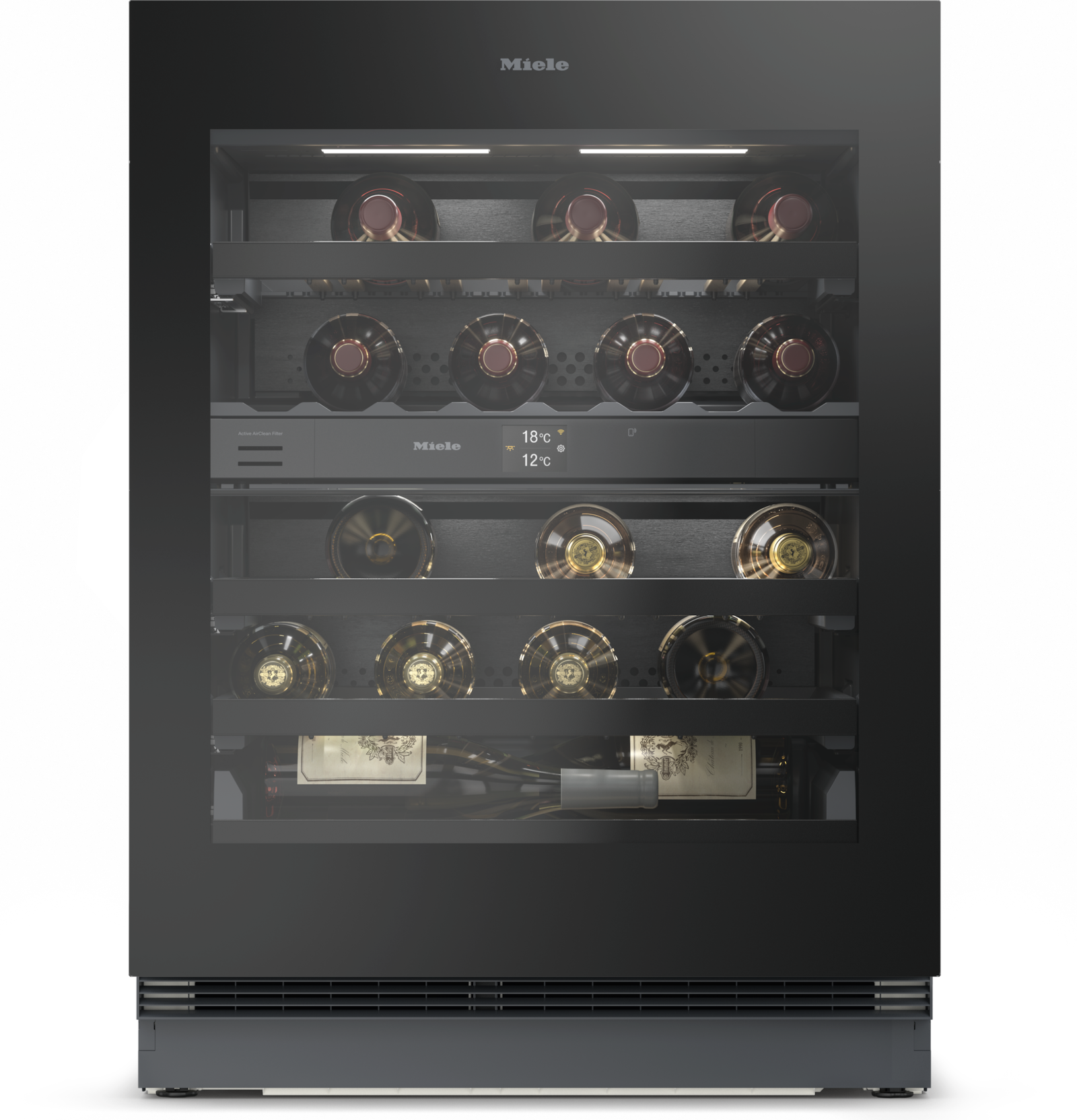

KWTUS 7096 E Obsidian Black glass

with separate temperature zones, FlexiFrame and Push2open in a compact design.
Product data sheet
Colour:Obsidian Black glass
sale price£3,799.00
Free Delivery with code FREESHIP at checkout. Installation and recycling options available at checkout. For installation of built-in appliances please call 0330 160 6630



Product details

  • Perfect drinking and storage temperatures thanks to separatetemperature zones
  • Storage of all bottle sizes/shapes thanks toFlexiFrame
  • Perfect regulation of humidity withActiveHumidity
  • Writing on the wooden shelves on the NoteBoard
  • #UV-resistant insulated glass# perfectly protects your wineCO_15870995

Product data sheet

Integrated appliance
Undercounter appliance
Door hingeright
Casing colourblack
Front colourObsidian Black glass
Wine compartment lightingcontinuously dimmable LED
Networking with Miele@home
Concealed door openerPush2open
Number of shelves4
Shelf materialBeechwood
Number of FlexiFrame racks3
Number of shelves for crosswise storage1
SelfClose FlexiFrame
NoteBoard
Operating conceptFreshTouch
No. of temperature zones2
Min. temperature setting range in °C5
Max. temperature setting range in °C20
Dry back wallBlackSteel
ActiveHumidity

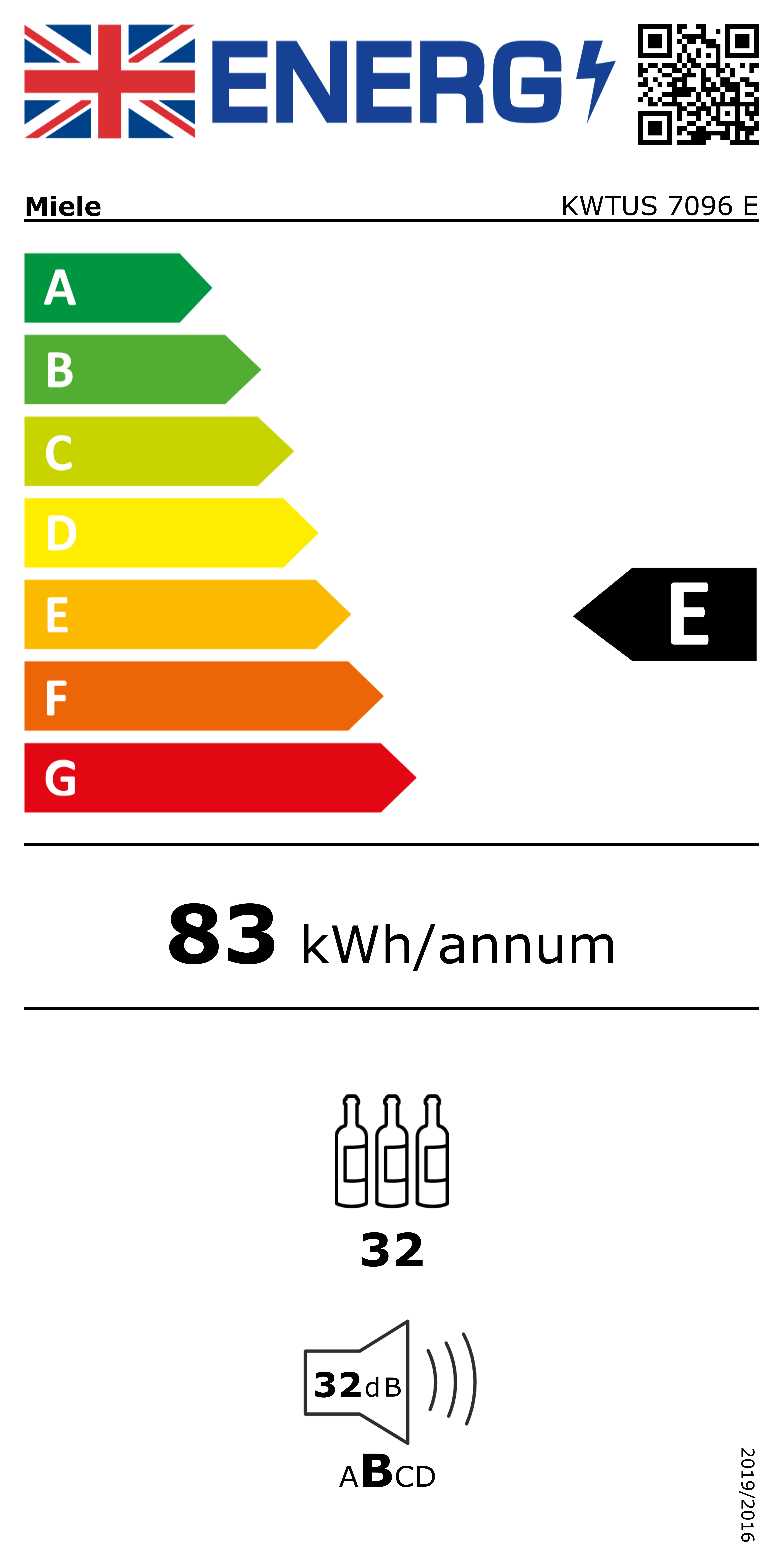

Energy efficiency class (A–G)E
Annual energy consumption in kWh83.20
Energy consumption in 24 h in kWh0.227
Niche width in mm min.600
Niche width in mm max.600
Niche height in mm min.820
Niche height in mm max.880
Niche depth in mm580
Appliance width in mm597
Appliance height in mm819
Appliance depth in mm579
Weight in kg51
Door hinge technologyFixed door
Climate classSN-ST
Refrigerator compartment in l95
Total usable capacity in l95
0.75 l Bordeaux bottle capacity (no. of bottles)32 bottles
Acoustic airborne noise emission class (A–D)B
Sound emissions in dB(A) re 1 pW32
Current consumption (mA)1500
Voltage in V220-240
Fuse rating in A10
Number of phases1
Frequency in Hz50-60
Length of supply lead in m2.2
EAN4002516779438
Cleverly networked
Miele@home2,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

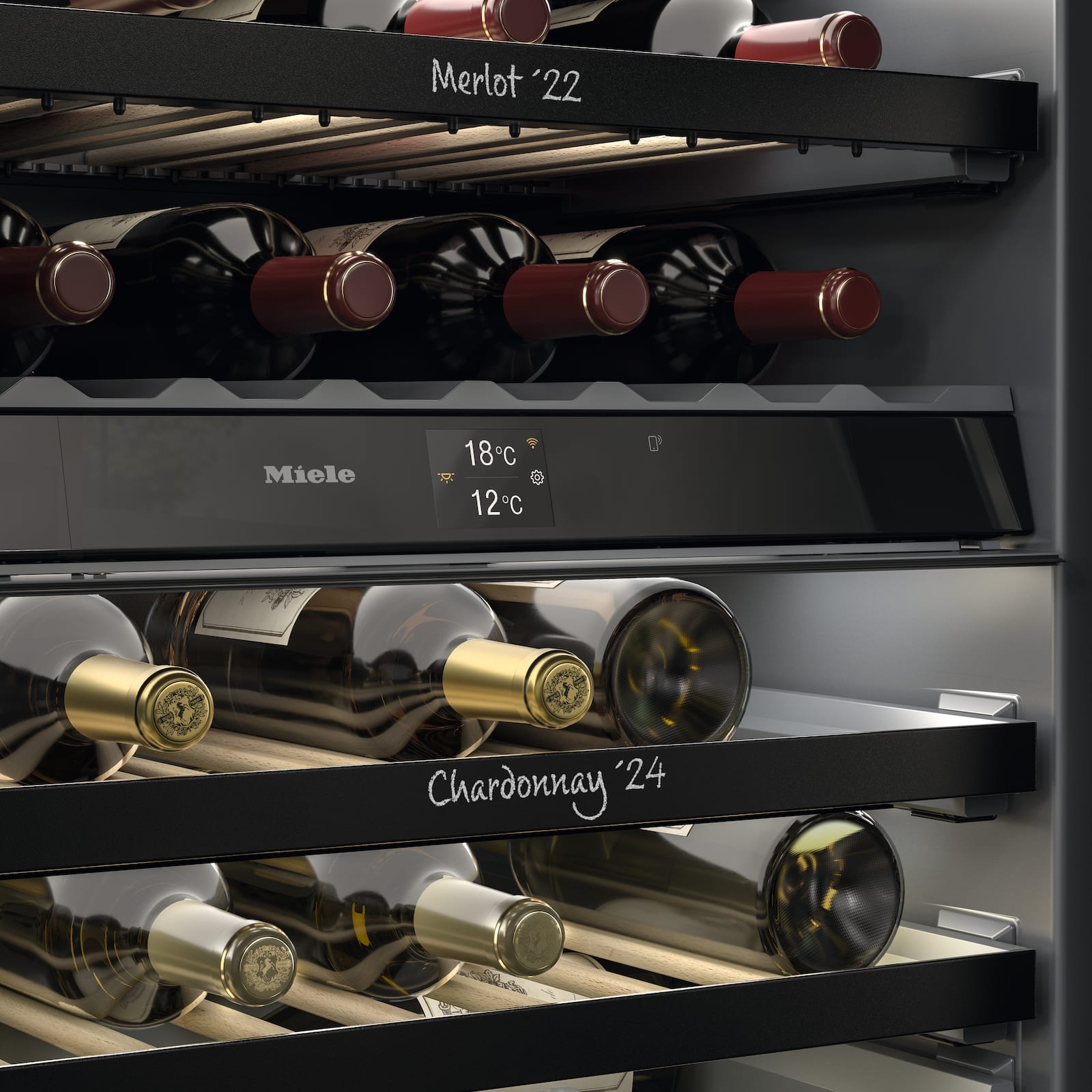

Customise each rack with strips you can write on
NoteBoard

For individual labelling: every bottle rack features a removable, magnetic strip for labelling bottles on the rack.

User convenience

Cleverly networked
Miele@home2,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

Customisable humidity
ActiveHumidity

Ideal conditions: customise the humidity for perfect wine storage.

Customise each rack with strips you can write on
NoteBoard

For individual labelling: every bottle rack features a removable, magnetic strip for labelling bottles on the rack.

Quality

Specially developed for storage in the wine unit
Storage with low vibration

Low vibration: The compressor is uncoupled and cushioned against vibration.

Matching products and accessories

Built-under wine conditioning unit
KWTUS 7096 E

Built-under wine conditioning unit

with separate temperature zones, FlexiFrame and Push2open in a compact design.

£3,799.00

Downloads

User manual
PDF
Downloads
Product sheet
PDF
Downloads
Energy label
PDF
Downloads
Energy label
PNG
Downloads
Product fiche
PDF
Downloads
Energy label
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000021/200002182/20000218212.png
Descriptions

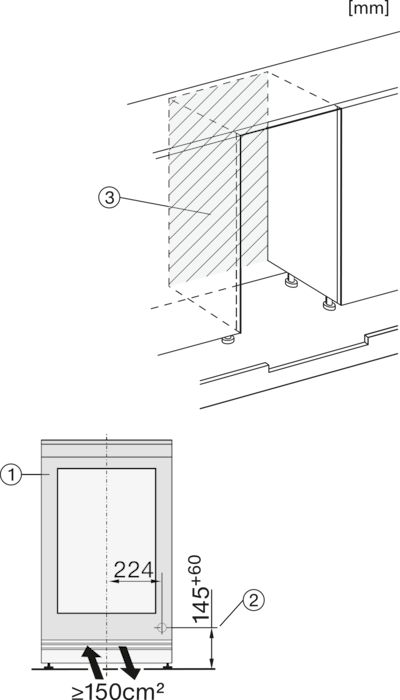

KWTUS7054F, KWTUS7055F, KWTUS7074F, KWTUS7096E, KWTUS7196E, Built-under, side view (*footnote) (installation drawings)
*1. View from the front, 2. Mains connection cable, L = 2200 mm, 3. No connection in this area
Downloads
https://media.miele.com/images/2000021/200002182/20000218202.png
Descriptions

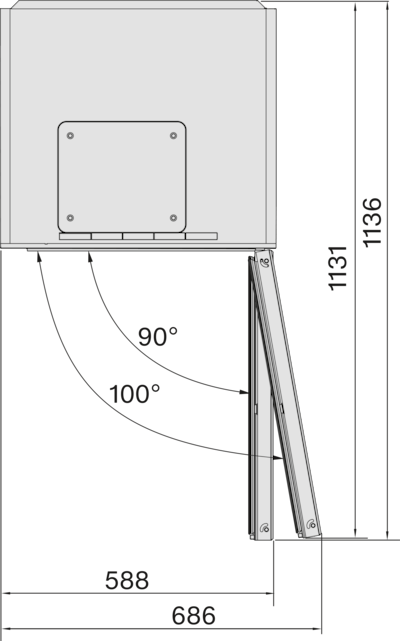

KWTUS7196E, KWTUS7096E, Built-under, top view (installation drawings)
Installation drawings
Downloads
https://media.miele.com/images/2000021/200002181/20000218181.png
Descriptions

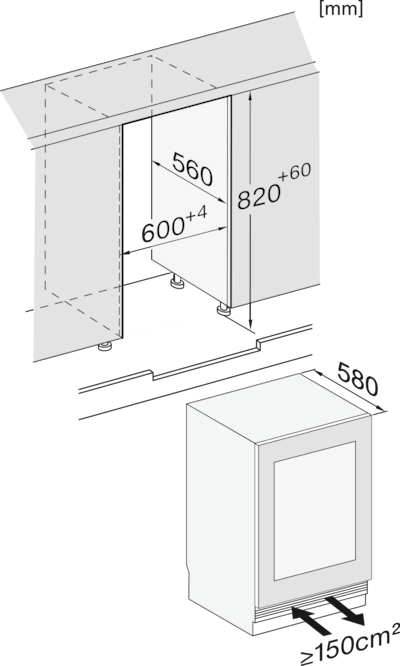

KWTUS7054F, KWTUS7055F, KWTUS7074F, KWTUS7096E, Built-under, Einbauskizze, Nischenmaß (installation drawings)
Installation drawings
Downloads
https://media.miele.com/images/2000021/200002182/20000218207.png
Descriptions

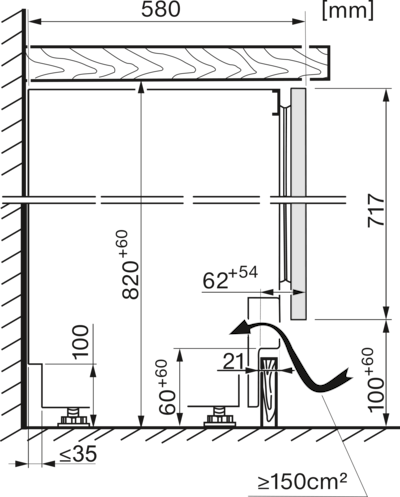

KWTUS7096E, Built-under, side view (installation drawings)
Installation drawings
Downloads
